Description

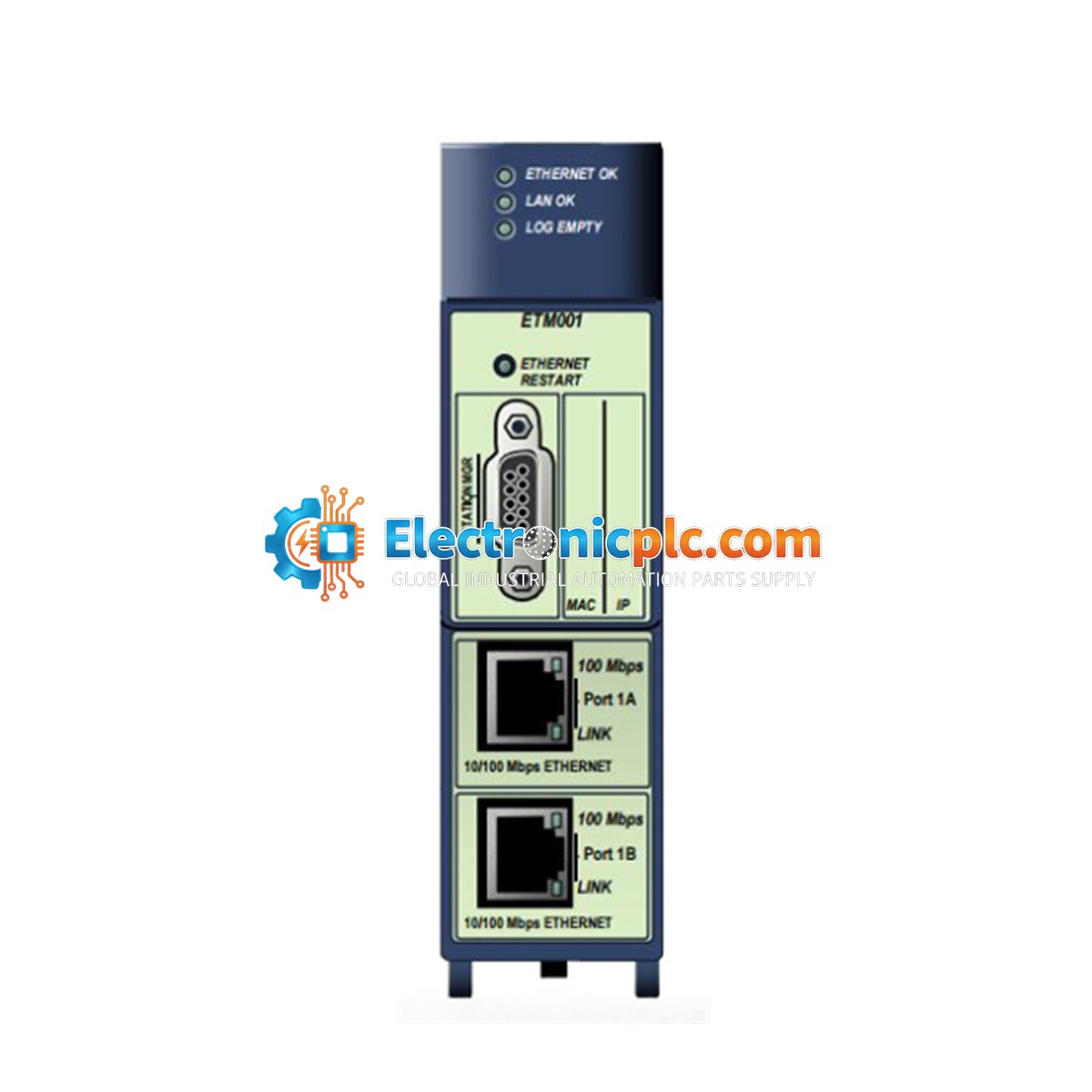

The General Electric IC695ETM001 is a high-performance Ethernet interface module designed for the PACSystems RX3i control platform. This module provides robust network connectivity, enabling seamless integration of the RX3i system into industrial Ethernet networks. It serves as a communication bridge, facilitating data exchange between the controller and other networked devices, including HMI systems, supervisory computers, and remote I/O.

Features

• Dual 10/100 Mbps Ethernet ports with autosensing capabilities.
• Integrated RS-232 serial port for local configuration or legacy device communication.
• Supports half and full-duplex communication modes.
• Hot-swappable design allows for module replacement without powering down the entire rack.
• Equipped with non-volatile memory to support advanced networking features and node daisy-chaining.
• Serial data rates configurable from 1200 bps up to 115200 bps.

Technical Specifications

Installation Guidelines

• Ensure the RX3i rack is powered down before inserting or removing the module to prevent electrical damage.
• The module is designed for standard RX3i backplane mounting; ensure it is fully seated and the locking tabs are engaged.
• Use shielded twisted-pair (STP) Ethernet cables to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper cable routing, keeping communication lines separate from high-voltage power cabling.
• Handle the module using ESD-safe practices to protect internal circuitry from static discharge.

FAQ

Is this module hot-swappable?

Yes, the IC695ETM001 is designed to be hot-swappable, allowing for maintenance or replacement while the RX3i system remains operational.

What type of Ethernet connectors does this module use?

The module features two 8-pin female shielded RJ45 connectors for standard Ethernet network connectivity.

Can this module be used for daisy-chaining?

Yes, the module supports non-volatile memory features that facilitate the daisy-chaining of Ethernet nodes within the network architecture.
