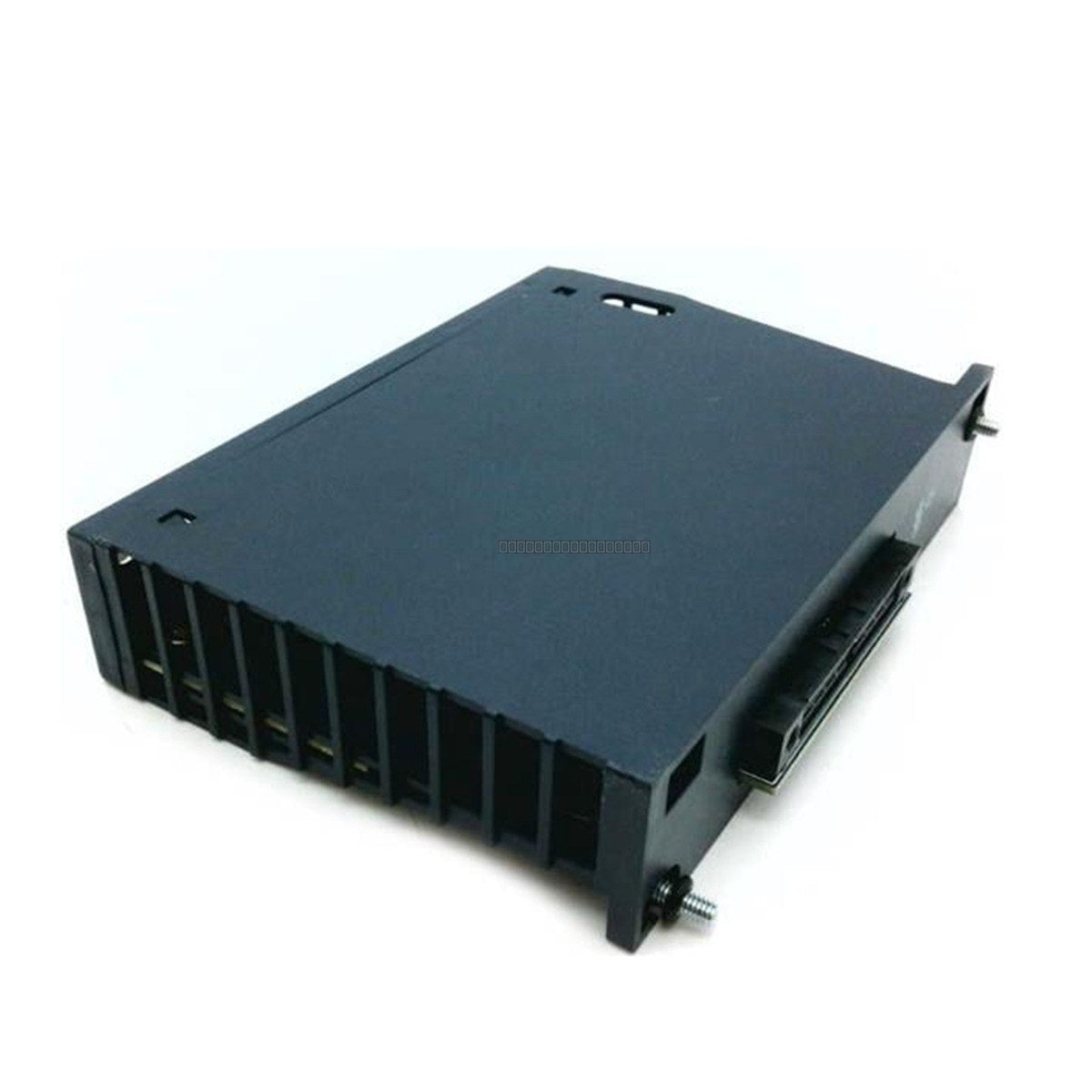

The General Electric IC695LRE001 is a Serial Bus Transmitter module designed for the PACSystems RX3i control platform. This module facilitates high-speed communication and expansion capabilities within the RX3i system architecture, supporting up to 7 racks and managing up to 320 discrete I/O points.

Features

• Designed specifically for the PACSystems RX3i product line.
• Provides serial bus transmission for system expansion.
• Occupies a single slot on the RX3i backplane.
• Supports robust communication with an effective data rate of 500 kbps.
• Compact design for efficient rack space utilization.

Technical Specifications

Installation Guidelines

• Ensure the RX3i rack power is disconnected before installing or removing the module.
• Verify that the module is properly seated in the backplane slot to ensure reliable electrical contact.
• Use appropriate shielded cabling to maintain signal integrity, especially when operating at the maximum cable distance of 50 ft.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
• Ensure the environment is free from excessive vibration and within the specified operating temperature range for the RX3i system.

FAQ

What is the primary function of the IC695LRE001?
This module acts as a serial bus transmitter for the PACSystems RX3i platform, allowing for the expansion of the system to additional racks and managing discrete I/O.

How many slots does this module occupy?
The IC695LRE001 is a single-slot module designed for backplane mounting within an RX3i rack.

What is the maximum distance supported by this module?
The module supports a maximum cable length of 50 feet for serial bus communication.
