Description

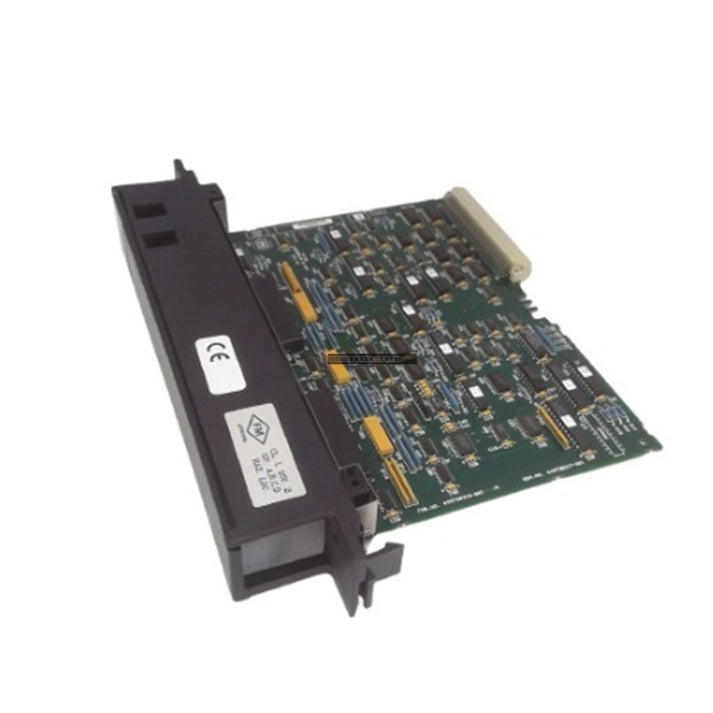

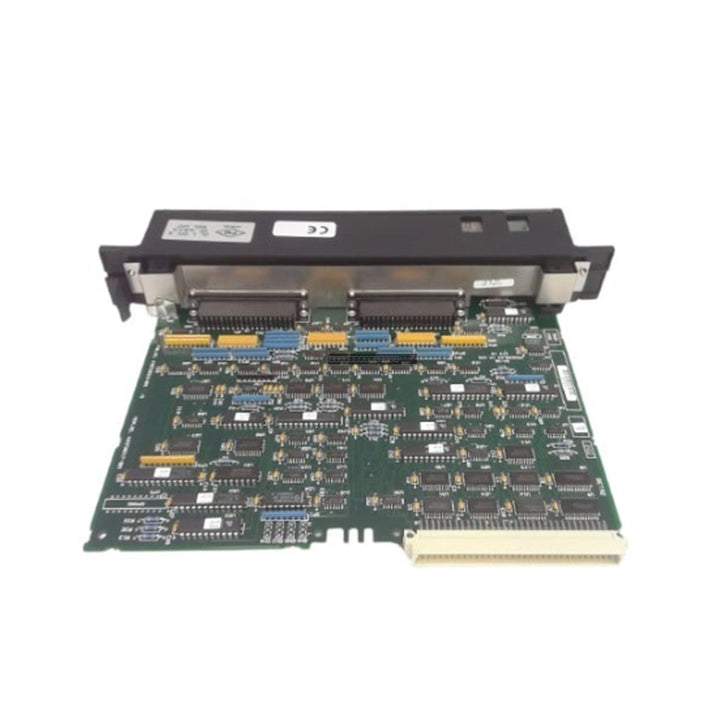

The General Electric IC697BEM713 is a specialized Bus Transmitter module designed for the GE Series 90-70 PLC platform. This module facilitates high-speed communication and data transmission across the PLC backplane and expansion racks, serving as a critical component in distributed I/O architectures. It is engineered to maintain system integrity and reliable data exchange within the Series 90-70 ecosystem.

Features

• High-speed communication at an effective data rate of 500 Kbytes/sec.
• Equipped with dedicated status LEDs for OK, PGMR, and Last Rack monitoring.
• Designed for integration into any available slot within the Series 90-70 rack, with the exception of Slot 1.
• Includes one parallel port and one expansion port for versatile system connectivity.
• Supports efficient program storage capacity of 16 Kbytes.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
• The module is compatible with any slot in the Series 90-70 rack, provided it is not placed in Slot 1.
• Use ESD-safe handling procedures when touching the module to prevent static discharge damage to internal circuitry.
• Ensure that the module is fully seated in the backplane connector and that the retaining screws are tightened to secure the unit.
• Verify that all interface cables are properly routed away from high-voltage lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC697BEM713?
This module serves as a bus transmitter, enabling the expansion of the Series 90-70 PLC system by allowing the processor to communicate with remote or additional I/O racks.

Can I install this module in any slot?
The module can be installed in any available slot within the Series 90-70 rack, except for Slot 1, which is reserved for the CPU.

What is the power requirement for this unit?
The module operates on a 5V DC supply and draws 1.4 Amps of current from the backplane.
