Description

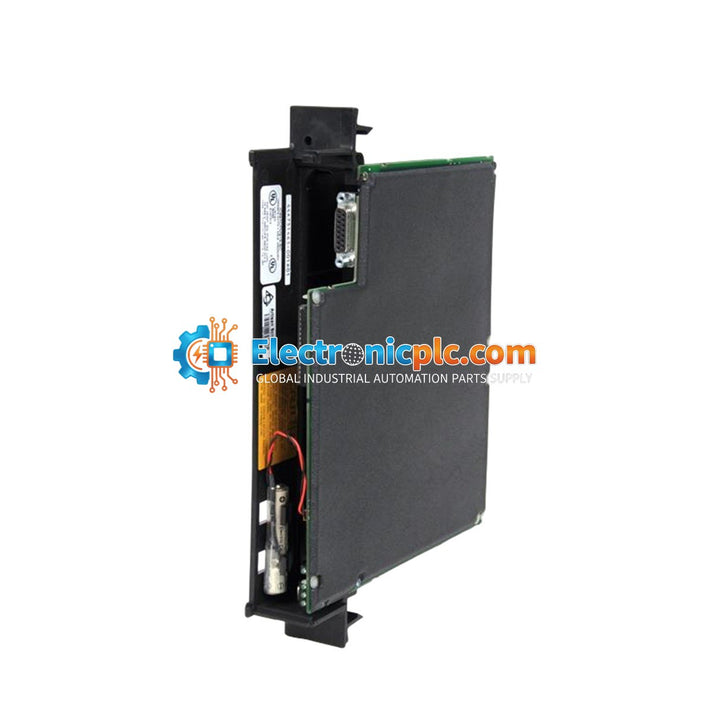

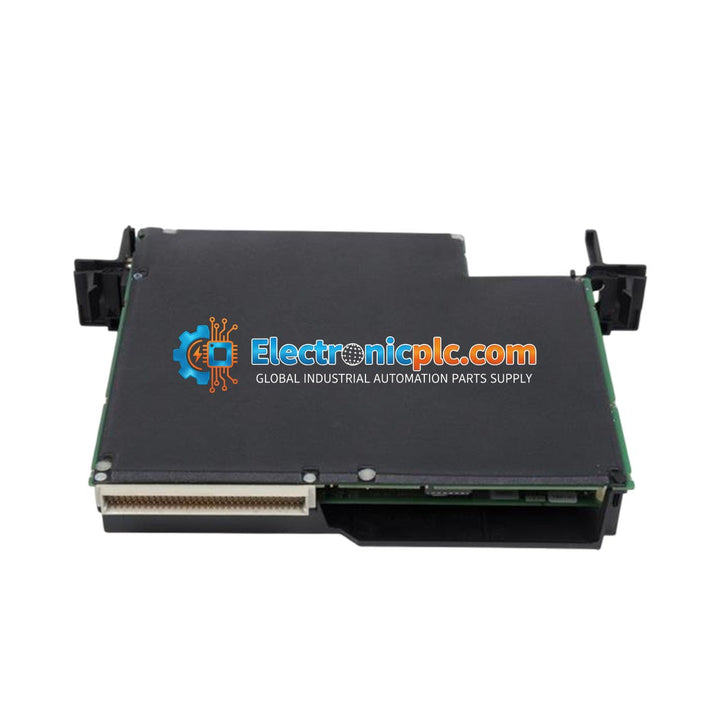

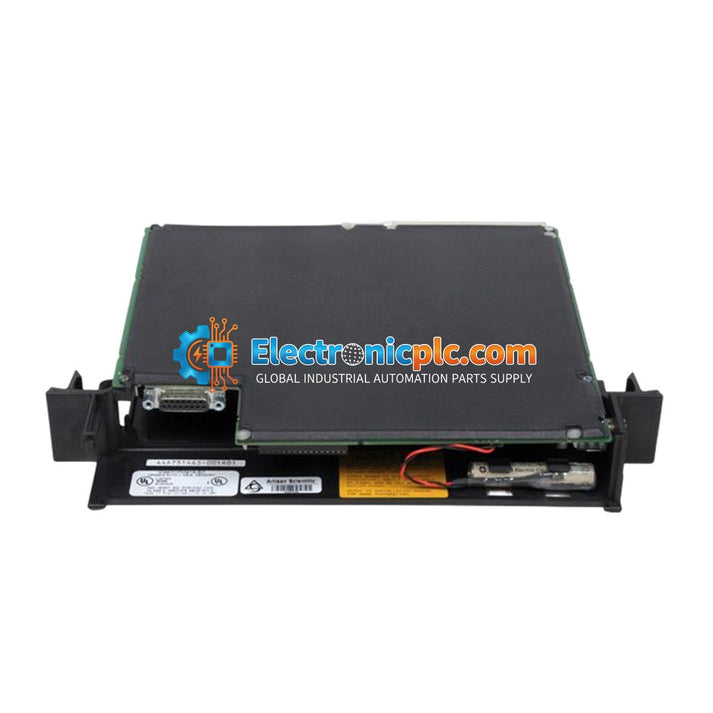

The IC697CPM915 is a high-performance Central Processing Unit (CPU) module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) platform. This module serves as the primary controller for the system, executing user-defined logic, managing I/O communications, and performing complex arithmetic and data processing tasks required for industrial automation applications.

Features

• Designed for integration within the GE Fanuc Series 90-70 rack-based PLC architecture.
• Equipped with a 32 MHz processor for efficient execution of complex control algorithms.
• Features 1 Megabyte of onboard RAM for program storage and data handling.
• Includes one dedicated serial port for communication and programming interface.
• Robust design suitable for standard industrial operating environments.

Applications

The IC697CPM915 is utilized in demanding industrial environments requiring reliable, high-speed control. Typical applications include manufacturing process control, material handling systems, power generation monitoring, and large-scale industrial machine automation where the Series 90-70 platform is deployed.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
• Verify that the module is properly seated in the designated CPU slot of the Series 90-70 rack.
• Ensure adequate ventilation around the rack to maintain the operating temperature within the 0 to 60 degC range.
• Use appropriate ESD (Electrostatic Discharge) protection when handling the module to prevent damage to sensitive internal components.
• Confirm that all backplane connections are secure and free of debris before applying power.

FAQ

What is the primary function of the IC697CPM915?

The IC697CPM915 acts as the central processor for the GE Fanuc Series 90-70 PLC system, responsible for running the control program and managing system-wide I/O operations.

Is this module compatible with other GE series?

This module is specifically engineered for the Series 90-70 PLC family and is not interchangeable with other GE Fanuc series such as the 90-30 or PACSystems RX3i.
