Description

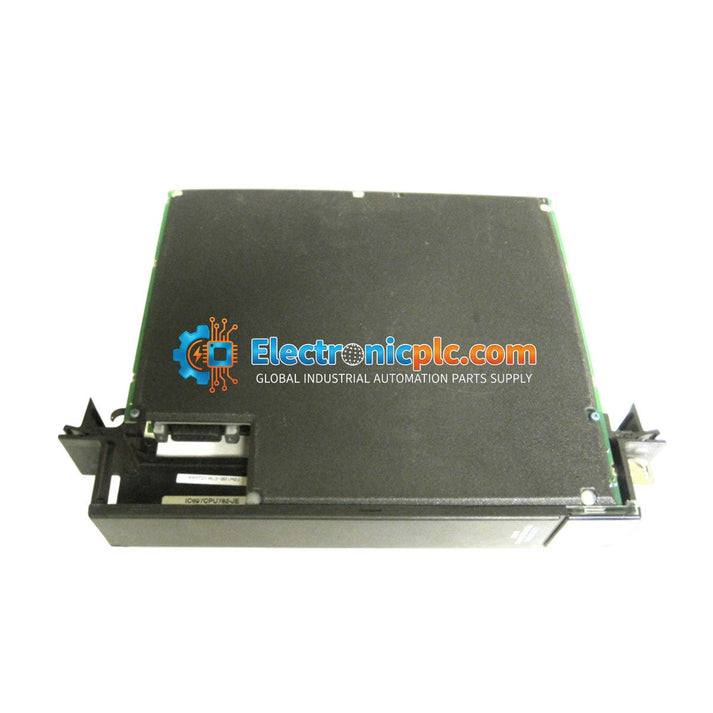

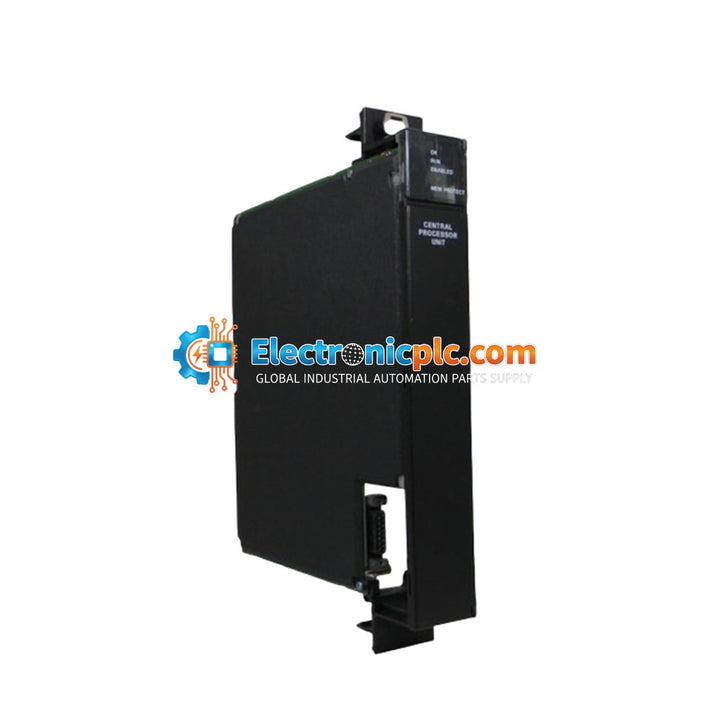

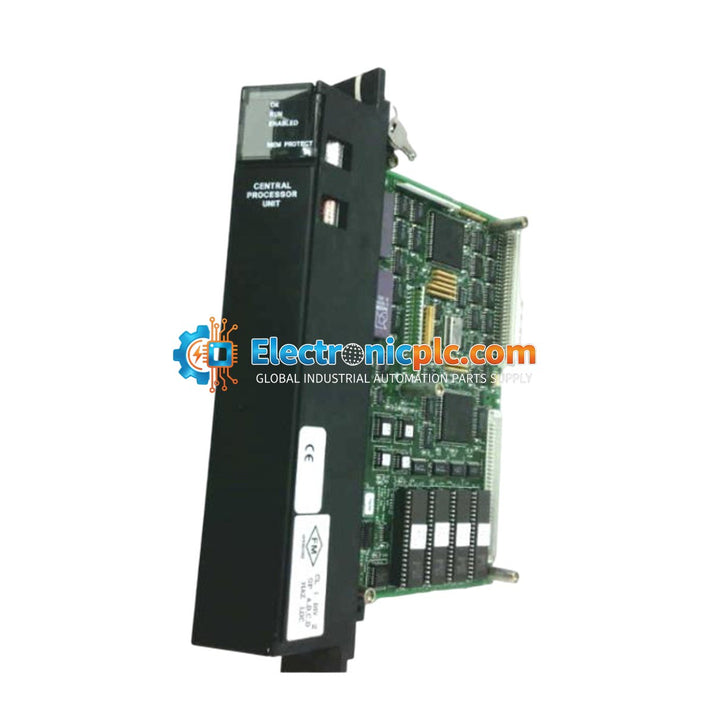

The IC697CPU782 is a high-performance Central Processing Unit (CPU) module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) platform. This single-slot module provides robust processing capabilities for complex industrial automation tasks, supporting floating-point mathematics and efficient discrete and analog I/O management. It is engineered for reliability in demanding control environments, utilizing a 16 MHz clock speed to deliver rapid execution times for logic functions.

Features

• Single-slot design for efficient rack space utilization.
• Supports floating-point math operations for advanced calculations.
• Integrated RS485 communication port for serial connectivity.
• Designed for compatibility with the VME standard C.1.
• On-board LED status indicators for Module OK, RUN, and Outputs Enabled.
• Discrete I/O memory capacity of 12 KB and analog I/O memory of 8 KB.

Applications

This CPU module is intended for use in GE Fanuc Series 90-70 PLC systems, commonly found in large-scale industrial manufacturing, process control, and infrastructure management applications where high-speed logic processing and reliable I/O handling are required.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module from slot 1 of rack 0.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure the module is fully seated in the backplane connector to maintain proper VME bus communication.
• Verify that the power supply provides a stable 5V DC input within the specified current rating.
• Maintain adequate ventilation around the rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.

FAQ

What is the primary function of the IC697CPU782?

The IC697CPU782 acts as the central processor for the GE Fanuc Series 90-70 PLC, managing system logic, I/O processing, and communication tasks.

Is this module compatible with other Series 90 systems?

This module is specifically designed for the Series 90-70 PLC platform. Verify your specific system architecture before installation.

What does the RS485 port support?

The integrated RS485 port is used for serial communication, allowing the CPU to interface with external devices, programming terminals, or other serial-enabled industrial equipment.
