Description

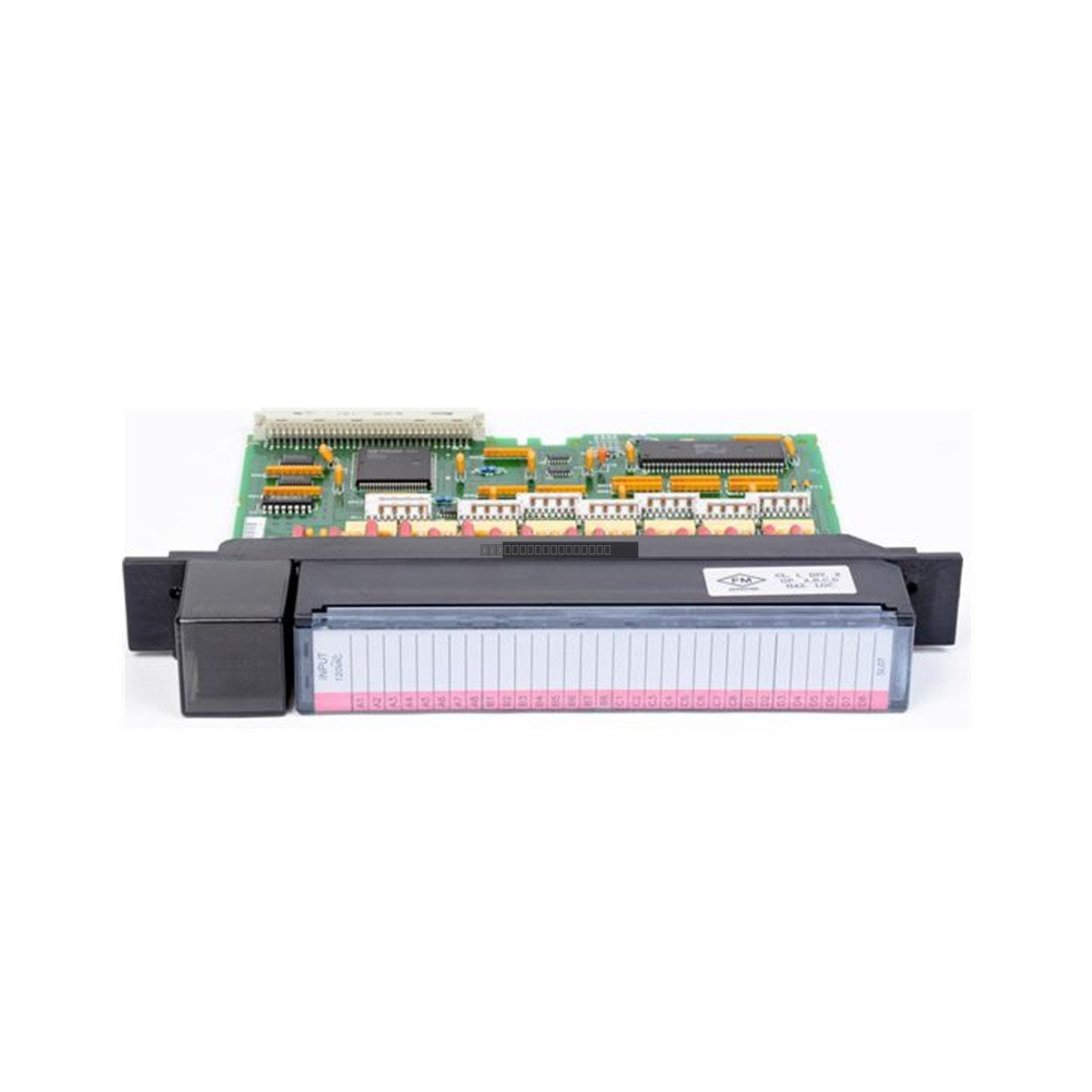

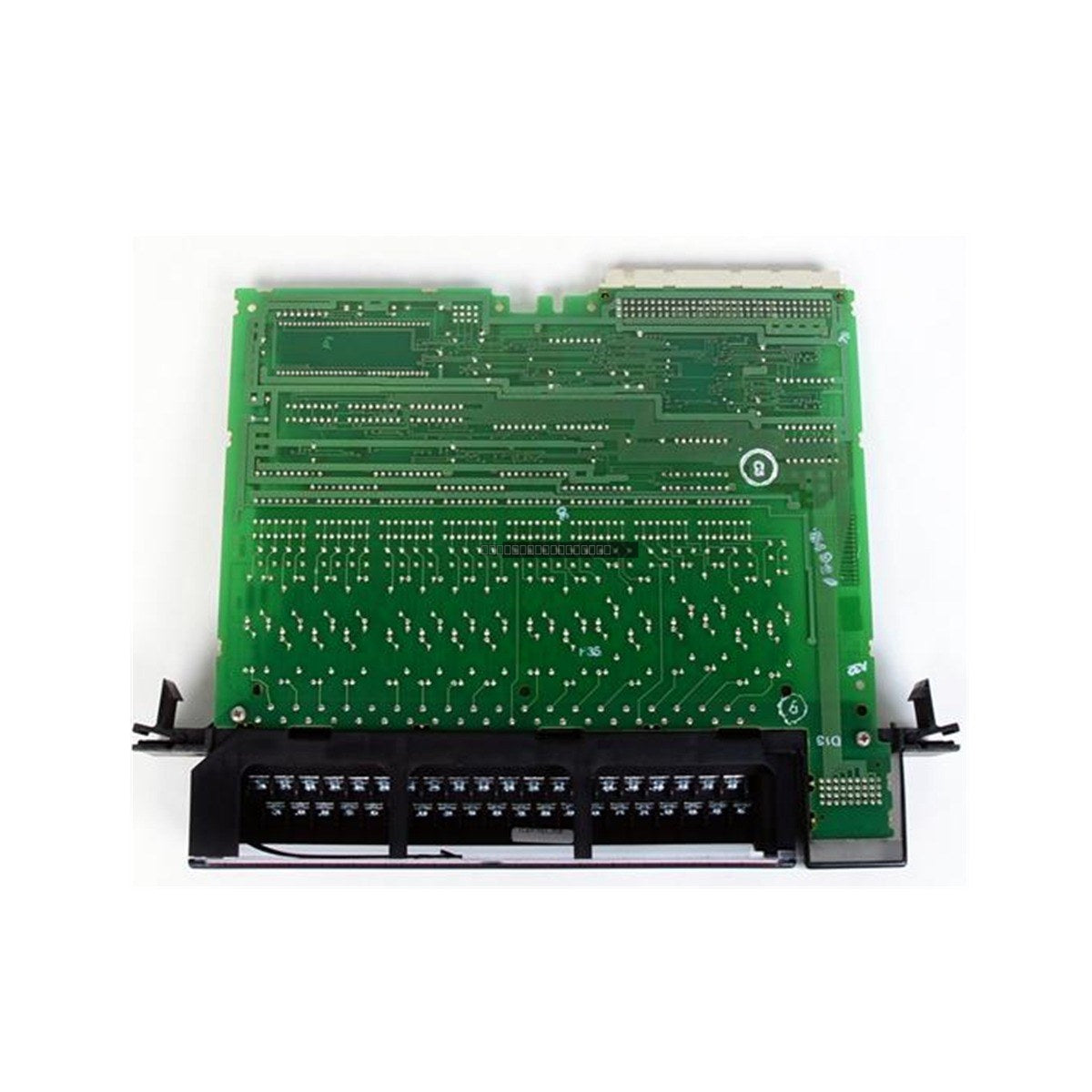

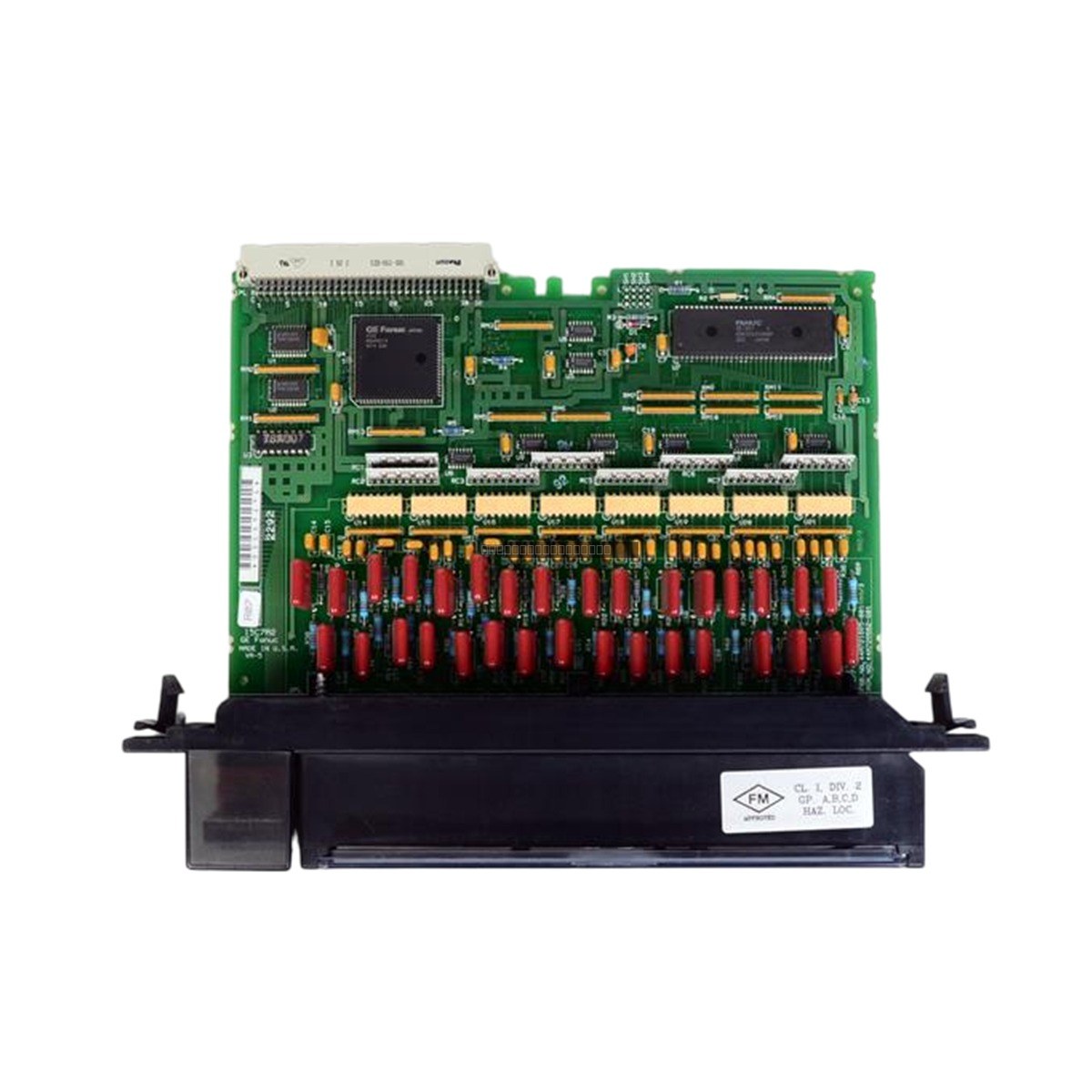

The General Electric IC697MDL250 is a high-density discrete input module designed for the GE Series 90-70 Programmable Logic Controller (PLC) system. This module provides 32 points of input, specifically engineered for 120V AC applications. It serves as a critical interface between field devices and the PLC, converting external AC signals into logic-level inputs for the CPU to process.

Features

• 32-point discrete input capacity for high-density signal monitoring.
• Compatible with 120V AC input voltage ranges.
• Designed for seamless integration into the GE Series 90-70 rack-based architecture.
• Standard input current of 10 mA per point.
• Reliable performance in industrial control environments.

Technical Specifications

Installation Guidelines

• Ensure power is completely disconnected from the rack before inserting or removing the module to prevent electrical damage or personal injury.
• Verify that the module is fully seated in the designated slot of the Series 90-70 backplane and that the locking levers are secured.
• Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the PLC rack system to maintain signal integrity and safety.
• Maintain adequate spacing around the module to allow for proper ventilation and heat dissipation during operation.

FAQ

What is the primary function of the IC697MDL250?

The IC697MDL250 is a discrete input module used to interface 120V AC field signals with the GE Series 90-70 PLC system, allowing the processor to monitor the status of external switches, sensors, or relays.

Can this module be used in systems other than the 90-70 series?

No, this module is specifically engineered for the GE Series 90-70 PLC rack architecture and is not compatible with other GE controller series.

What is the required backplane current for this module?

The module requires 0.35 A of current from the backplane to operate effectively.
