Description

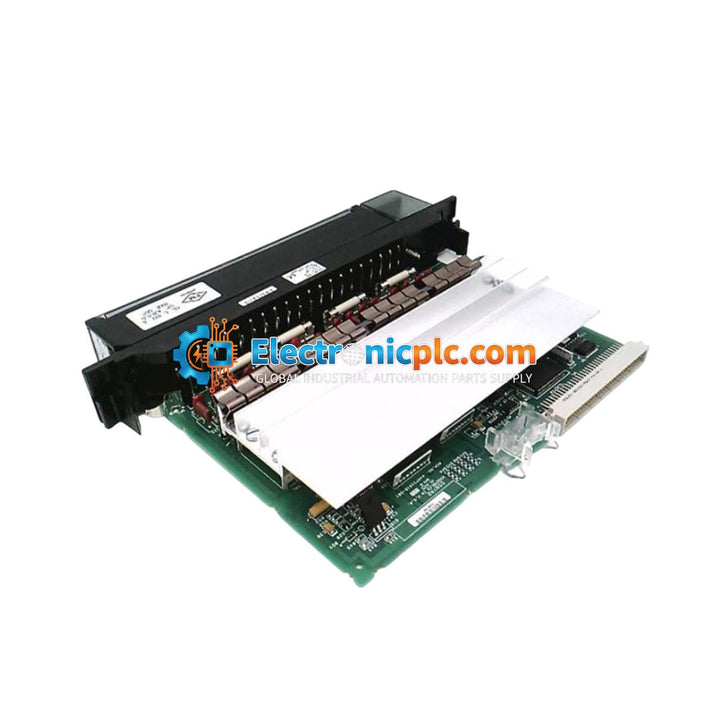

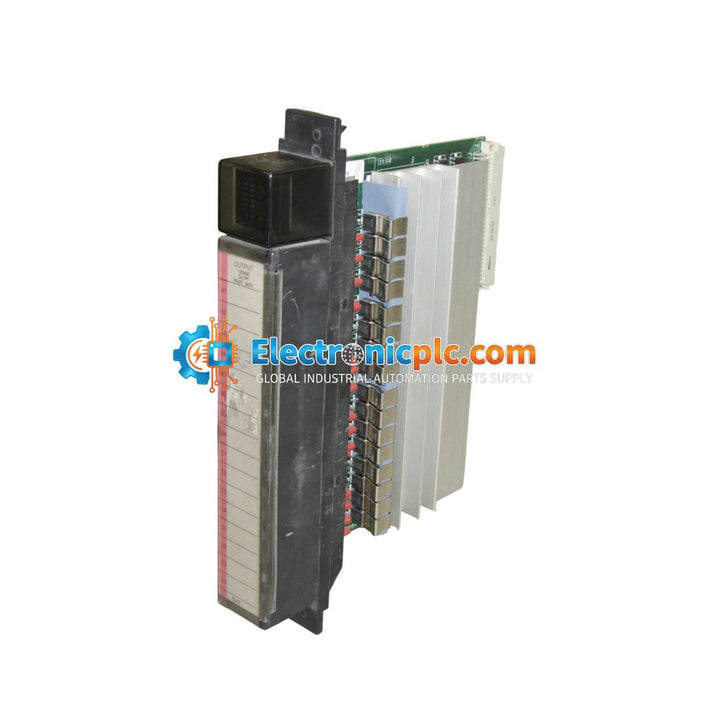

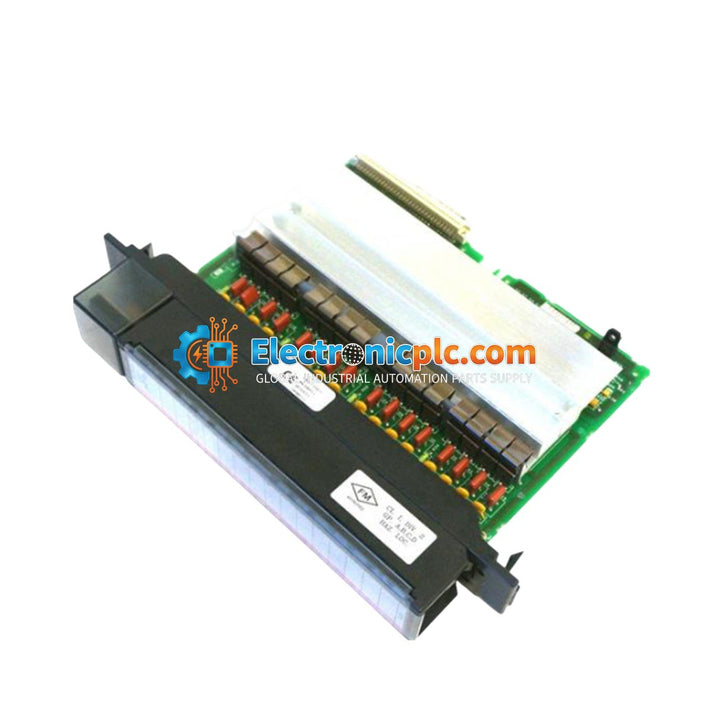

The IC697MDL340 is a 16-point 120V AC Output Module designed for use within the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. This module provides high-density output switching capabilities, allowing the controller to interface with various AC-powered field devices such as solenoids, motor starters, and pilot lights. It is engineered for industrial environments requiring reliable, high-current AC output control.

Features

• 16 isolated output points configured for 120V AC operation.
• Integrated LED status indicators for each output point to facilitate rapid diagnostics and troubleshooting.
• Supports a frequency range of 47-63 Hz, ensuring compatibility with standard industrial power grids.
• Robust design for integration into Series 90-70 rack-based systems.
• High output current capacity suitable for demanding industrial loads.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• The module must be seated firmly into the designated slot in the Series 90-70 backplane.
• Use appropriate wire gauges for the field terminal connections to ensure secure contact and prevent overheating.
• Maintain proper spacing for ventilation to prevent thermal buildup within the enclosure.
• Route AC output wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).
• Verify that the field power supply matches the 120V AC rating of the module before energizing.

FAQ

What is the primary function of the IC697MDL340?

This module acts as an interface between the GE Series 90-70 PLC and external AC-powered industrial equipment, providing 16 discrete output channels to control field devices.

Can this module be used with DC loads?

No, the IC697MDL340 is specifically designed for 120V AC applications and should not be used with DC power sources.

What is the maximum current per output point?

The module supports a maximum output current of 2 A per point, with a maximum of 4 A per group.
