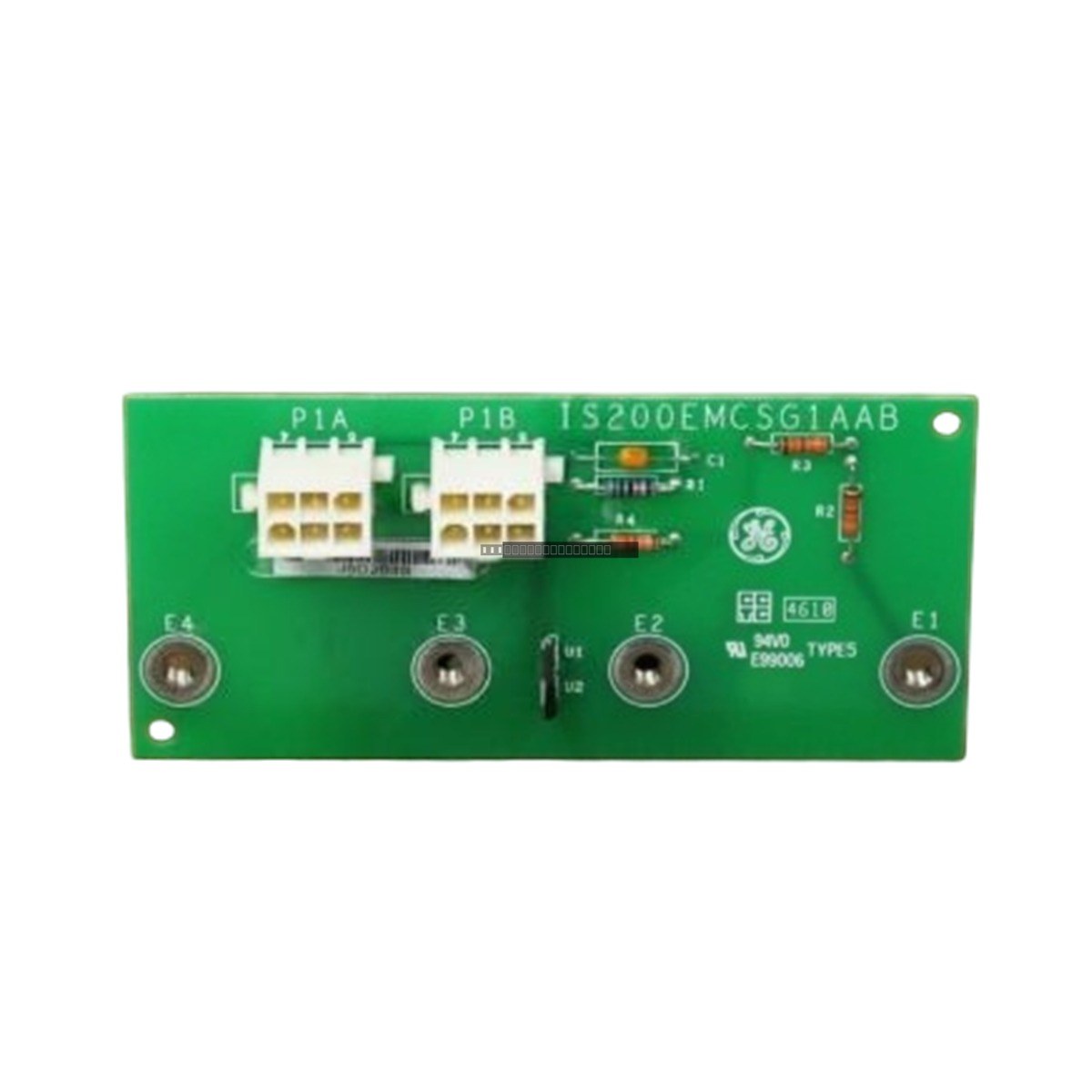

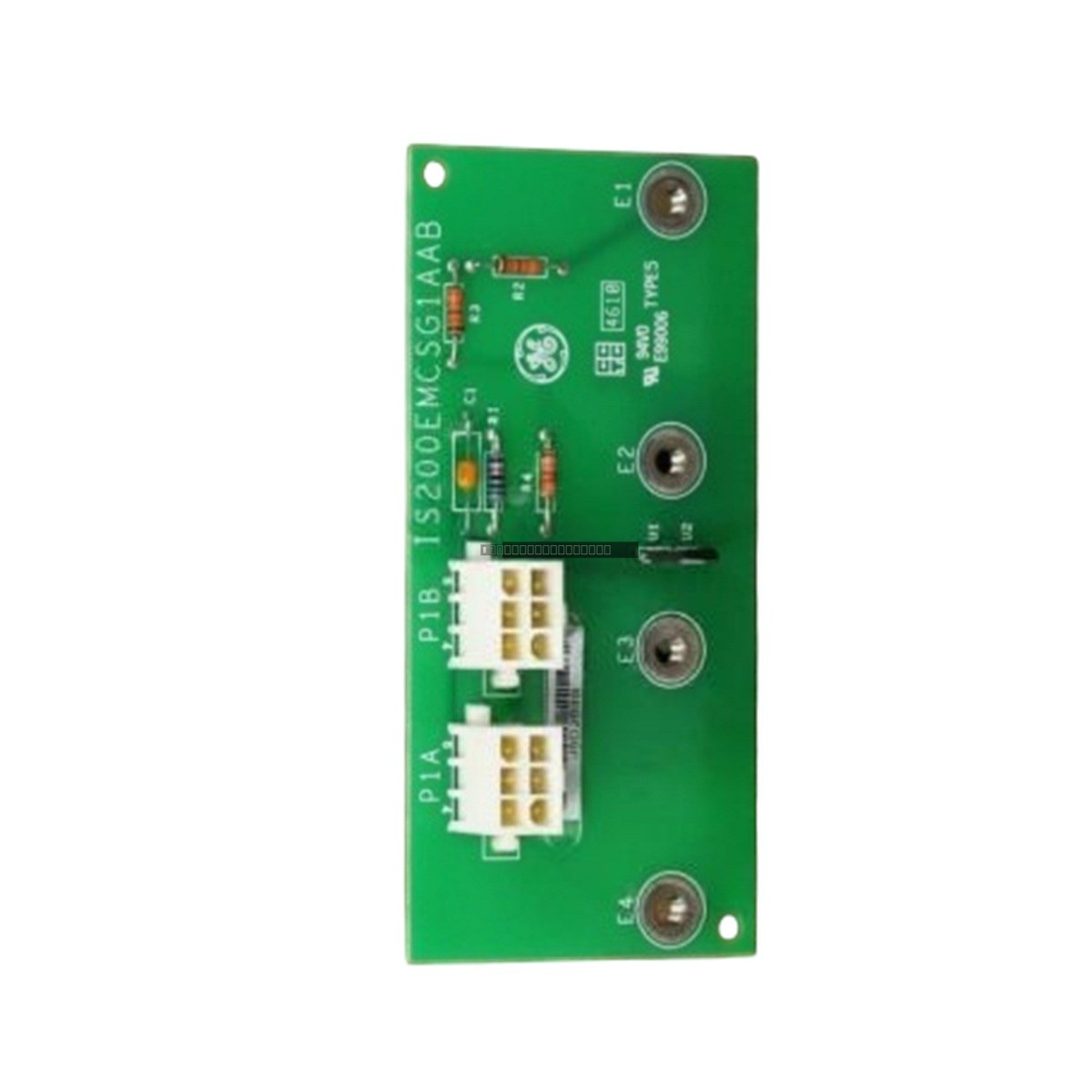

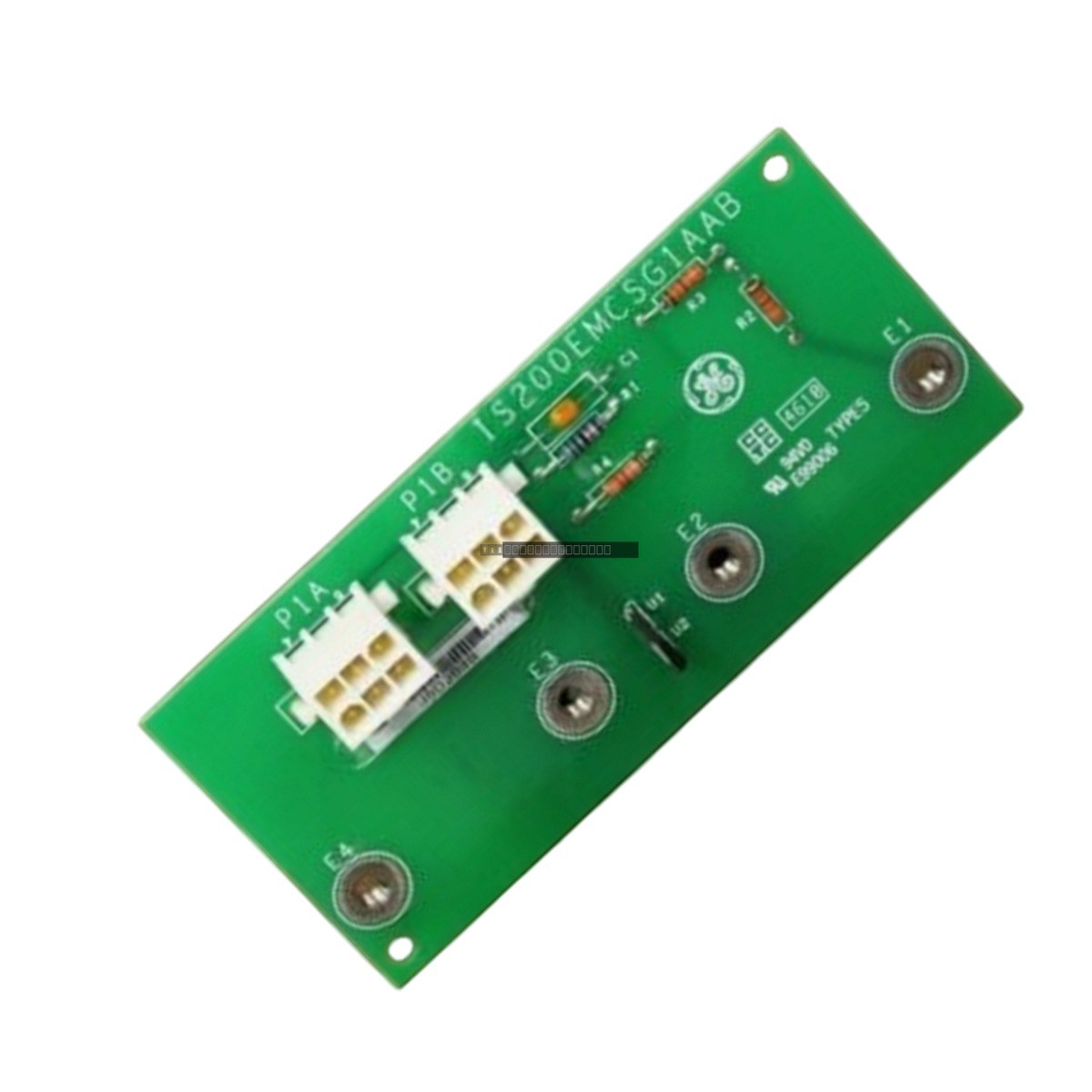

The IS200EMCSG1A is a specialized Multibridge Connector Sensor Card manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This circuit board is engineered to provide precise monitoring of dynamic current distribution across bridge rectifier configurations, ensuring stability in critical power generation and industrial processing environments.

Features

• Four onboard conduction sensors (E1-E4) for multi-phase vector tracking.
• Dual independent signal conditioning channels (U1 and U2) for high-accuracy telemetry.
• Six integrated plug interfaces for robust system connectivity.
• Designed for integration within the Mark VI control architecture to prevent power balance anomalies.
• Dual-row, 6-position terminal plugs for secure power delivery and signal routing.

Applications

This sensor card is primarily utilized in power generation plants, oil and gas refineries, and thermal processing facilities where the Mark VI control system manages high-power rectification and bridge circuitry. It is essential for maintaining operational uptime by reporting real-time conduction data to the central controller.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the IS200EMCSG1A card.
• Handle the PCB by the edges to prevent ESD damage to the integrated circuits.
• Verify that all six plug interfaces and the dual-row terminal blocks are properly seated and secured.
• Maintain a clean, dry environment within the cabinet to stay within the specified non-condensing humidity range.
• Route signal cables away from high-voltage AC lines to prevent EMI interference with the differential signaling architecture.

FAQ

What is the primary function of the IS200EMCSG1A?
This card serves as a diagnostic sensor interface that monitors bridge rectifier conduction, helping the Mark VI controller detect and prevent power distribution imbalances.

Is this card compatible with other Mark series systems?
The IS200EMCSG1A is specifically designed for the Mark VI Speedtronic turbine control matrix. Please verify your system's hardware requirements before installation.
