Description

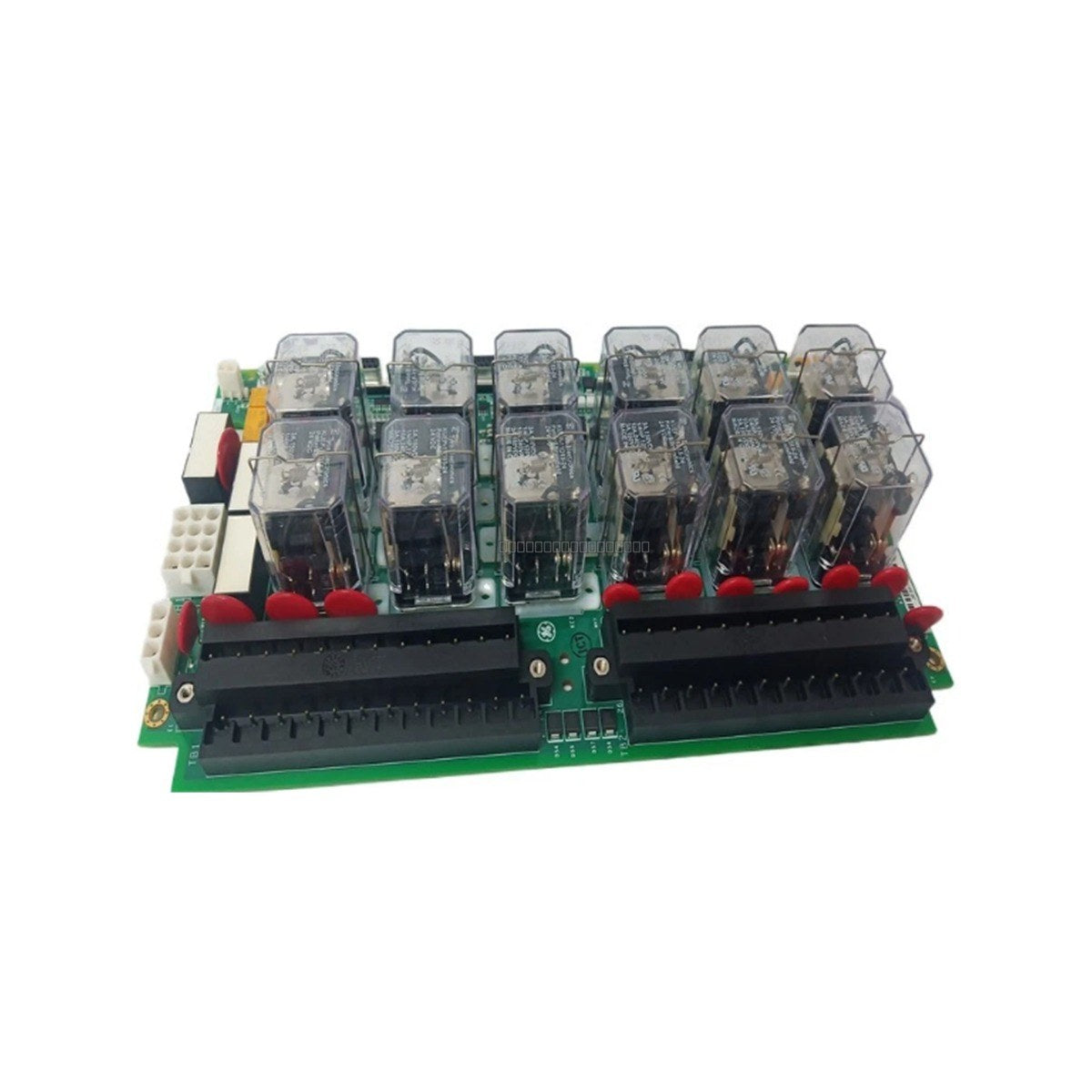

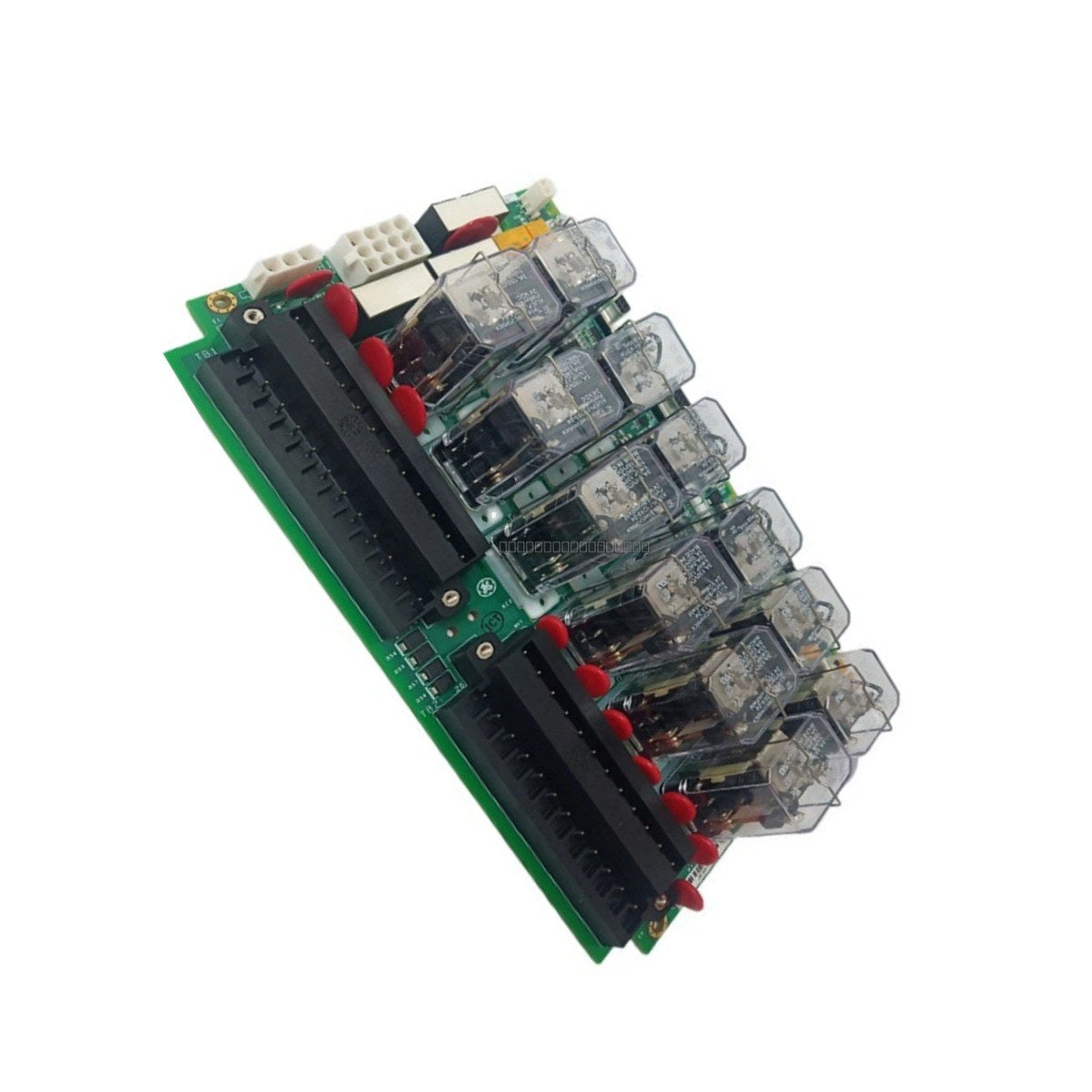

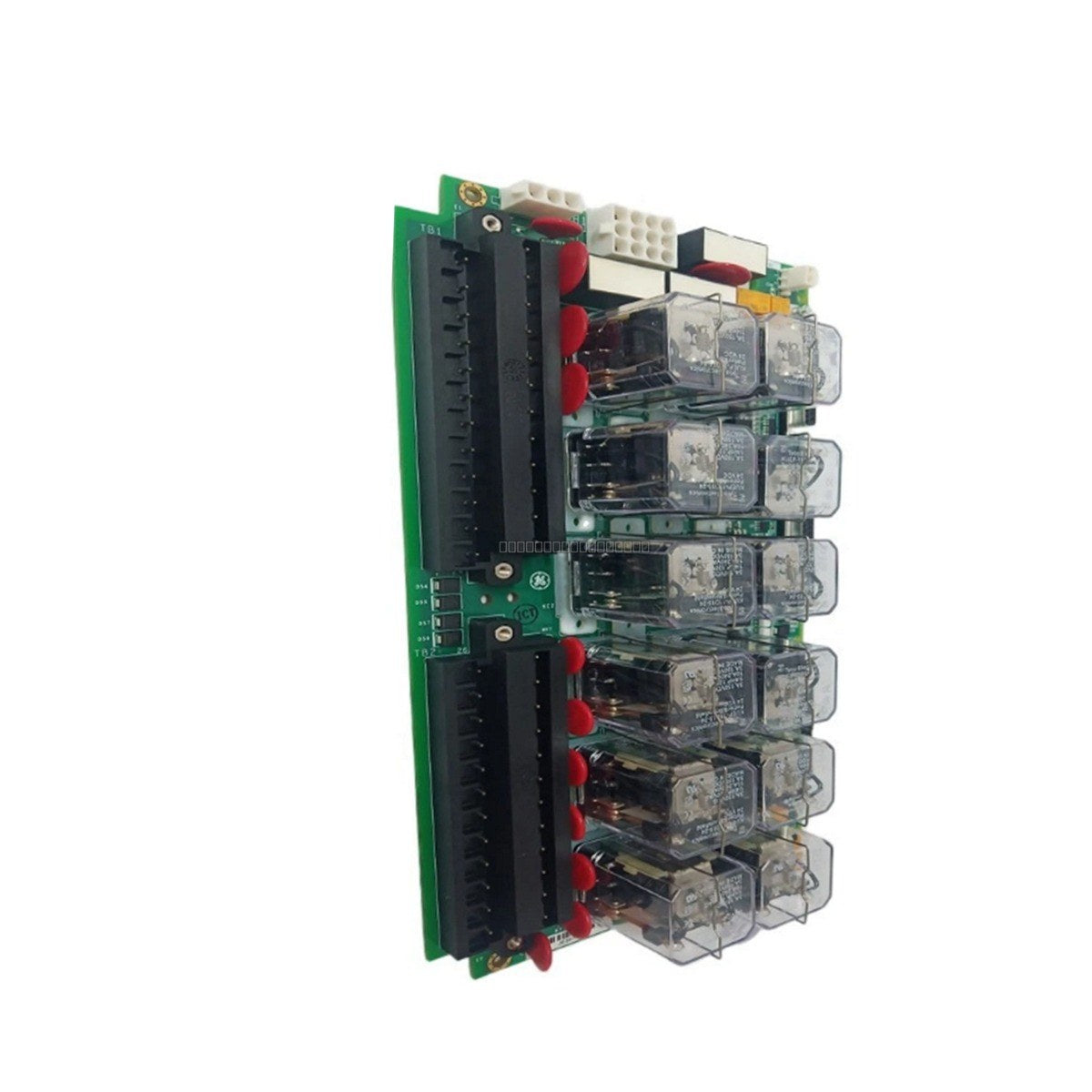

The IS200TREGH1B is a Turbine Emergency Terminal Board designed for the General Electric Mark VI and Mark VIe Speedtronic control systems. This terminal board serves as a critical interface for turbine protection, specifically managing emergency trip functions. It is engineered to facilitate reliable signal distribution and termination for turbine safety systems, ensuring rapid response during emergency shutdown sequences.

Features

• Designed for integration with Mark VI and Mark VIe control platforms.
• Supports turbine emergency trip logic and solenoid control.
• Robust terminal interface for field wiring connections.
• Optimized for high-reliability industrial turbine protection applications.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage or system faults.
• Handle the board using ESD-safe practices to protect sensitive electronic components from electrostatic discharge.
• Ensure all field wiring is properly secured to the terminal blocks and routed according to site-specific turbine control cabinet schematics.
• Verify that the board is correctly seated in the designated rack slot to ensure proper backplane communication.
• Maintain adequate ventilation within the control cabinet to ensure operating temperatures remain within the specified 0-70 degC range.

FAQ

What is the primary function of the IS200TREGH1B?
The IS200TREGH1B acts as a terminal board for emergency trip functions in GE Speedtronic turbine control systems, managing the interface between the control logic and the turbine trip solenoids.

Is this board compatible with both Mark VI and Mark VIe?
Yes, this component is designed for use within the Mark VI and Mark VIe Speedtronic series architecture.
