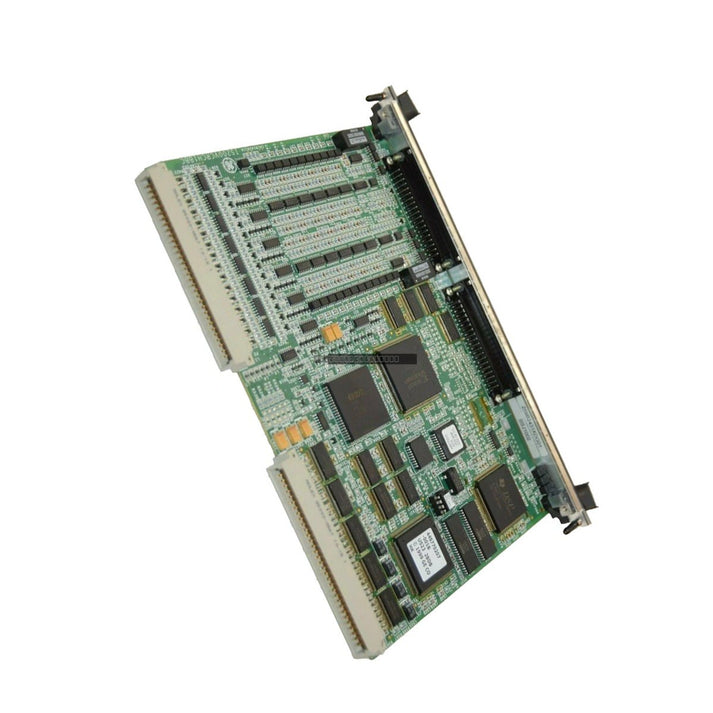

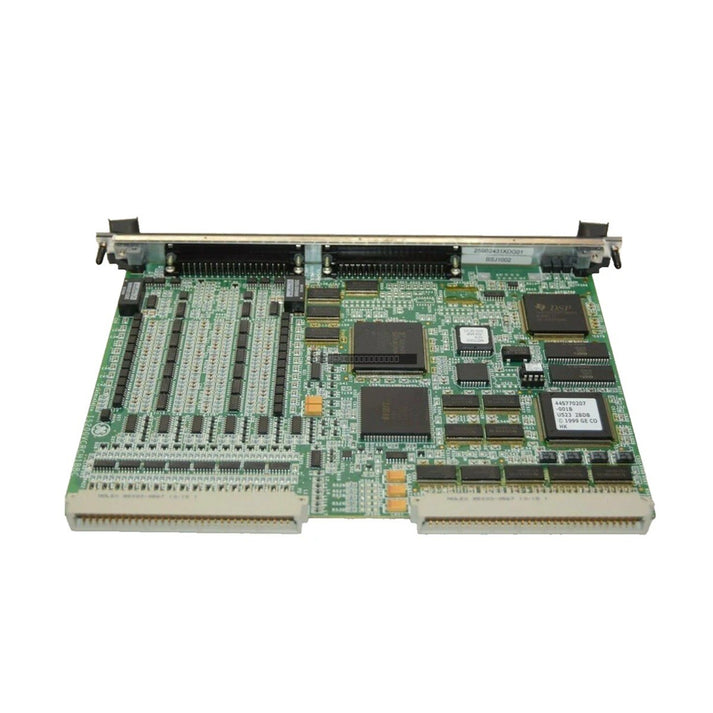

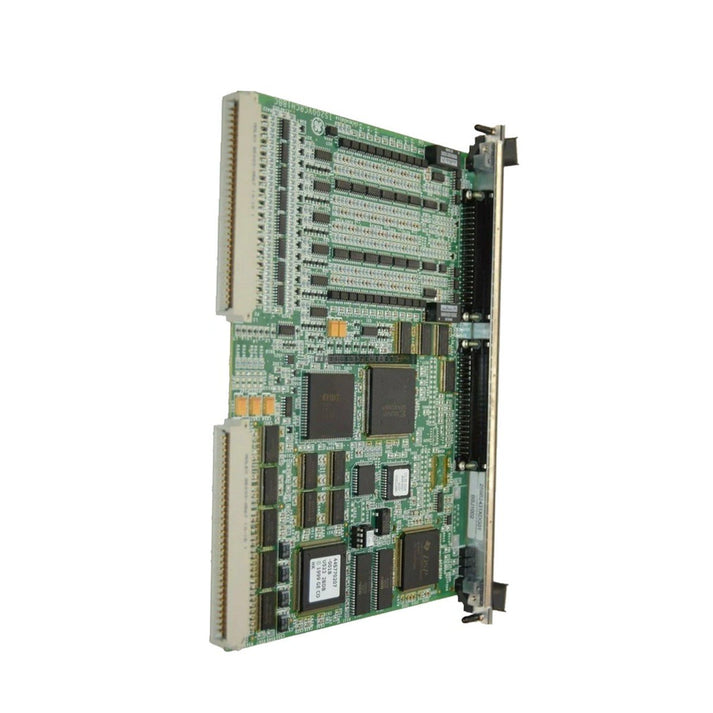

The IS200VCRCH1BBB is a high-performance discrete input/output board developed for the GE Mark VI control system. This module is specifically engineered to handle discrete signal processing in demanding industrial environments, including power generation facilities and large-scale automation plants. By providing reliable interfacing between the VME control chassis and field-level hardware, this board facilitates efficient monitoring and control of critical system processes.

Features

• 48-channel discrete I/O capacity for high-density signal management.
• Equipped with Silver Cad-Oxide relay contacts, providing enhanced conductivity and durability against electrical arcing during high-frequency switching operations.
• Optimized for the Mark VI VME architecture, ensuring seamless integration and communication within the control rack.
• Rapid response time of 25 ms, supporting real-time data acquisition and command execution for field devices.

Applications

This module is typically deployed in GE Mark VI systems to interface with essential field components such as motor starters, limit switches, and various alarm indicators. Its robust architecture is suitable for applications requiring consistent signal integrity and high availability in heavy industrial settings.

Technical Specifications

Installation Guidelines

• Ensure the VME chassis is powered down before inserting or removing the IS200VCRCH1BBB module to prevent electrical damage.
• Handle the board using ESD-safe procedures to protect sensitive onboard components from electrostatic discharge.
• Verify that the module is fully seated in the designated VME slot to ensure reliable backplane connectivity.
• Maintain proper ventilation in the control cabinet to allow for thermal dissipation within the specified 0 to 60 deg C operating range.
• Check all field wiring connections for secure termination to avoid intermittent signal loss or contact degradation.

FAQ

What is the primary function of the IS200VCRCH1BBB?
It serves as a 48-channel discrete I/O board within the GE Mark VI system, managing inputs and outputs for field devices like switches and starters.

What material is used for the relay contacts?
The board utilizes Silver Cad-Oxide contacts, which are selected for their excellent arc resistance and conductivity during frequent operation.
