Description

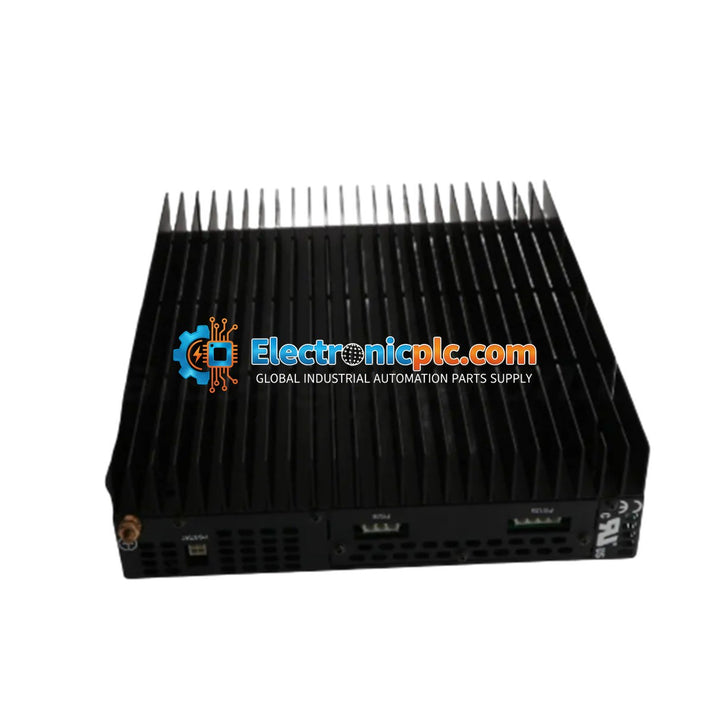

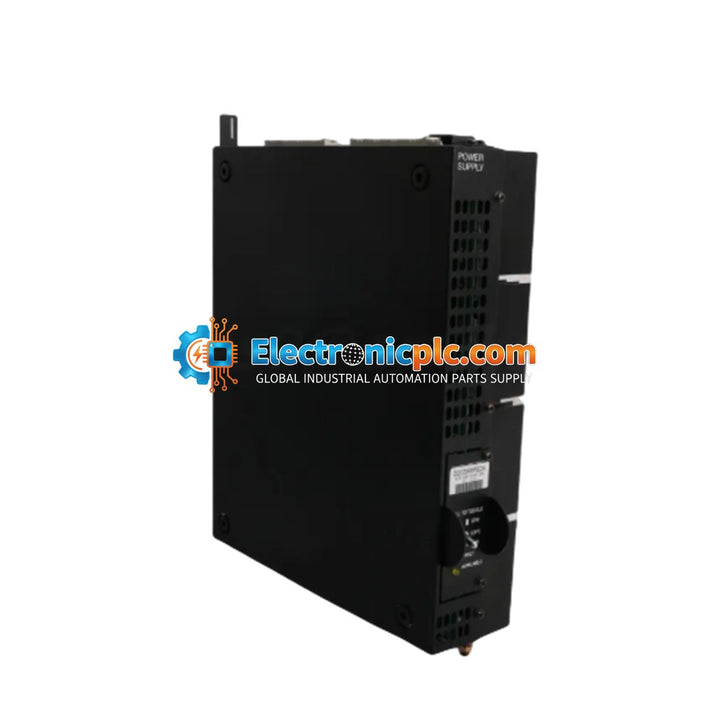

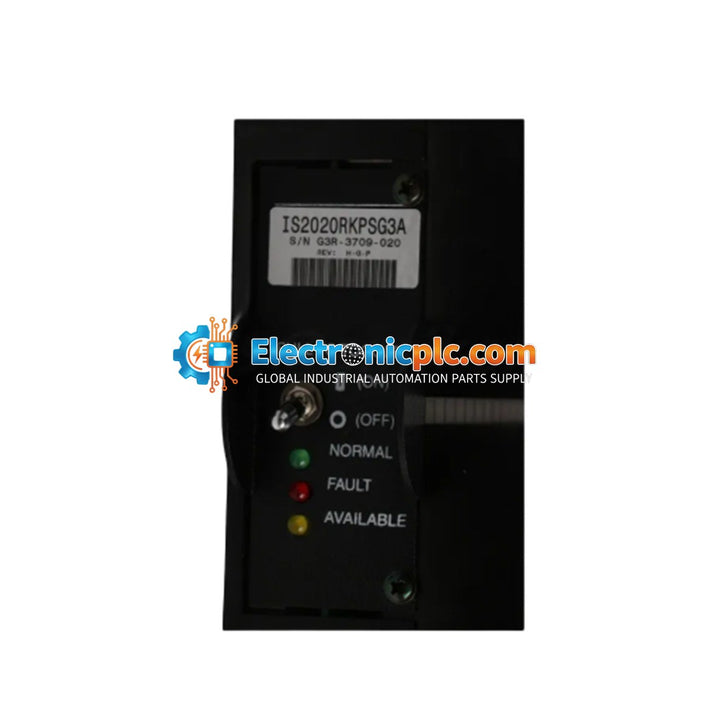

The General Electric IS2020RKPSG3A is a power supply module designed for use within the Mark VI and Mark VIe Speedtronic turbine control systems. This unit is engineered for integration into VME rack configurations, providing reliable power distribution for critical gas and steam turbine management applications. It serves as a core component in maintaining the operational stability of the control system by converting input power into the regulated voltage levels required by rack-mounted I/O and processor modules.

Features

• Designed specifically for GE Speedtronic Mark VI/VIe control architectures.
• Optimized for VME rack-based turbine management systems.
• Robust power conversion for high-availability industrial environments.
• Integrated thermal management for operation in demanding turbine control rooms.

Applications

• Gas Turbine Control Systems
• Steam Turbine Management
• Power Generation Control Racks
• Industrial Automation Power Distribution

Technical Specifications

Installation Guidelines

• Ensure the VME rack is powered down before inserting or removing the IS2020RKPSG3A module to prevent electrical arcing or damage to the backplane.
• Verify that the input voltage source is within the specified 90-150 V DC range before connection.
• Ensure proper seating in the VME rack slot to maintain secure electrical contact with the backplane.
• Maintain adequate clearance around the module to allow for proper airflow and heat dissipation, as the unit is rated for operation up to 70 degC.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

Is this power supply compatible with both Mark VI and Mark VIe systems?

Yes, the IS2020RKPSG3A is designed for use within the Mark VI and Mark VIe Speedtronic series, provided it is installed in a compatible VME rack configuration.

What is the primary input requirement for this module?

The module is designed for a 125 V DC input, with an operational range between 90 V DC and 150 V DC.
