Description

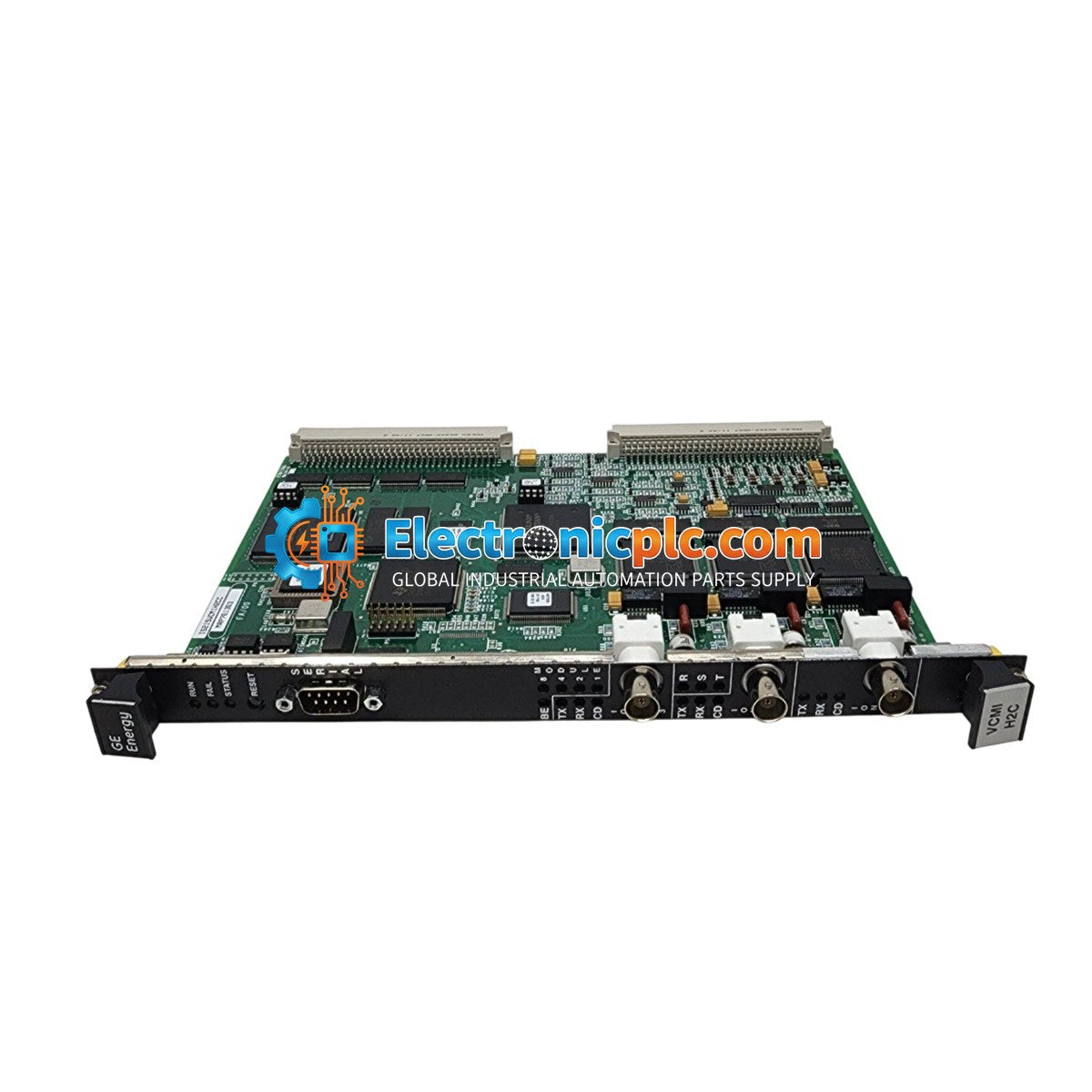

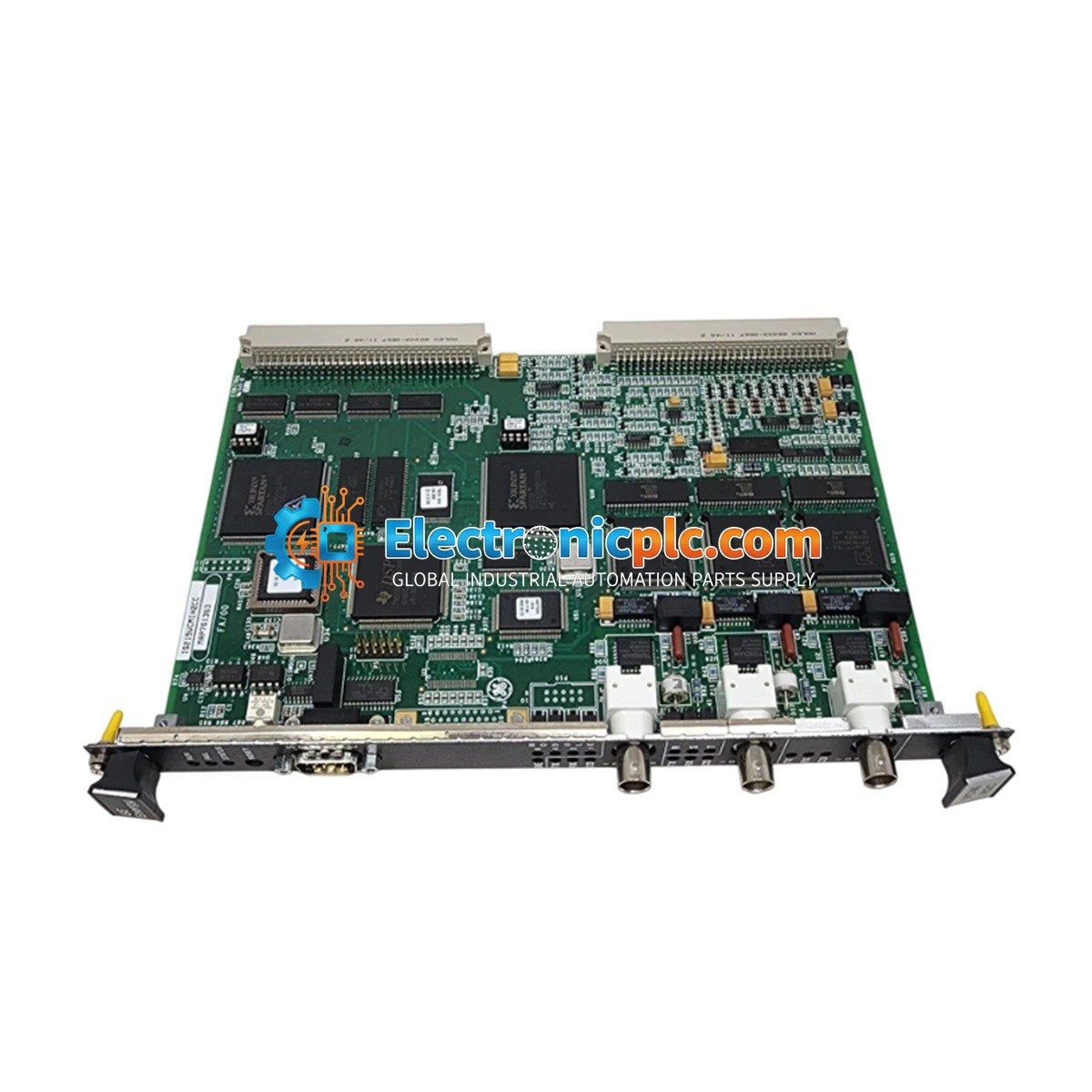

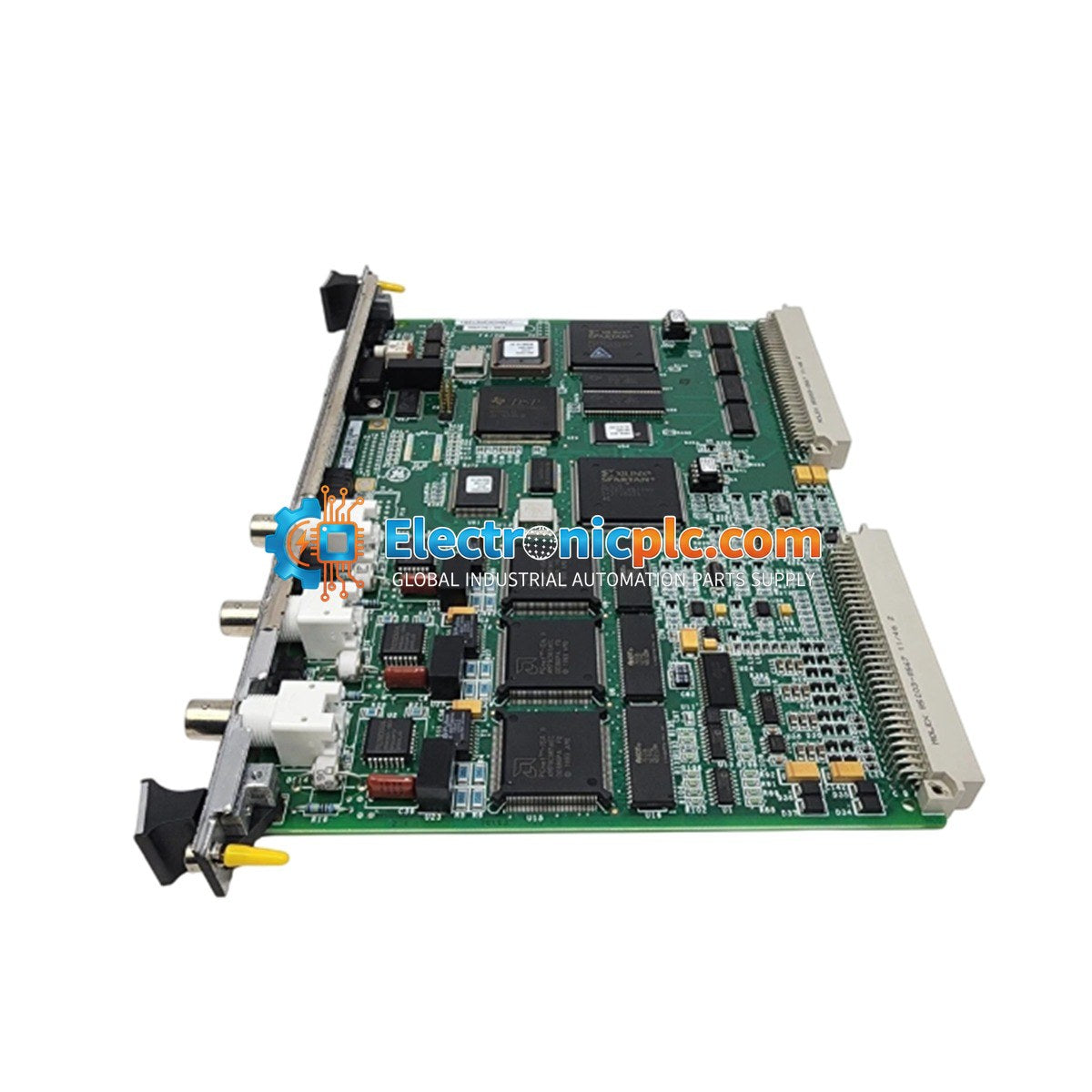

The IS215VCMIH2C is a VME Communications Board (VCMI) designed for use within the General Electric Mark VI control system. This module serves as a critical interface component, facilitating high-speed communication and data exchange between the control rack and external devices or other system components. It is engineered to maintain system integrity and reliable data throughput in demanding industrial environments.

Features

• Designed specifically for the GE Mark VI Control System architecture.
• Equipped with onboard diagnostic indicator LEDs including Run, Fail, Status, and Reset for real-time monitoring.
• Facilitates robust VME bus communication protocols.
• Reliable hardware design for high-availability industrial control applications.

Technical Specifications

Installation Guidelines

• Ensure the control rack is powered down before inserting or removing the IS215VCMIH2C module to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Ensure the module is fully seated in the VME backplane slot and that all retaining screws are tightened to provide a secure mechanical and electrical connection.
• Verify that the environment meets the cooling requirements for the Mark VI rack to prevent overheating during operation.
• Consult the GEH-6421 instruction manual for detailed configuration and diagnostic procedures specific to this board revision.

FAQ

What is the primary function of the IS215VCMIH2C?

The IS215VCMIH2C acts as a VME communications interface within the Mark VI control system, managing data flow and communication tasks between the controller and the rest of the system.

How do I interpret the LEDs on this board?

The board features dedicated Run, Fail, Status, and Reset LEDs. These provide immediate visual feedback on the operational state of the module. If the 'Fail' LED is illuminated, refer to the GEH-6421 manual for troubleshooting steps.
