Description

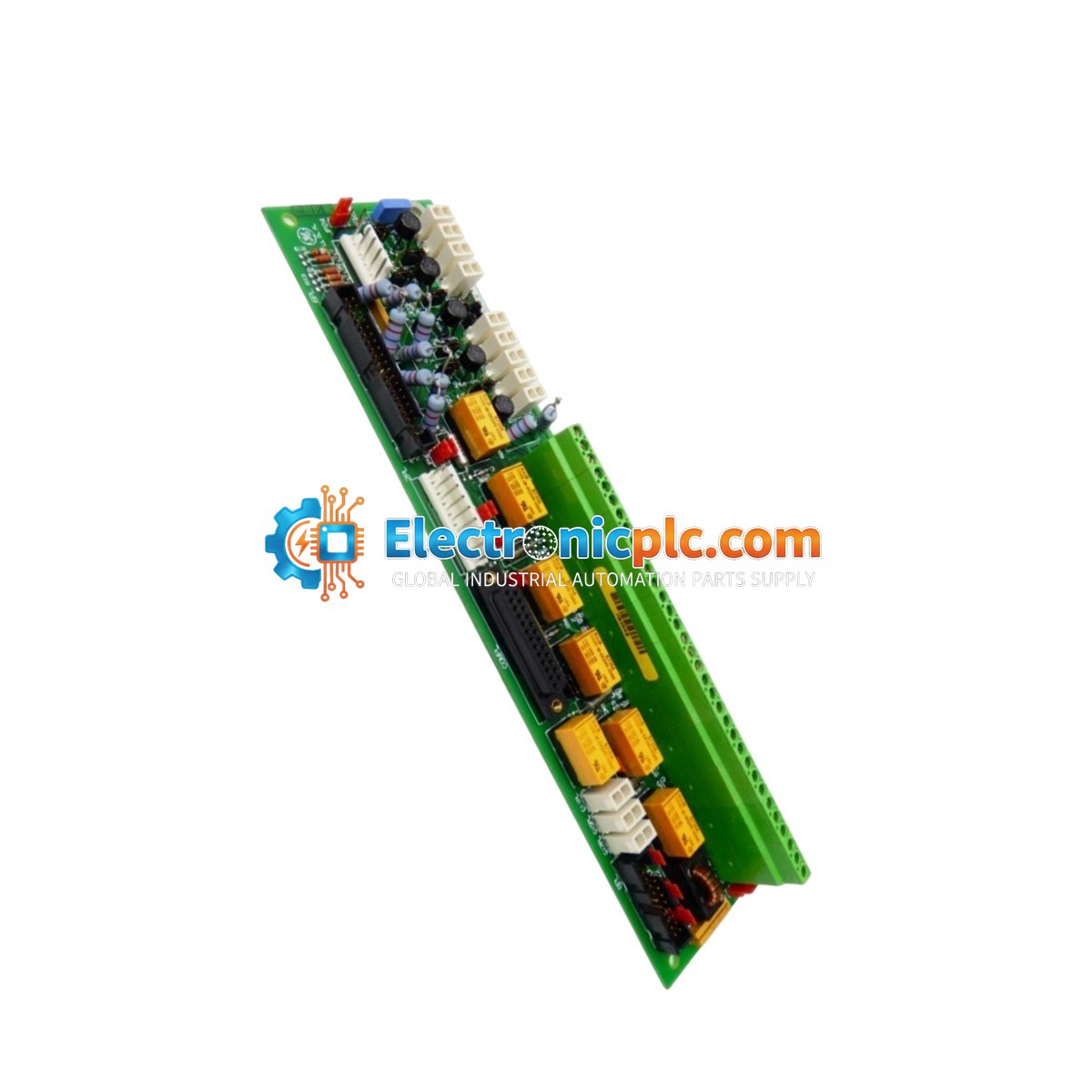

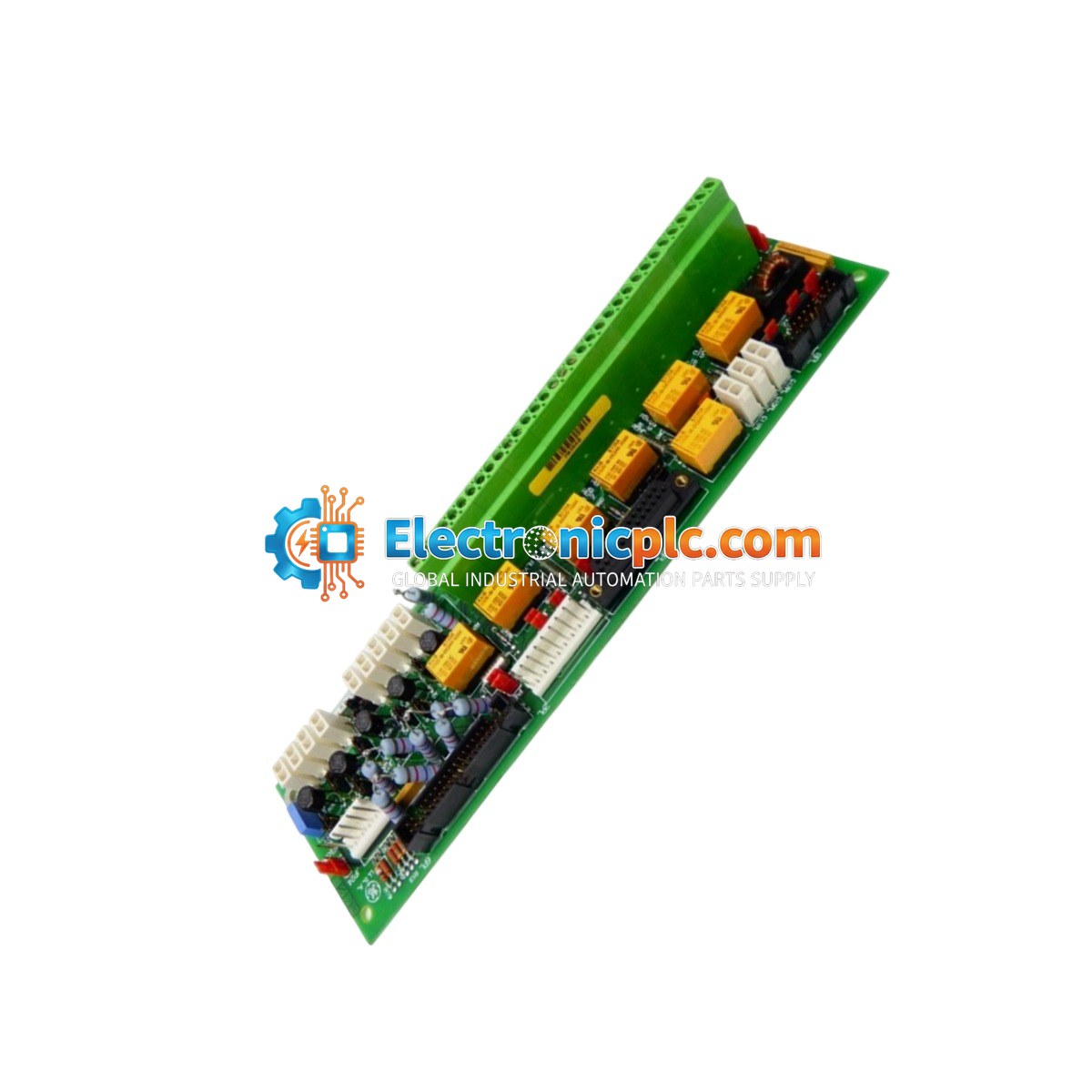

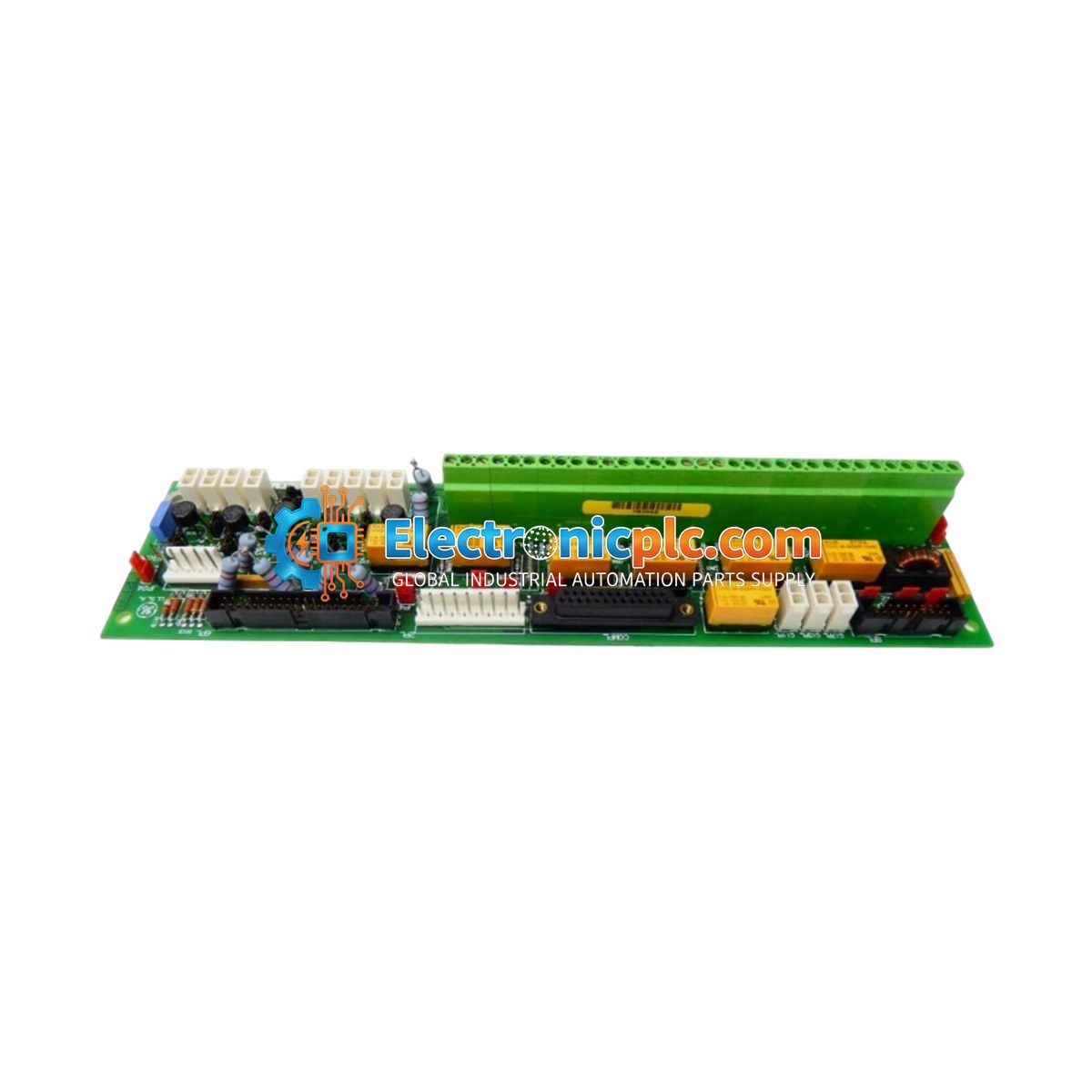

The DS200STBAG1ACB is a Basic Drive Terminal Board (STBA) designed for the GE Mark V Speedtronic turbine control system. This terminal board acts as a critical interface, providing reliable signal routing and termination between drive control electronics and external field devices. Engineered for high-availability environments such as power generation and petrochemical facilities, the board ensures signal integrity and facilitates efficient maintenance within the Mark V control architecture.

Features

• Designed specifically for integration within the GE Mark V Speedtronic ecosystem.
• Provides centralized termination points for field wiring to drive control components.
• Features standard conformal coating for protection against environmental contaminants.
• Modular PCB design compatible with standard Mark V rack assemblies.
• Supports sequential functional and artwork revisions for enhanced system compatibility.

Applications

This terminal board is primarily utilized in heavy-duty gas and steam turbine control systems. It is a fundamental component for managing signal distribution in industrial drive control racks where high reliability and precise signal termination are required.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Secure the board firmly using the provided mounting standoffs within the designated Mark V rack slot.
• Verify that all field wiring is properly terminated and labeled according to the system wiring diagrams provided in GEI-100177.
• Ensure the installation environment meets the specified temperature range to maintain long-term component reliability.

FAQ

Is this board compatible with all Mark V systems?

The DS200STBAG1ACB is designed for specific Mark V Speedtronic drive control applications. Compatibility depends on the specific revision requirements of your existing control rack. Please verify your system's revision history and the GEI-100177 manual before installation.

What does the G1ACB suffix indicate?

The suffix denotes the hardware configuration: G1 is the group designation, A and C represent functional revisions, and B indicates the artwork revision level.
