Description

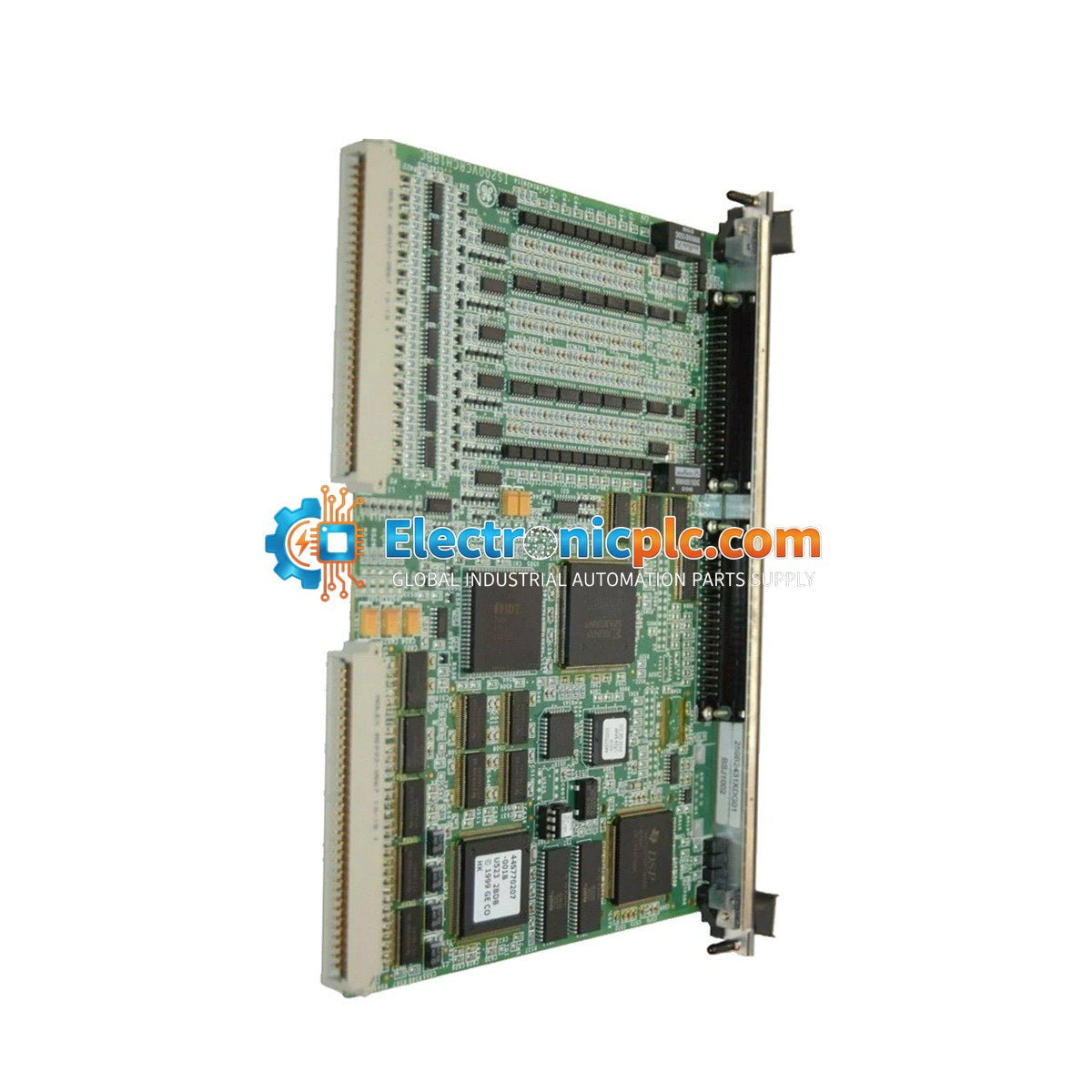

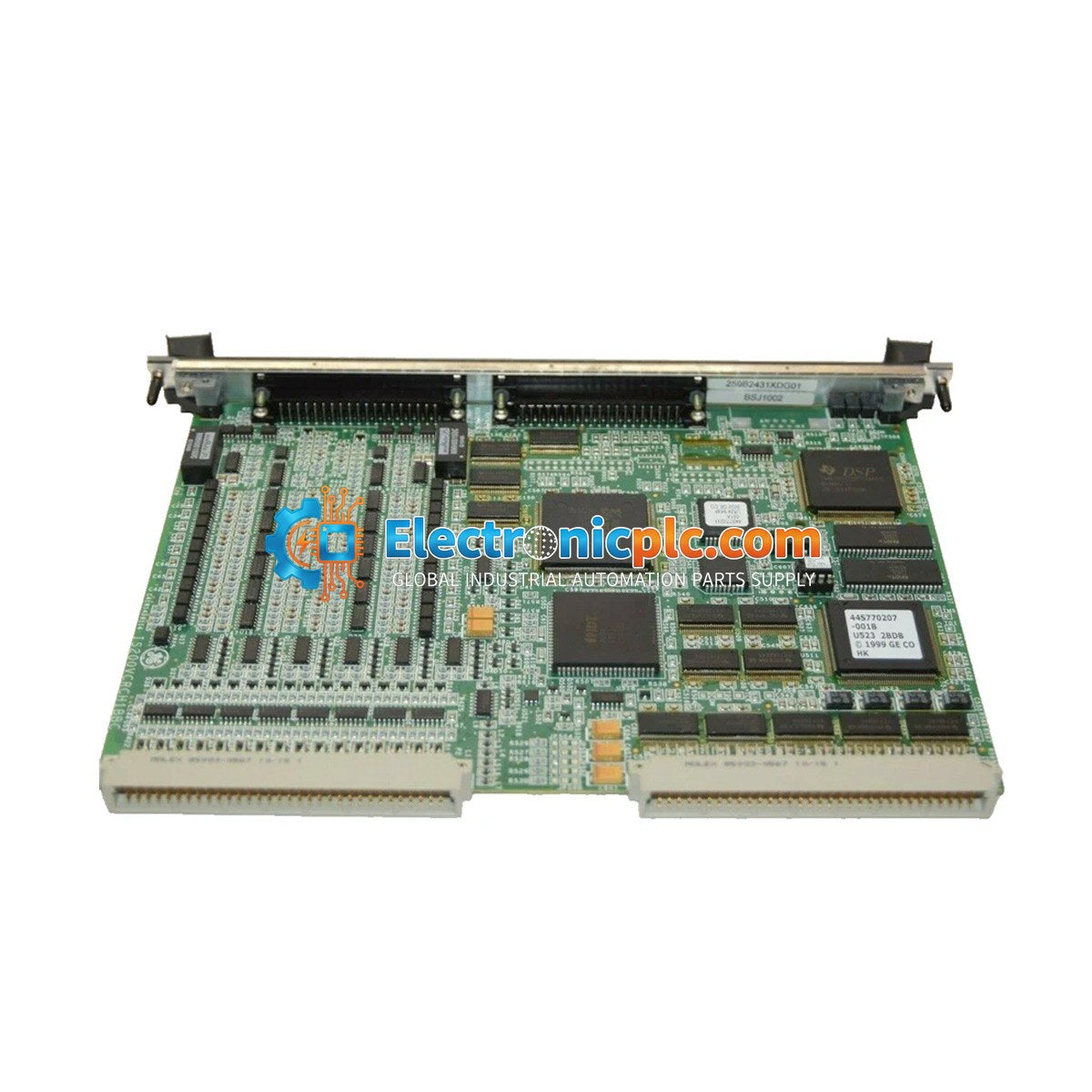

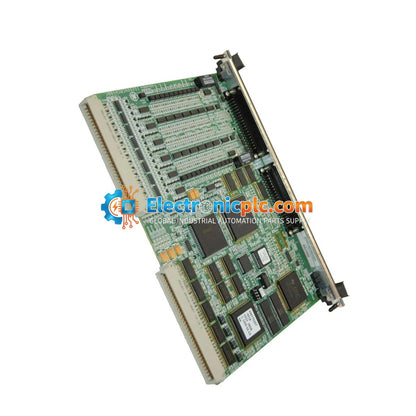

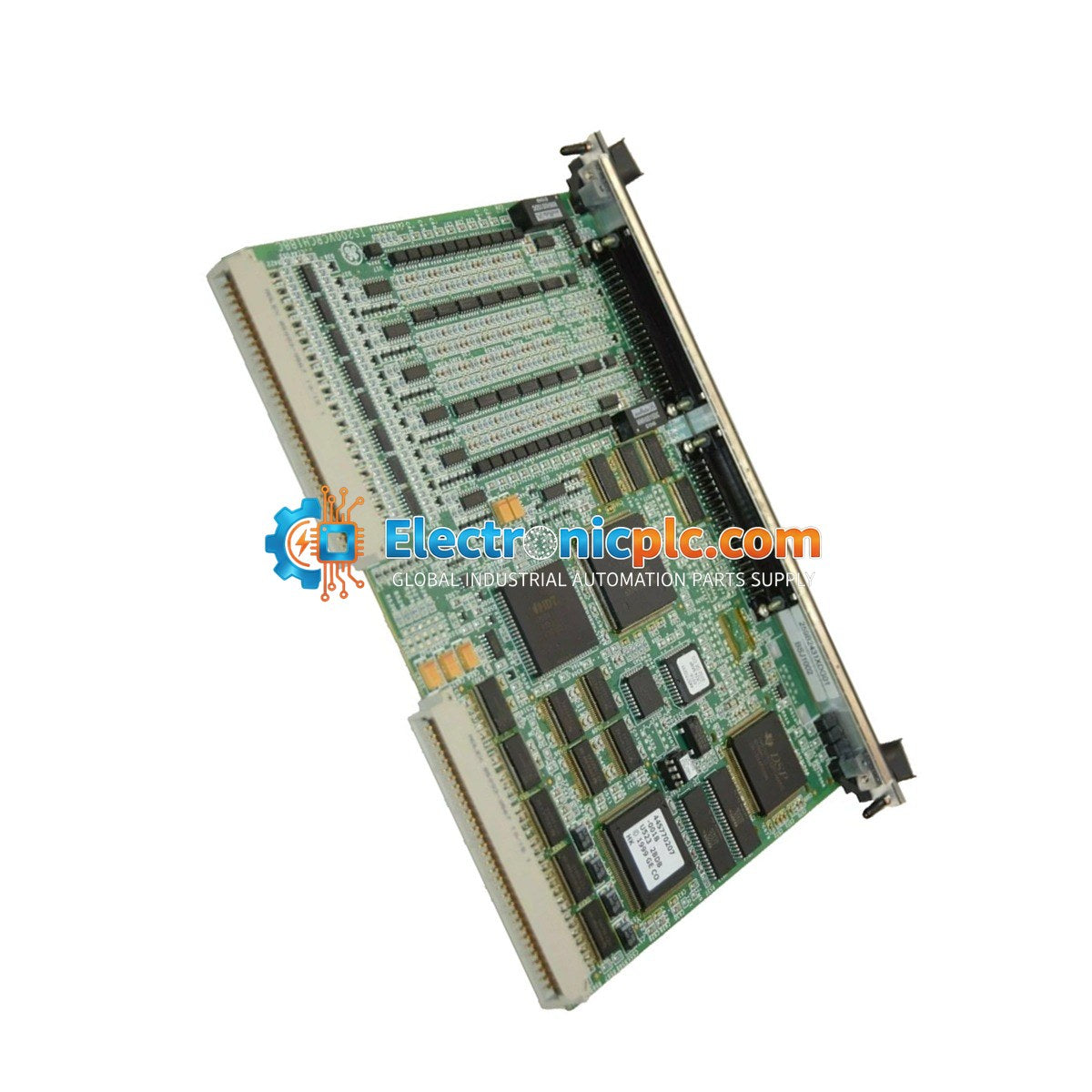

The IS200VCRCH1B is a high-density Discrete Input/Output board designed for the General Electric Speedtronic Mark VI turbine management system. Engineered for gas and steam turbine control, this single-slot PCB provides critical interface capabilities for monitoring and protection parameters. Its architecture delivers functional logic equivalent to the VCCC board but eliminates the need for a daughterboard, optimizing rack space for high-density configurations in power plants and industrial refineries. The module utilizes triple redundant controls to ensure system reliability and safety.

Features

• High-Density Design: Optimized for VME backplane environments without requiring additional daughterboards.
• Visual Diagnostics: Integrated front-panel LEDs for status monitoring: Green (RUN), Red (FAIL), and Orange (STATUS).
• Processing Core: Equipped with high-performance FPGAs, SRAM, and RAM for rapid discrete signal processing.
• Connectivity: Features front-panel cable connectors (J33 and J44) for relay output interfacing.
• Robust Power Management: Includes dual onboard power supplies and over thirty transistors to maintain signal integrity.

Applications

This board is primarily utilized in GE Speedtronic Mark VI turbine control systems. It is suitable for power generation facilities, industrial refineries, and critical infrastructure where high-density discrete I/O monitoring and turbine protection are required.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded wrist strap when handling the board to prevent electrostatic discharge damage to sensitive components.
• Power Status: Ensure the VME rack power is disconnected before inserting or removing the module.
• Seating: Ensure the board is fully seated in the VME slot and that the front-panel screws are tightened to maintain proper grounding and mechanical stability.
• Cabling: Use only specified cables for J33/J44 front-panel connections to ensure signal integrity. Route signal cables away from high-voltage power lines to minimize EMI.
• Environment: Maintain the operating environment within the specified 0 to 60 deg C range and ensure adequate airflow within the cabinet.

FAQ

Is the IS200VCRCH1B compatible with existing VCCC board slots?

Yes, the IS200VCRCH1B is designed to provide similar functional logic to the VCCC board but in a more compact, single-slot form factor that does not require a daughterboard.

What do the front panel LEDs indicate?

The LEDs provide immediate status: Green indicates the board is in RUN mode, Red indicates a FAIL state, and Orange indicates general STATUS.
