Description

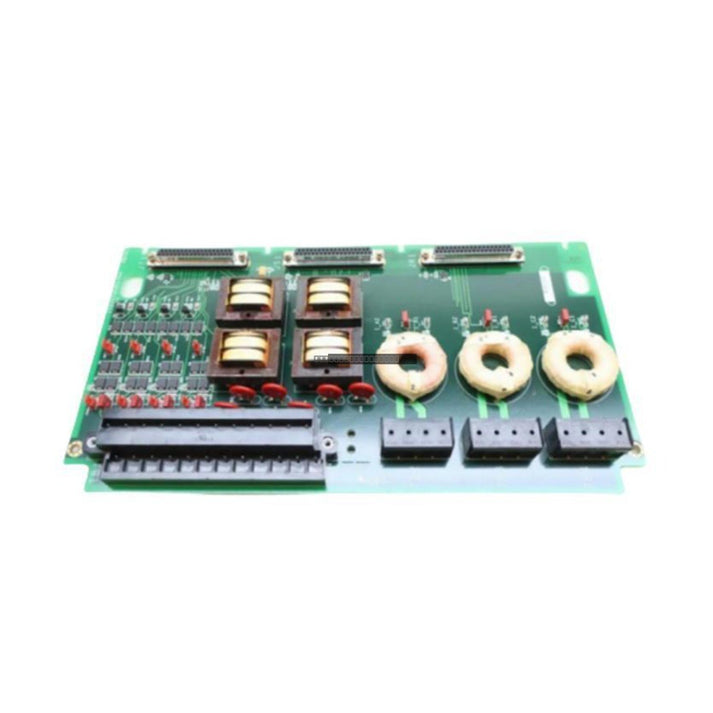

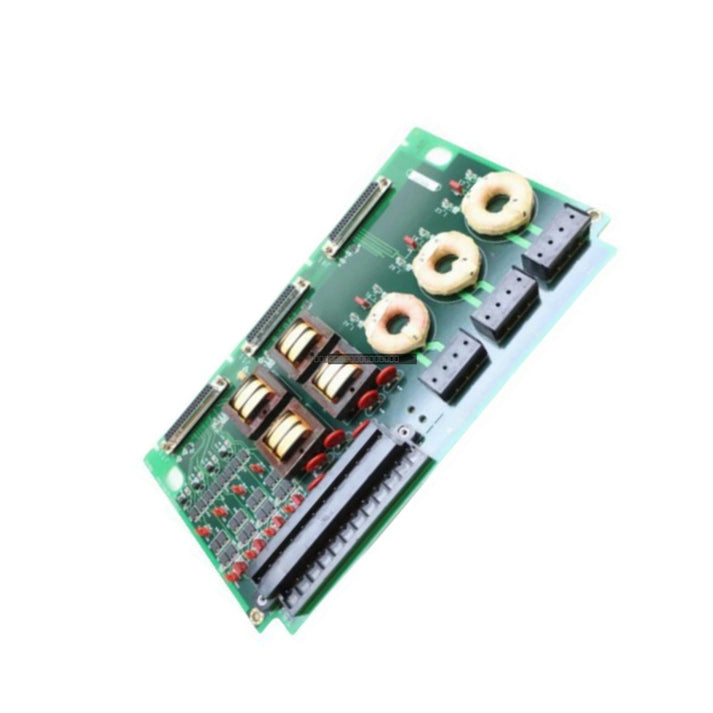

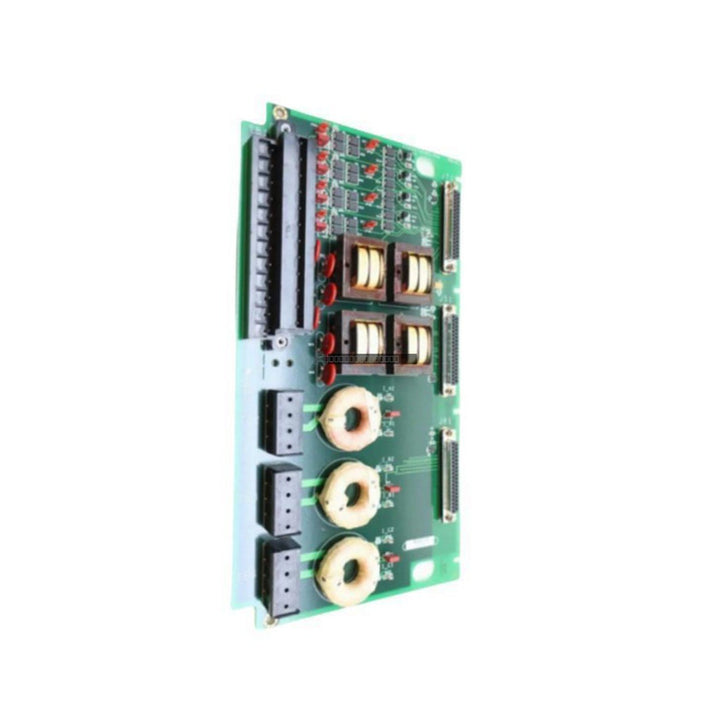

The GE Fanuc IS200TGENH1A is a specialized terminal board component designed for the Mark VI control system, functioning specifically as a Generator Monitor (TGEN). This unit is engineered to serve as the critical bridge between generator-side instrumentation and the VGEN processor. By processing three-phase voltage and current inputs, it provides the essential data required for calculating power factor and real-time power metrics, which are vital for the stable operation of large-scale steam turbine systems.

Features

• Supports both simplex and Triple Modular Redundancy (TMR) system configurations for high-reliability environments.
• Facilitates high-speed communication with the VGEN processor to ensure low-latency monitoring.
• Integrates with TRLY terminal boards to support critical safety functions, including Power Load Unbalance (PLU) and Emergency Valve Activation (EVA).
• Designed for robust performance in industrial power generation facilities.

Applications

This terminal board is primarily utilized in power generation plants, specifically within Mark VI control architectures managing large steam turbines. Its ability to monitor generator parameters and trigger high-speed protective solenoids makes it a cornerstone of turbine safety and load management systems.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the Mark VI rack before inserting or removing the IS200TGENH1A board.
• Handle the board using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to sensitive components.
• Verify that all cable connections to the VGEN processor are secure; for TMR applications, ensure all three communication links are properly seated.
• Maintain proper spacing within the cabinet to allow for adequate airflow and thermal regulation within the 0 to 60 degC operating range.
• Check that the board is correctly aligned with the backplane connectors to prevent pin misalignment during installation.

FAQ

Is this board compatible with TMR configurations?

Yes, the IS200TGENH1A is fully compatible with Triple Modular Redundancy (TMR) setups, allowing it to interface with three separate VGEN processor boards to provide fault-tolerant operation.

What is the primary function of the TGEN board?

The TGEN board acts as an interface for three-phase voltage and current inputs, enabling the Mark VI system to perform real-time monitoring and execute protective logic such as emergency valve activation.
