Overview

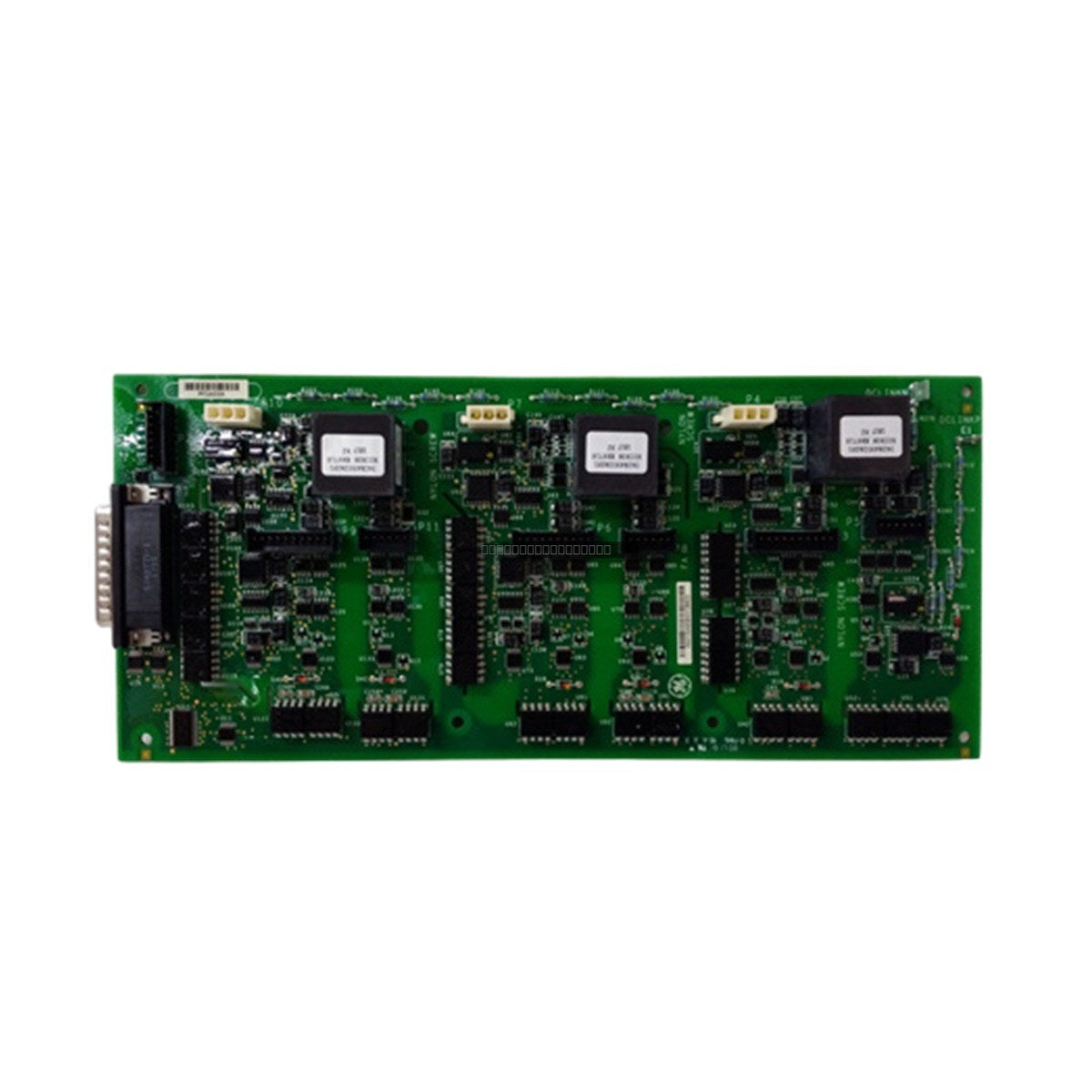

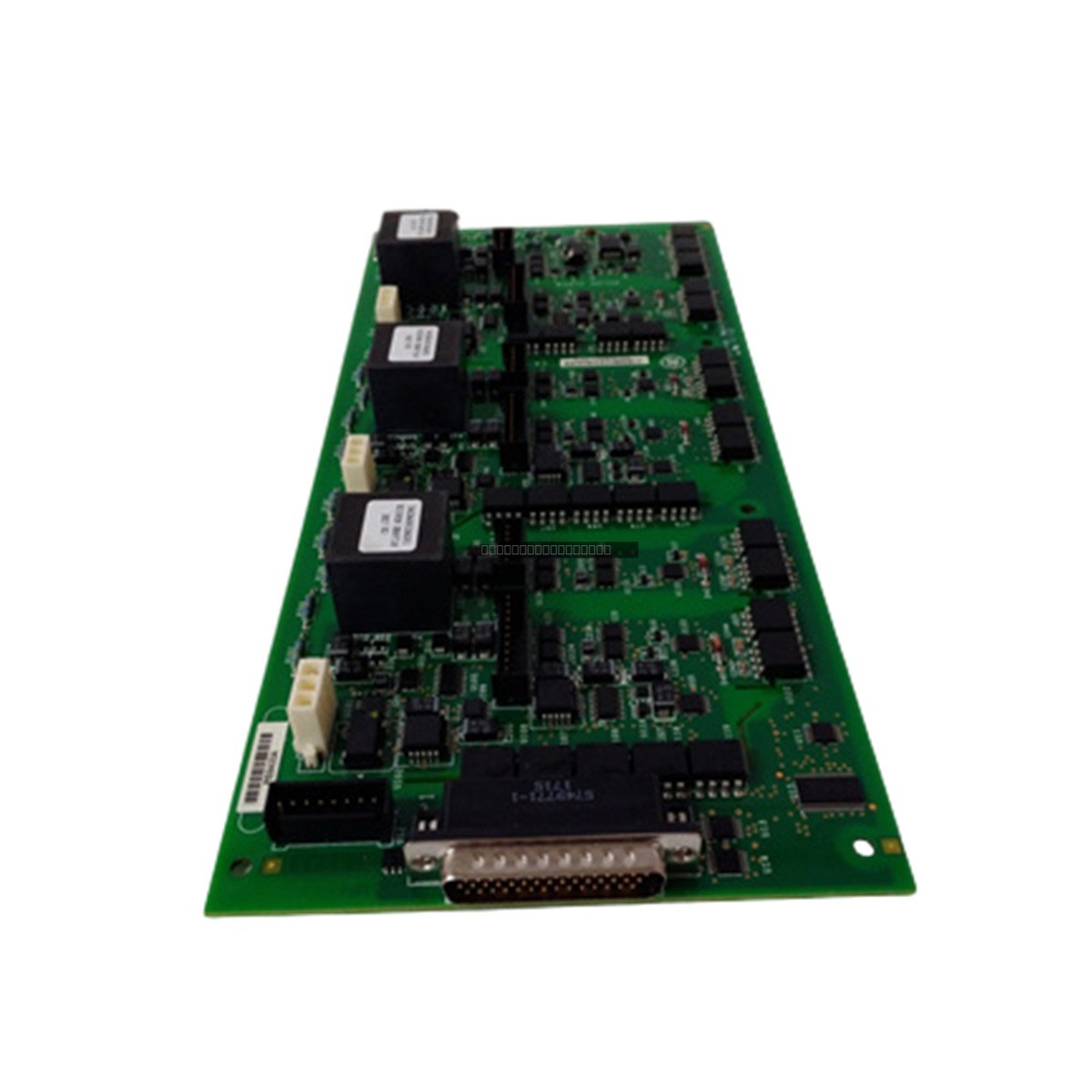

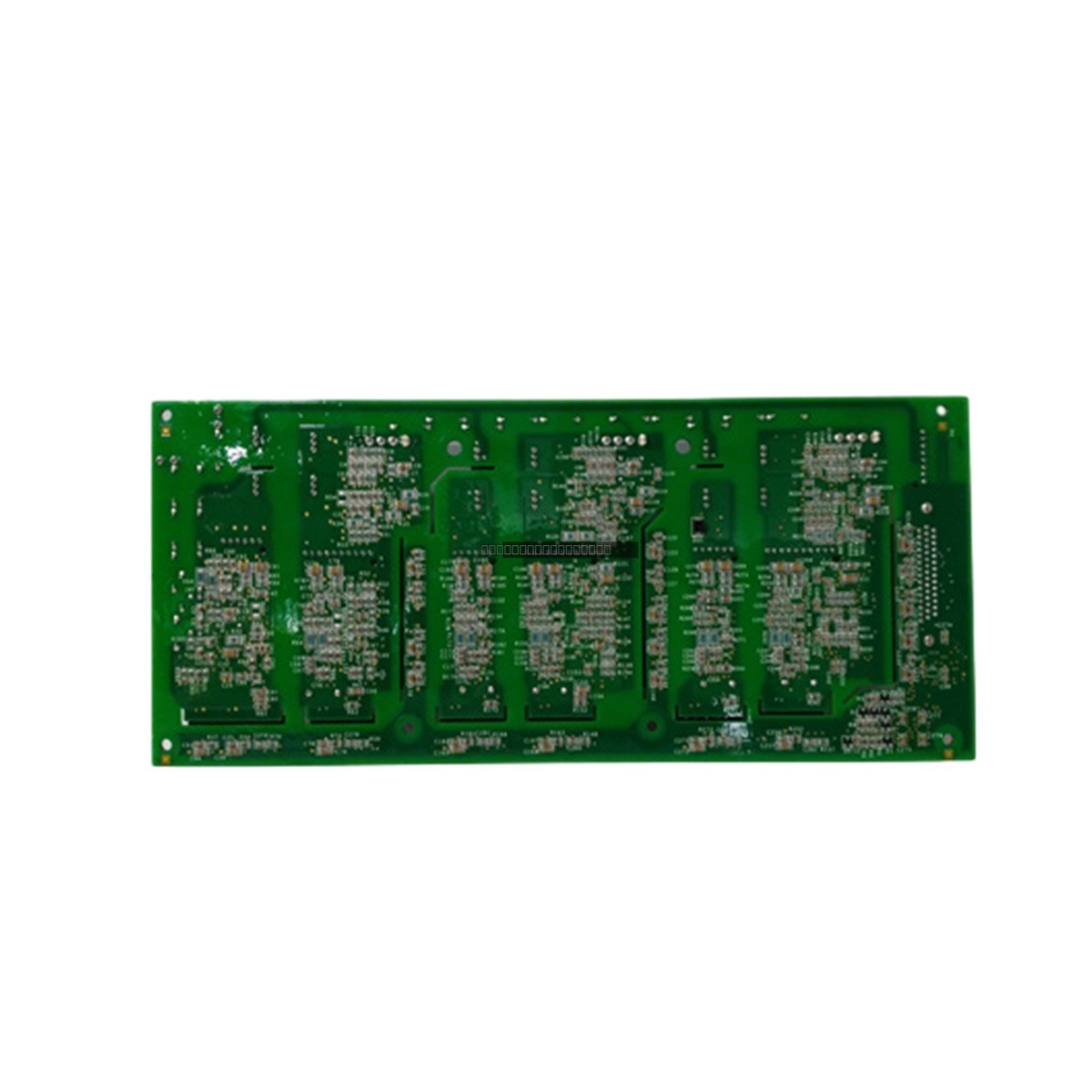

The GE Fanuc IS210AEBIH1B is an AE Bridge Interface (AEBI) card specifically developed for the Mark VIe Wind control system. This interface module serves as a critical communication bridge between the main controller and the power inversion bridge hardware in wind turbine applications. It is designed to handle high-speed feedback loops, ensuring that gate drivers operate with the necessary precision to maintain grid synchronization and optimal torque control during fluctuating wind conditions.

Features

• Facilitates seamless integration within the Mark VIe control architecture.
• Supports real-time diagnostic monitoring and rapid fault isolation to mitigate turbine overspeed and thermal stress.
• Designed for high-reliability operation in both onshore and offshore wind power conversion cabinets.
• Equipped with industrial-grade conformal coating to protect against humidity, salt air, and airborne contaminants.
• Compatible with dual or triple redundant control system configurations for high availability.

Technical Specifications

Installation Guidelines

• Ensure the control system power is fully disconnected before attempting to install or remove the module.
• Handle the card by its edges to prevent electrostatic discharge (ESD) damage to the sensitive PCB components.
• Verify that the cabinet environment remains within the specified temperature and humidity ranges to ensure long-term reliability.
• Ensure the card is properly seated in the backplane to maintain secure serial communication links.
• Regularly inspect the conformal coating for any signs of physical damage if the module is deployed in high-corrosion environments.

FAQ

What is the primary function of the IS210AEBIH1B?
It acts as an interface card for the Mark VIe Wind platform, managing communication between the turbine control processors and the power inverter bridges to regulate gate drivers.

Is this module suitable for offshore wind applications?
Yes, the module is equipped with full conformal coating, which provides the necessary protection against moisture and salt spray typical in offshore environments.

What is the power requirement for this module?
The card operates on a nominal 24 VDC supply with a maximum power consumption of 12 W.
