Description

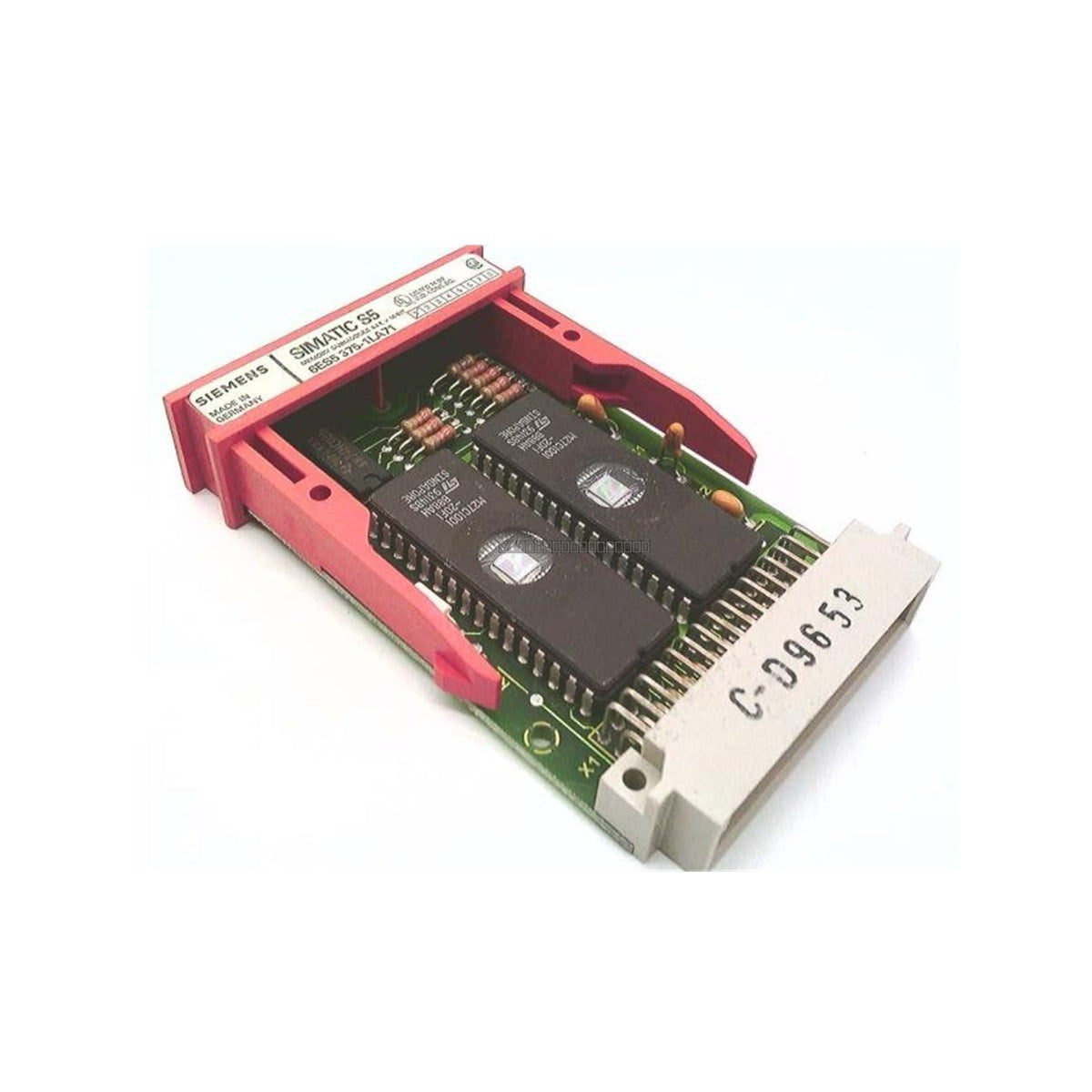

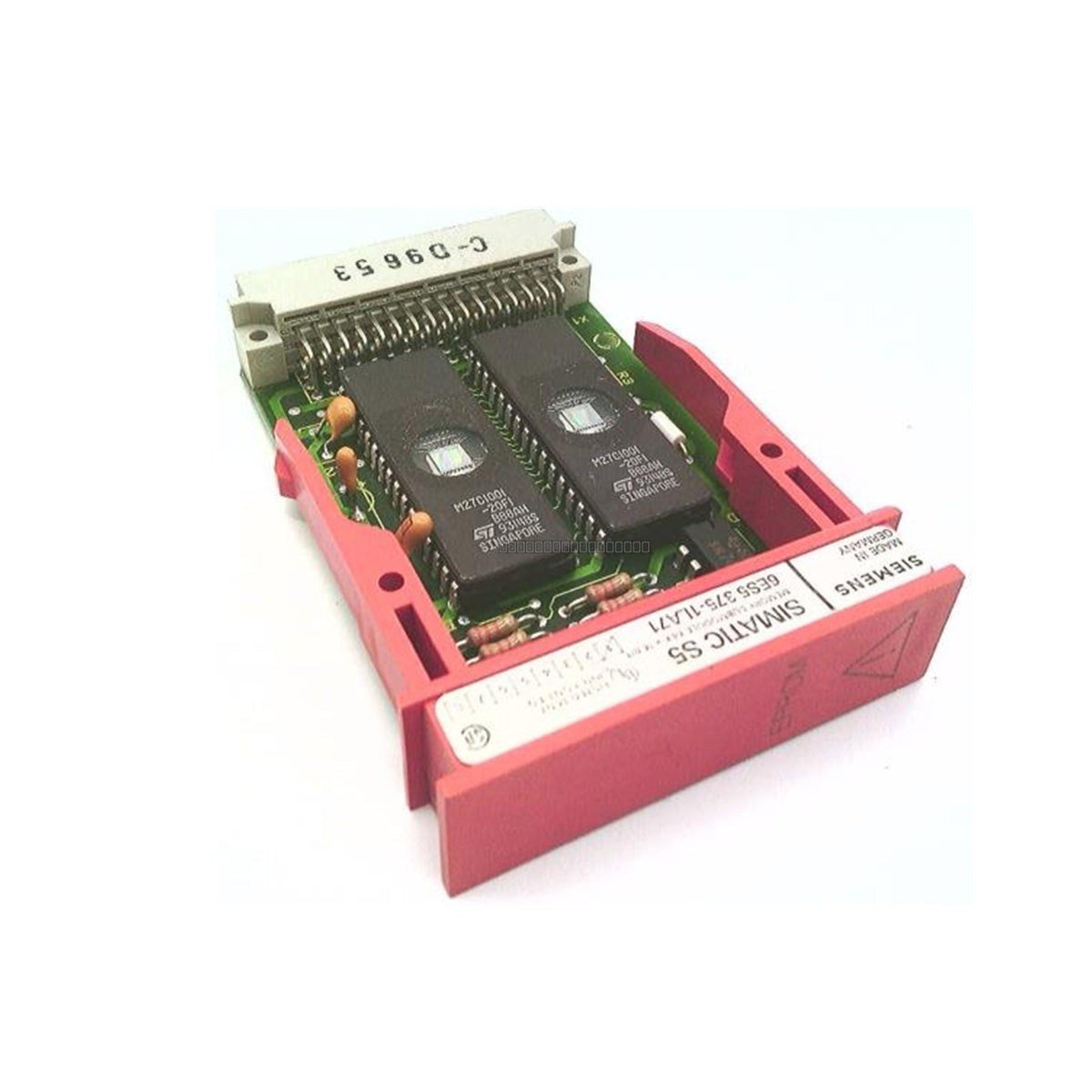

The Siemens 6ES5375-1LA71 is a high-capacity memory submodule designed for the Simatic S5 programmable logic controller series. This component provides 64K x 16 bit non-volatile memory, ensuring the persistent storage of critical control programs and process parameters. By maintaining software integrity and configuration data through power interruptions, this submodule supports high system availability and reduces machine downtime in industrial automation environments.

Features

• Non-volatile memory storage for S5 PLC programs and data.
• 64K x 16 bit storage capacity.
• Designed for direct interface with the S5 processor bus.
• Robust construction for protection against industrial vibrations and environmental stress.
• Compact form factor for efficient rack integration.
• Plug-and-play installation for legacy system maintenance and memory expansion.

Applications

This memory submodule is utilized in various industrial automation applications, including automated assembly lines, water treatment facilities, and large-scale material handling systems where reliable, persistent program storage is required for Simatic S5 controllers.

Technical Specifications

Installation Guidelines

• Ensure the PLC power is switched off before inserting or removing the memory submodule to prevent electrical damage.
• Handle the module by its edges to avoid electrostatic discharge (ESD) damage to the internal components.
• Align the module carefully with the designated S5 controller slot and ensure it is fully seated to maintain reliable electrical contact.
• Verify that the module is firmly secured within the rack to withstand operational vibrations.
• Consult the specific Simatic S5 system manual for any required software configuration or memory initialization steps following installation.

FAQ

Is this module compatible with all Simatic S5 PLCs?

The 6ES5375-1LA71 is designed for the Simatic S5 series; however, compatibility depends on the specific CPU model and its memory addressing capabilities. Please verify your CPU's technical documentation to confirm support for this memory capacity.

Does this module require a battery for data retention?

This is a non-volatile memory submodule designed to retain data without the need for external power, ensuring program integrity during power-off states.
