Description

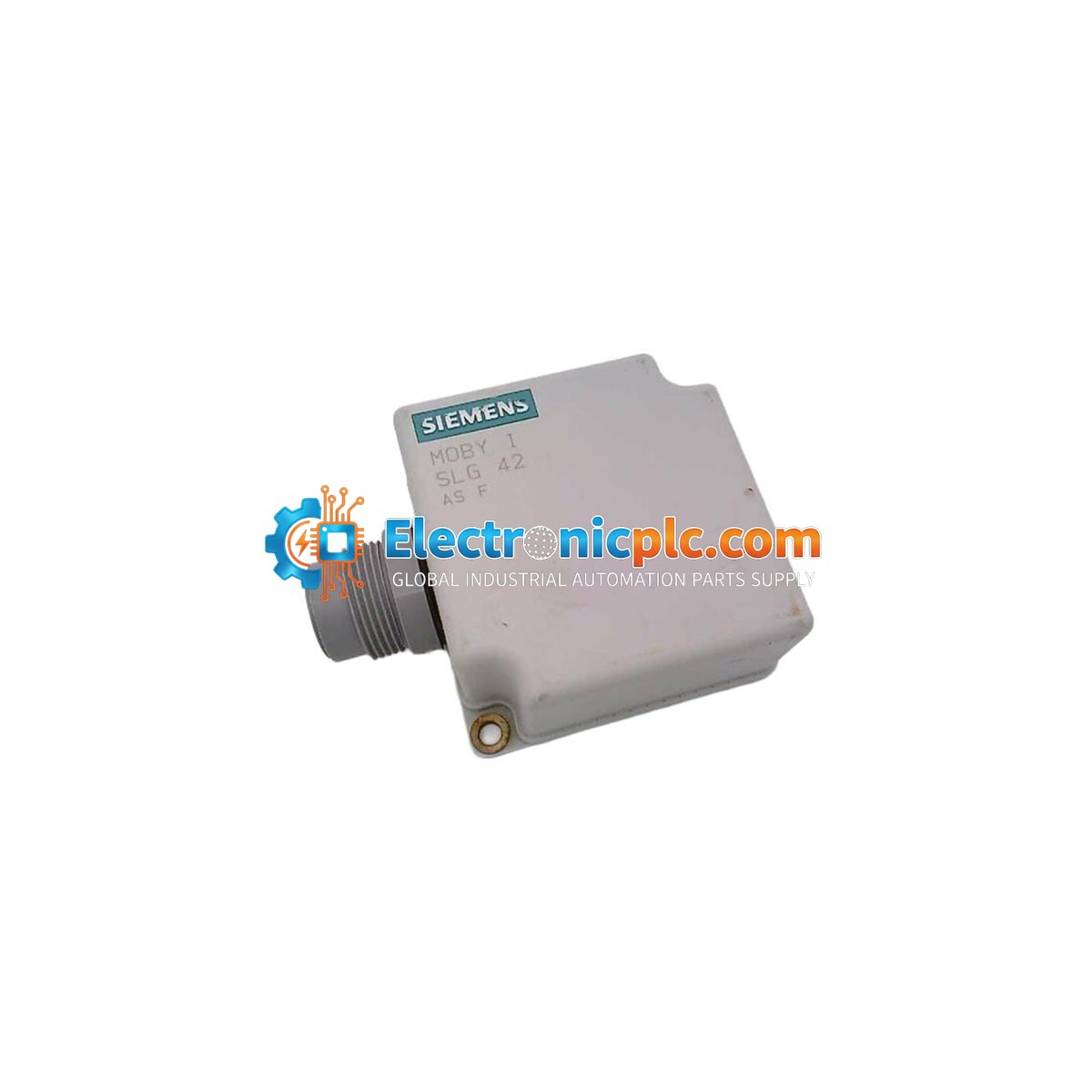

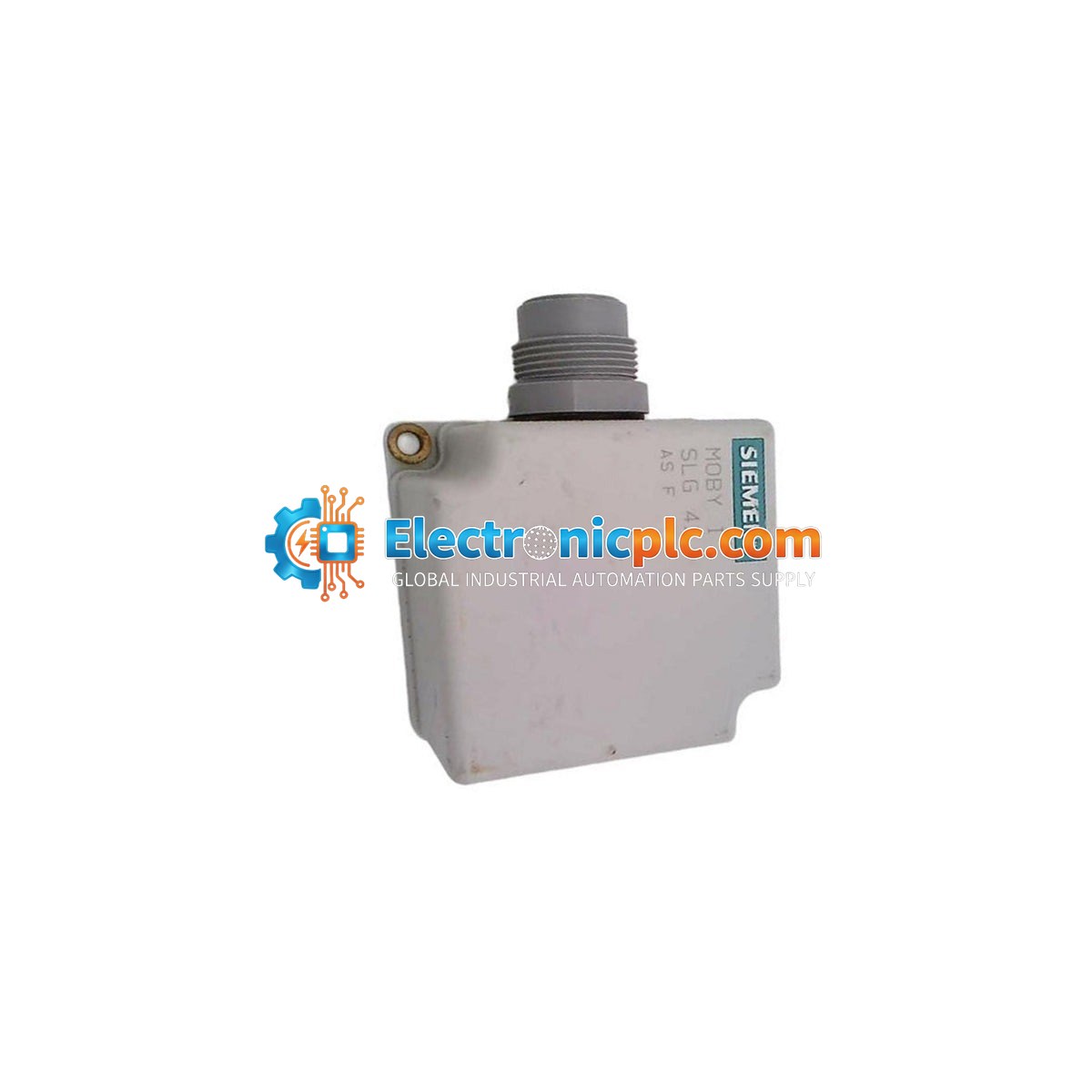

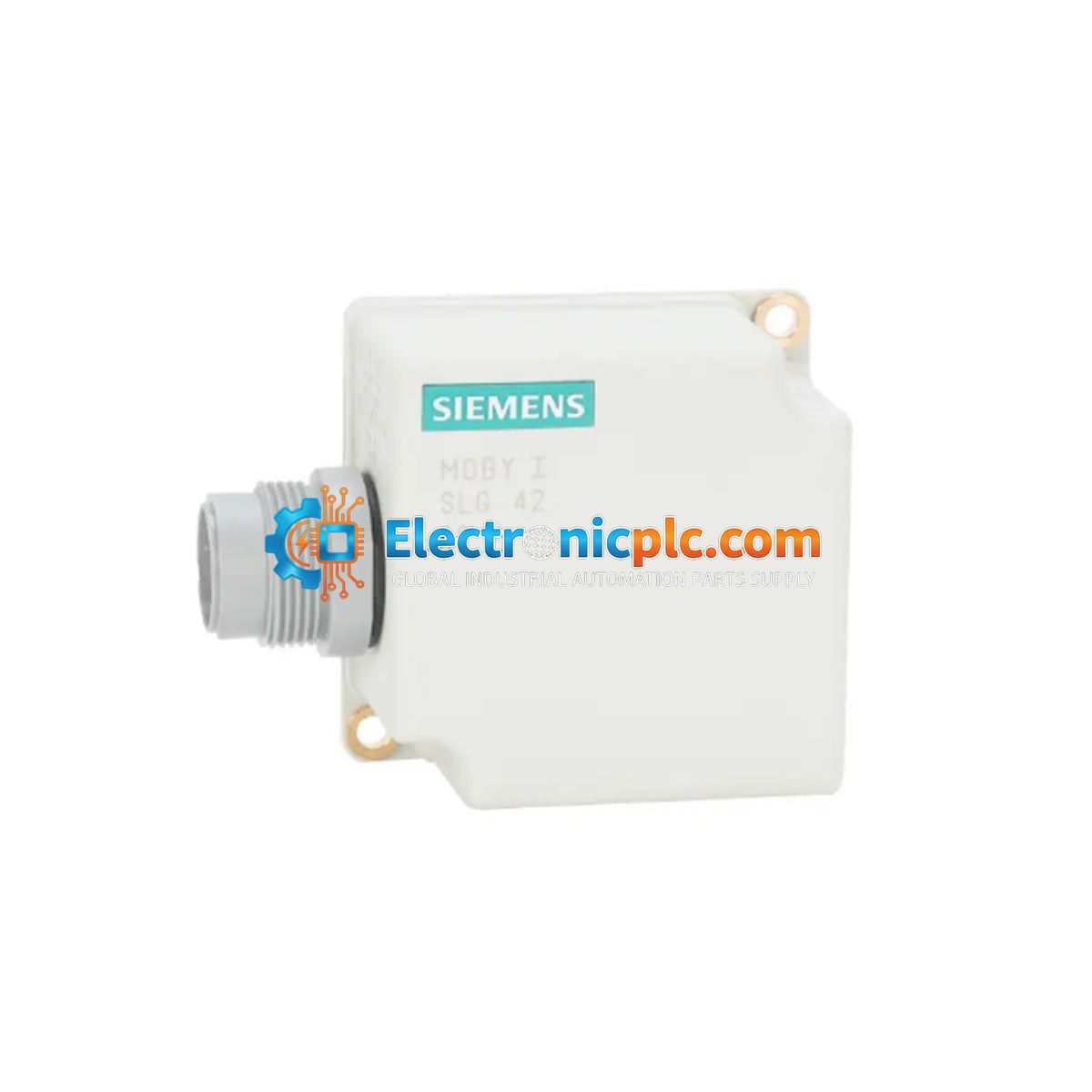

The Siemens MOBY I SLG 42 (6GT2001-0BA00) is a compact radio frequency identification (RFID) transceiver designed for industrial tracking and identification applications. As part of the MOBY I system, this antenna facilitates contact-free data exchange between the host controller and mobile data storage (MDS) tags. It is engineered for high-reliability performance in demanding environments such as automotive assembly lines, automated logistics, and component manufacturing, ensuring accurate part tracking and process routing.

Features

• Integrated antenna coil for stable magnetic coupling within the high-frequency band.
• Robust, resin-filled enclosure providing IP65 ingress protection against dust, lubricants, and coolant spray.
• Optimized for short-range data transmission up to 70 mm (tag dependent).
• Integrated 7-pin male connector for reliable serial communication and power distribution.
• Designed for high-vibration industrial environments.

Applications

• Automated manufacturing and assembly lines.
• Logistics and material handling systems.
• Component paint lines and process validation.
• Routing control in automated factory workflows.

Technical Specifications

Installation Guidelines

• Ensure the antenna is mounted securely to a rigid surface to minimize mechanical stress.
• Maintain the specified operating temperature range (0 to 55 deg C) to prevent signal degradation.
• Use shielded cabling for the 7-pin connection to minimize electromagnetic interference (EMI) from nearby high-power equipment.
• Verify the distance between the antenna and the MDS tag is within the 70 mm maximum limit for consistent data transmission.
• Power down the system before connecting or disconnecting the 7-pin interface to prevent electrical arcing or pin damage.

FAQ

What is the primary function of the 6GT2001-0BA00?

This module acts as an RFID transceiver antenna that reads from and writes to mobile data storage (MDS) tags, allowing for automated identification and tracking of parts in an industrial environment.

Is this antenna suitable for outdoor use?

The device is rated IP65, meaning it is protected against dust and low-pressure water jets. While suitable for harsh factory environments, it is not designed for direct exposure to extreme weather or submersion.

What is the maximum read distance?

The maximum transmission distance is 70 mm, though the actual performance may vary depending on the specific type of MDS tag used in the application.
