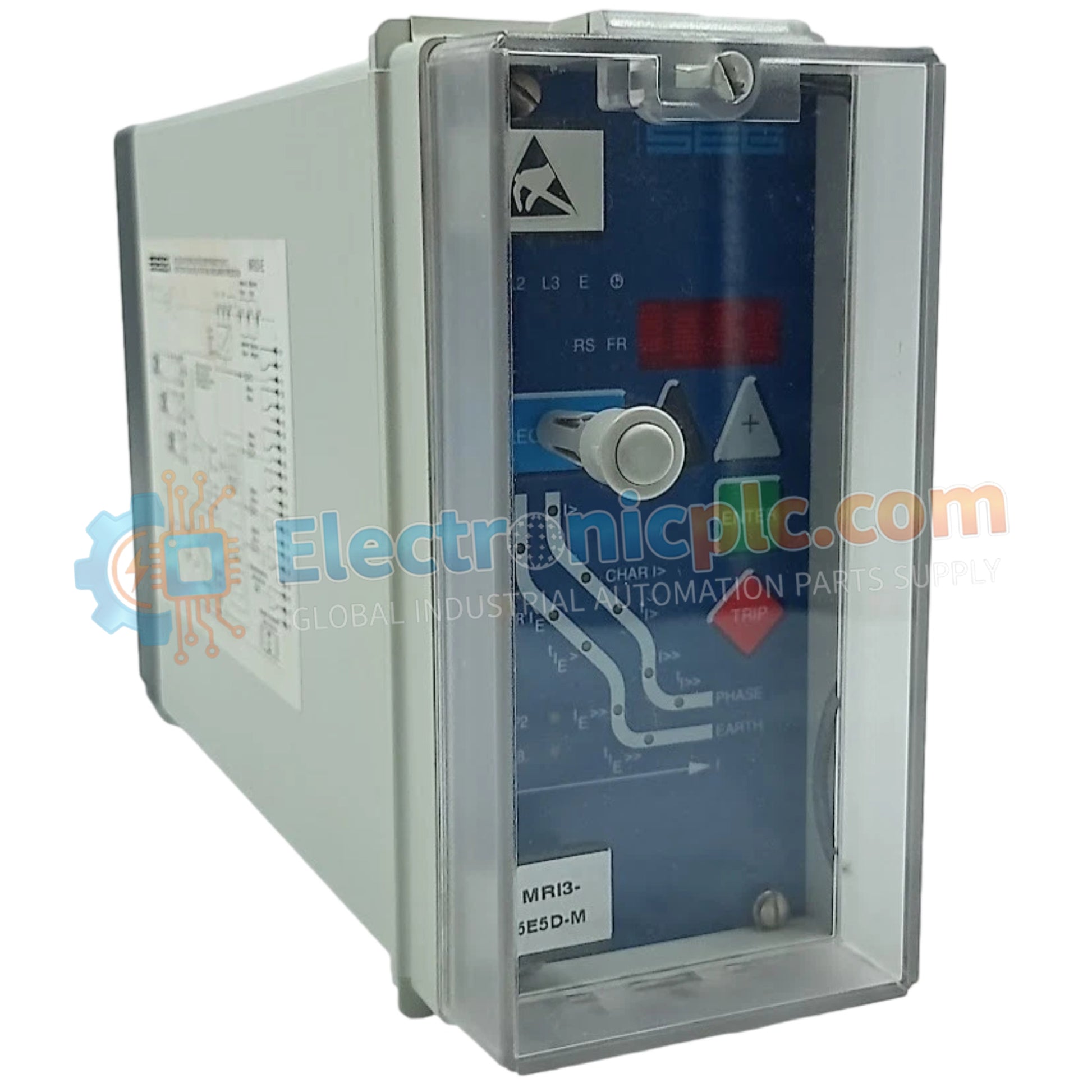

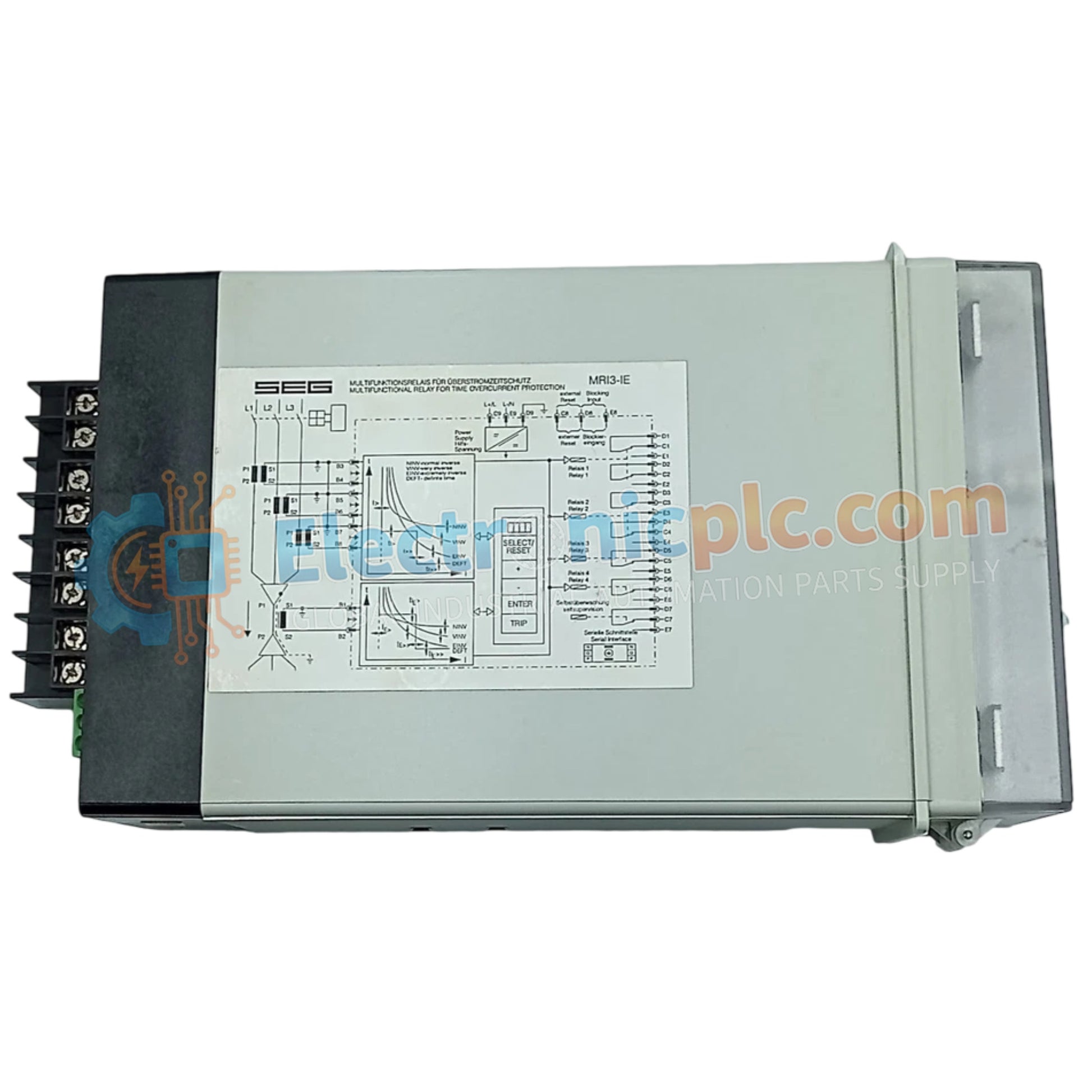

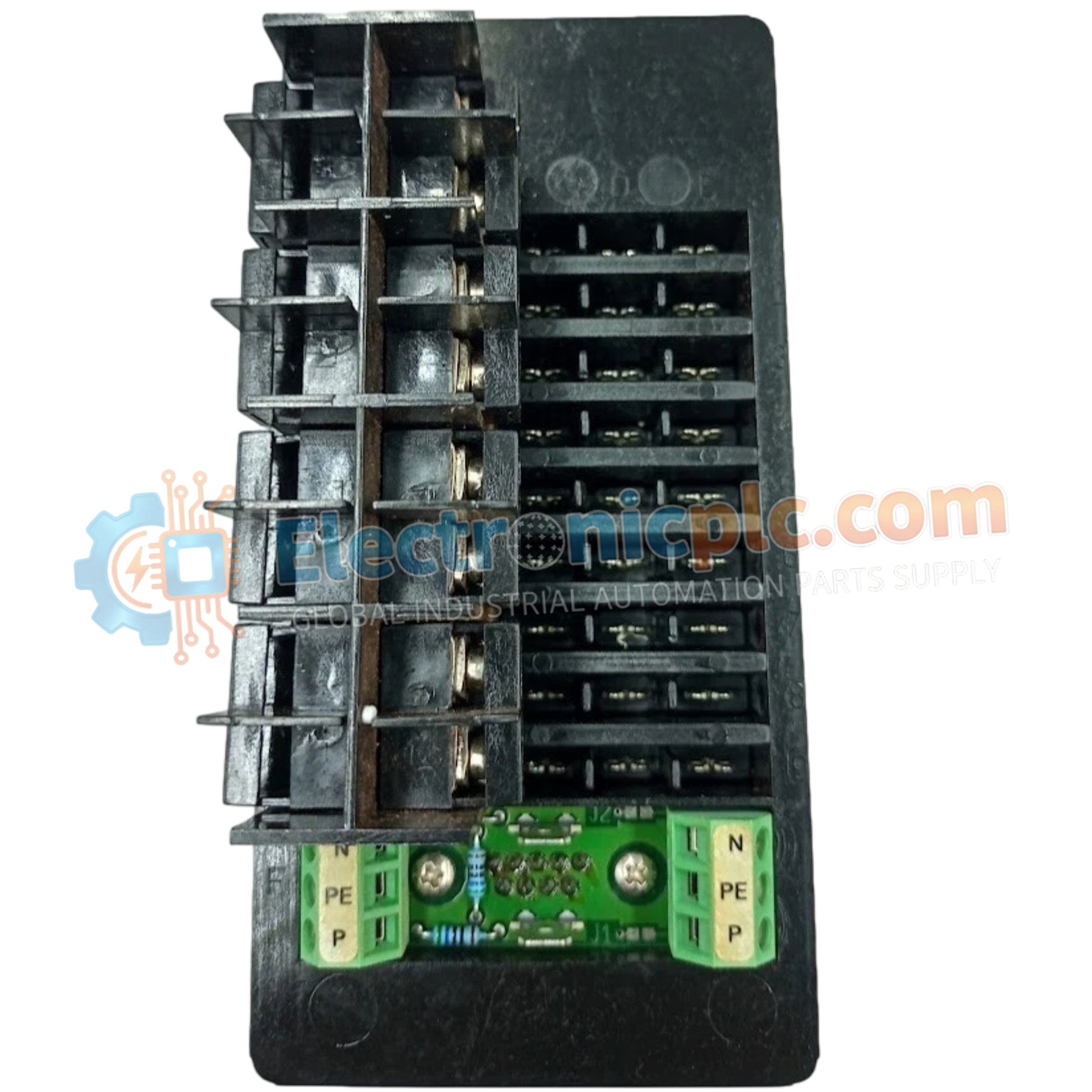

The Woodward MRI3I5E5DM, also cataloged as the MRI3 Digital Protection Relay, operates as a dedicated hardware component for current monitoring and overcurrent protection within electrical power distribution systems.
التوافر: الكمية المتبقية: 10
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The Woodward MRI3I5E5DM, also cataloged as the MRI3 Digital Protection Relay, operates as a dedicated hardware component for current monitoring and overcurrent protection within electrical power distribution systems.
| Parameter | Specification |
|---|---|
| Model | MRI3I5E5DM |
| Brand | Woodward |
| Origin | USA |
| Weight | 0.8 kg |
| Dimensions | 144 mm x 72 mm x 130 mm |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 24-270 VDC or 24-230 VAC auxiliary range |
| Storage Temperature | -40 to +85 deg C |
| Relative Humidity | Up to 95%, non-condensing |
| Rated Current | 1 A or 5 A (selectable) |
| Rated Frequency | 50/60 Hz |
| Overcurrent Setting Range | 0.5-20 x In |
| Time Delay Range | 0.1-20 s |
| Earth Fault Current Range | 0.01-2 x In |
| Output Contacts | 4 changeover contacts (250 VAC, 8 A rating) |
The Woodward MRI3I5E5DM utilizes high-speed digital signal processing to analyze selectable 1 A or 5 A current inputs and deliver deterministic actuator loop feedback response during fault conditions. By evaluating phase overcurrent levels across a 0.5-20 x In range and earth fault thresholds from 0.01-2 x In, the internal logic triggers its 4 changeover output contacts within user-defined time delays (0.1-20 s). This closed-loop monitoring ensures rapid trip signal generation to isolate upstream breakers and safeguard electrical distribution hardware.
Q: What auxiliary power supply options are compatible with the Woodward MRI3I5E5DM?
A: The relay accepts a wide-range auxiliary voltage supply operating from 24 to 270 VDC or 24 to 230 VAC.
Q: What are the output contact ratings and relay configurations on this module?
A: The module is equipped with 4 changeover contacts rated for maximum switching capacities of 250 VAC at 8 A.
Q: What are the current input sensing ranges for phase overcurrent and earth fault monitoring?
A: The unit features selectable rated inputs of 1 A or 5 A, supporting overcurrent pickup settings from 0.5 to 20 x In and earth fault settings from 0.01 to 2 x In.
