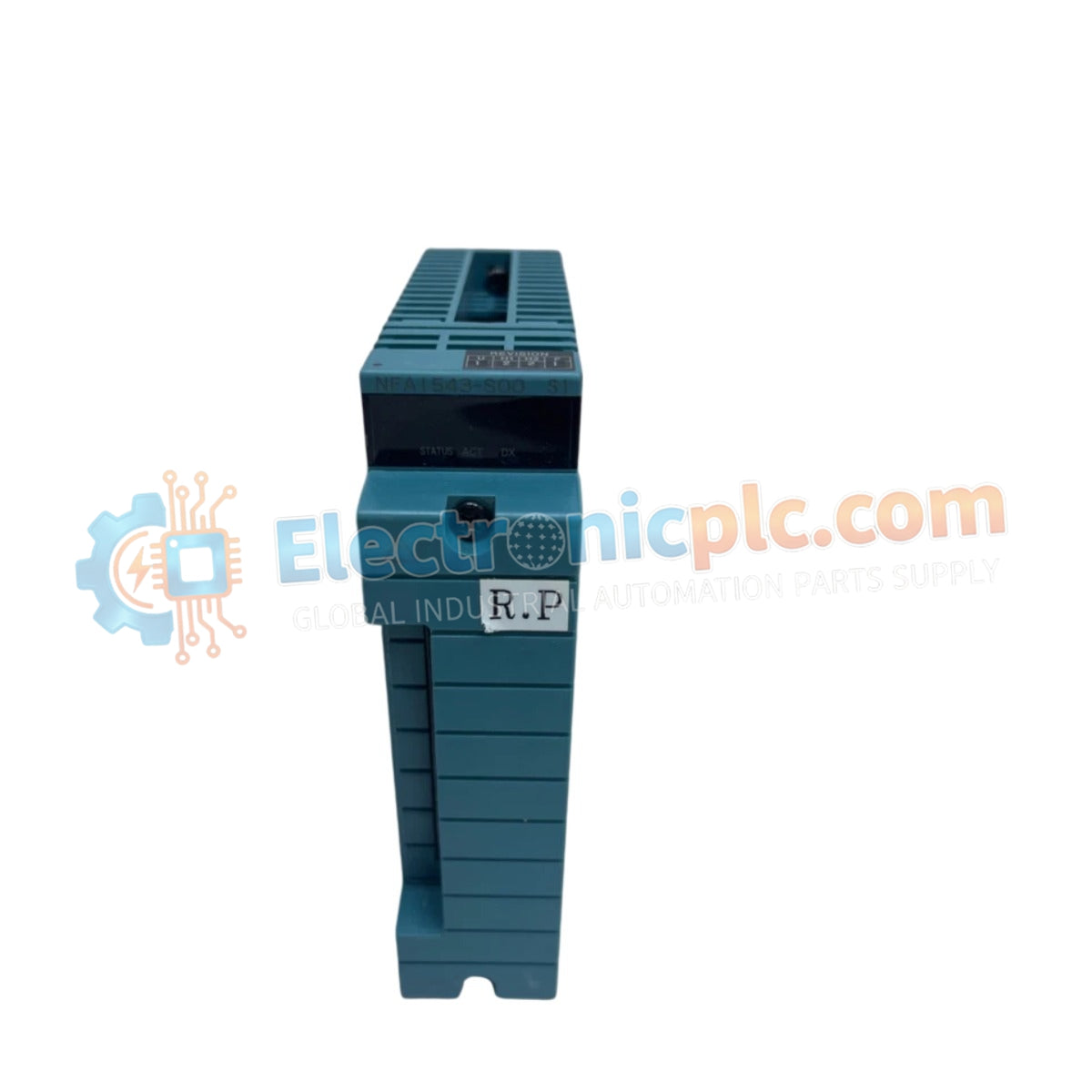

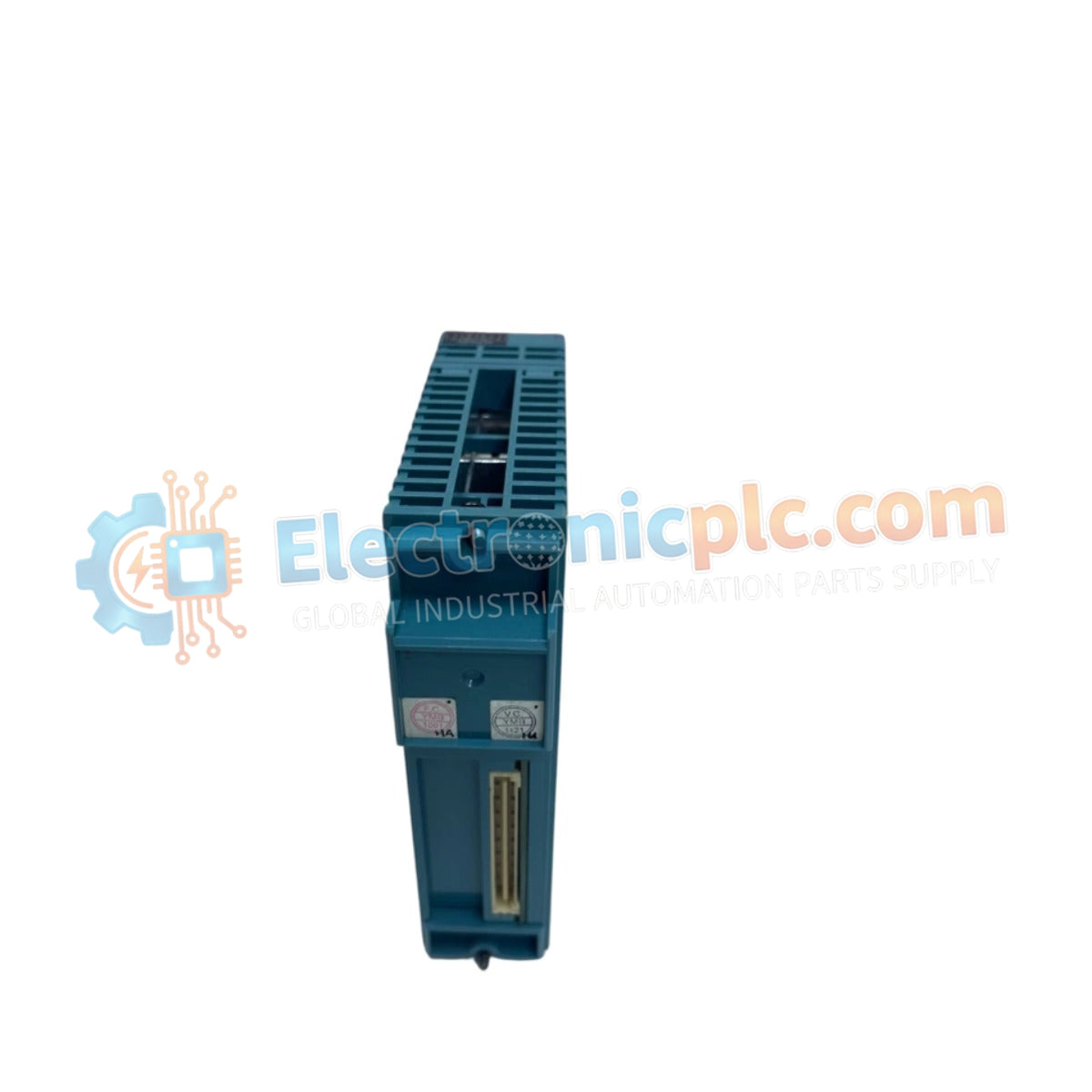

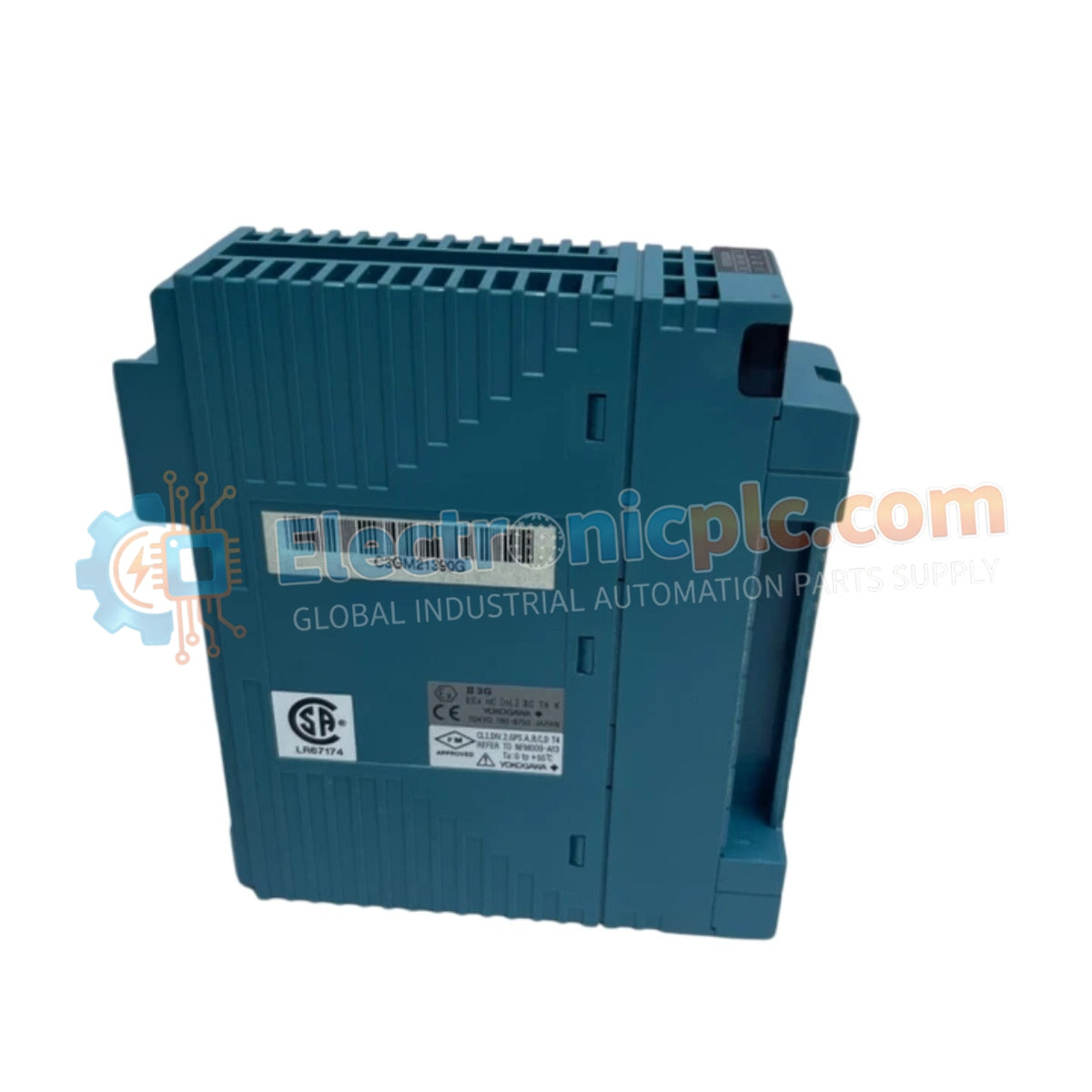

The YOKOGAWA NFAI543, also cataloged as the NFAI543 Output Module, operates as a dedicated hardware component for analog signal generation and field device control within CENTUM VP control systems.

Hardware Specifications

Process Control Connectivity and Loop Performance

The NFAI543 module serves as an interface between the controller and final control elements, providing precise 4-20 mA HART loop protocol signals. The module architecture is engineered to maintain channel-to-channel isolation, which mitigates cross-talk and common-mode noise propagation between disparate control loops. Each output channel includes internal circuitry for diagnostic feedback, allowing the control station to detect open-circuit or short-circuit conditions in the field wiring. This real-time loop monitoring ensures that control signals are delivered accurately to actuators and positioners, maintaining the desired process setpoint across distributed control network platforms.

Frequently Asked Questions

Q: Does the NFAI543 support hot-swap functionality?

A: Yes. The module is designed to be removed and inserted into the backplane while the control station is powered, provided that the system configuration and safety protocols allow for online maintenance of I/O cards.

Q: Is external power required for the analog output channels?

A: The module typically derives power from the backplane, but the loop current must be verified against the load impedance of the connected field devices to ensure signal accuracy within the 4-20 mA range.

Field Installation Guidelines

1. Ensure the module is properly oriented according to the slot keying on the backplane to prevent incorrect insertion.
2. Verify that the field wiring to the terminal block matches the I/O assignment list; improper wiring can result in damage to the output stages or incorrect process control.
3. Tighten all terminal screws to the specified torque to prevent intermittent connections caused by thermal cycling or cabinet vibration.
4. Use shielded twisted-pair cabling for all analog output connections; terminate the cable shield at the designated cabinet grounding rail to minimize electromagnetic interference.
5. After installation, perform a loop check via the engineering station to confirm that the output signal corresponds correctly to the commanded process values.
