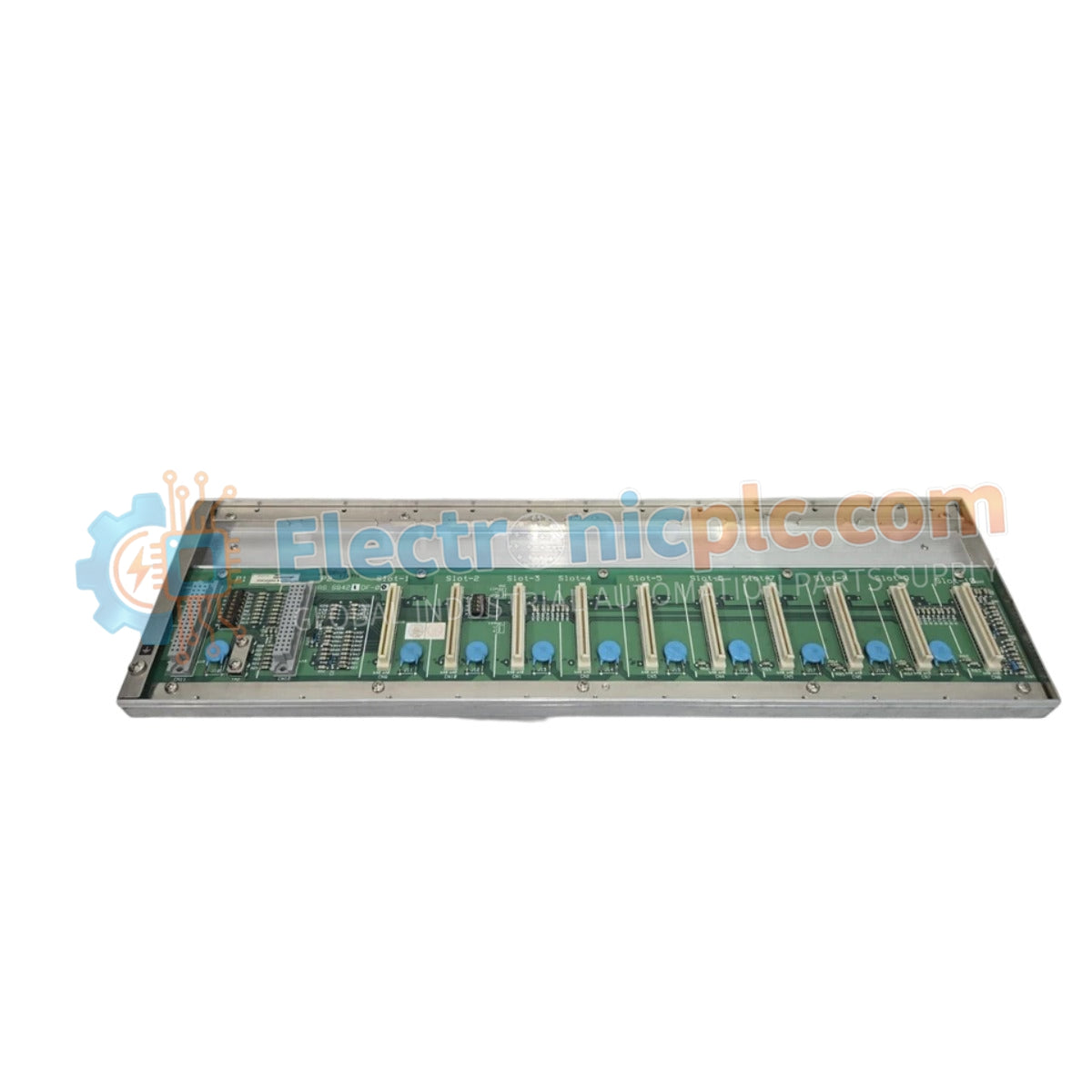

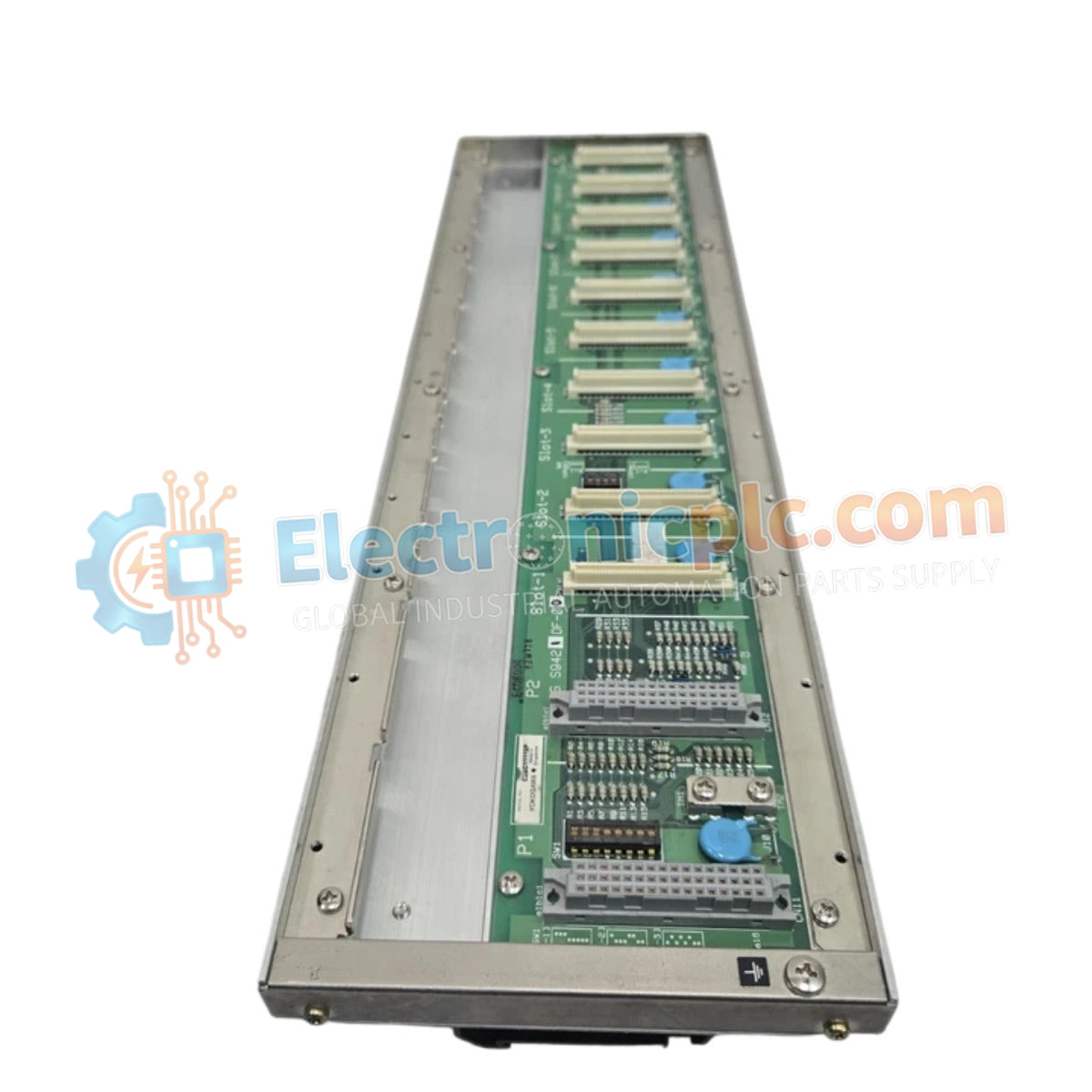

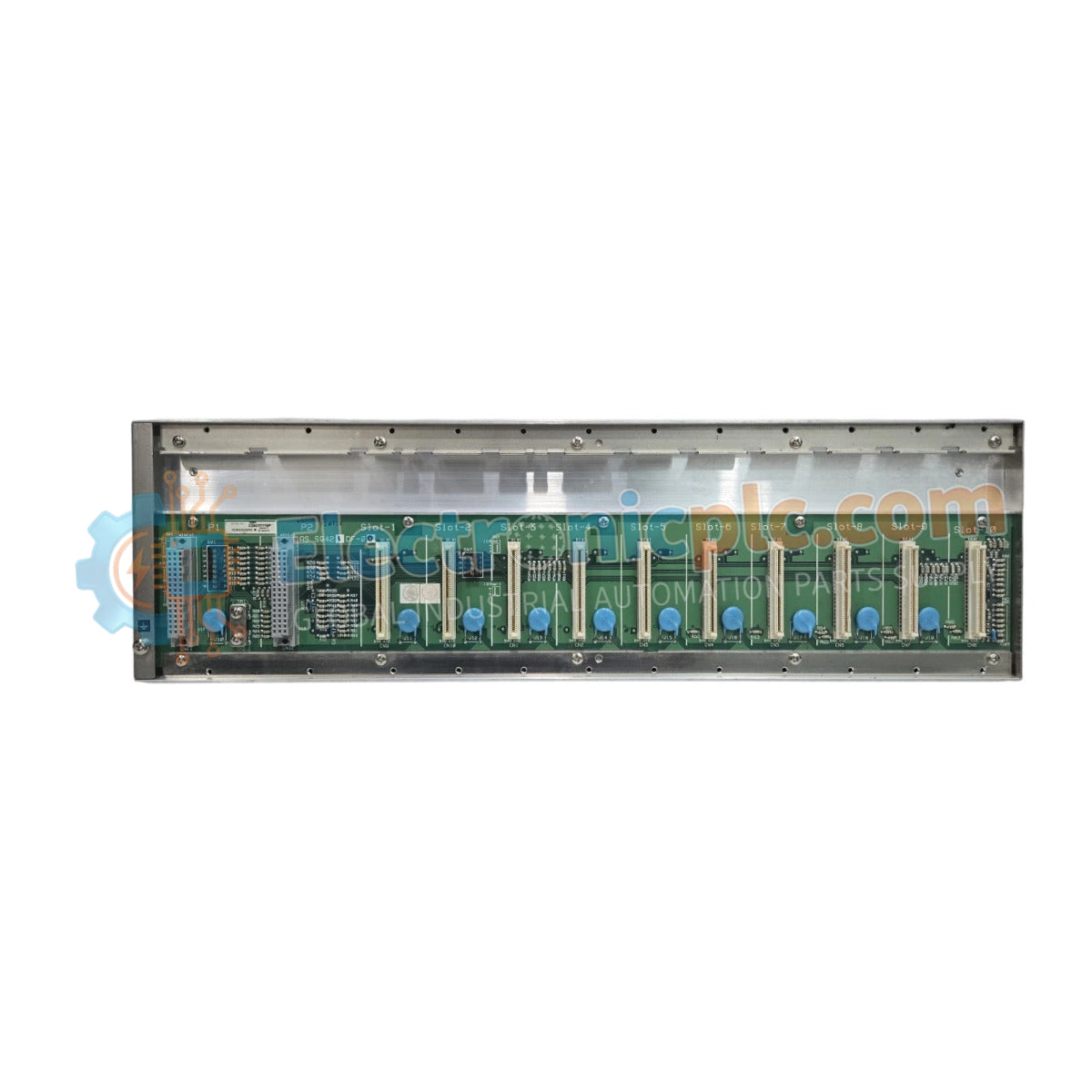

Configured for high-density I/O mounting in STARDOM FCN/FCJ controller architectures, the YOKOGAWA NFBU200-S10 S1 (NFBU200 Base Module) provides direct physical execution of backplane bus distribution and module connectivity.

Suffix Breakdown & Model Matrix

The NFBU200-S10 S1 utilizes a specific ordering matrix to identify hardware compatibility. The -S10 designator represents the base module configuration for local I/O expansion, while the S1 suffix denotes the revision iteration, ensuring compatibility with specific STARDOM backplane bus communication protocols and firmware versions.

Hardware Specifications

FOUNDATION Fieldbus and Backplane Communication

The NFBU200-S10 S1 serves as the mechanical and electrical foundation for I/O modules within the STARDOM environment. It facilitates the backplane bus communication required for deterministic data exchange between the CPU and field I/O. The module architecture is designed to support high-speed FOUNDATION Fieldbus and analog loop connectivity, ensuring that signal routing remains isolated from electromagnetic interference through an optimized internal trace layout.

Frequently Asked Questions

Q: Is the NFBU200-S10 S1 compatible with all STARDOM I/O modules?

A: The NFBU200-S10 S1 is compatible with designated STARDOM I/O modules that utilize the standard backplane interface. Refer to the specific I/O module datasheet to verify mechanical and electrical compatibility before installation.

Q: Can this base module be expanded using extension cables?

A: Yes. The base module supports integration with STARDOM expansion cables to extend the I/O bus to remote racks, provided the total bus length remains within the defined electrical signal propagation limits of the control system.

Field Installation Guidelines

1. DIN-rail Mounting: Secure the base module to a grounded metal DIN-rail. Ensure the locking latch is fully engaged to provide a low-impedance path to the cabinet ground.
2. Backplane Alignment: Carefully align the I/O module guide rails with the base module connectors. Avoid excessive force during insertion to prevent damage to the backplane pins.
3. Power Termination: Ensure the backplane power supply connections are properly torqued according to terminal specifications. Verify voltage levels at the base module terminals before inserting active I/O modules.
4. Environment: Install in a clean, dry location. Maintain the 0 deg C to 60 deg C temperature range to ensure the long-term reliability of the backplane connectors and signal integrity.
