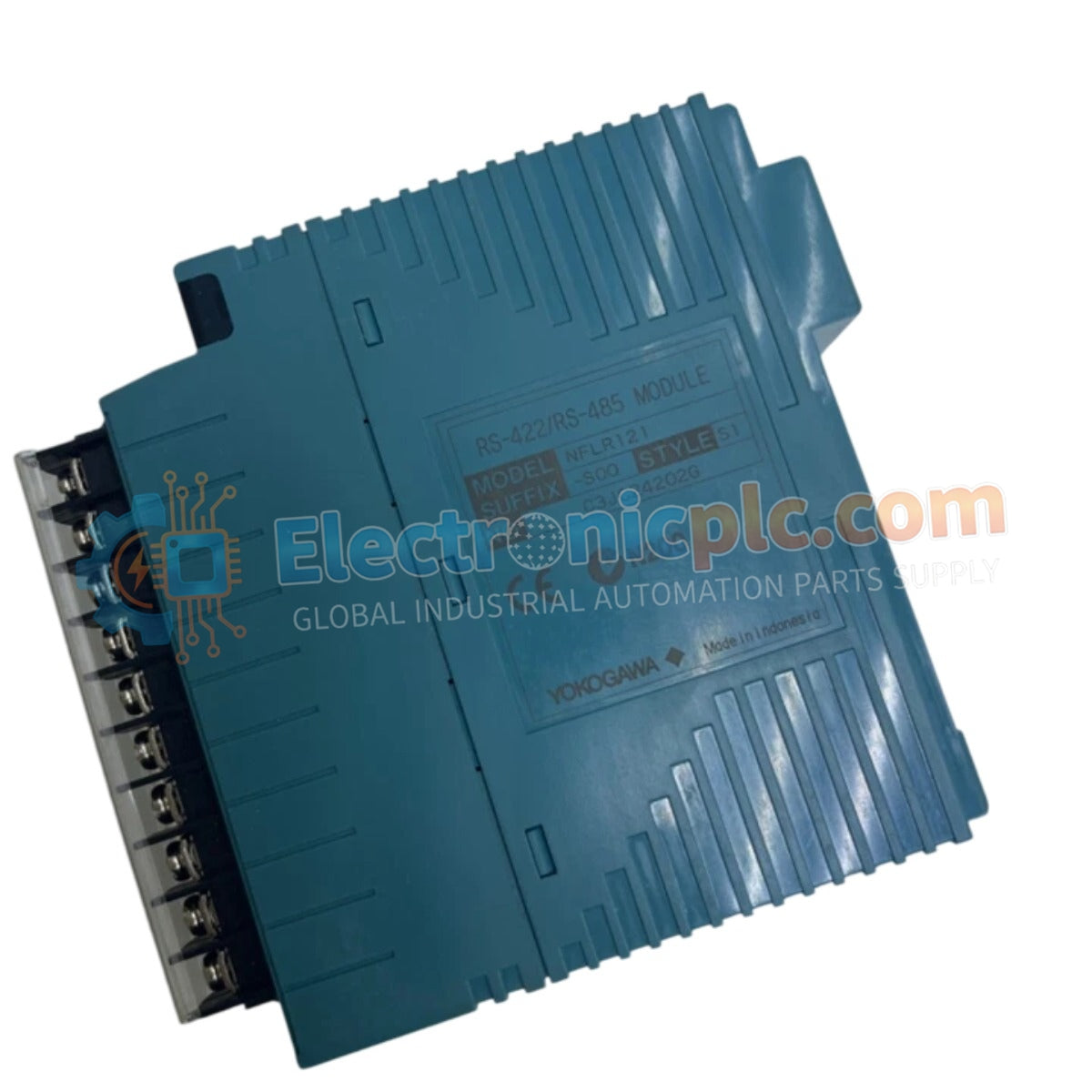

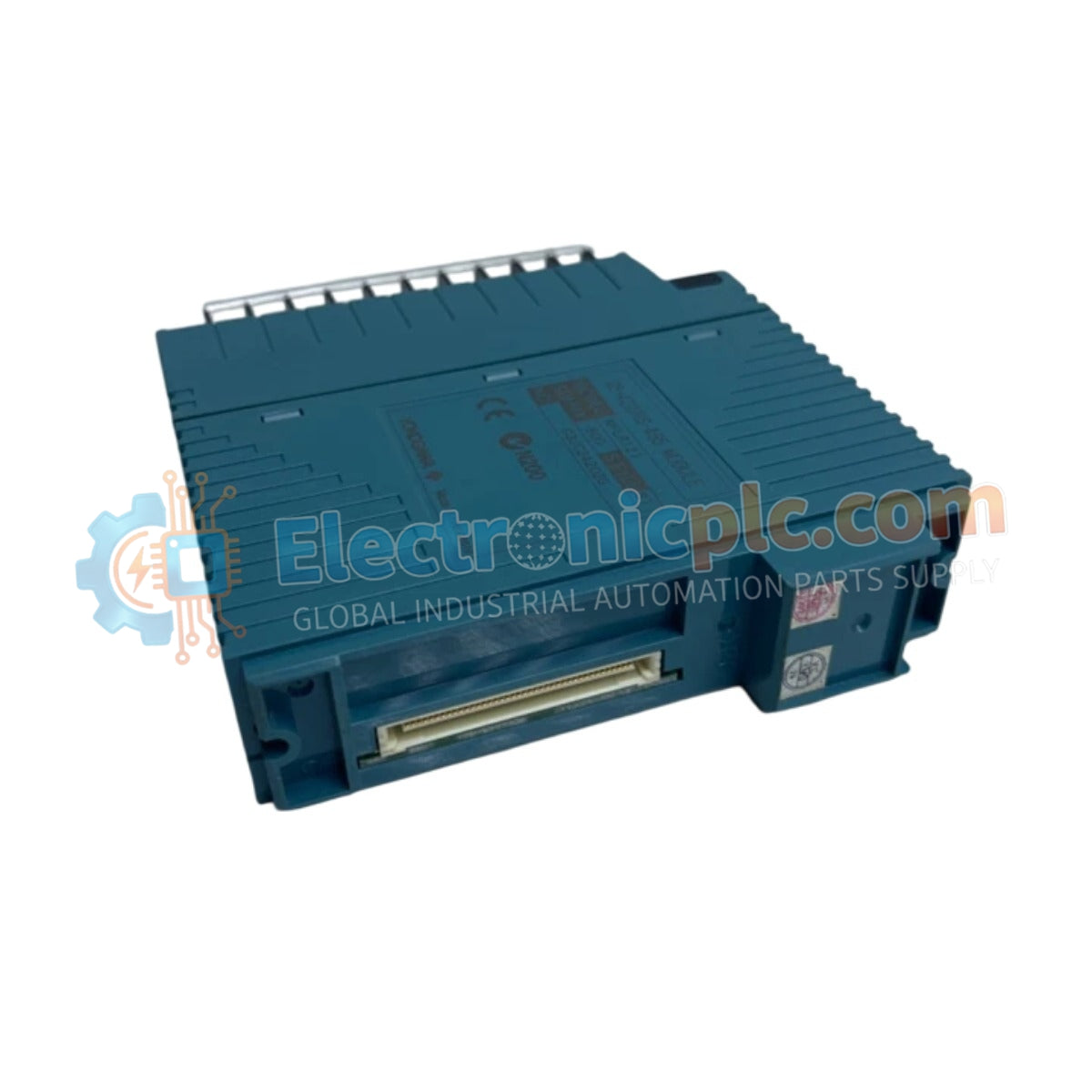

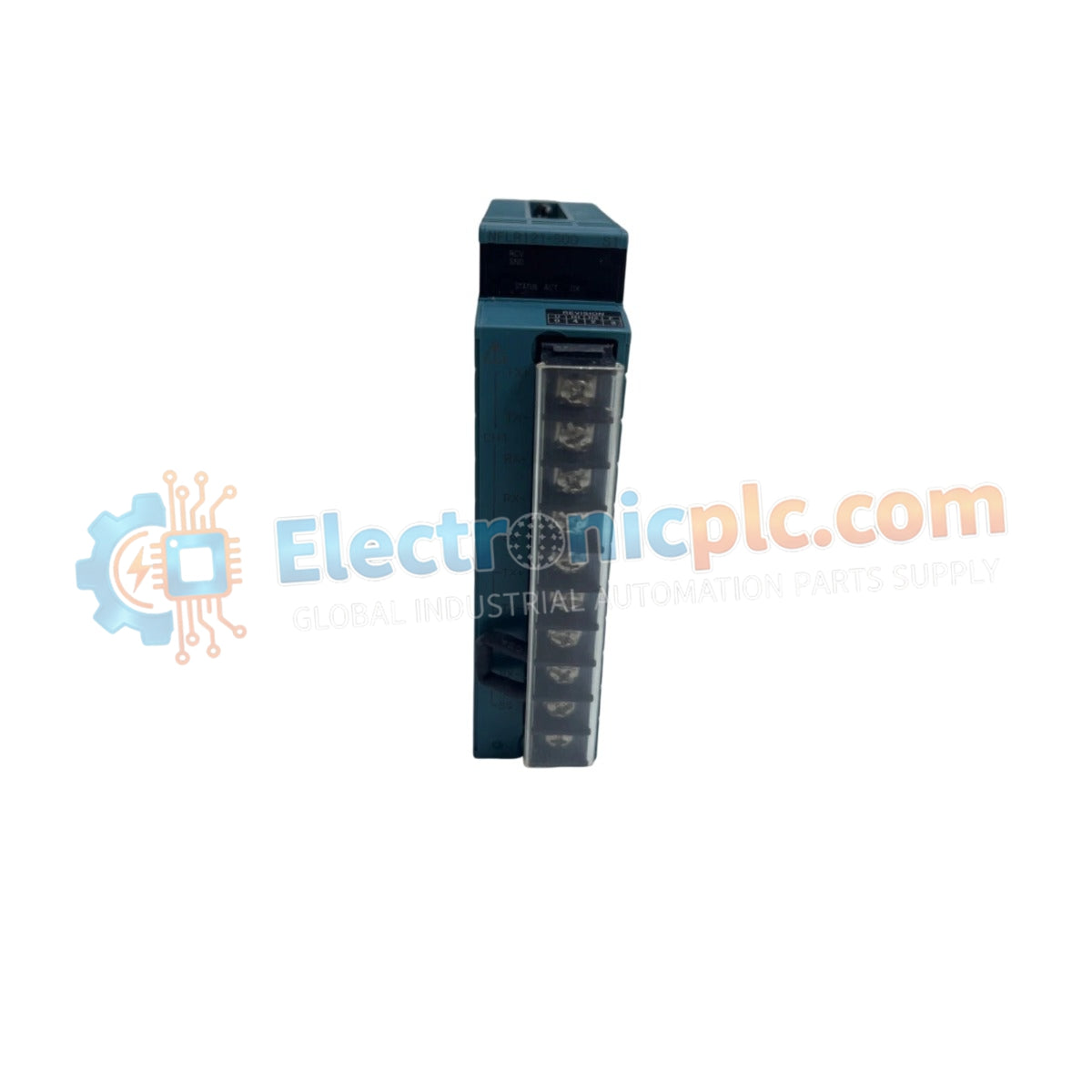

Configured for high-speed serial data exchange in STARDOM FCN/FCJ controller architectures, the YOKOGAWA NFLR121-S00 S1 (NFLR121 Serial Communication Module) provides direct physical execution of protocol-based communication between the controller and third-party field devices.

Suffix Breakdown & Model Matrix

The NFLR121-S00 S1 utilizes a standardized suffix configuration for hardware version control. The -S00 designator identifies the module as the base hardware variant for serial interfaces, while the S1 suffix represents the initial revision level, confirming compatibility with STARDOM backplane bus communication protocols and firmware interface requirements.

Hardware Specifications

Protocol Conversion Latencies and Network Integrity

The NFLR121-S00 S1 facilitates multi-protocol serial communication, supporting integration with external intelligent devices such as analyzers, meters, and variable frequency drives. The module architecture is designed to handle serial protocol conversion latencies by offloading frame processing from the main controller CPU. To maintain stable communication, proper impedance matching for RS-485 segments and adherence to common-mode voltage limits are required. This ensures that serial data packets are transmitted without corruption, preserving the integrity of the process data integrated into the STARDOM control network.

Frequently Asked Questions

Q: Does the NFLR121-S00 S1 support simultaneous multi-port operation?

A: Yes. The module is engineered to handle multiple serial streams concurrently, provided that the system software and communication drivers are configured to manage the aggregate throughput within the specified latency constraints of the backplane bus.

Q: Is this module compatible with shielded cables for long-distance RS-485 runs?

A: The module is designed to interface with standard shielded twisted-pair cabling. For long-distance RS-485 segments, ensure the shield is terminated at the cabinet ground and that termination resistors are installed at both physical ends of the bus.

Field Installation Guidelines

1. Backplane Seating: Align the NFLR121-S00 S1 with the STARDOM backplane slot guides. Insert the module until the connectors are fully seated and secure the front-panel locking levers to ensure reliable bus contact.
2. Wiring Termination: Follow the pinout diagram specified in the technical manual for the chosen protocol (RS-232/422/485). Ensure connections are tight and that external signal converters are used where protocol level translation is required.
3. Signal Shielding: All serial cables must utilize shielded twisted-pair conductors to mitigate electromagnetic interference in industrial environments. Terminate shields consistently to prevent ground loops across distributed serial segments.
4. Environment: Install in an area where ambient temperatures remain between 0 deg C and 60 deg C. Provide adequate clearance for convective airflow to prevent internal temperature rise during high-throughput communication cycles.
