Description

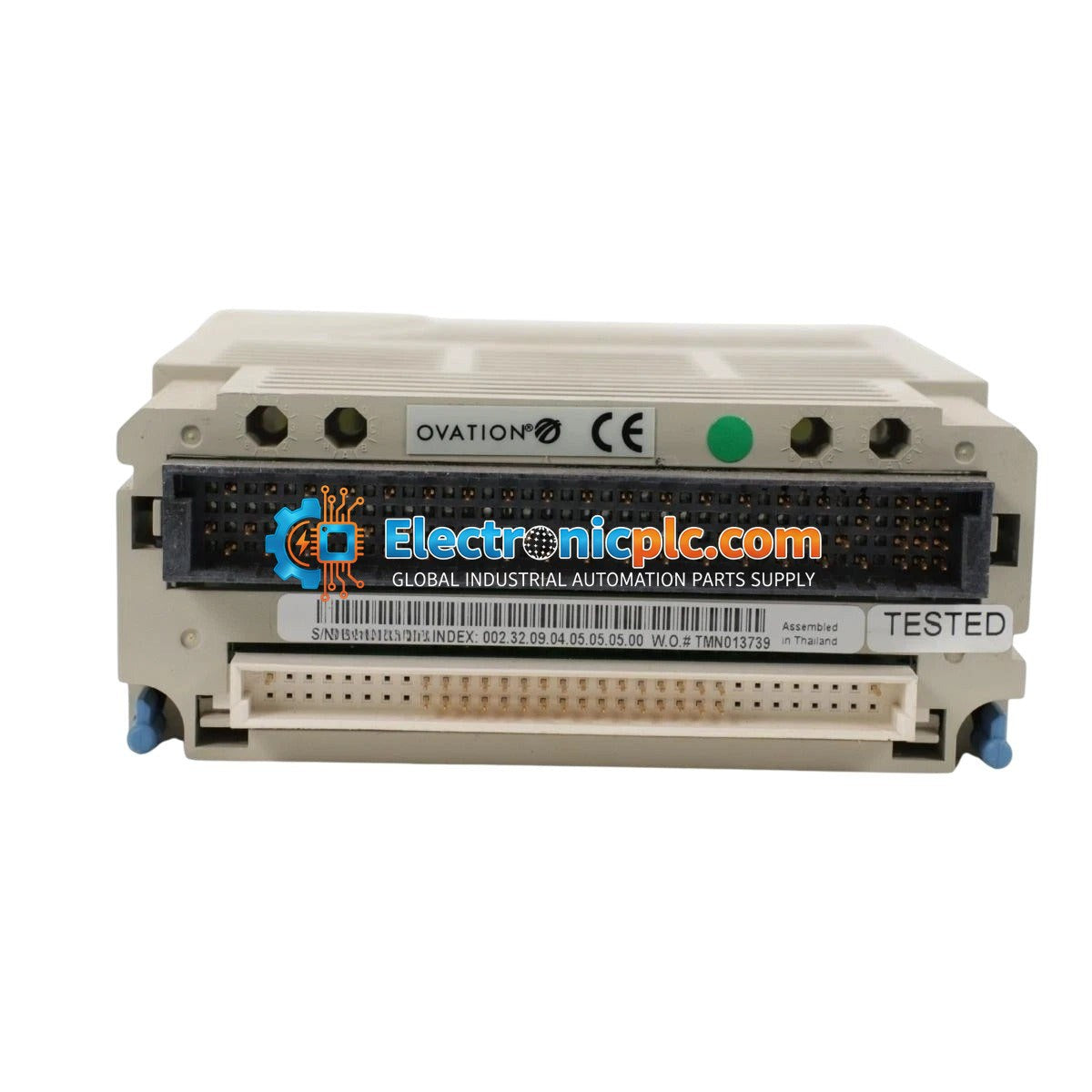

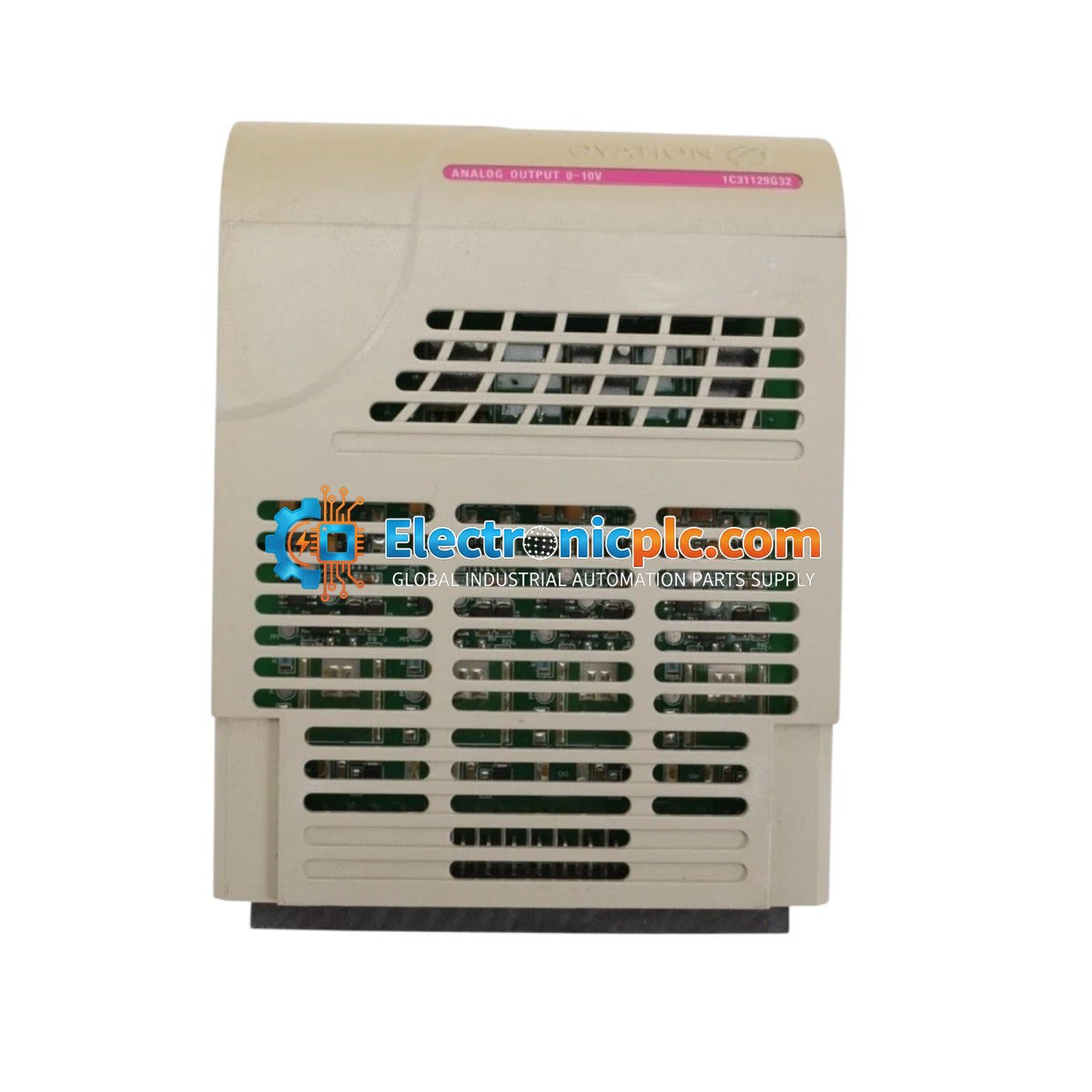

The Ovation 1C31129G32 is a high-precision I/O module engineered for data acquisition and control within Emerson Ovation distributed control systems (DCS). This module is designed for critical industrial environments, including power generation, water treatment, and petrochemical processing. By providing a reliable interface for 4 analog inputs and 6 digital outputs, the 1C31129G32 ensures consistent signal processing and real-time responsiveness, helping to minimize latency and optimize operational efficiency in complex control loops.

Features

• Integrated I/O: Supports 4 analog inputs and 6 digital outputs for versatile process management.
• Communication Interfaces: Features dual-mode connectivity including RS485 serial and USB for field communication and local diagnostics.
• High Precision: Maintains a signal precision of 0.05% of span for accurate monitoring.
• Performance: 100 ms refresh rate for high-speed data acquisition.
• Robust Design: Built to operate reliably within fluctuating industrial power environments.

Applications

This module is suitable for deployment in various industrial automation applications, including:

• Process automation in power plants.
• Control and monitoring in water treatment facilities.
• Refinery and petrochemical process control.
• General industrial data acquisition systems requiring mixed analog and digital signal handling.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap and proper ESD-safe handling procedures when installing or removing the module.
• Power Status: Ensure the system power is disconnected or the rack is in a safe state before inserting or removing the module to prevent electrical damage.
• Mounting: Ensure the module is fully seated in the designated rack slot and that all locking mechanisms are engaged to maintain electrical contact.
• Wiring: Use shielded cables for analog signal connections to minimize EMI interference. Route signal cables away from high-voltage power lines.
• Environment: Ensure adequate ventilation around the module to maintain operating temperatures within the specified range of -15 to 75 deg C.

FAQ

What is the primary function of the 1C31129G32?

The 1C31129G32 is an I/O module used in Emerson Ovation systems to interface analog and digital signals, allowing the DCS to monitor process variables and control discrete devices simultaneously.

Can this module be used for local diagnostics?

Yes, the module features an integrated USB interface specifically designed for local diagnostic access and configuration.

What is the required power supply for this module?

The module is designed to operate on a 24 VDC power supply typical of industrial control cabinets.
