Description

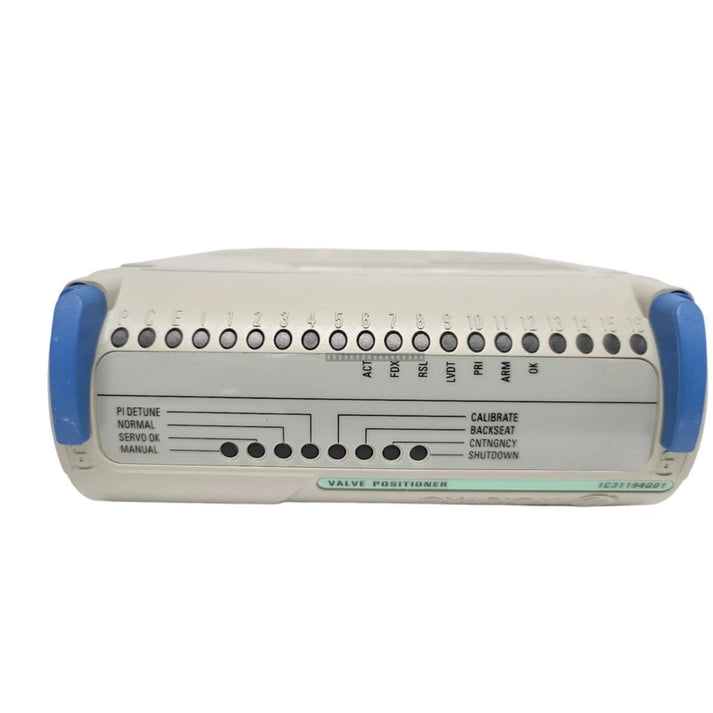

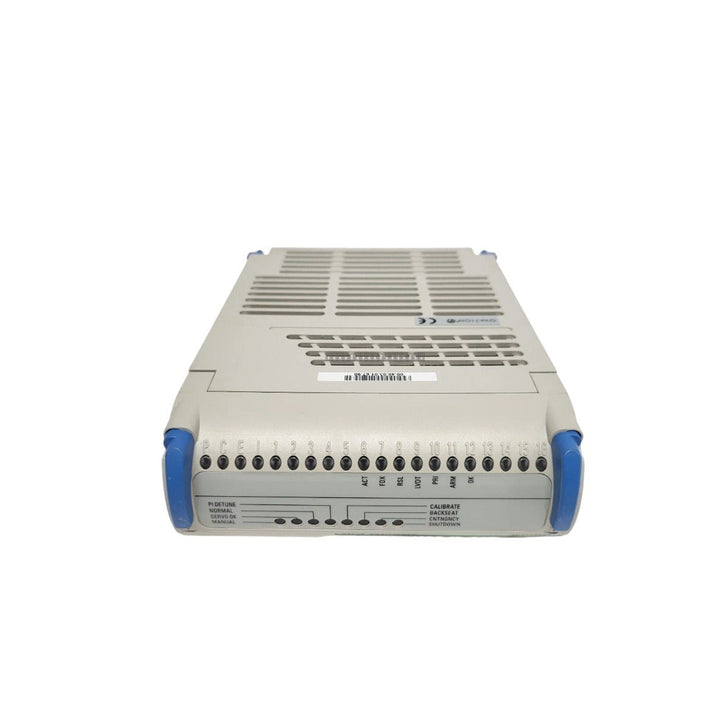

The Emerson Westinghouse 1C31194G01 is a specialized valve positioner electronics module designed for precise control and monitoring of industrial valve actuators. This module is compatible with Ovation and DeltaV control systems, providing reliable feedback and positioning accuracy for demanding process control applications.

Features

• Supports 4-20mA input signals with HART communication protocol for advanced diagnostics and configuration.
• Designed for high-performance valve positioning across a full 0-100% stroke range.
• Robust construction suitable for extreme process environments.
• Integrated electronics for seamless integration into Emerson distributed control systems.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
• Verify that the supply air pressure is within the specified 1.4-7 bar range before initiating operation.
• Use shielded cabling for 4-20mA/HART signal connections to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the valve positioner assembly to maintain signal integrity and safety.
• Handle with care to avoid damage to sensitive electronic components; use ESD-safe practices during installation.

FAQ

Is this module still in production? No, the 1C31194G01 has been discontinued by the manufacturer.

What systems is this module compatible with? This module is designed for use with Emerson Ovation and DeltaV control platforms.

Does this module support HART communication? Yes, the module supports 4-20mA input signals with integrated HART protocol capabilities.
