Description

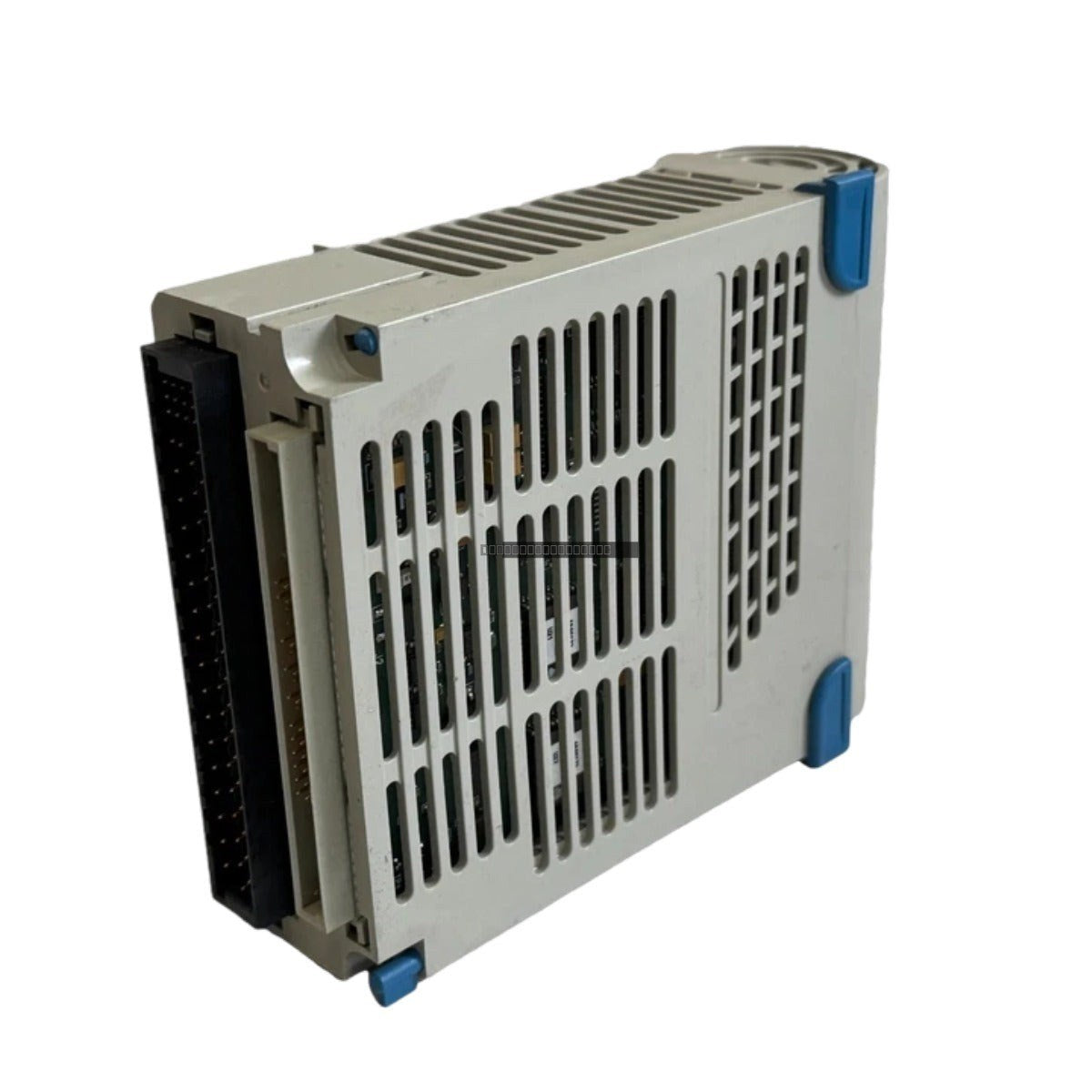

The Ovation 5X00070G02 is a precision-engineered analog output module designed for integration within Ovation distributed control systems. This unit provides reliable signal conversion to support the operation of final control elements such as actuators, valves, and positioners. By delivering high-fidelity output signals, the module enables accurate process regulation, reducing signal drift and enhancing overall loop stability in demanding industrial environments.

Features

• High-speed digital-to-analog conversion for real-time control applications.
• Integrated diagnostic monitoring for detection of open-loop and short-circuit faults.
• Galvanic isolation between the field-side output channels and the internal control bus.
• Designed for continuous duty cycles within high-EMI industrial environments.
• Deterministic performance via seamless integration with the Ovation I/O bus architecture.

Applications

This module is widely utilized in large-scale industrial operations, including power generation plants, oil and gas facilities, and heavy manufacturing sectors. Its primary role is to bridge the gap between digital control logic and physical process hardware, ensuring precise control over critical process variables.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O rack is powered down before inserting or removing any module to prevent damage to the backplane connectors.
• Verify that the module is properly seated in the designated rack slot to ensure a secure electrical connection.
• Use shielded cabling for all field-side connections to minimize the impact of electromagnetic interference (EMI).
• Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 degC operating range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the 5X00070G02?
The 5X00070G02 is an analog output module that converts digital control signals from the Ovation system into standard 4-20 mA or 0-10 VDC signals to drive field actuators.

Does this module provide fault diagnostics?
Yes, the module includes internal fault monitoring capable of identifying open-loop or short-circuit conditions and reporting these diagnostics to the central controller.

Is this module compatible with all Ovation systems?
The 5X00070G02 is designed for the Ovation distributed I/O rack. Please verify your specific controller revision and I/O bus compatibility before installation.
