Description

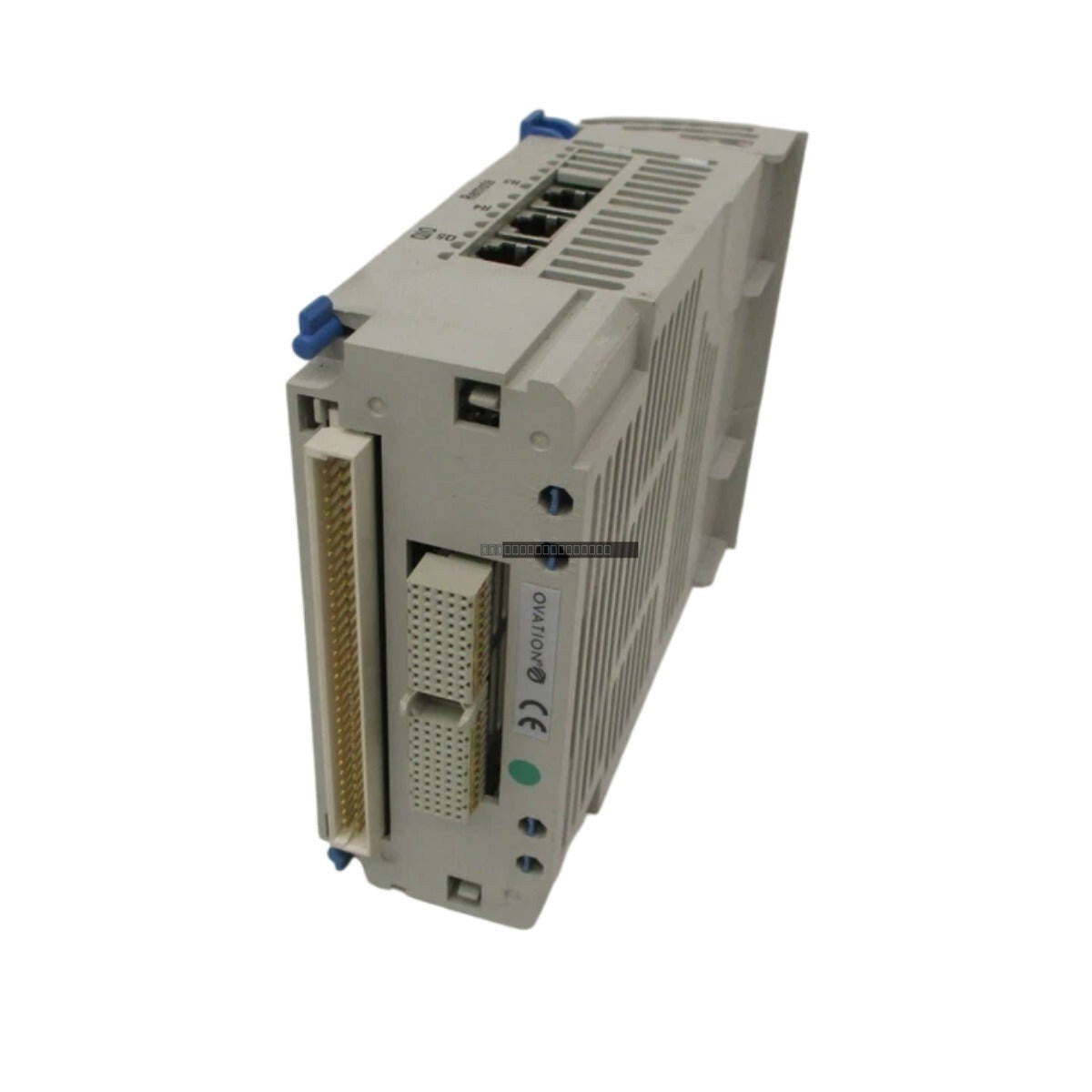

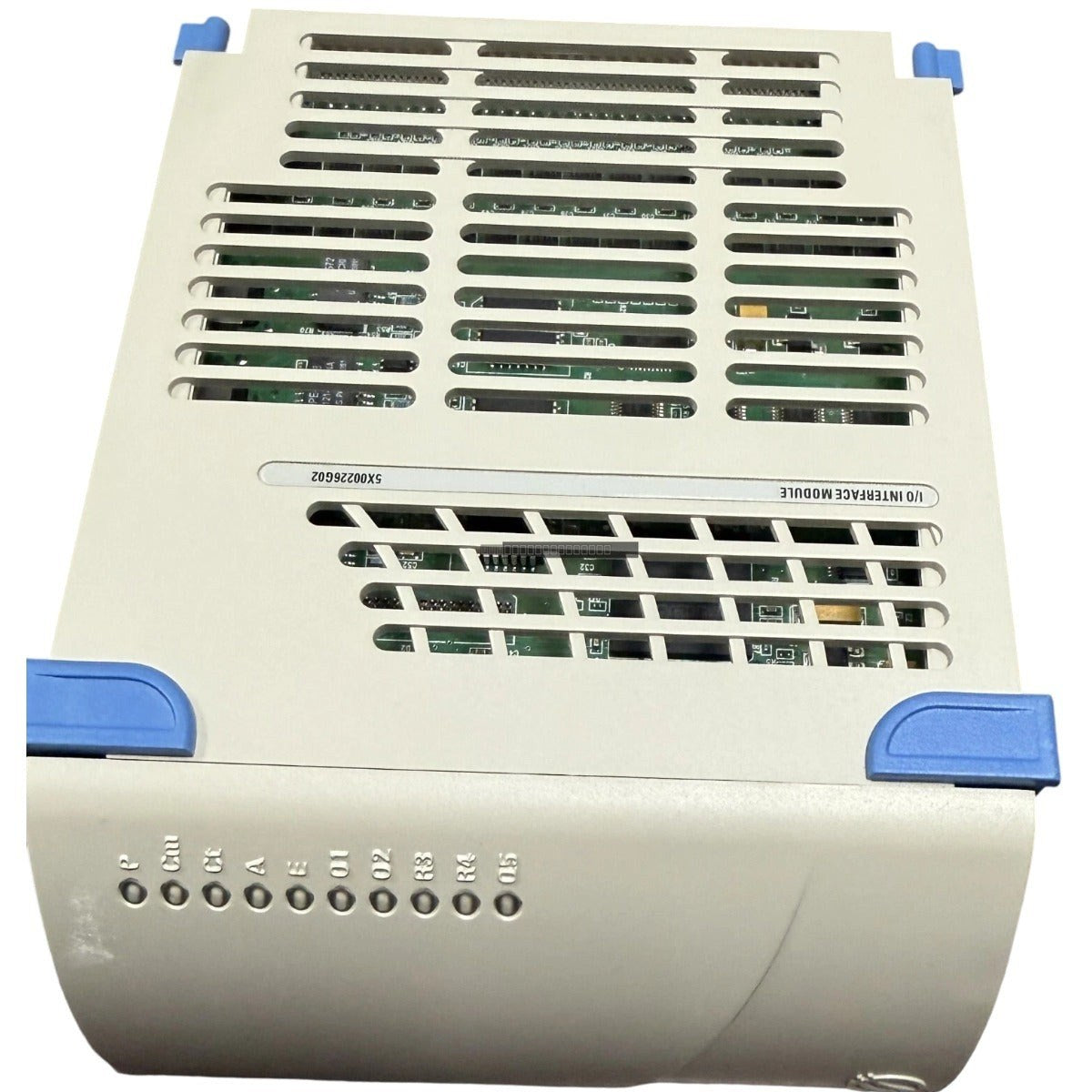

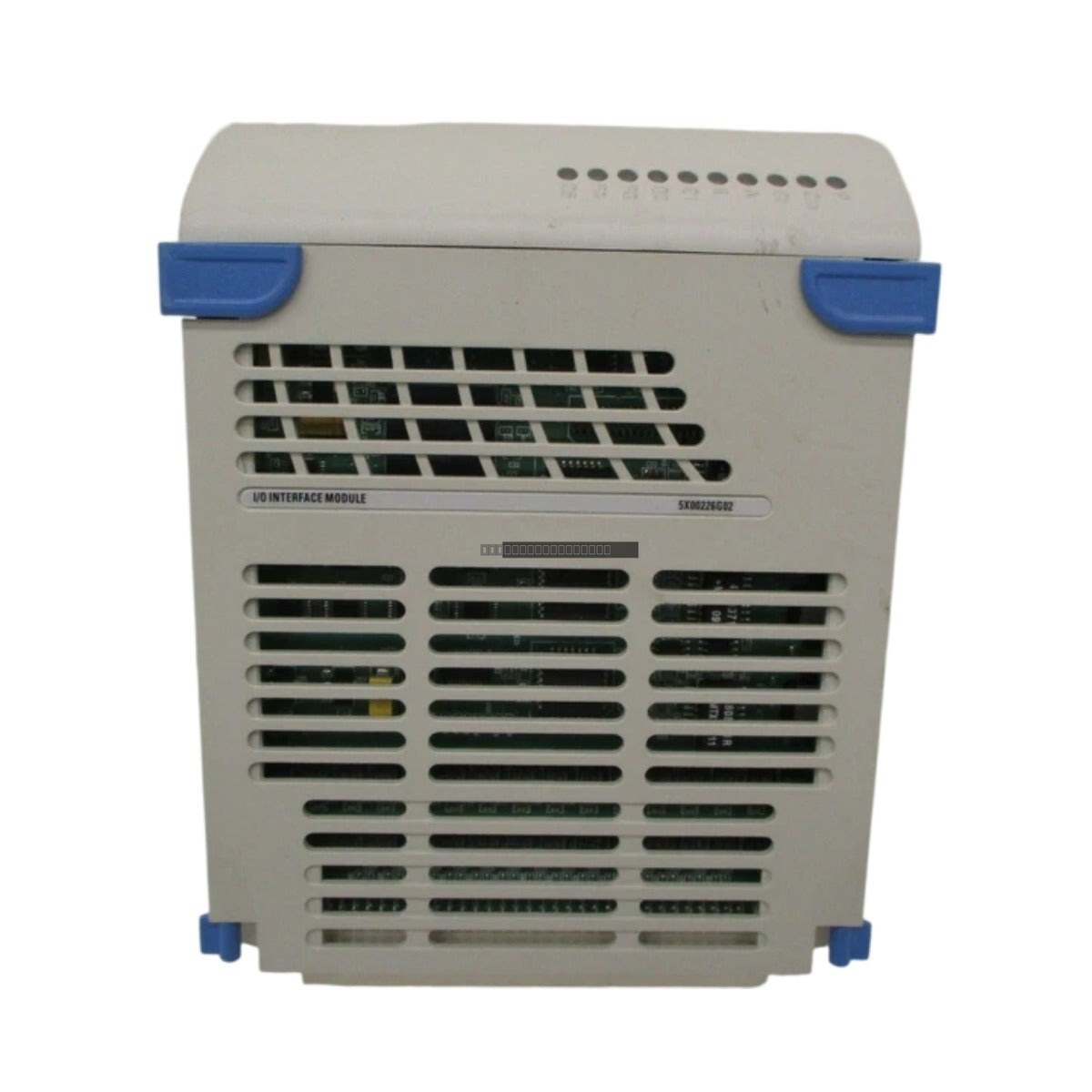

The Emerson Westinghouse 5X00226G02 is an I/O interface module designed for the Ovation distributed control system (DCS). This module, identified as the OCR 400, serves as a critical component for managing signal communication between field instrumentation and the Ovation controller network. As a rack-mounted unit, it is engineered to provide reliable data acquisition and control signal processing in demanding industrial environments.

Features

• Designed for integration within the Ovation control system architecture.
• Rack-mounted form factor for efficient cabinet space utilization.
• Facilitates high-speed I/O interface communication for process control applications.
• Robust construction suitable for continuous operation in industrial plant environments.

Applications

This I/O interface module is utilized in various industrial sectors, including power generation, water treatment, and chemical processing, where the Ovation platform is deployed to manage complex automation and monitoring tasks.

Technical Specifications

Installation Guidelines

• Ensure the Ovation rack is powered down before inserting or removing the 5X00226G02 module to prevent electrical damage.
• Verify that the module is correctly seated in the designated rack slot to ensure proper backplane connectivity.
• Use appropriate ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
• Ensure that all field wiring is properly terminated and shielded according to standard industrial practices to minimize EMI interference.
• Maintain adequate ventilation within the control cabinet to prevent overheating during operation.

FAQ

Is this module still being manufactured?

No, the 5X00226G02 has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.

What is the primary function of the OCR 400 module?

The OCR 400 acts as an interface module within the Ovation system, enabling the controller to communicate with and manage input/output signals from field devices.
