Description

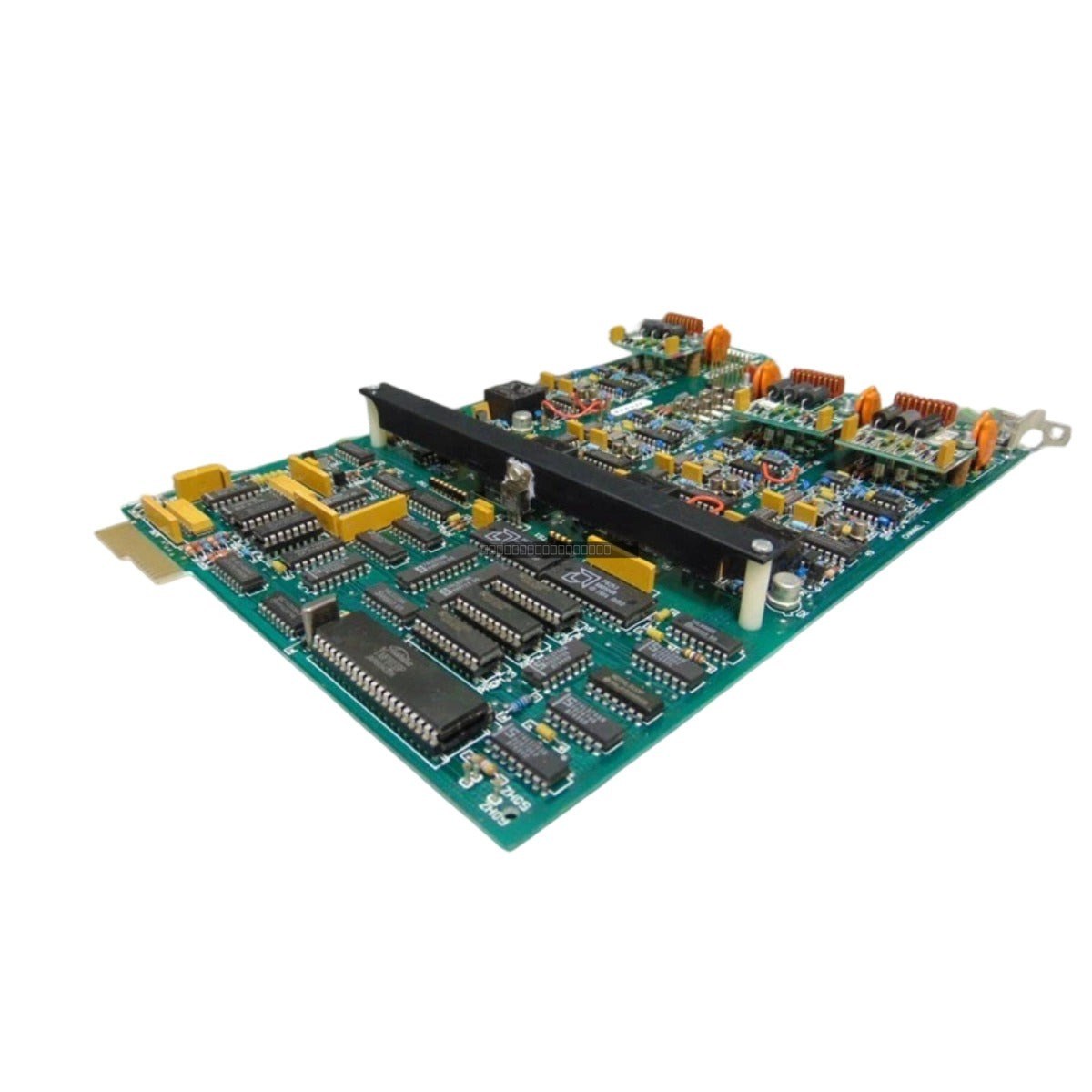

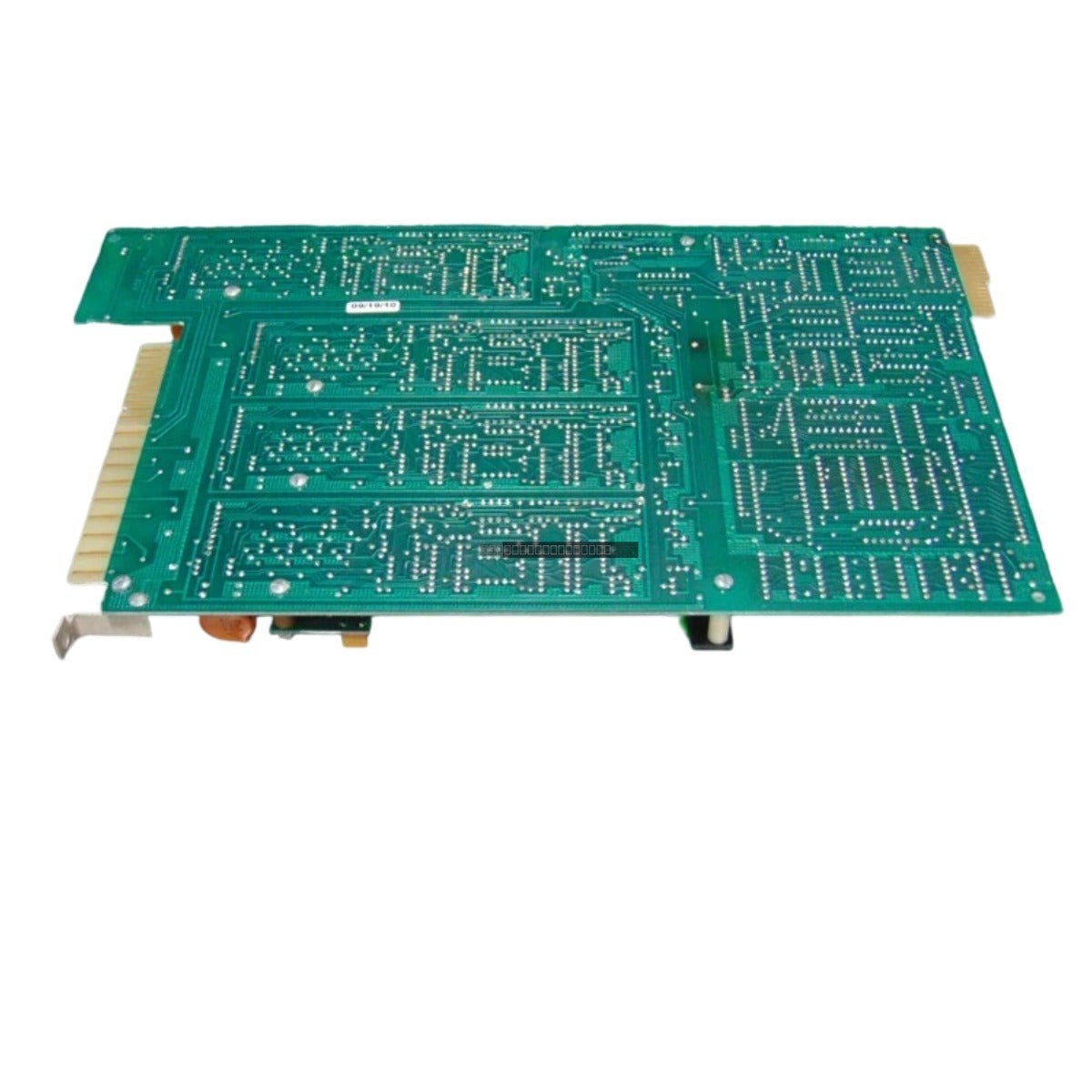

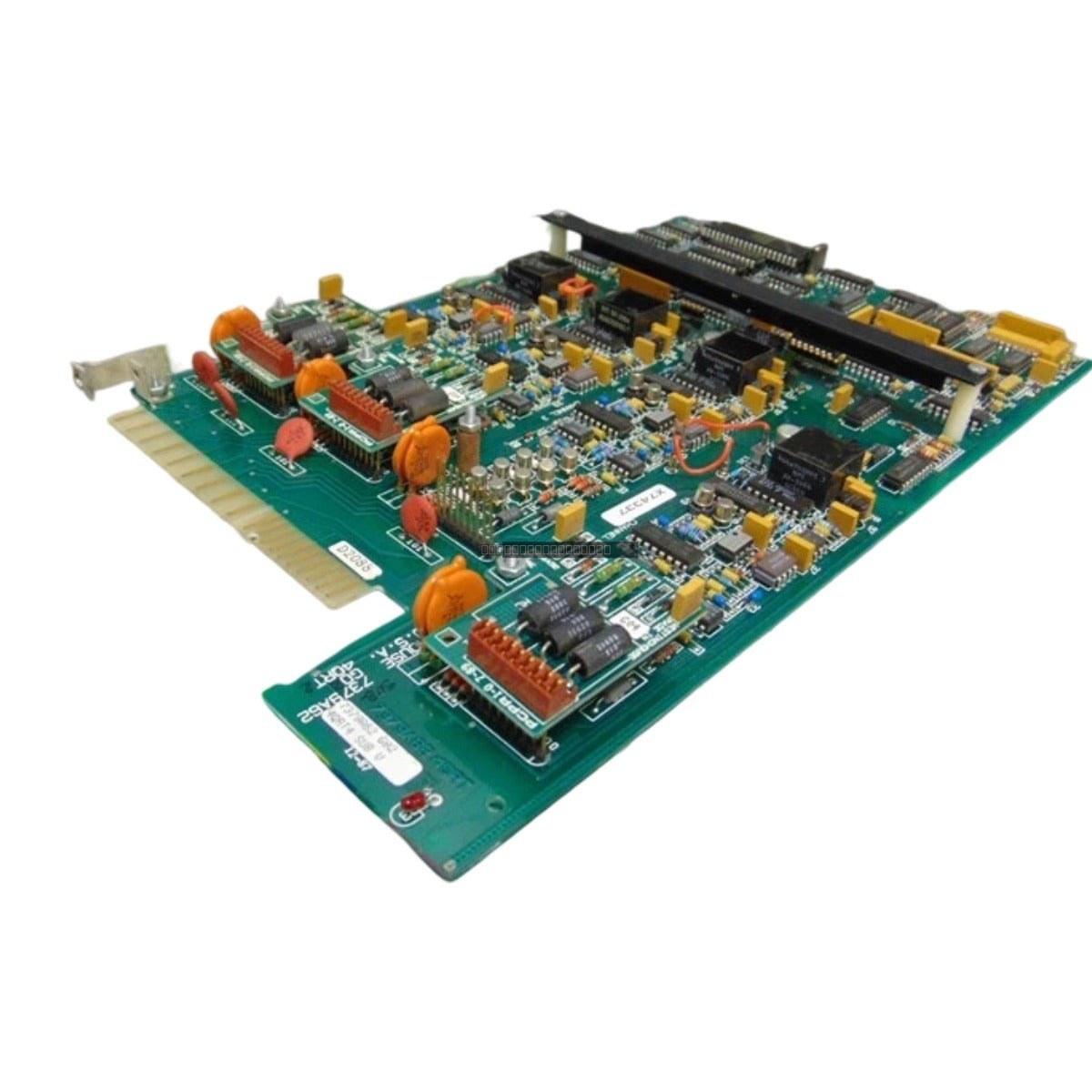

The Emerson Ovation 7379A62G02 is a high-precision analog input control board designed for integration within the Ovation distributed control system (DCS). This module is specifically engineered to handle low-level analog signal acquisition, including 33 mV range inputs, providing the necessary signal conditioning and conversion required for accurate process variable monitoring in demanding industrial environments such as power generation and chemical processing.

Features

• High-density multi-channel signal processing architecture.
• Advanced signal conditioning circuitry for effective noise filtering and electrical isolation.
• Designed to mitigate common-mode noise and prevent ground loop interference.
• Deterministic data communication interface with the Ovation backplane.
• Robust construction designed for stable operation in high-EMI industrial settings.
• Secure mounting compatibility with standard Ovation I/O rack systems.

Applications

This analog input board is utilized in critical control loops where precise measurement of field instrumentation is required. It is commonly deployed in power plants and large-scale industrial facilities to monitor process variables, ensuring reliable data acquisition and reducing operational risks associated with sensor drift or measurement inaccuracies.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O rack is powered down before inserting or removing the module.
• Handle the board using proper ESD (electrostatic discharge) protection protocols to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the backplane slot to ensure reliable electrical contact.
• Route signal cabling away from high-voltage power lines and sources of high electromagnetic interference to maintain signal integrity.
• Ensure proper grounding of the I/O rack to minimize electrical noise and protect against ground loops.

FAQ

What is the primary function of the 7379A62G02?
This board acts as an analog input module for the Ovation DCS, responsible for conditioning and converting low-level analog signals from field sensors into digital data for the control system.

Is this module compatible with standard Ovation racks?
Yes, the 7379A62G02 is designed for installation within standard Ovation I/O rack architectures.

What is the operating temperature range for this unit?
The module is rated for operation in environments between 0 and 60 degC.
