Description

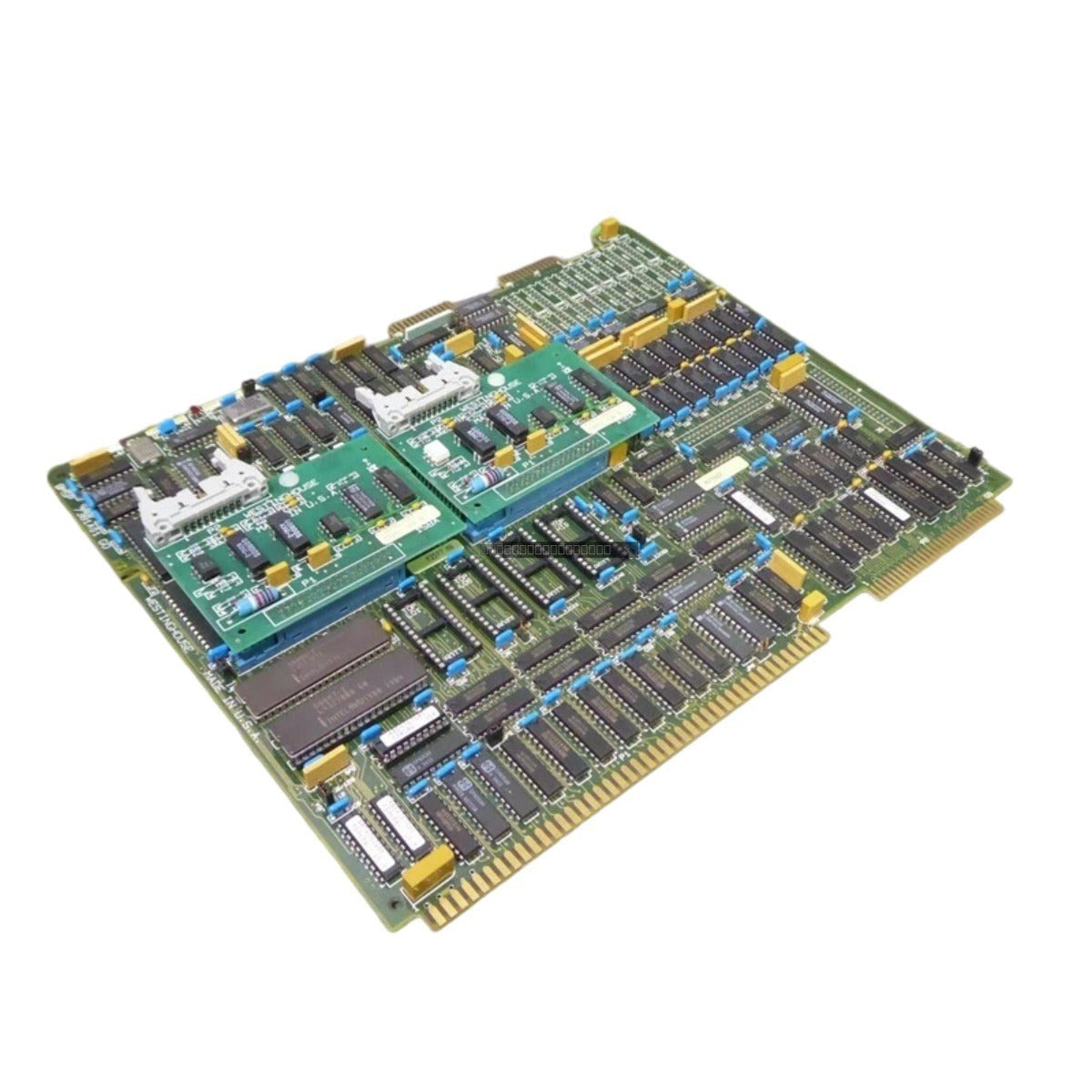

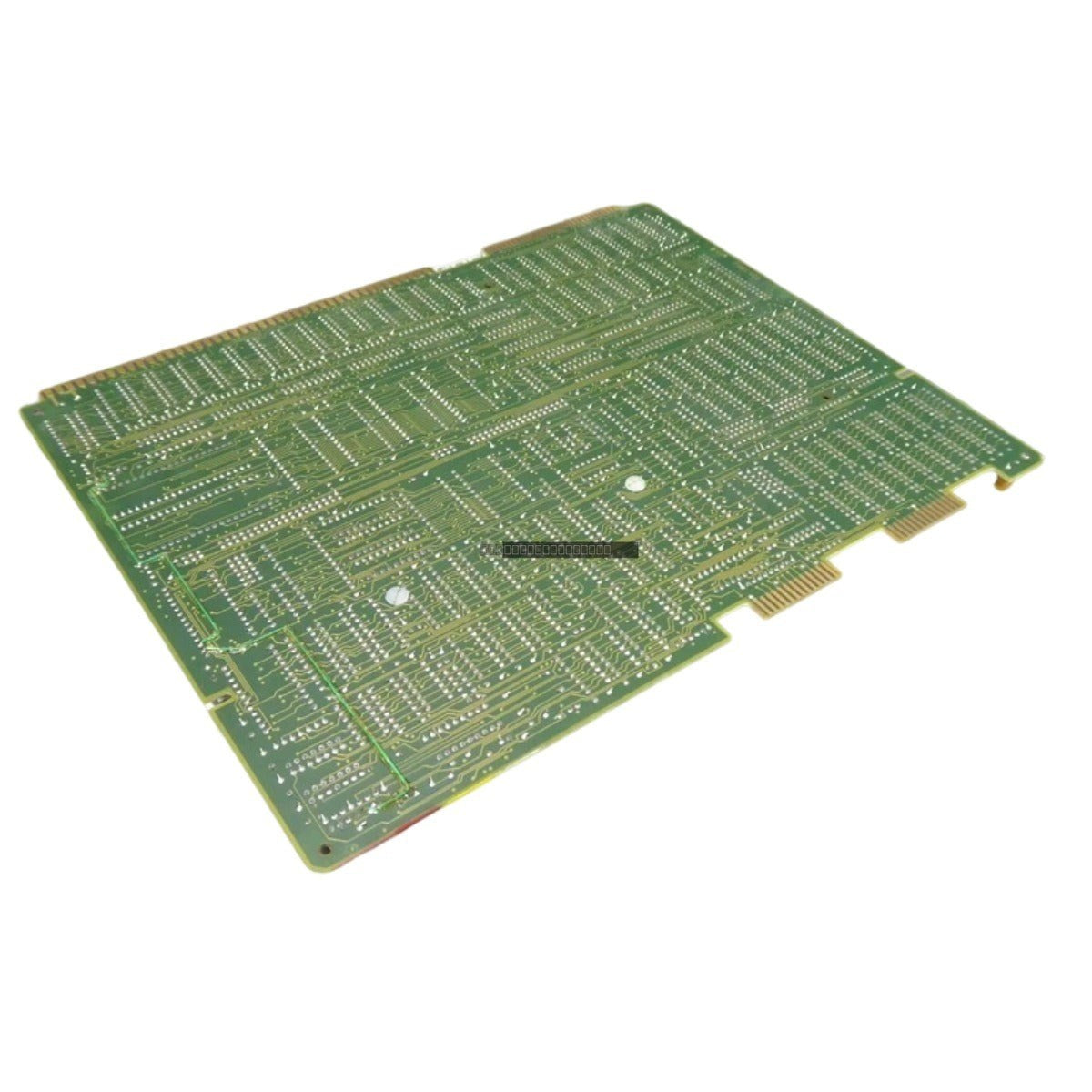

The Ovation 7381A01G04 is a high-performance I/O module designed for integration within the Ovation distributed control system (DCS). This module serves as a critical interface for data acquisition, specifically engineered to handle field-level signal processing in demanding industrial environments such as petrochemical plants and thermal power generation facilities. By converting analog and digital field signals into reliable data for the primary controller, the module ensures high-density connectivity while maintaining signal integrity through advanced noise suppression and isolation techniques.

Features

• High-density signal processing for analog and digital field inputs.
• Galvanic isolation and localized surge protection on each channel to safeguard internal circuitry.
• Supports redundant I/O configurations to facilitate seamless failover and minimize system downtime.
• Proprietary high-speed backplane interface for low-latency communication with the controller CPU.
• Convection-cooled design for high reliability without the need for active cooling components.

Applications

This module is primarily utilized in large-scale industrial control architectures where high availability and precise process monitoring are required. It is suitable for deployment in power generation, water treatment, and chemical processing plants where reliable data acquisition is essential for maintaining operational safety and loop performance.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the I/O rack.
• Verify that the rack chassis is properly grounded to prevent electrical interference.
• Route signal cables away from high-voltage power lines to minimize EMI/RFI impact.
• Maintain adequate clearance around the module to allow for natural convection cooling.
• Handle with standard ESD precautions to prevent damage to sensitive internal electronic components.

FAQ

Is this module compatible with all Ovation systems?

The 7381A01G04 is designed for specific Ovation DCS architectures. Please verify your system's hardware revision and compatibility documentation before installation.

Does this module require external cooling?

No, the module is designed for passive convection cooling. Ensure the rack environment is kept within the specified operating temperature range of 0 to 60 degC.

What is the purpose of the galvanic isolation?

The galvanic isolation provides electrical separation between the field-side instrumentation and the internal controller bus, protecting the module from voltage surges and ground loops common in industrial field wiring.
