Description

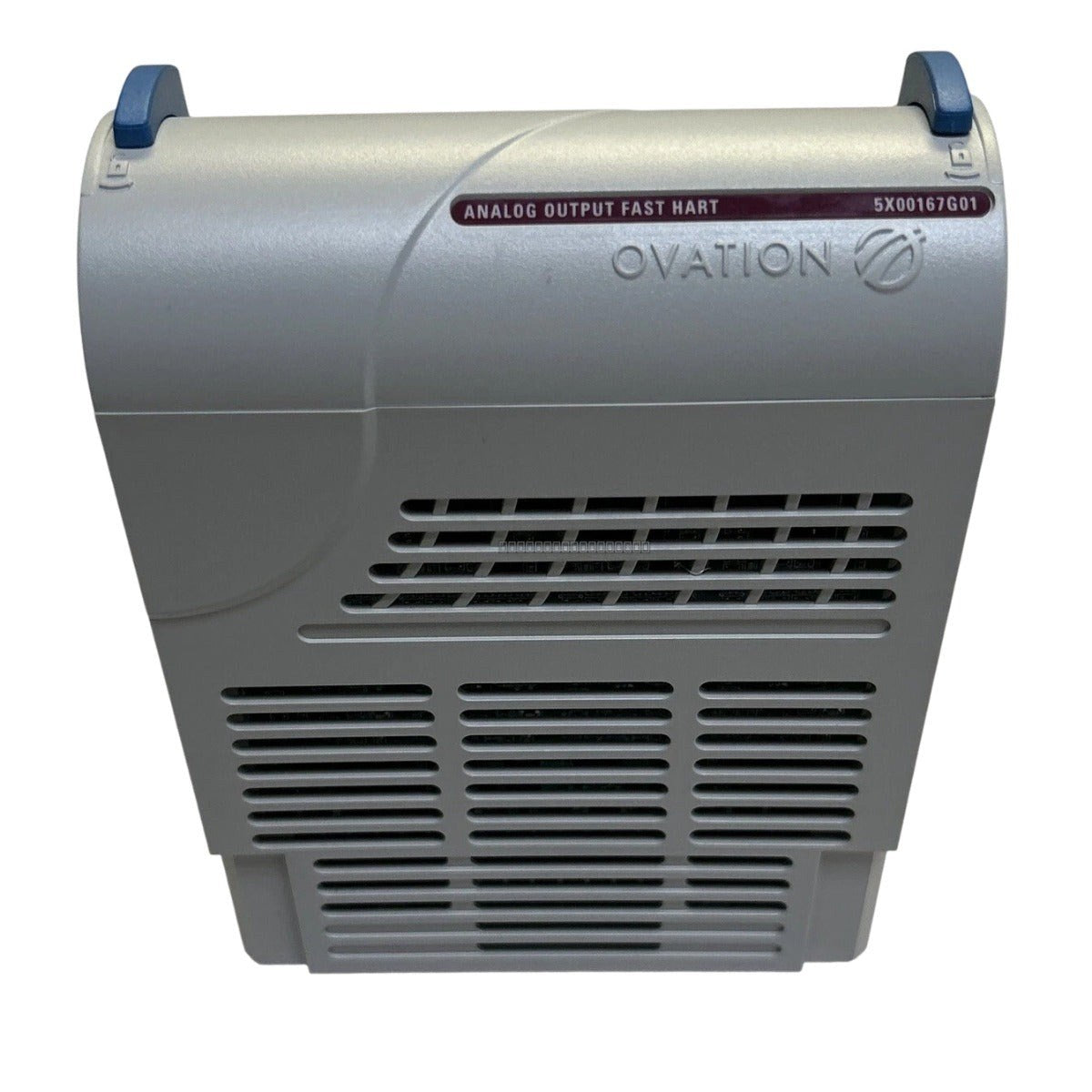

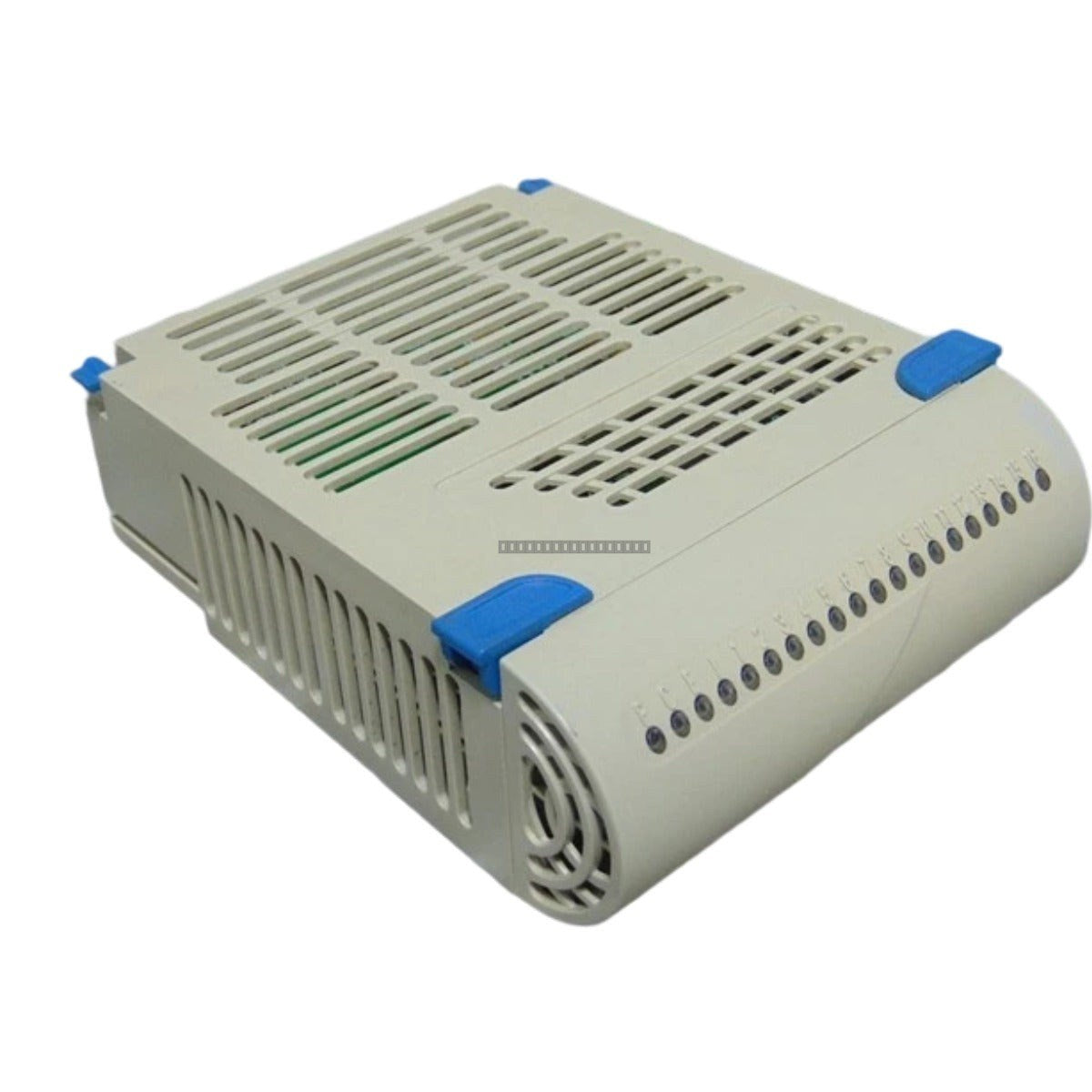

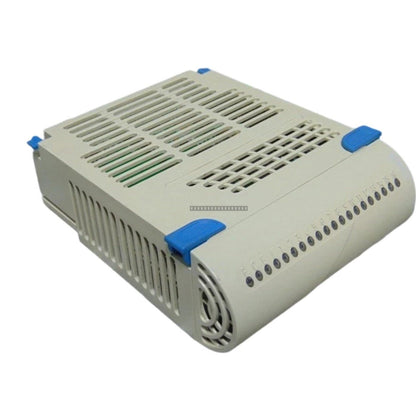

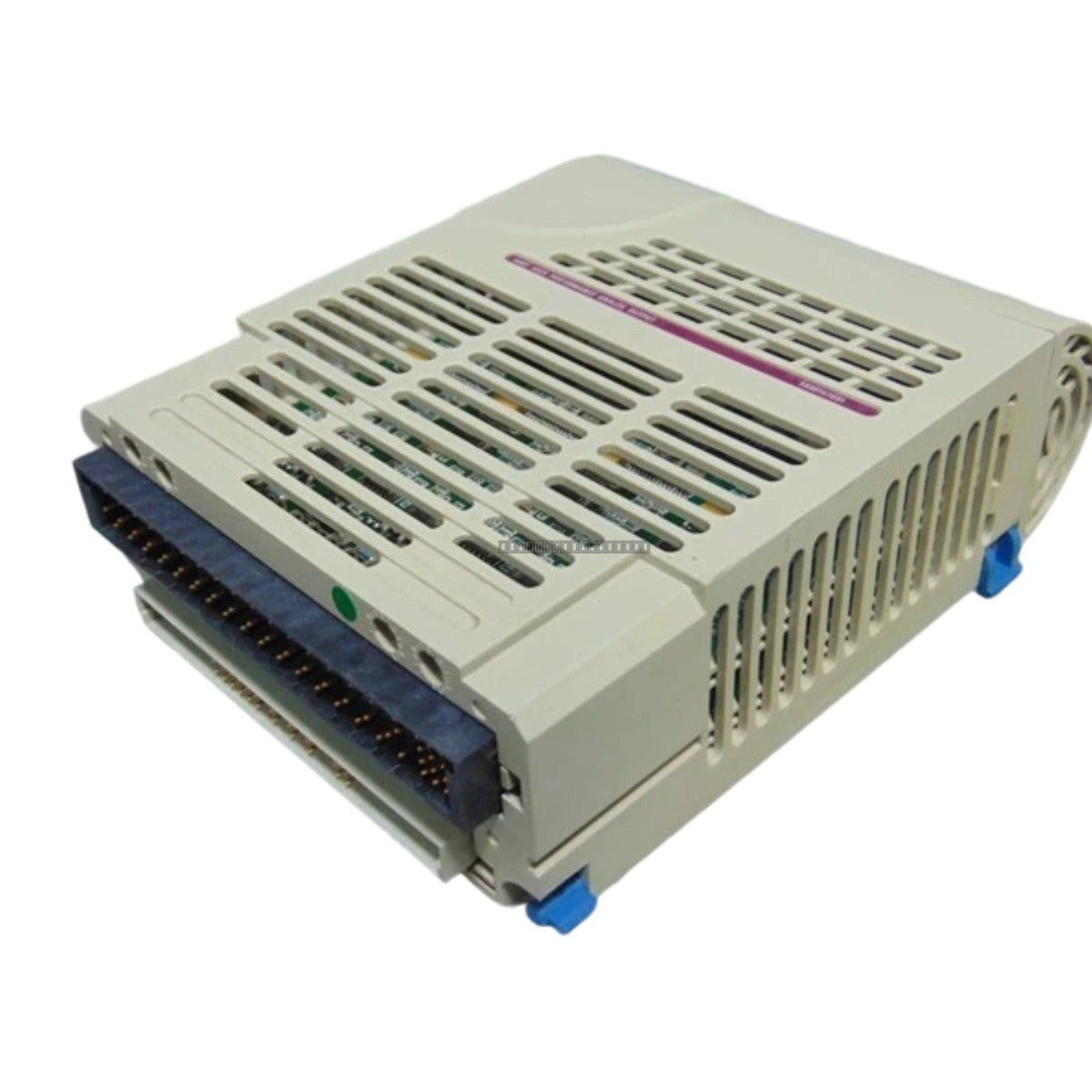

The Emerson Westinghouse 5X00167G01 is a high-performance analog output module designed for industrial control applications. This assembly provides reliable signal conversion and distribution, supporting HART communication protocols to enable advanced diagnostics and configuration capabilities in process automation environments. It features 4 channels, allowing for precise control of field devices.

Features

• 4-channel analog output configuration
• Integrated HART communication support
• High-resolution output (16-bit)
• Designed for high-performance control loops
• Compatible with standard 4-20 mA and 0-10V DC signal ranges

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to internal components.
• Ensure the module is fully seated in the backplane connector to maintain reliable signal integrity.
• Use shielded twisted-pair cabling for analog signal runs to minimize electromagnetic interference (EMI).
• Verify that the field wiring polarity matches the terminal assignments to prevent output errors or device damage.
• Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 5X00167G01 module?

This module serves as an analog output interface, converting digital control signals from the processor into analog current or voltage signals (4-20 mA / 0-10V) to drive field instruments and actuators.

Does this module support HART communication?

Yes, the 5X00167G01 is designed to support HART protocol, allowing for bi-directional communication with smart field devices for configuration and diagnostic data.
