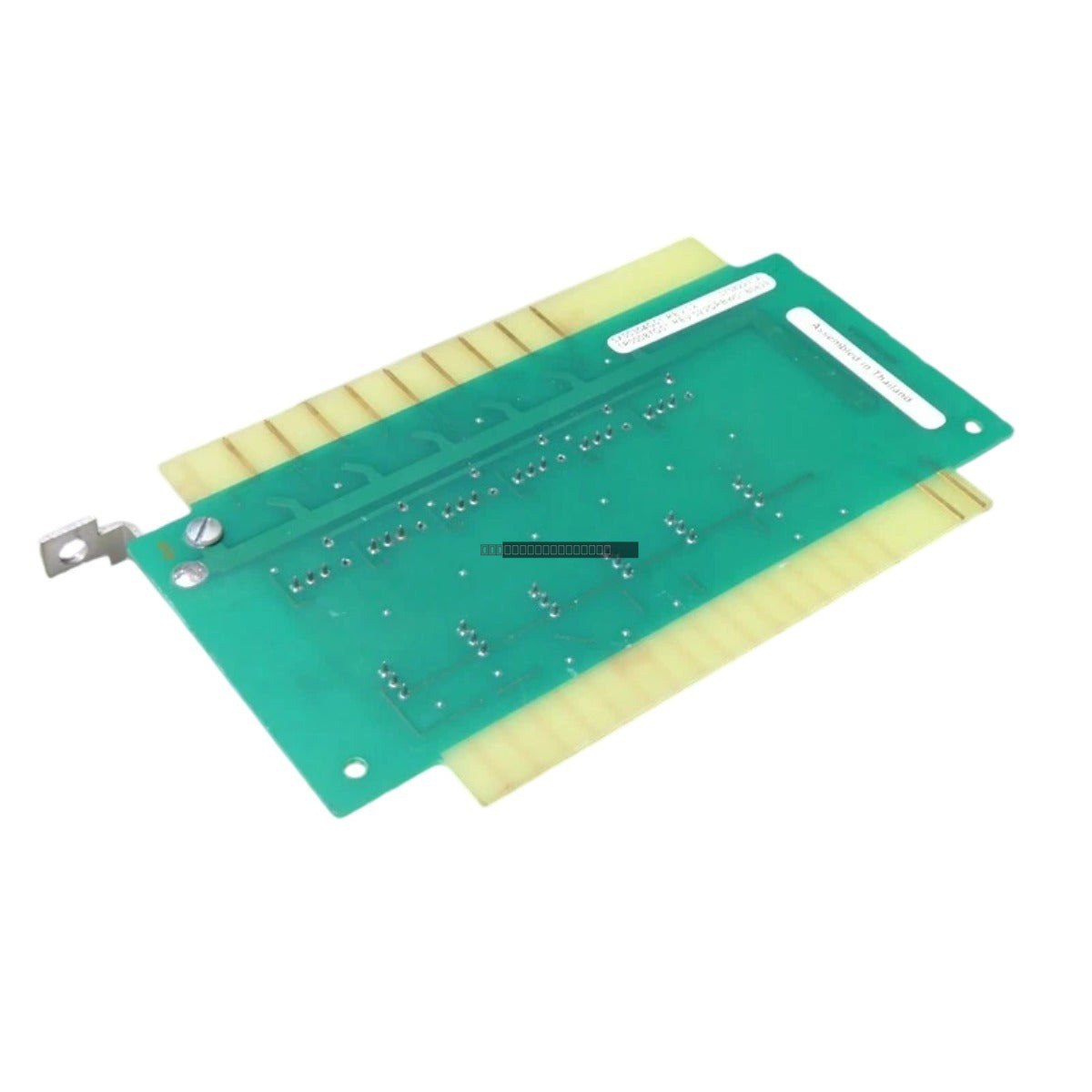

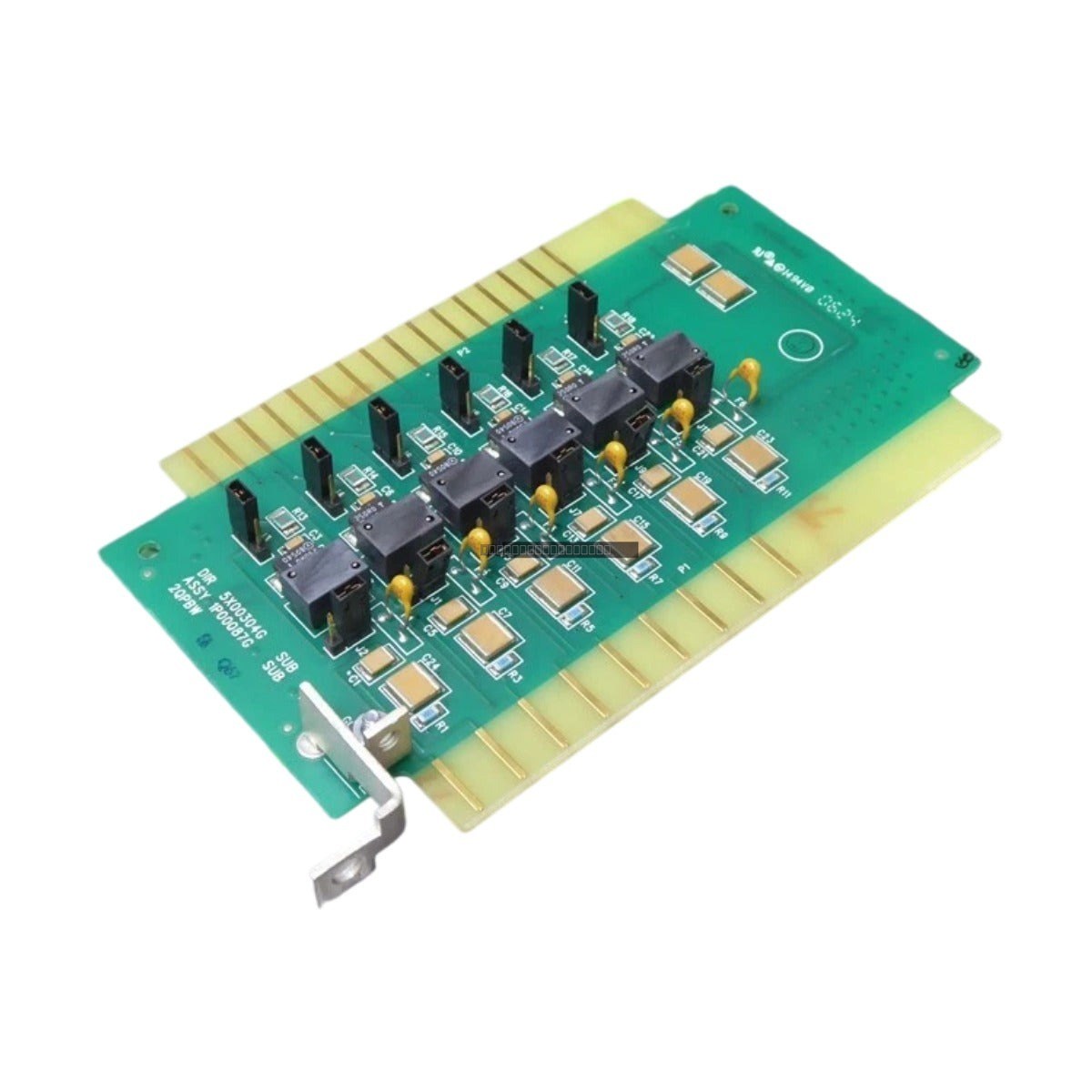

The Emerson Ovation 5X00304G01 Migration Personality Module is a specialized interface component engineered to bridge legacy QPBX system architectures with the current Ovation Distributed Control System (DCS) platform. This module serves as a critical communication bridge, allowing industrial facilities to modernize their control layer while maintaining existing field-side logic and wiring. By facilitating this transition, the module assists in reducing overall project commissioning time and mitigating the risks associated with extensive system overhauls.

Features

• Designed specifically for the integration of legacy QPBX field equipment into modern Ovation DCS environments.
• Acts as a protocol translation layer, converting legacy signal patterns into current DCS-compatible data formats.
• Optimized internal circuitry to ensure reliable data integrity during high-load process operations.
• Compact, rack-mount design suitable for standard control cabinet configurations.
• Engineered for thermal efficiency to promote long-term stability within the control infrastructure.

Applications

This module is primarily utilized in power generation and heavy industrial processing plants that are undergoing phased control system upgrades. It is ideal for scenarios where the primary objective is to modernize the controller architecture without requiring a complete replacement of existing field-side I/O devices.

Technical Specifications

Installation Guidelines

• Ensure the Ovation rack is powered down before attempting to insert or remove the 5X00304G01 module.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal electronics.
• Verify that the module is fully seated in the designated I/O rack slot to ensure proper backplane connection.
• Confirm that system-side configuration parameters are updated to recognize the personality module upon initial power-up.
• Maintain adequate airflow within the control cabinet to stay within the specified operating temperature range.

FAQ

What is the primary purpose of the 5X00304G01 module?
It serves as a migration personality module, enabling the integration of legacy QPBX systems into the Emerson Ovation DCS environment.

Does this module require external power cabling?
No, the module draws its operating power directly from the standard I/O rack backplane interface.
