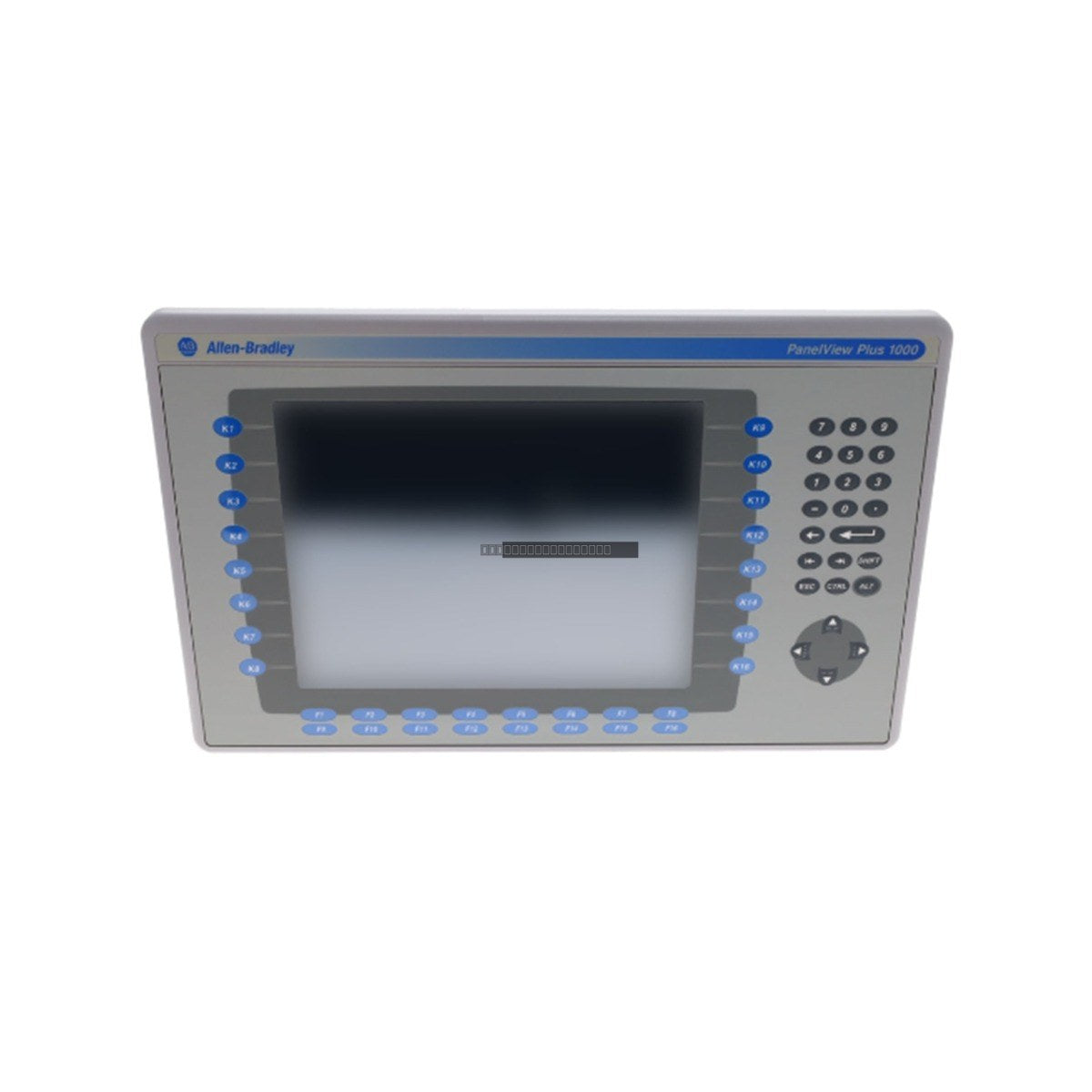

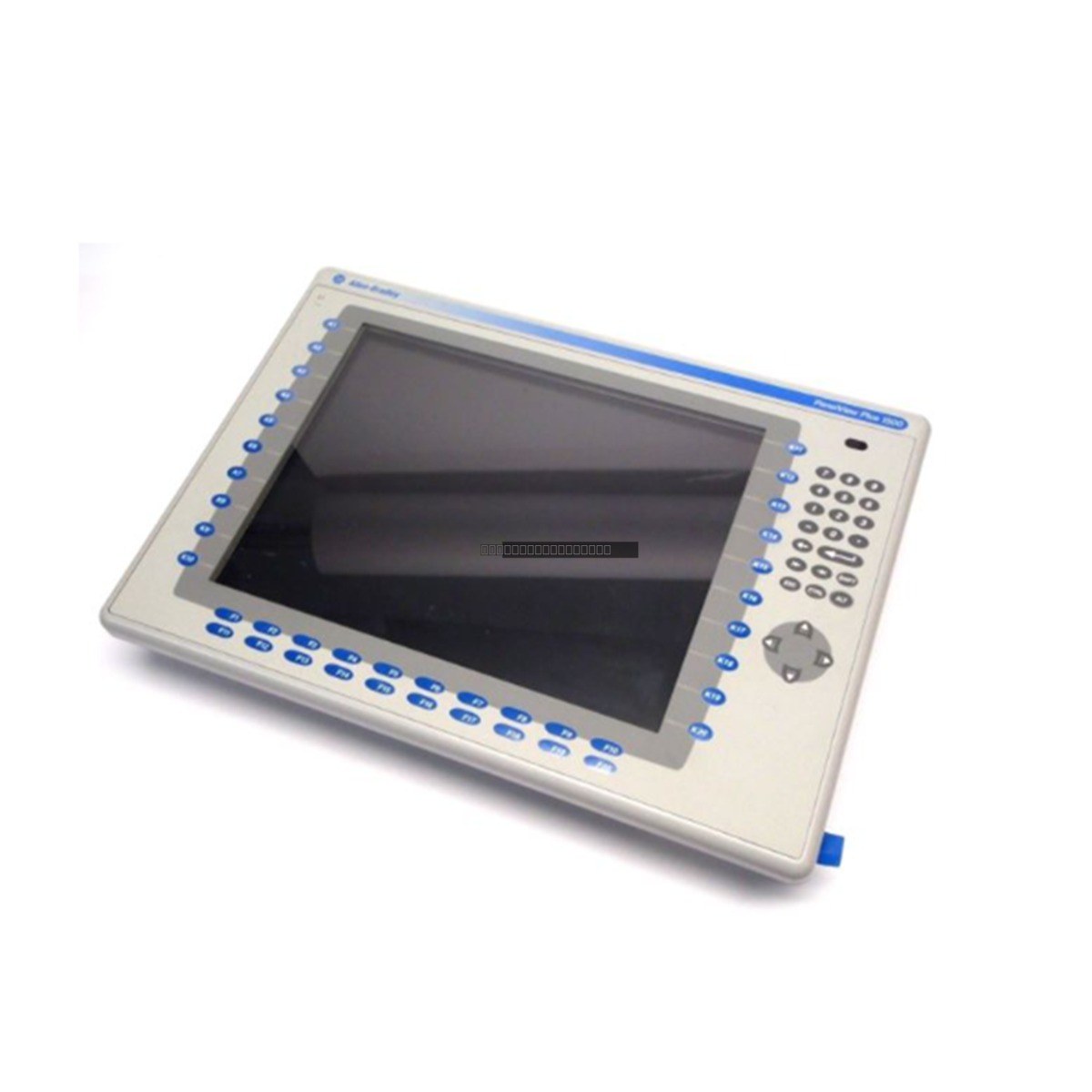

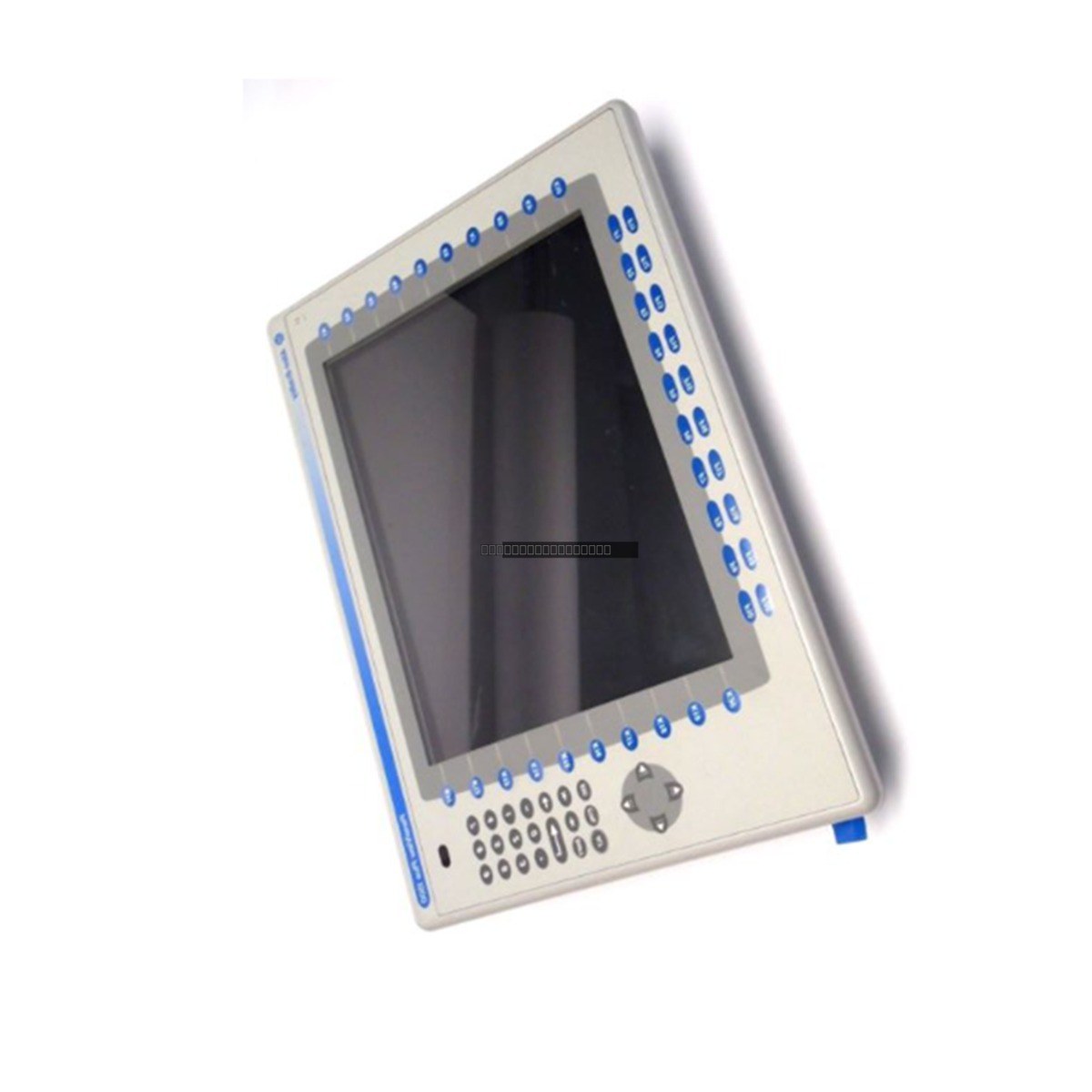

The 2711P-B10C6D1 is a high-performance PanelView Plus 1000 operator terminal designed for demanding industrial HMI applications. This unit provides a robust interface for monitoring and controlling complex automation processes, featuring a 10.4-inch color active matrix TFT display that supports both keypad and analog resistive touchscreen inputs. Engineered for versatility, it integrates seamlessly into various industrial environments, including heavy manufacturing, chemical processing, and automotive production lines.

Features

• Dual operator input: Integrated keypad (F1-F16, K1-K16, numeric, and special keys) and analog resistive touchscreen.
• High-resolution 10.4-inch TFT color display with 640 x 480 resolution.
• Extensive communication support: Ethernet, DH+, DH-485, Remote I/O (RIO), RS-232, and dual USB ports.
• Memory configuration: 64 MB RAM and 64 MB non-volatile flash memory for application and data storage.
• Reliable operation: Battery-backed real-time clock and SD card support for data logging and backup.
• Long-life LED backlight rated for 100,000 hours.

Applications

This operator terminal is suitable for real-time system control, data logging, and parameter adjustment in environments requiring legacy and modern PLC integration, such as PLC-5, SLC 500, CompactLogix, and ControlLogix platforms.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in an enclosure that meets the required NEMA/IP ratings for the installation environment.
• Maintain adequate clearance around the unit to ensure proper ventilation and cooling.
• Use shielded communication cables for Ethernet and serial connections to minimize EMI interference.
• Verify that the power supply is within the 18-32 VDC range before applying power.
• Always disconnect power before installing or removing communication modules or SD cards.
• Ensure proper grounding of the chassis to the enclosure ground bus to prevent electrical noise issues.

FAQ

What communication protocols does this terminal support?

The 2711P-B10C6D1 supports a wide range of protocols including Ethernet, DH+, DH-485, Remote I/O (RIO), and RS-232, allowing for connectivity with both legacy and modern Allen-Bradley controller platforms.

Can the memory be expanded?

The unit includes an SD card slot, which is intended for application backups, log storage, and data management tasks.
