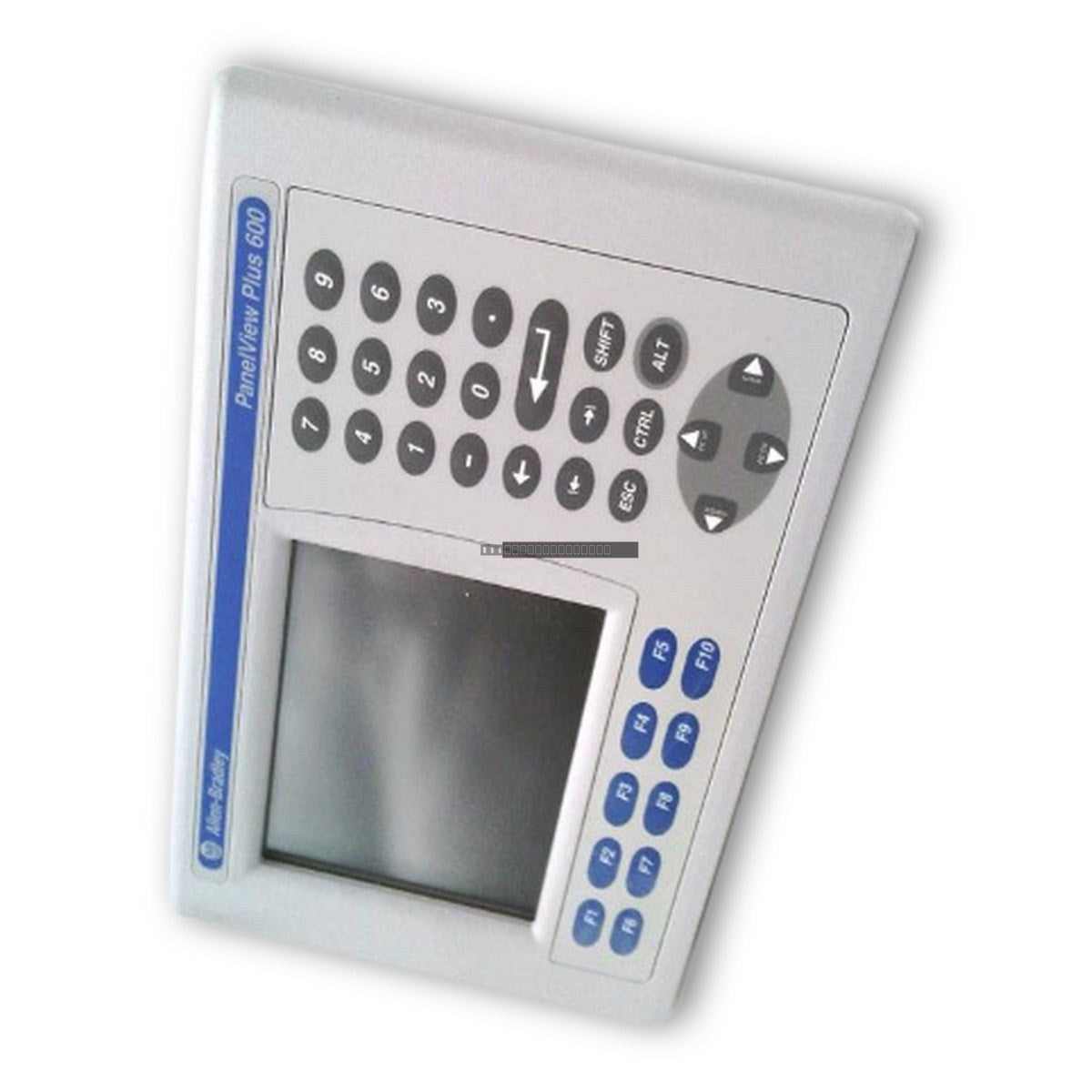

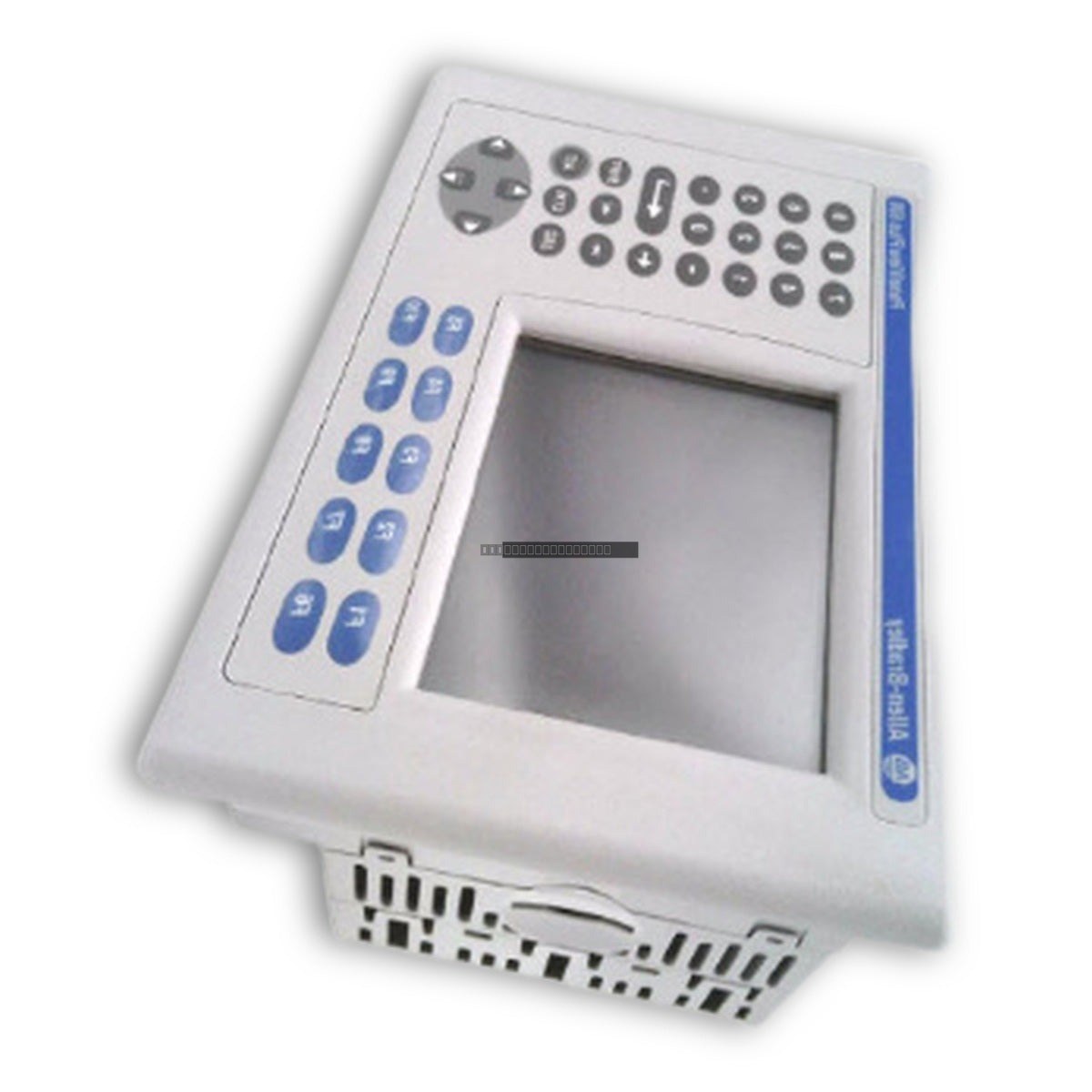

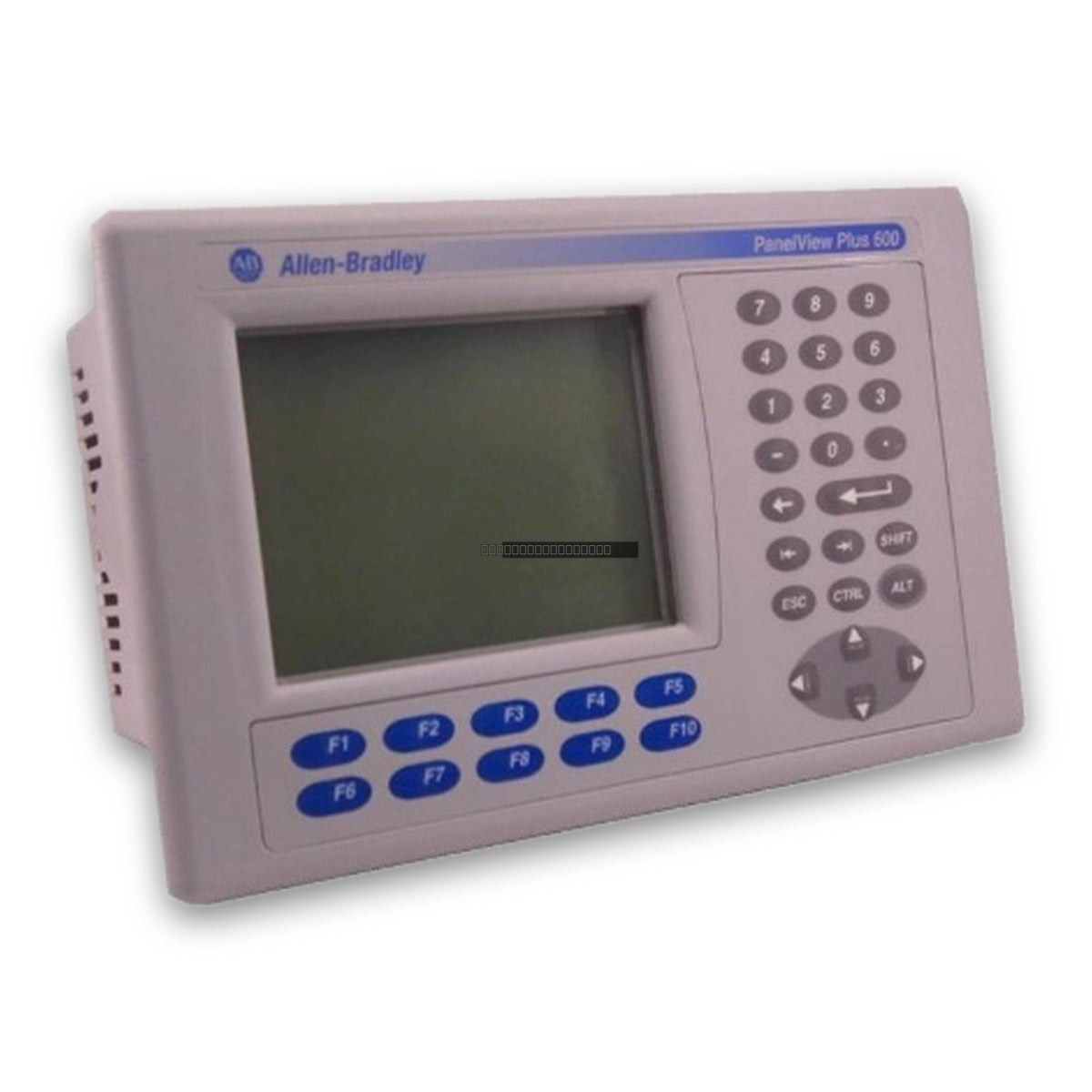

The Allen-Bradley 2711P-B6M1D is a high-performance operator interface terminal from the PanelView Plus 600 series, engineered for demanding industrial environments. This unit provides a reliable human-machine interface (HMI) for monitoring and controlling automated processes, offering a balance of tactile and touch-based input methods to suit diverse operational requirements.

Features

• 5.7-inch monochrome passive matrix display with 320 x 240 pixel resolution and 32 levels of grayscale.
• Dual-input interface featuring a durable stainless-steel domed membrane keypad and an analog resistive touchscreen.
• Integrated communication ports including RS-232 serial and USB for peripheral connectivity and data transfer.
• Robust memory configuration with 256 MB RAM and 512 MB of non-volatile storage for application runtime and data logging.
• Designed for high-reliability operation in manufacturing and process control environments.

Applications

This terminal is suitable for a wide range of industrial applications, including:

• Water and wastewater treatment facility monitoring.
• Automated manufacturing and assembly line control.
• Material handling and packaging system interfaces.
• General machine-level visualization and diagnostics.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a panel or enclosure that meets the IP54 rating requirements to maintain protection against dust and moisture.
• Verify that the power supply provides a stable 18-32 VDC input; confirm polarity before connecting to the terminal block.
• Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating during operation.
• Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Always disconnect power before installing or removing the unit to prevent electrical damage or unexpected system behavior.

FAQ

What is the primary input method for this terminal?

The 2711P-B6M1D features a dual-input design, allowing operators to use either the analog resistive touchscreen or the integrated stainless-steel domed membrane keypad.

What is the required power supply for the 2711P-B6M1D?

This unit operates on a DC power source ranging from 18 to 32 VDC with a maximum power consumption of 25 W.
