Description

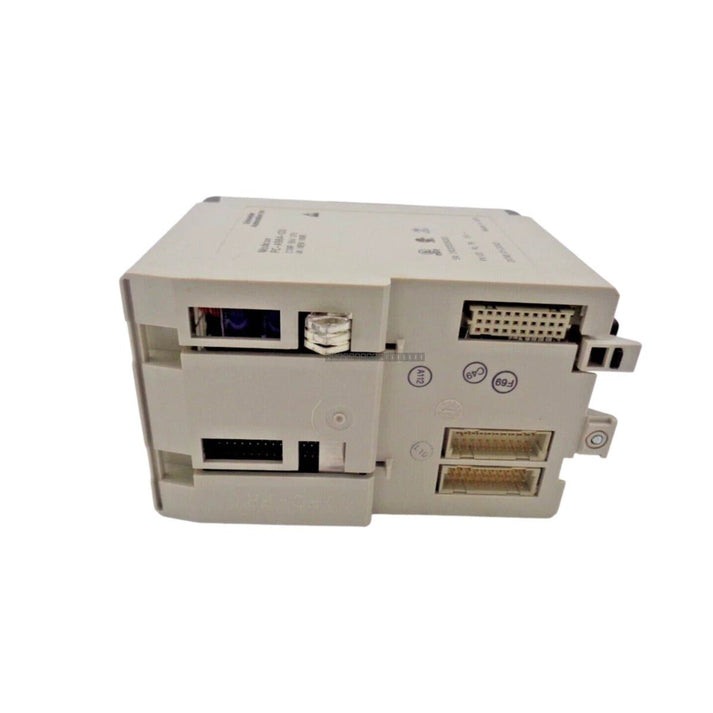

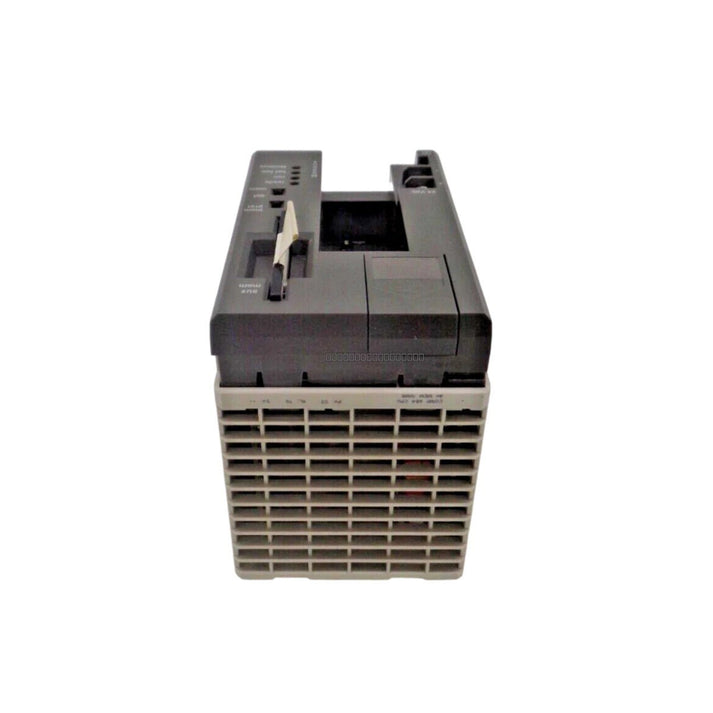

The Schneider Electric PC-A984-130 is a compact processor module designed for industrial control applications. This unit is part of the 984 series, providing reliable logic execution and system management. Please note that this item has been discontinued by the manufacturer.

Features

• Compact form factor for space-constrained control panels
• 4K user memory capacity for logic storage
• 2K state RAM for process data handling
• 8 MHz processing speed
• 186-based architecture

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the processor module to prevent electrical damage.
• Verify that the module is correctly seated in the backplane or rack slot to ensure proper communication with I/O modules.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Ensure adequate ventilation within the enclosure to maintain operating temperatures within specified limits.
• Check all cable connections for secure seating and ensure that communication cables are routed away from high-voltage power lines to minimize EMI interference.

FAQ

Is this module still supported by the manufacturer?

No, the PC-A984-130 has been discontinued by Schneider Electric. Factory warranties may no longer apply; however, we provide a 2-year warranty on this unit.

What is the primary function of this module?

This is a processor module (CPU) used to execute control logic and manage state data within a compatible 984 series controller system.
