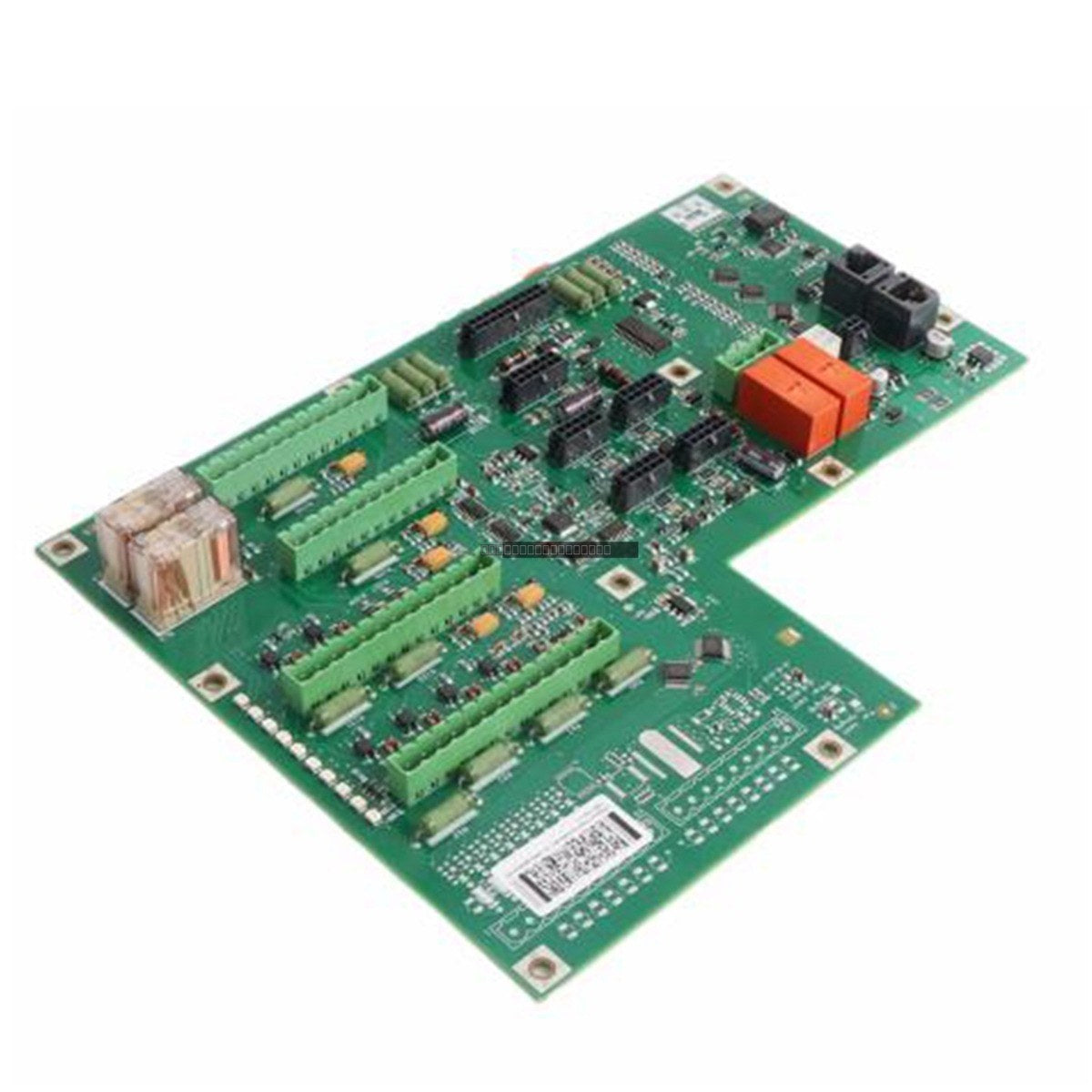

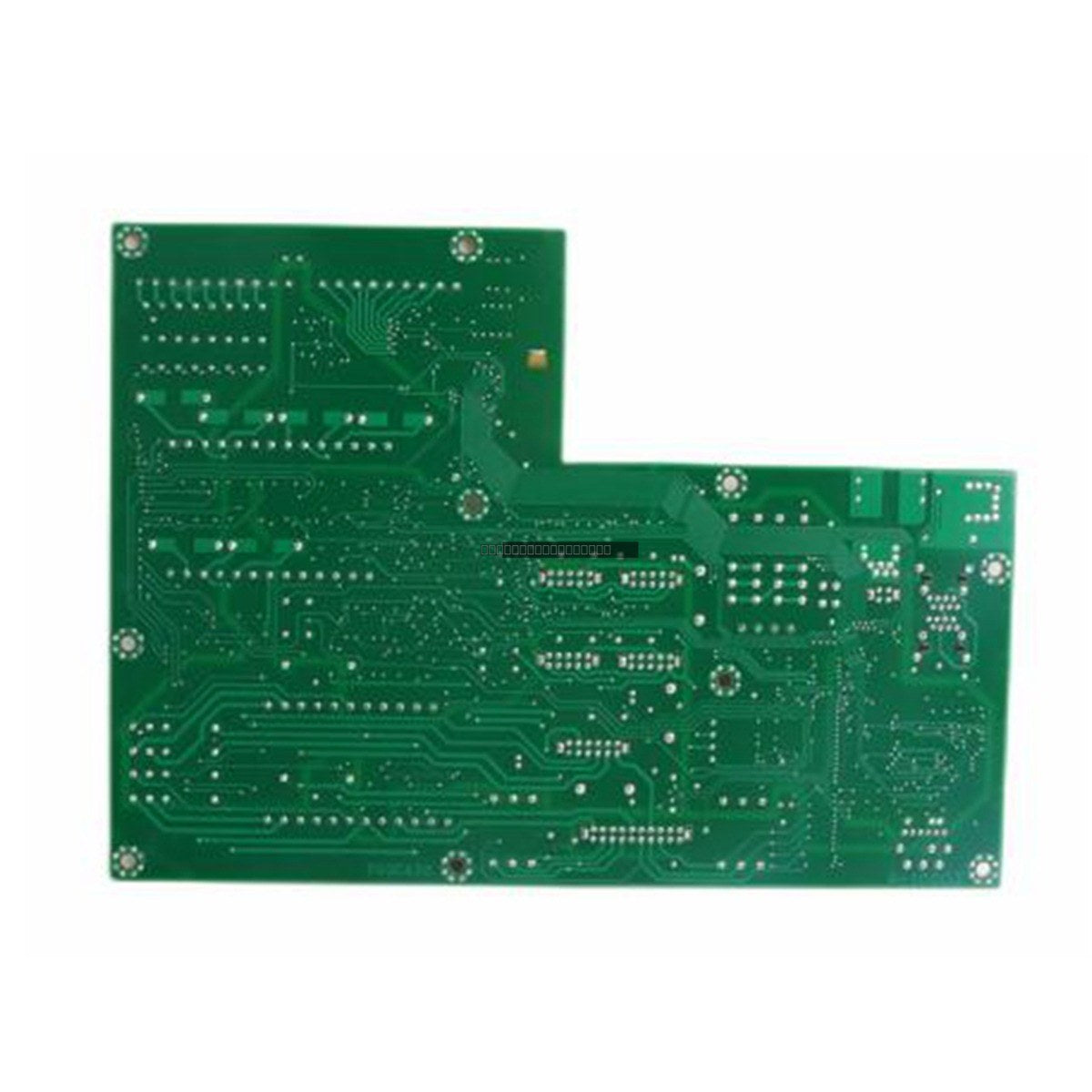

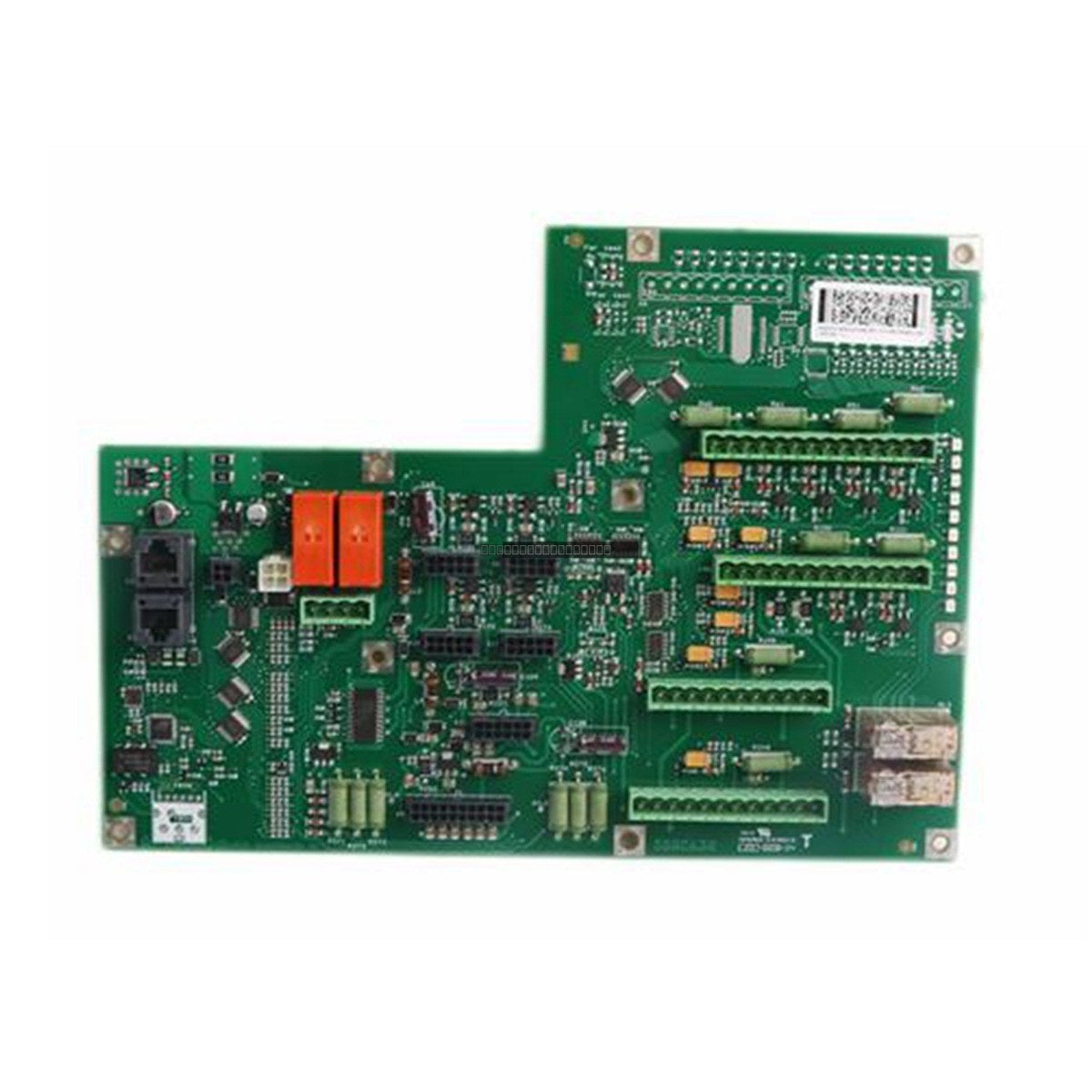

The ABB DSQC643 is a specialized panel board (PCB) designed for integration within ABB IRC5 robot controller cabinets. This component is specifically engineered for use in IRC5 cabinets featuring flat-door configurations, ensuring precise compatibility and reliable signal distribution for robotic control operations.

Features

• Official ABB component for IRC5 control systems.
• Optimized for flat-door cabinet architectures.
• Robust construction designed to meet industrial robotics performance standards.
• Direct replacement or spare for 3HAC024488-001/01 part numbers.

Applications

This panel board is a critical internal component for the ABB IRC5 robot controller. It is typically employed in automotive, manufacturing, and assembly environments where IRC5 cabinets manage robotic arm movement, I/O processing, and system communication.

Technical Specifications

Installation Guidelines

• Ensure the IRC5 cabinet is fully powered down and locked out before attempting to access or replace the panel board.
• Utilize appropriate ESD (Electrostatic Discharge) protection, such as a grounded wrist strap, when handling the circuit board to prevent damage to sensitive electronic components.
• Verify that the cabinet door type is compatible with this specific board version (flat-door design).
• Ensure all ribbon cables and connectors are firmly seated and locked in place after installation.
• Inspect for any visible debris or metallic particles within the cabinet before re-energizing the system.

FAQ

Is this board compatible with all IRC5 cabinets?
No, the DSQC643 is specifically intended for IRC5 cabinets equipped with flat doors. Please verify your cabinet configuration against your existing part number before installation.

Does this part come with mounting hardware?
The product is supplied as the panel board unit. We recommend retaining existing mounting hardware from your previous installation for reuse.
