Description

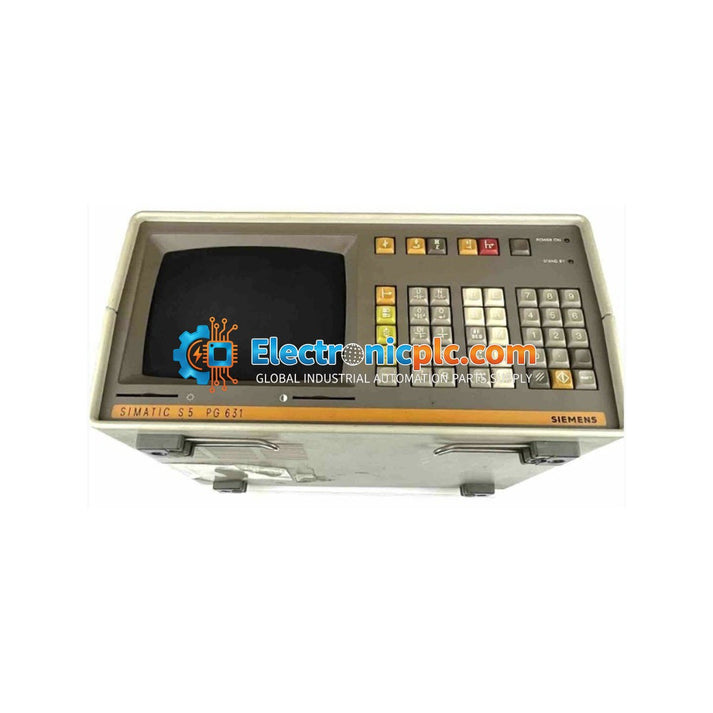

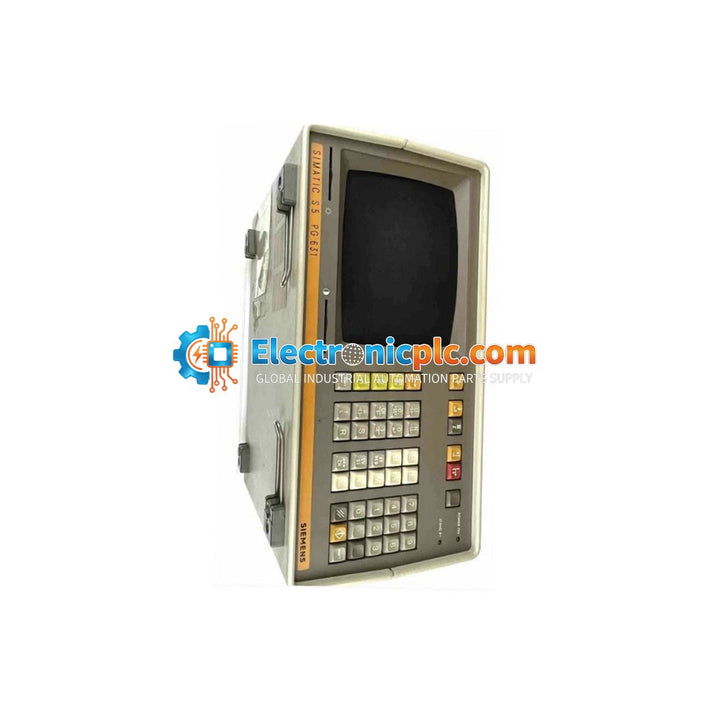

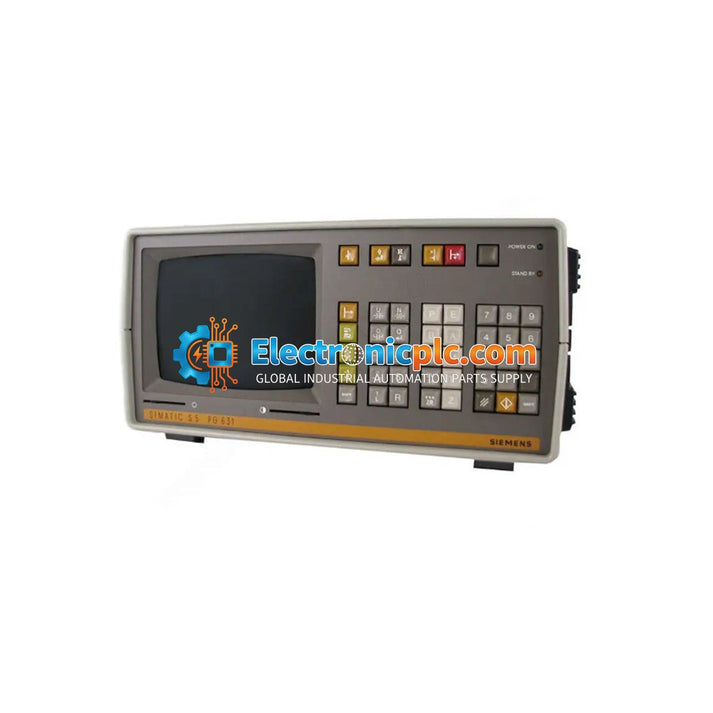

The Siemens 6ES5631-0AA11, also known as the PG 631, is a specialized CRT programming terminal designed for the legacy Simatic S5 industrial automation system. This unit serves as a critical engineering and troubleshooting interface, allowing technicians to perform direct diagnostics, modify program logic, and manage register parameters within S5 programmable logic controllers. It is a robust, field-hardened tool essential for maintaining legacy installations in sectors such as power generation, petrochemical processing, and heavy industrial manufacturing.

Features

• Integrated monochromatic CRT display optimized for ladder logic and statement list visualization.
• Dedicated serial interface for direct connection to Simatic S5 processor programming ports.
• Ruggedized desktop housing with integrated thermal management for factory floor environments.
• Full-travel mechanical keyboard for precise input of STEP 5 software commands and data block modifications.
• German-localized firmware and keyboard layout.

Applications

The PG 631 is primarily used for the maintenance and commissioning of Simatic S5 PLC systems. It enables field engineers to perform real-time code debugging, memory module access, and variable monitoring to reduce downtime in legacy automation environments.

Technical Specifications

Installation Guidelines

• Ensure the unit is placed on a stable, flat surface with adequate clearance around the cooling vents to prevent overheating of the CRT and internal power components.
• Verify that the power supply voltage matches the unit's requirements before connecting to the AC mains.
• Use only original Siemens programming cables for connection to the S5 processor to ensure proper signal integrity and communication.
• Handle the CRT display with care; avoid physical shocks or vibrations that could damage the vacuum tube or internal high-voltage circuitry.
• Always power down the programming unit before connecting or disconnecting the interface cable from the PLC chassis to prevent potential electrical damage to the communication ports.

FAQ

Is the 6ES5631-0AA11 compatible with modern Windows-based software?

No, this unit is a dedicated hardware terminal designed to run native STEP 5 utility configurations for the Simatic S5 system. It is not intended for use with modern PC-based programming software.

Does this unit feature a standard QWERTY keyboard layout?

The 6ES5631-0AA11 features a German-localized keyboard layout. Users should be aware of the specific key mapping differences compared to standard international layouts.

Is this product still supported by Siemens?

No, the PG 631 series has been discontinued by the manufacturer. Support is typically limited to legacy maintenance and third-party repair services.
