Description

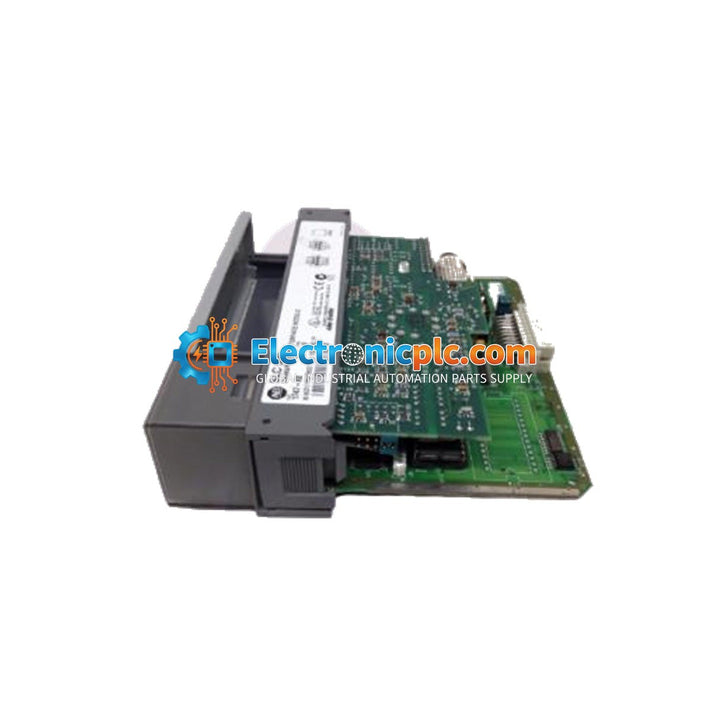

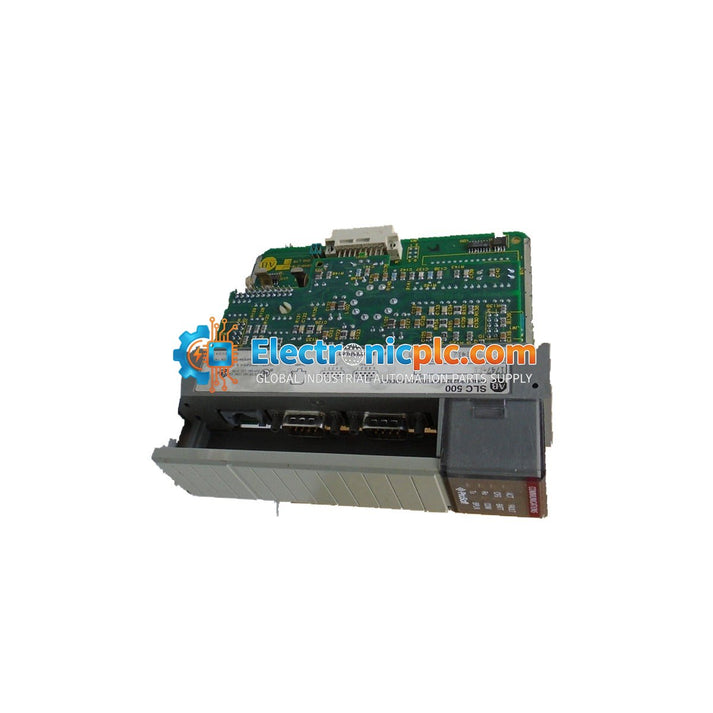

The ProSoft 2150-AGA is a specialized communication interface module engineered for the Allen-Bradley SLC 500 platform. Functioning as a high-reliability bridge, this module provides essential serial connectivity between the SLC backplane and external serial devices. It is widely employed in legacy automation environments, including power generation, water treatment, and manufacturing facilities, to facilitate seamless data exchange between the PLC processor and supervisory systems or HMIs.

Features

• Direct integration into the SLC 500 rack backplane for simplified installation.
• Supports RS-232 and RS-422 serial communication standards.
• Facilitates translation of backplane signals into DF1 or Modbus-based serial data streams.
• Integrated status LEDs provide real-time visual diagnostics for backplane activity and serial port traffic.
• Robust industrial design with passive cooling for long-term operational stability.

Applications

The 2150-AGA is primarily used for system modernization and data acquisition tasks where legacy serial devices must communicate with an Allen-Bradley SLC 500 controller. It is ideal for bridging communication gaps in high-interference industrial environments where stable network connectivity is critical to reducing downtime.

Technical Specifications

Installation Guidelines

• Ensure the SLC 500 rack power is disconnected before inserting or removing the module to prevent electrical damage.
• Slide the module into the designated slot on the SLC 500 chassis, ensuring the backplane connector is fully seated and aligned.
• Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
• Use shielded serial cables for all external connections to minimize EMI/RFI interference in high-noise industrial environments.
• Maintain adequate clearance around the module to allow for passive airflow and heat dissipation.
• Handle the module using ESD-safe practices to prevent damage to internal sensitive electronic components.

FAQ

Does the 2150-AGA require external power?

No, the module draws its required operating power directly from the Allen-Bradley SLC 500 backplane.

What serial protocols are supported?

The module supports standard DF1 and serial interface logic, making it compatible with various legacy serial devices and HMIs.

Is this module compatible with all SLC 500 racks?

The 2150-AGA is designed for standard Allen-Bradley SLC 500 chassis systems. Please verify your specific backplane power budget to ensure the 500 mA load is supported.
