Description

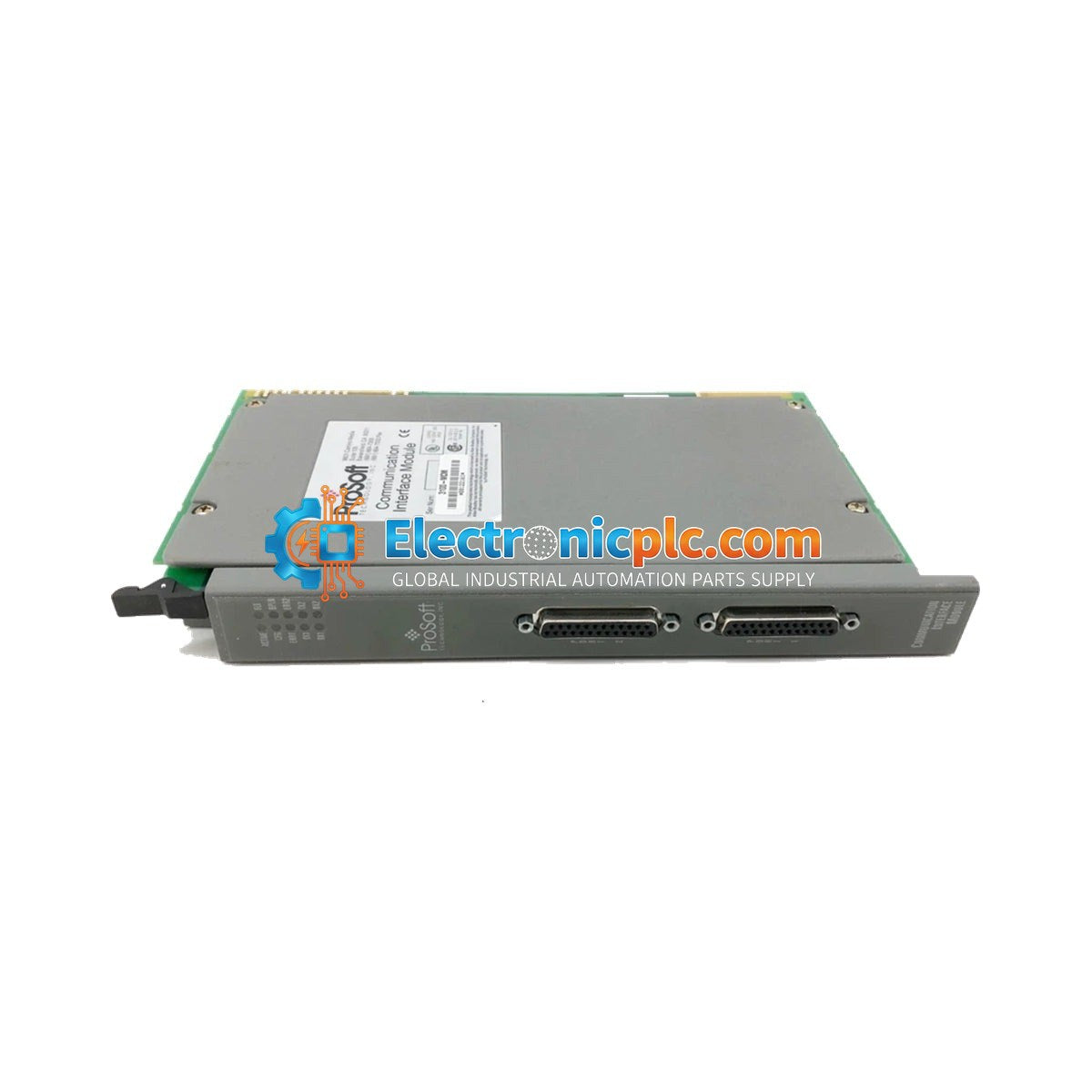

The ProSoft 3100-MCM is a high-performance Modbus Master/Slave communication interface module designed specifically for the Allen-Bradley PLC-5 platform. Operating as a single-slot backplane component, this module facilitates seamless data exchange between the PLC processor and external Modbus-compatible devices, including power monitors, motor drives, and specialized field sensors. It is a critical component for legacy system integration, enabling the centralization of field data to enhance diagnostic capabilities and reduce operational downtime in industrial environments such as oil refineries, power generation, and mining.

Features

• Dual Port Configuration: Features two independent serial ports, each independently configurable as a Modbus Master or Modbus Slave, allowing for simultaneous polling of field instruments and communication with supervisory SCADA systems.
• Protocol Support: Supports both Modbus RTU and ASCII modes. Master mode supports extensive command control including function codes 1, 2, 3, 4, 5, 6, 15, and 16.
• Data Integrity: Implements hardware-level parity checking and CRC/LRC error detection to ensure reliable data transmission across long-distance RS-485 or RS-422 cabling.
• Backplane Integration: Designed for direct integration into the PLC-5 chassis, utilizing the backplane for both power and high-speed data bus interfacing.

Applications

The 3100-MCM is widely utilized in industrial automation for connecting legacy PLC-5 systems to modern Modbus-enabled field devices. Typical applications include monitoring energy usage via power meters, controlling variable frequency drives (VFDs), and integrating remote I/O or specialized sensors into the primary control network.

Technical Specifications

Installation Guidelines

• Ensure the PLC-5 chassis is powered down before inserting or removing the module to prevent electrical damage.
• The module must be seated firmly in the backplane slot to ensure proper power and data connection.
• Use shielded twisted-pair cabling for RS-485/422 connections to minimize EMI interference in industrial environments.
• Ensure proper grounding of the cable shields at one end to prevent ground loops.
• Maintain adequate ventilation around the PLC-5 chassis to ensure the module operates within the specified 0 to 60 deg C temperature range.

FAQ

Is the 3100-MCM compatible with all PLC-5 processors?

The module is compatible with standard PLC-5 models including the /11, /20, /25, /30, /40, and /60 series. Please verify your specific processor firmware and chassis slot availability before installation.

Can both ports be used simultaneously?

Yes, the 3100-MCM features two independent serial ports that can be configured separately to act as either a Modbus Master or a Modbus Slave, allowing for simultaneous communication with different field devices.
