Description

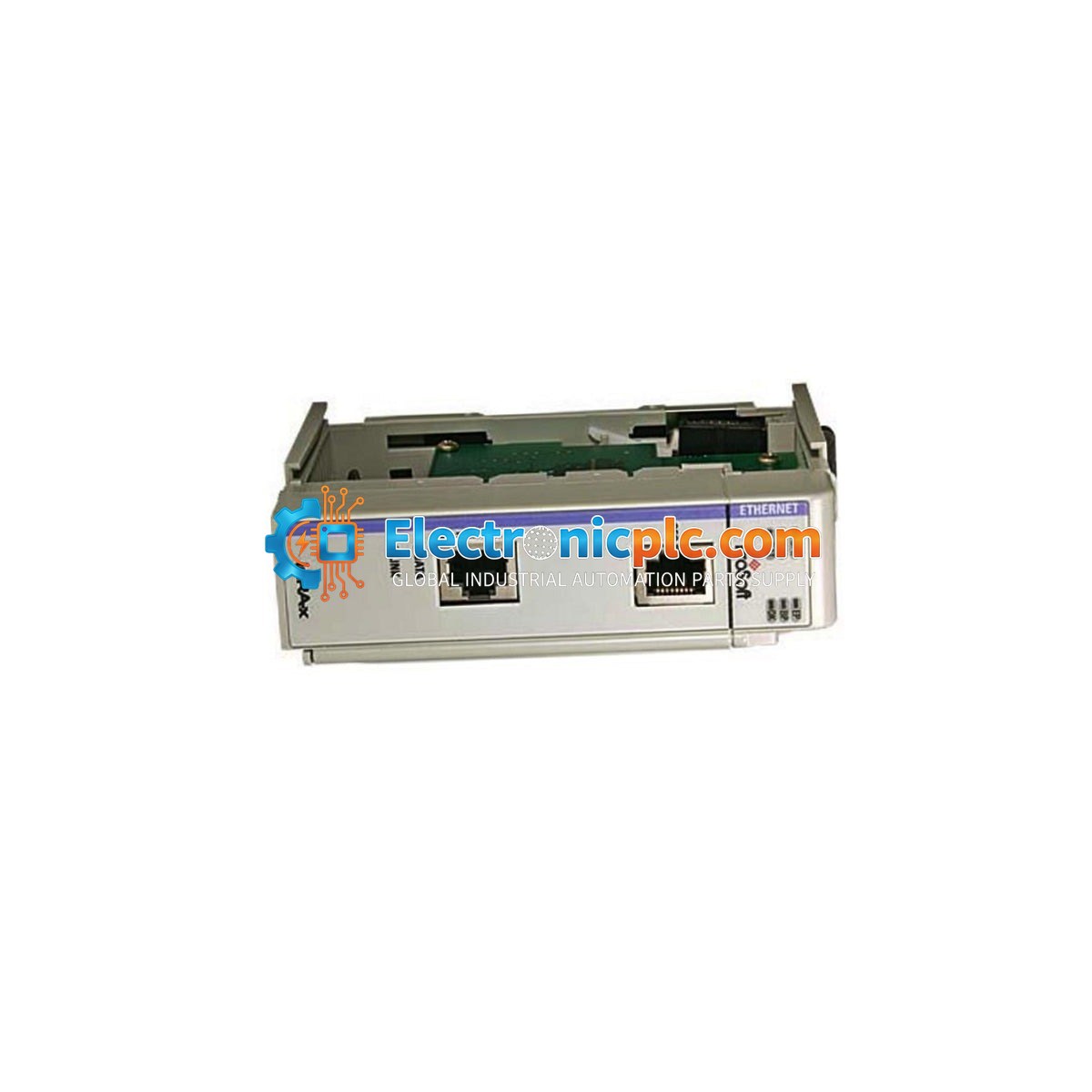

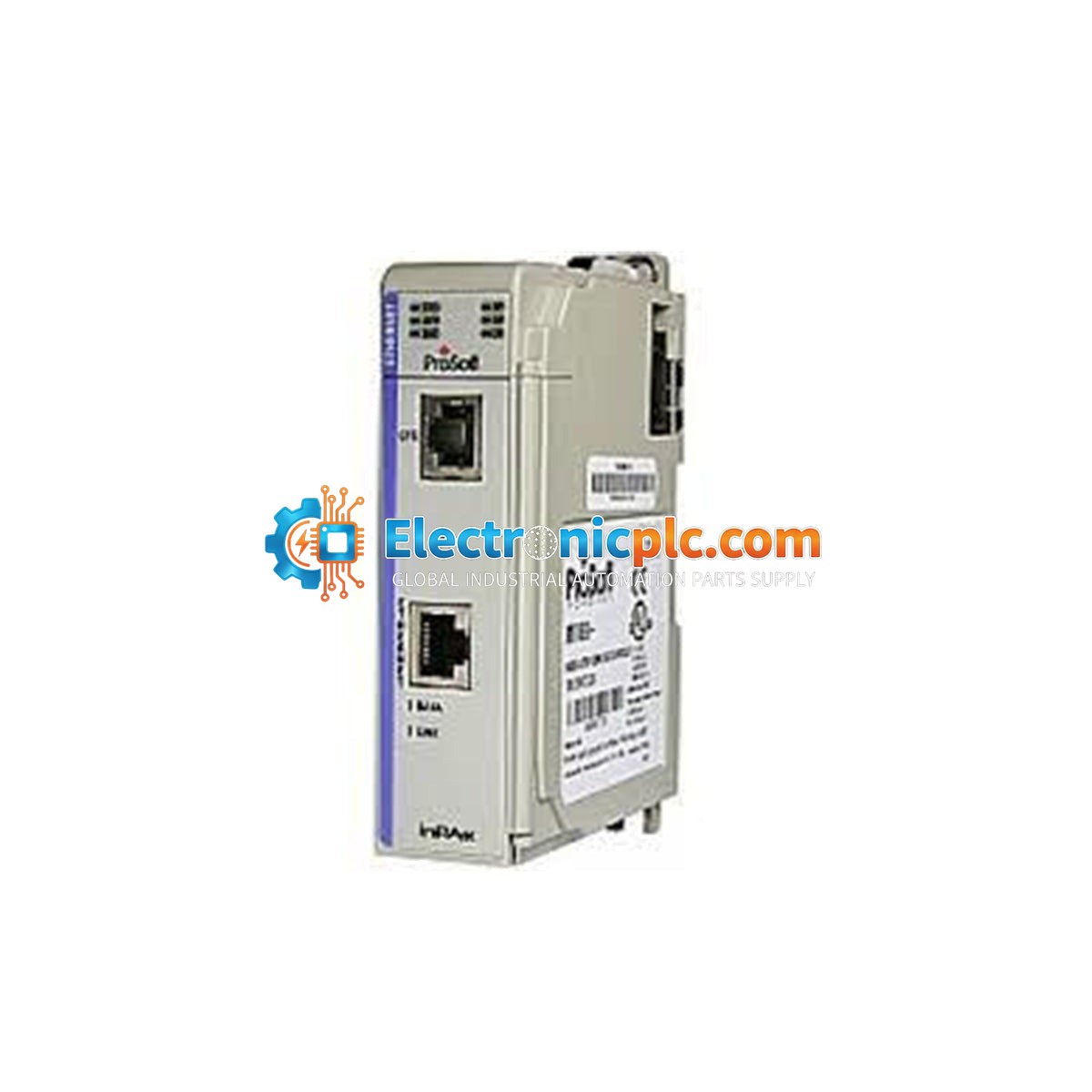

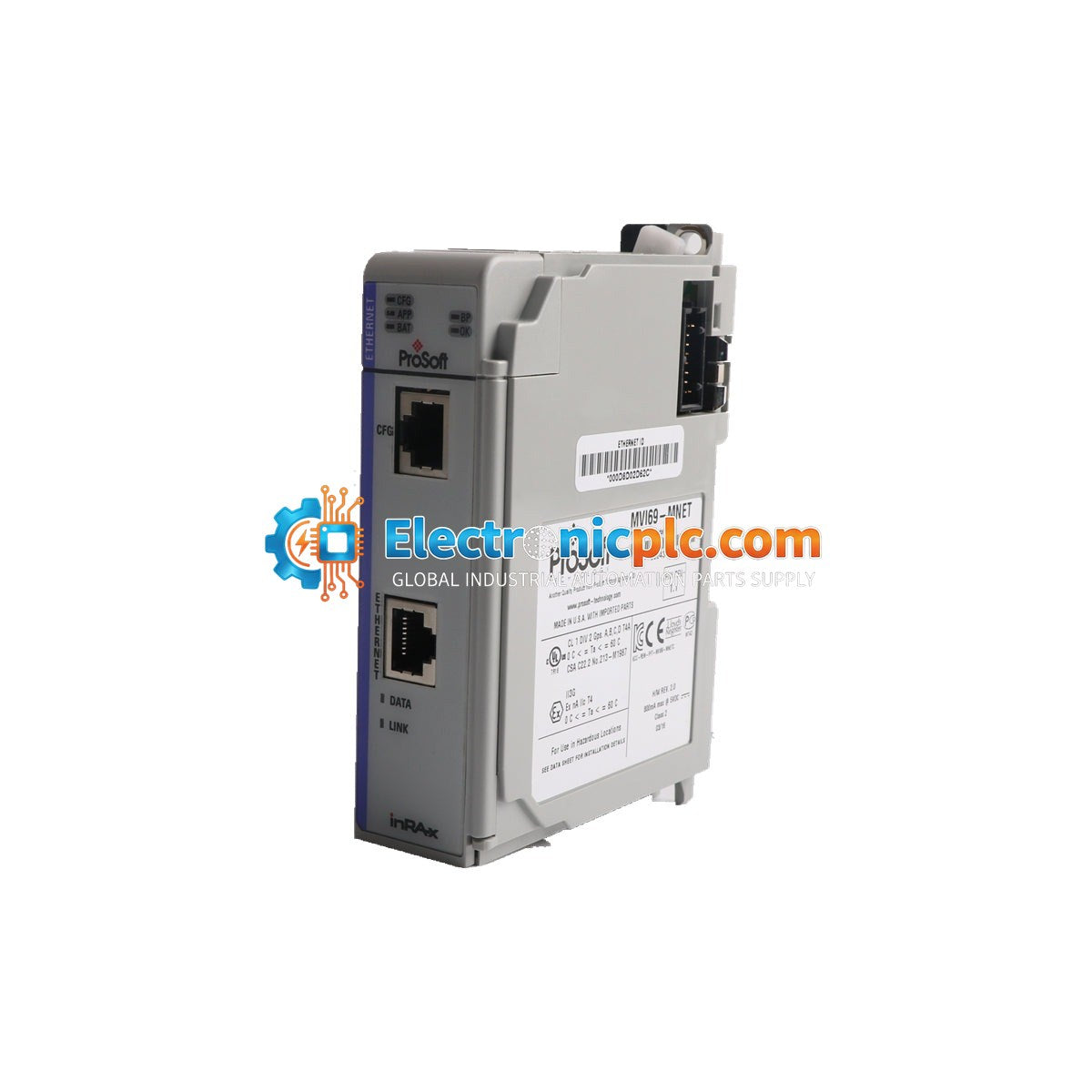

The ProSoft MVI69-MNET is a high-performance Modbus TCP/IP communication module designed specifically for integration with Rockwell Automation CompactLogix programmable automation controllers. This module allows the CompactLogix processor to interface seamlessly with Modbus TCP/IP-enabled devices, acting as either a Client or a Server to facilitate data exchange across industrial Ethernet networks.

Features

• Designed for seamless integration into the Rockwell CompactLogix platform.
• Supports up to 5,000 registers for extensive data handling.
• Configurable as a Modbus TCP/IP Client or Server.
• Supports up to 100 Client commands for complex network architectures.
• Data transfer managed via standard ladder logic for simplified programming.
• Occupies a single slot in the CompactLogix chassis.

Applications

This module is widely utilized in industrial automation environments where CompactLogix controllers must communicate with third-party devices such as variable frequency drives (VFDs), power meters, remote I/O, and other controllers supporting the Modbus TCP/IP protocol. It is ideal for process control, energy management, and machine-to-machine communication.

Technical Specifications

Installation Guidelines

• Ensure the CompactLogix chassis is powered down before inserting or removing the module.
• Slide the module into the designated slot until the locking mechanism engages securely.
• Use shielded Ethernet cabling for all network connections to minimize EMI interference.
• Ensure proper grounding of the chassis backplane to maintain signal integrity.
• Configure the module parameters using the appropriate ProSoft configuration software or via ladder logic integration as specified in the user manual.

FAQ

Is the MVI69-MNET compatible with all CompactLogix controllers?

The MVI69-MNET is designed for the 1769 CompactLogix platform. Please verify your specific processor firmware and backplane compatibility in the ProSoft technical documentation before installation.

Does this module require external power?

No, the module draws its operating power directly from the CompactLogix backplane. Ensure your power supply is sized to accommodate the 800 mA current load.
