Description

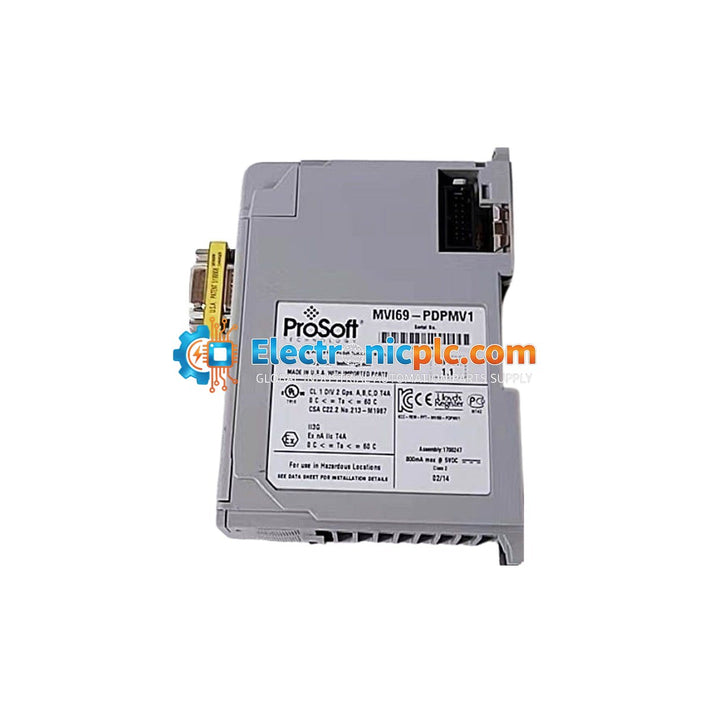

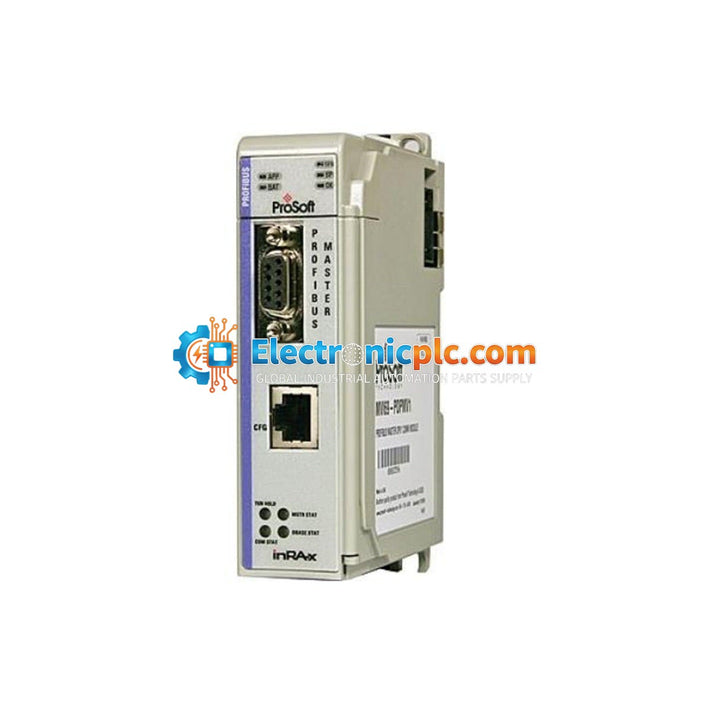

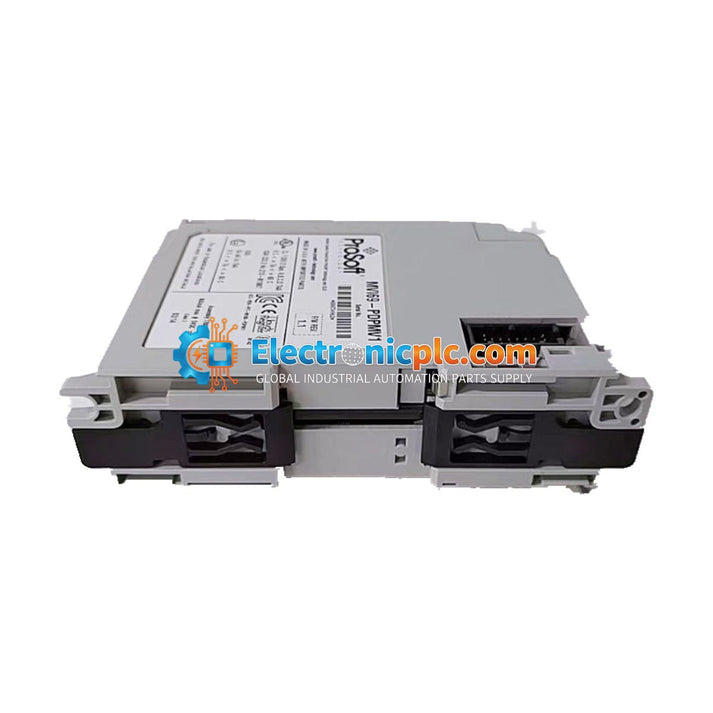

The ProSoft MVI69-PDPMV1 is a high-performance PROFIBUS DPV1 Master communication module designed specifically for integration with Rockwell Automation CompactLogix and MicroLogix 1769 platform processors. This module enables seamless data exchange between the PLC backplane and PROFIBUS DP slave devices, acting as a master node on the network. It is engineered to handle complex communication tasks, supporting both cyclic and acyclic data transfer as defined by the DPV1 specification.

Features

• Supports PROFIBUS DPV1 Master functionality for advanced network control.
• Interfaces directly with the 1769 backplane for high-speed data transfer.
• Supports up to 125 PROFIBUS slave devices on a single network.
• Features one isolated DB-9F RS-485 port for reliable fieldbus connectivity.
• Designed for seamless integration with CompactLogix and MicroLogix controller architectures.

Applications

This module is widely utilized in industrial automation environments requiring the integration of PROFIBUS-enabled field devices into a Rockwell Automation control system. Common applications include motor control centers (MCCs), variable frequency drives (VFDs), remote I/O blocks, and complex instrumentation systems where DPV1 acyclic messaging is required for configuration and diagnostics.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the 1769 backplane before inserting or removing the MVI69-PDPMV1 module to prevent electrical damage.
• Slot Placement: Ensure the module is installed within the power supply distance rating specified (first 2 slots for certain controller models).
• Mounting: Secure the module firmly into the 1769 chassis, ensuring the backplane connector is fully seated and the locking tab is engaged.
• Grounding: Use appropriate shielded PROFIBUS cable and ensure the cable shield is properly grounded to minimize EMI interference.
• ESD Precautions: Handle the module by the housing or edges; avoid touching the backplane pins or internal components to prevent electrostatic discharge damage.

FAQ

What is the primary function of the MVI69-PDPMV1?

The MVI69-PDPMV1 acts as a PROFIBUS Master, allowing a CompactLogix or MicroLogix controller to communicate with and control up to 125 PROFIBUS slave devices.

Does this module support acyclic messaging?

Yes, the MVI69-PDPMV1 supports PROFIBUS DPV1, which includes both cyclic data exchange and acyclic messaging for device configuration and parameterization.
