Description

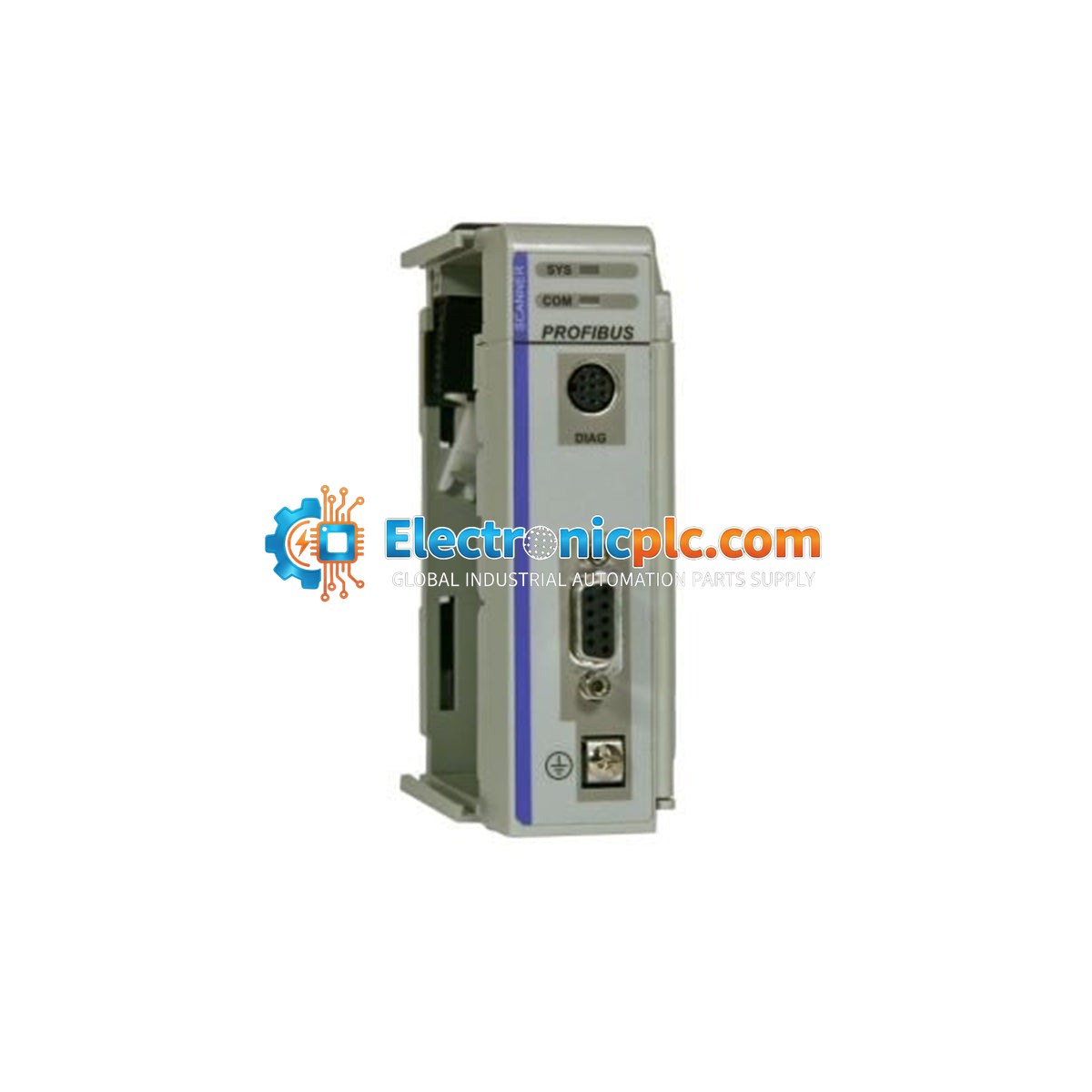

The ProSoft PS69-DPM is a high-performance communication module designed to function as a PROFIBUS DPV1 Master. This module is engineered for seamless integration with Rockwell Automation CompactLogix platforms, enabling efficient data exchange between the PLC and PROFIBUS-enabled field devices. It serves as a bridge for complex automation architectures requiring reliable fieldbus communication.

Features

• Compatible with Rockwell Automation CompactLogix systems.
• Supports up to 125 PROFIBUS slaves.
• Handles up to 244 bytes of I/O data per slave.
• Supports DPV1 acyclic communication for advanced device diagnostics and configuration.
• Provides up to 480 bytes of output data and 408 bytes of input data.
• Includes 88 bytes of dedicated status data for system monitoring.

Applications

The PS69-DPM is typically utilized in industrial automation environments where CompactLogix controllers must interface with third-party drives, sensors, or remote I/O stations operating on the PROFIBUS network. It is widely used in manufacturing, process control, and material handling applications.

Technical Specifications

Installation Guidelines

• Ensure the CompactLogix backplane is powered down before installing or removing the module.
• Verify that the module is firmly seated in the chassis slot to ensure proper electrical contact.
• Use shielded PROFIBUS-rated cable for all field connections to minimize EMI interference.
• Maintain proper grounding practices for the control cabinet to protect against electrical noise.
• Configure the module parameters via the appropriate Rockwell Automation software environment before commissioning.
• Handle with care using ESD-safe procedures to prevent damage to internal circuitry.

FAQ

What is the primary function of the PS69-DPM?

The PS69-DPM acts as a PROFIBUS DPV1 Master, allowing a CompactLogix PLC to communicate with and control up to 125 PROFIBUS slave devices.

Is this module compatible with all CompactLogix controllers?

The PS69-DPM is designed for the CompactLogix platform; however, users should verify specific firmware and backplane compatibility requirements in the official ProSoft user manual for their specific controller revision.
