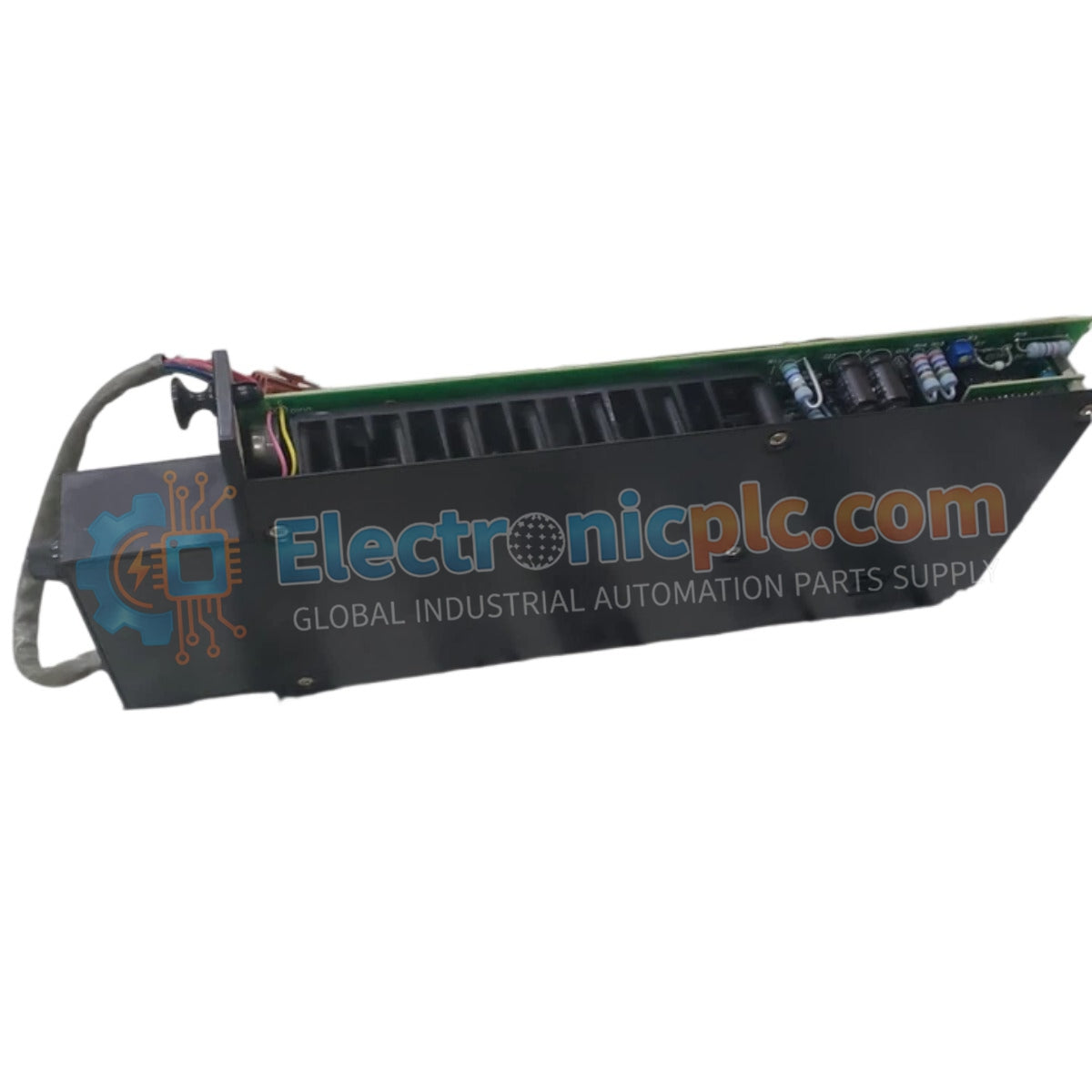

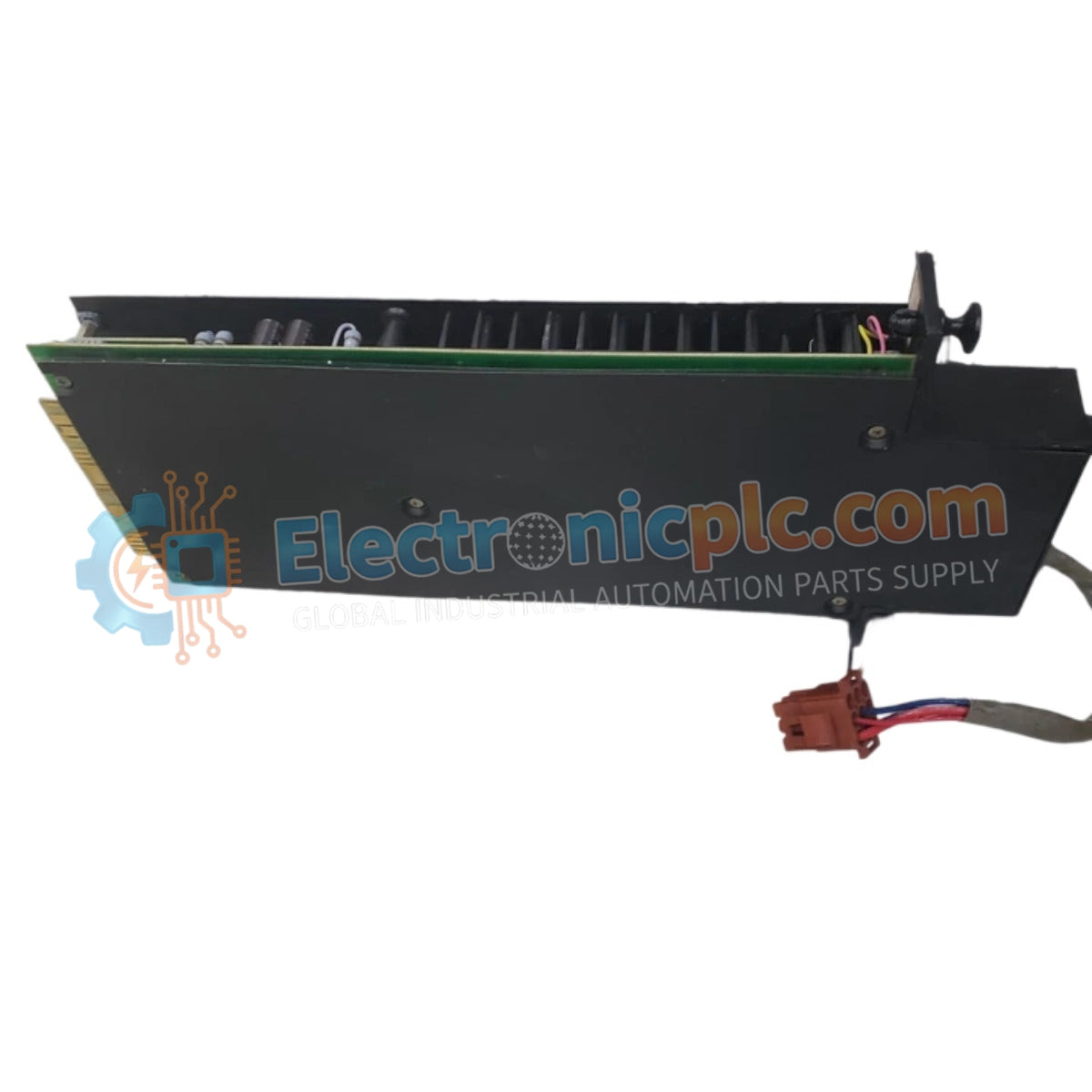

The Yokogawa PS11*C, also cataloged as the PS11 CPU Module, operates as a dedicated hardware component for central processing and logic execution within Yokogawa distributed control system platforms.

Hardware Specifications

Control Loop and Signal Processing

The module integrates advanced algorithms to manage 4-20 mA HART loop protocol communications across the field network. By facilitating channel-to-channel isolation, the PS11*C ensures signal integrity during high-speed data acquisition. Cold junction compensation (CJC) is managed via integrated circuitry to minimize thermal drift in analog thermocouple inputs, maintaining loop accuracy within industrial process control environments.

Frequently Asked Questions

Q: Is the PS11*C module capable of hot-swapping during active system operation?

A: No. Power must be removed from the local segment before the module is extracted or inserted into the backplane to prevent electrical arcing and data bus corruption.

Q: What is the maximum cycle time supported by the PS11*C processor?

A: The processor cycle time is dependent on the configured scan rate of the I/O rack. Under standard loading, typical scan intervals are maintained at 50 ms to 100 ms.

Field Installation Guidelines

• Mechanical Mounting: Ensure the module is fully seated within the designated slot on the backplane. Secure the top and bottom retaining screws to ensure proper chassis grounding.
• Grounding and Shielding: Connect the signal shield to the common ground rail provided in the cabinet. Maintain a minimum separation of 10 cm from high-voltage AC power lines to reduce electromagnetic interference (EMI).
• Environmental Requirements: Verify that the cabinet airflow is unobstructed. Operating temperatures must remain within the 0 to 60 deg C range to prevent processor thermal throttling or component degradation.
• Wiring: Use twisted-pair shielded cabling for all field signal terminations to optimize noise rejection. Ensure wire stripping does not damage the copper conductors, maintaining a secure engagement in the terminal block.
