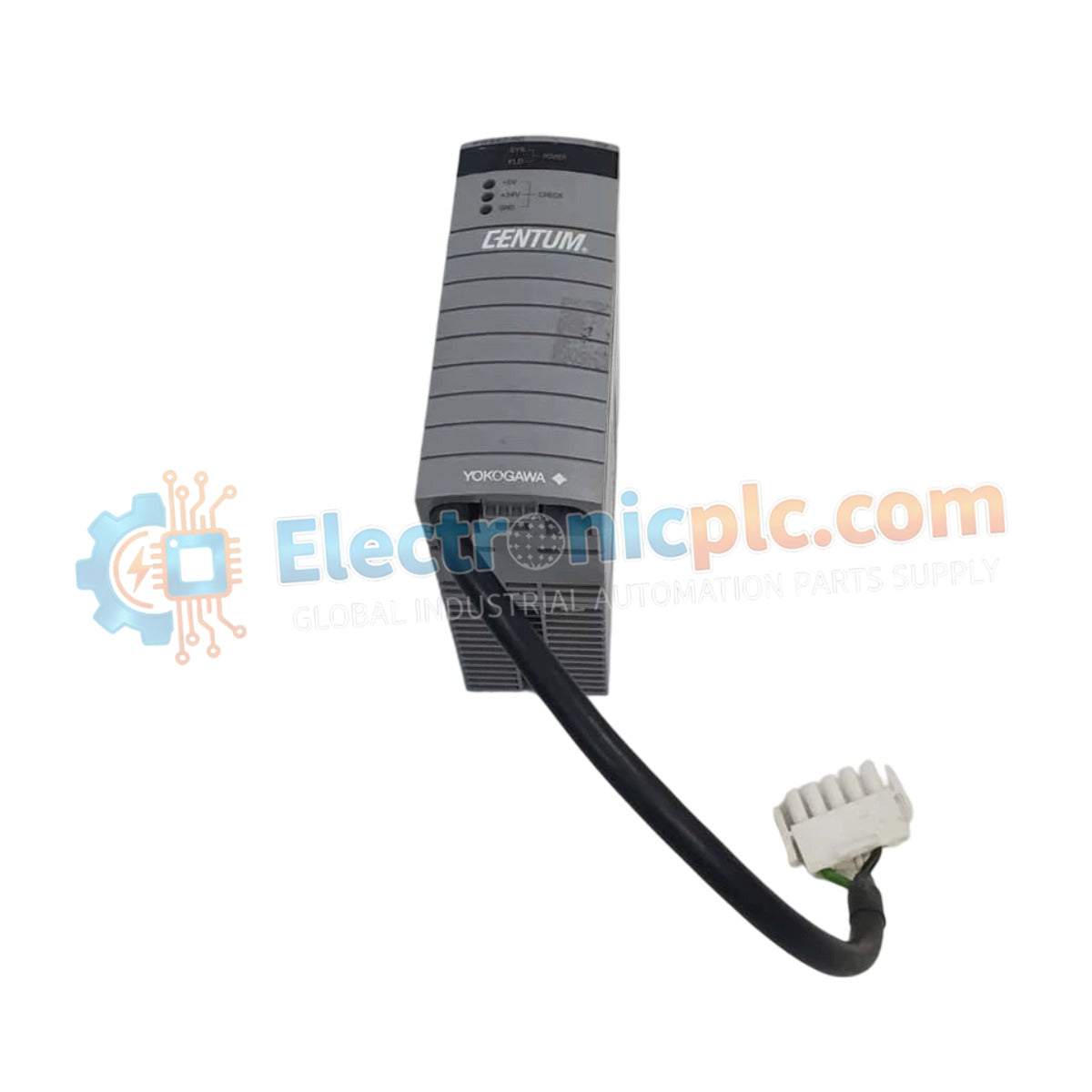

The YOKOGAWA PW442-50, also cataloged as the PW442-50 Power Supply Module, operates as a dedicated hardware component for high-capacity DC power regulation within industrial automation and control platforms.

Hardware Specifications

Process Control Power Stabilization

The PW442-50 module is engineered for high-density power delivery, providing a stable 24 VDC output from a wide-range AC input. The 93% efficiency rating minimizes thermal dissipation, allowing for high-performance operation in confined cabinet spaces. The module integrates specialized circuitry for over-voltage and over-current protection, ensuring that downstream DCS components and field instrumentation are shielded from power-side transients. Its compact footprint and high current capacity make it suitable for supporting large-scale I/O node configurations or distributed control units where localized high-power DC distribution is required.

Frequently Asked Questions (FAQ)

Q: What is the primary consideration for achieving the rated 50 A output?

A: Ensure that the AC input voltage is maintained within the specified range (100-240 VAC) and that the cabinet environment permits sufficient convective cooling. At high output loads, the internal thermal management system must be unobstructed to prevent de-rating.

Q: Can multiple PW442-50 units be connected in parallel for current sharing?

A: Yes, provided that the specific installation manual for your host rack or control system supports parallel redundant or load-sharing configurations. Ensure that output voltage tracking is calibrated to prevent circulating currents between units.

Field Installation Guidelines

• Verify that the input AC supply lines are equipped with appropriate surge protection and over-current breakers sized for a 1200 W power draw.
• Mount the module to the DIN-rail or chassis plate ensuring firm contact to the cabinet's grounding system for effective EMI shielding.
• Use appropriate wire gauges for the 24 VDC output terminals to minimize voltage drops and localized heating caused by the high current capacity (50 A).
• Maintain a minimum clearance of 50 mm above and below the module to facilitate natural airflow, particularly in ambient temperatures approaching the 70 deg C upper limit.
