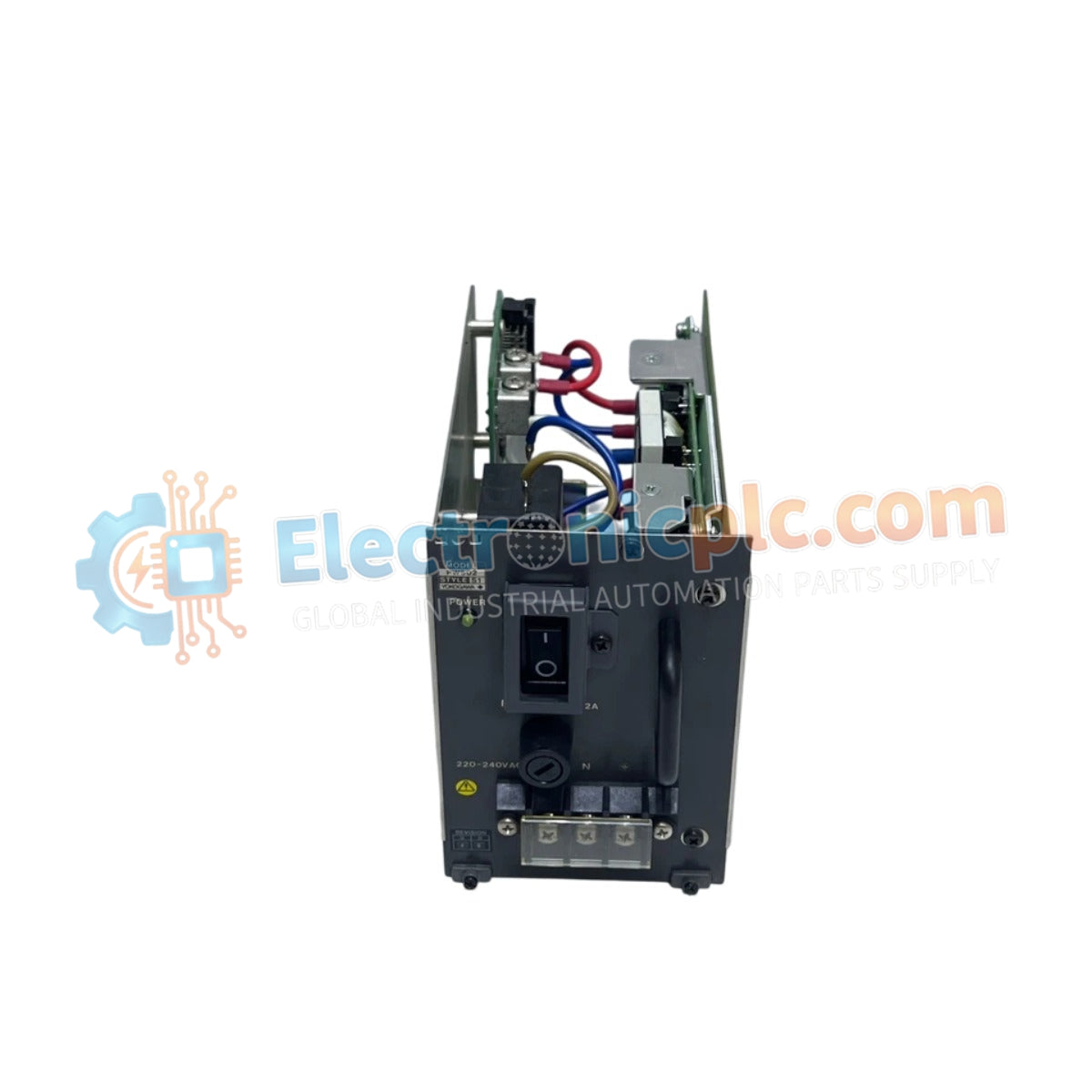

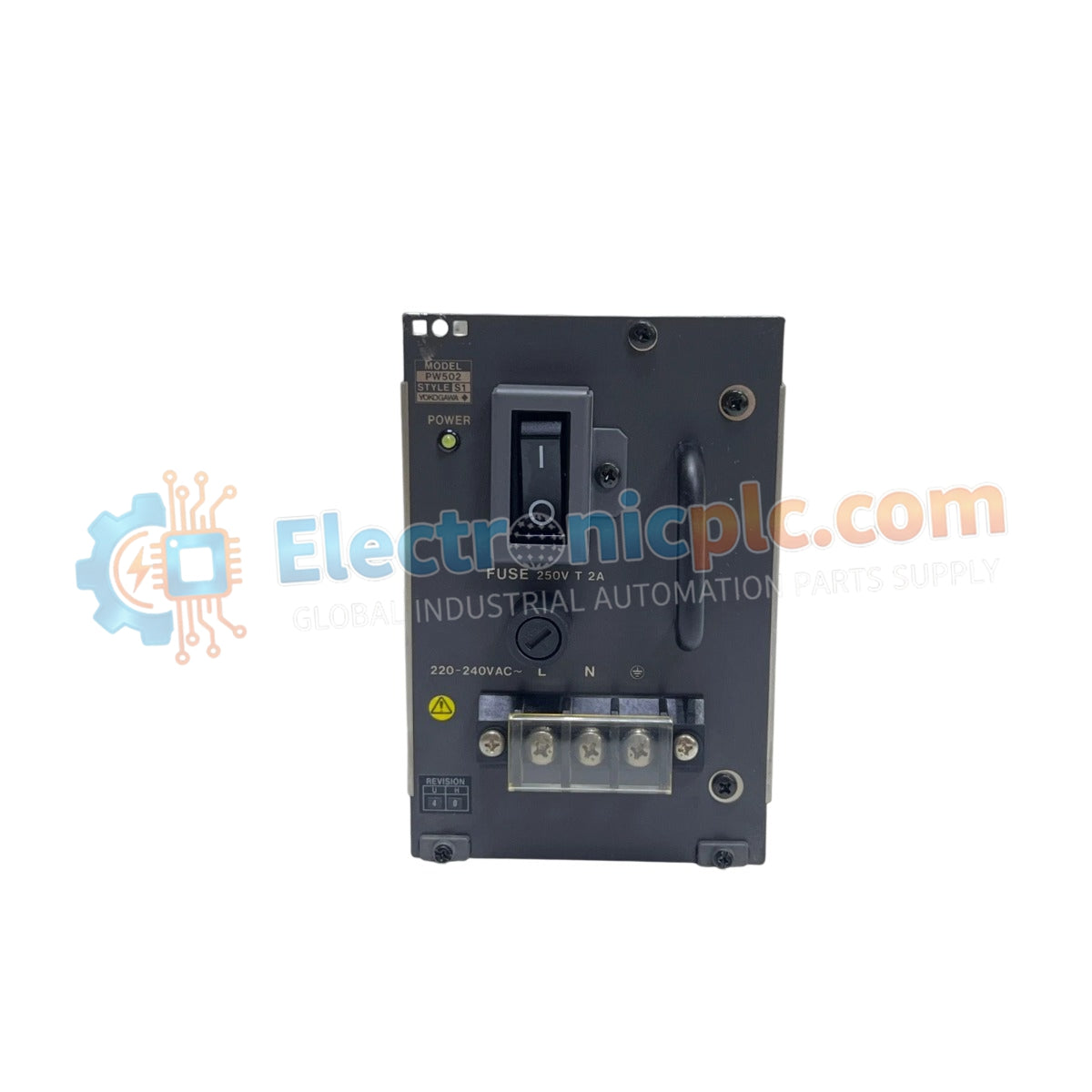

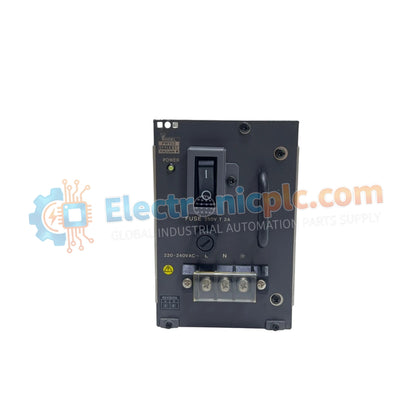

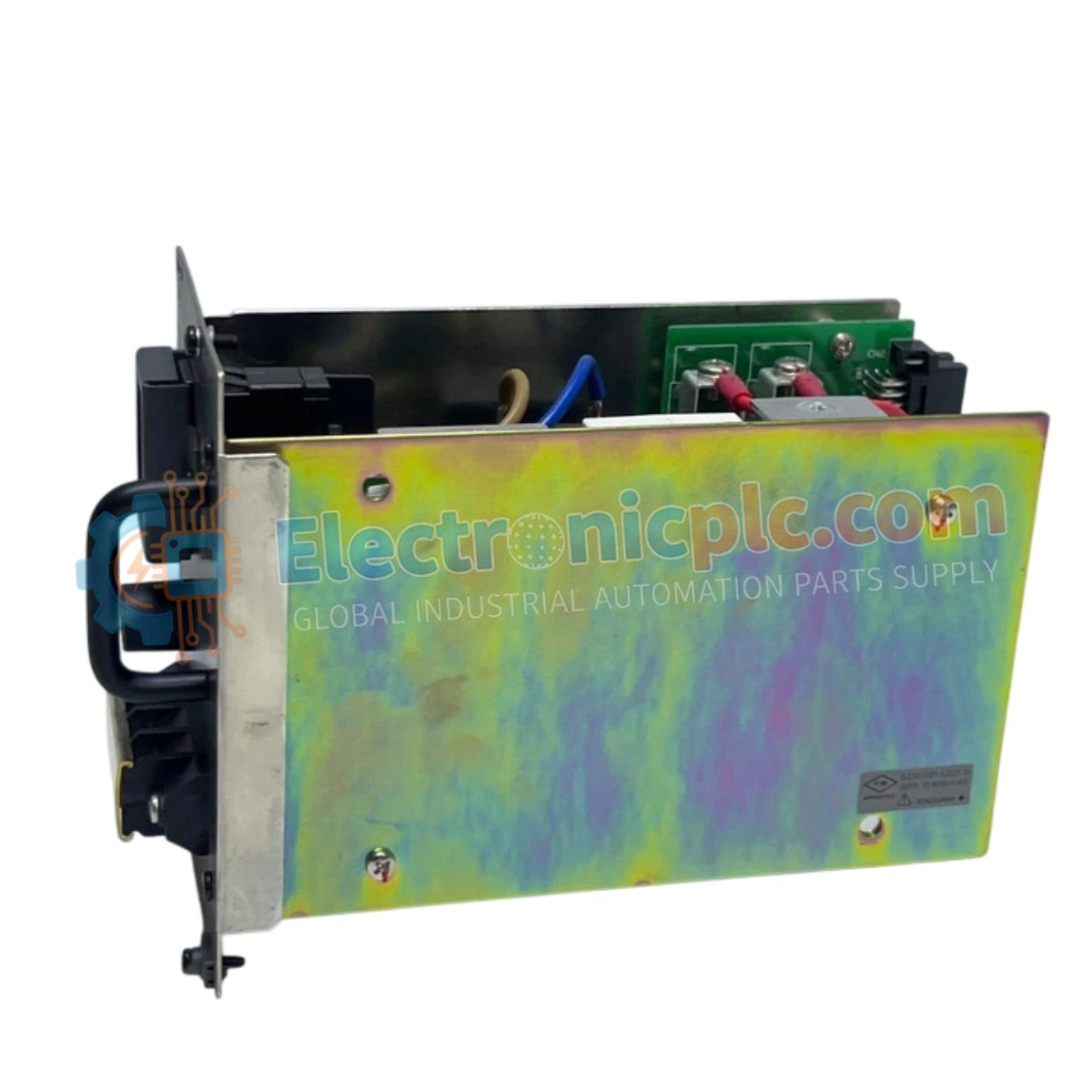

Configured for power conversion in DCS process control platforms, the YOKOGAWA PW502/S1 (PW502/S1 Power Supply Unit) provides direct physical/electrical execution.
| Parameter | Specification |
| Parameter | Specification |
| Model | PW502/S1 |
| Brand | YOKOGAWA |
| Origin | Subject to factory batch |
| Weight | 1.0 kg |
| Dimensions | 40 mm x 120 mm x 210 mm |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | 120 W |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current | 5 A (max) |
| Efficiency | 85% typical |
| Ripple | <= 100 mV (peak to peak) |
The unit integrates specialized circuitry for channel-to-channel isolation and voltage regulation required in DCS instrumentation loops. To maintain the specified +/- 1% regulation, the power supply utilizes internal feedback loops to compensate for variations in line voltage. The 24 VDC output is maintained with low ripple characteristics, facilitating stable operation for sensitive analog input and output modules within the YOKOGAWA ecosystem. Proper thermal management via the integrated forced-air cooling fan is required to prevent derating when operating at ambient temperatures approaching 50 deg C.
Q: What are the constraints regarding the forced-air cooling system?
A: The PW502/S1 utilizes an internal fan for heat dissipation. Users must ensure a minimum clearance of 50 mm above and below the module to prevent obstruction of the airflow path and ensure thermal stability.
Q: Is this power supply capable of parallel operation to increase total output current?
A: The standard configuration for the PW502/S1 is designed for dedicated load requirements. Parallel wiring to increase output current is not supported unless external decoupling diodes are utilized to prevent back-feeding and current imbalance.
