Description

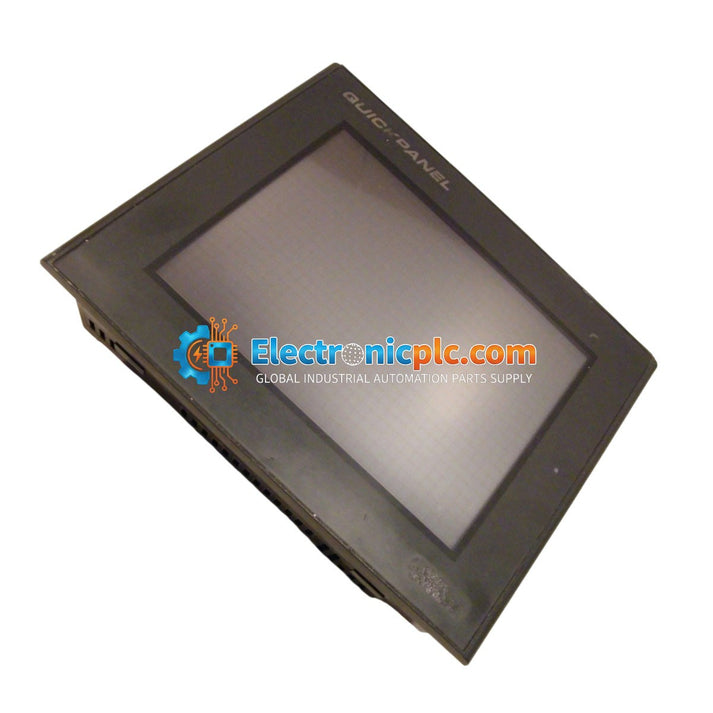

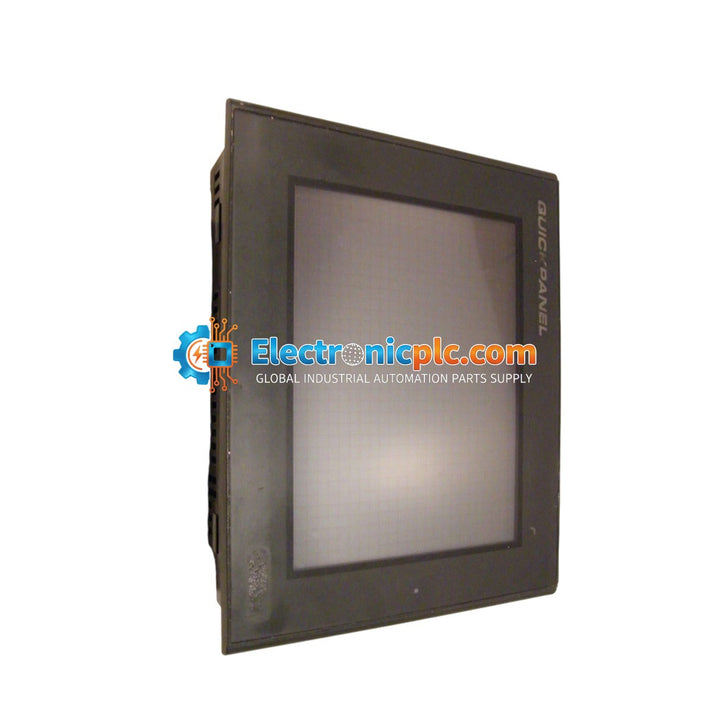

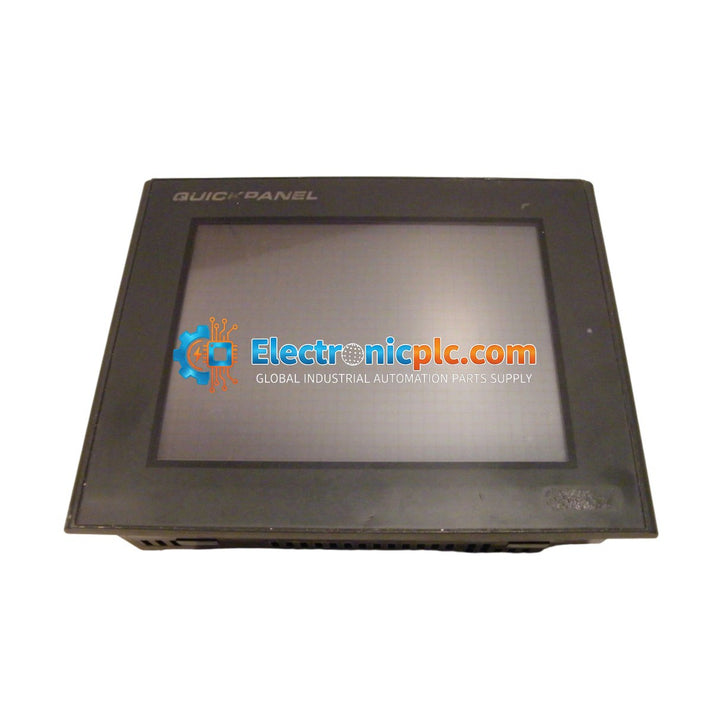

The GE Fanuc QPGCTDE0000 is a high-performance QuickPanel Human-Machine Interface (HMI) graphic terminal designed for real-time industrial visualization and control. Featuring a 7.4-inch color TFT display, this unit provides operators with clear, high-resolution interface metrics. It is engineered for demanding industrial environments, including oil and gas, power generation, and heavy mining, where reliable process monitoring is critical. With an expanded 4 MB Flash EPROM memory architecture, the module supports complex, multi-layered diagnostic screens and historical trend logging, enabling maintenance teams to optimize uptime and perform rapid fault analysis.

Features

• 7.4-inch color TFT LCD display with VGA resolution for clear data visualization.
• Expanded 4 MB Flash EPROM memory for extensive application storage.
• Integrated 10 Base-T Ethernet port for network telemetry and remote connectivity.
• Comprehensive peripheral support including dual serial ports, a dedicated printer interface, and a high-speed software download link.
• Advanced notification suite featuring a system alarm relay, lineout sound terminal, external speaker drive, and internal buzzer.
• Ruggedized enclosure rated for NEMA 4X/12 and IP65, providing protection against dust, oil vapor, and low-pressure fluid ingress.

Applications

The QPGCTDE0000 is suitable for a wide range of industrial automation applications, including:

• Oil refining and petrochemical control hubs.
• Thermal and renewable power generation plants.
• Heavy mining and material handling equipment.
• Manufacturing process control and machine-level monitoring.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout dimensions are verified before mounting to maintain the NEMA 4X/IP65 seal integrity.
• Use a clean, flat surface for mounting and ensure the gasket is seated correctly to prevent moisture or dust ingress.
• Power the unit using a stable 24 VDC supply; verify polarity before connecting to prevent damage to internal circuitry.
• Maintain proper clearance around the unit to allow for natural convection cooling; do not obstruct airflow.
• Use shielded cables for communication ports to minimize EMI interference in high-noise industrial environments.
• Always power down the unit before connecting or disconnecting communication cables or I/O wiring.

FAQ

What software is required to program this HMI?
The QPGCTDE0000 requires QuickDesigner software, version 3.7 or higher.

Does this unit support external speakers?
Yes, the module includes a dedicated external speaker drive terminal in addition to an internal buzzer and lineout sound terminal.

Is this unit suitable for washdown environments?
The unit is rated NEMA 4X/12 and IP65, meaning it is designed to withstand low-pressure fluid contact and airborne contaminants, making it suitable for many washdown-prone industrial areas.
