Description

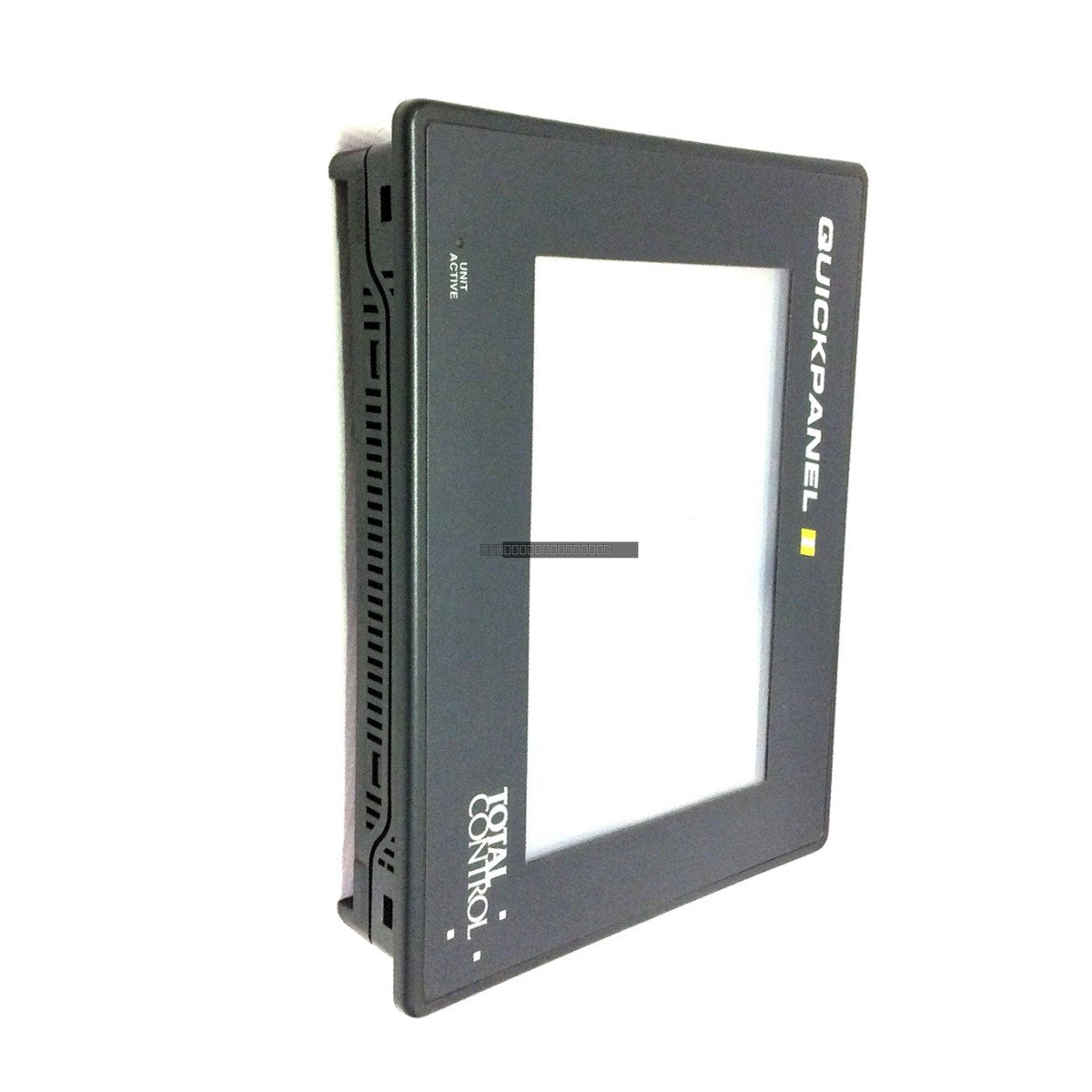

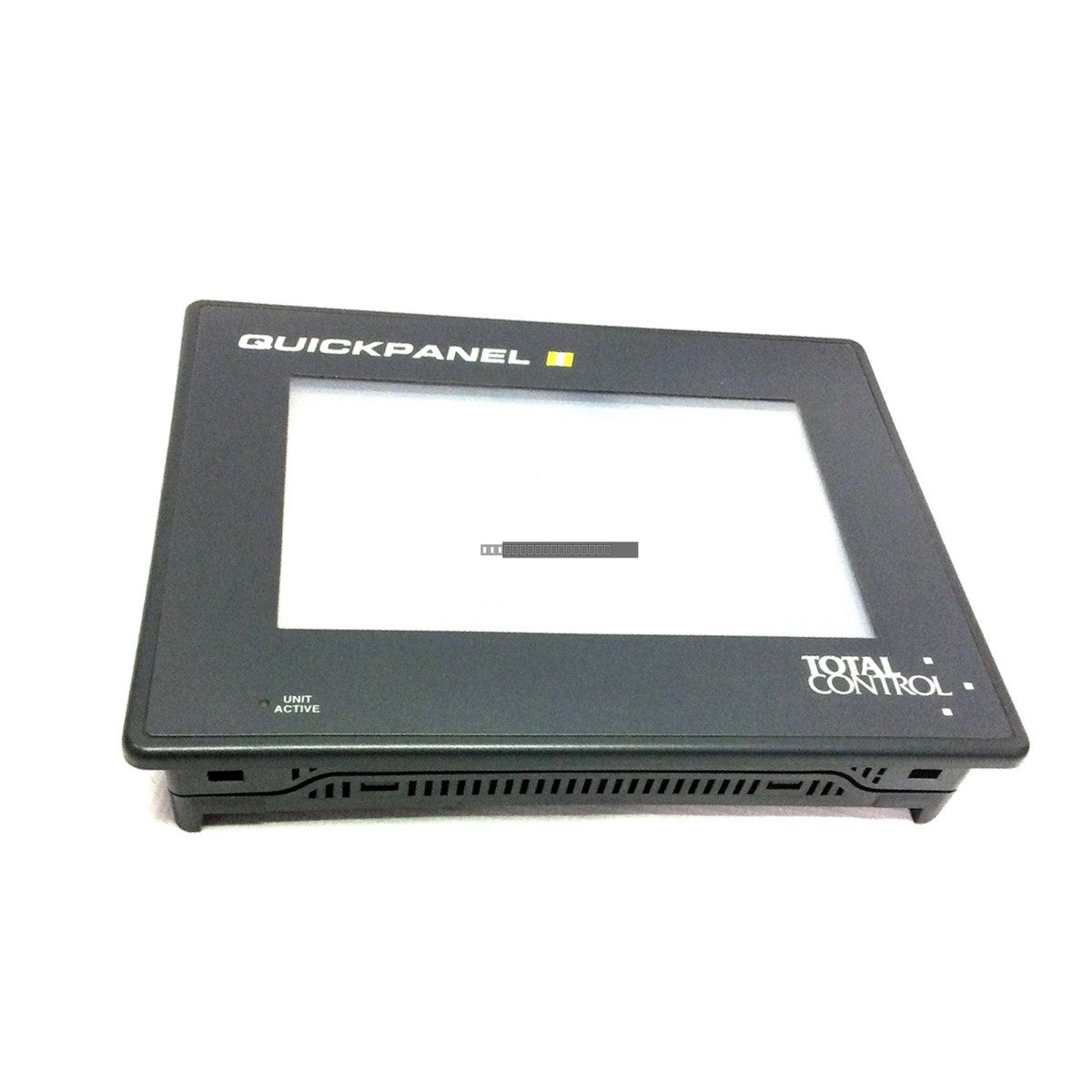

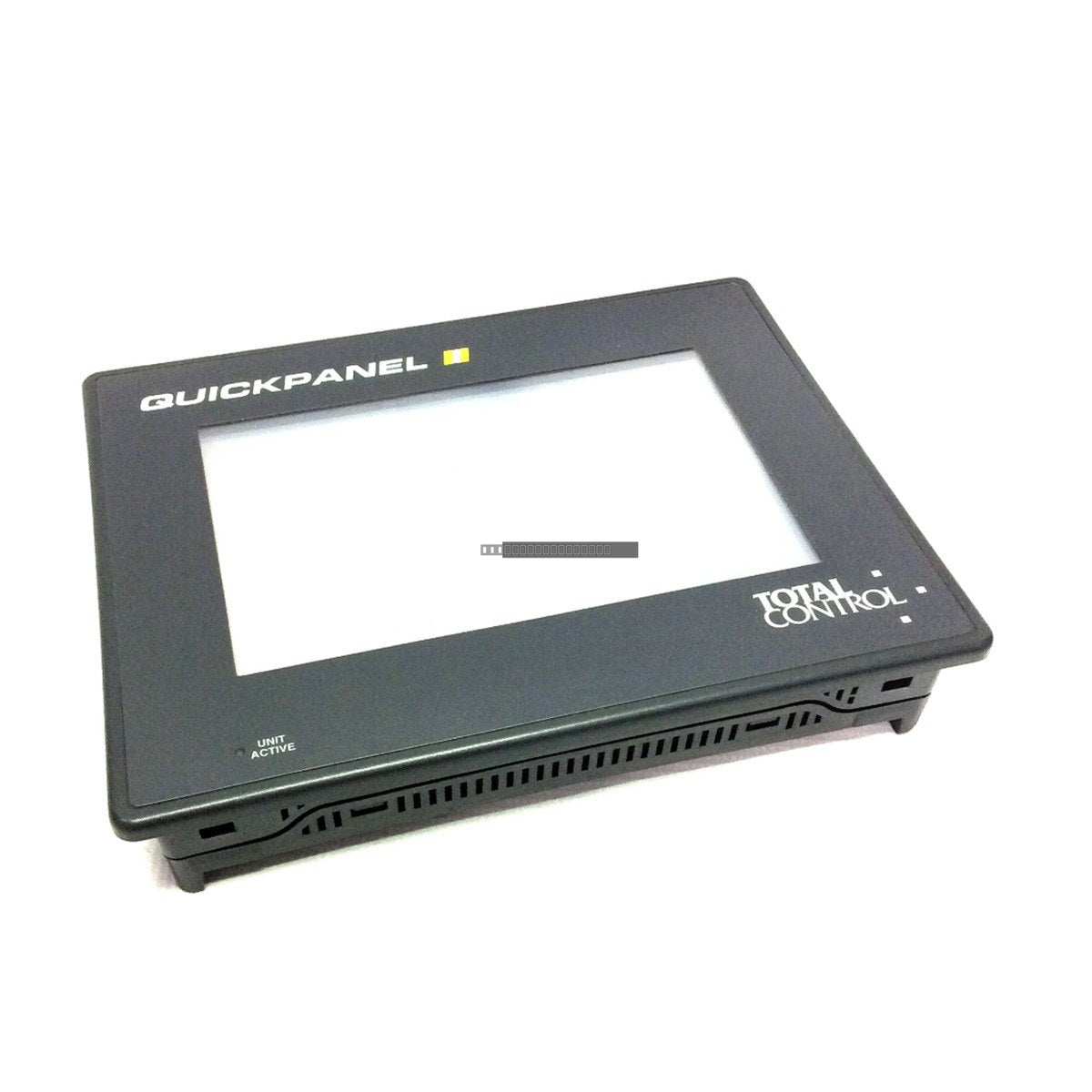

The GE Fanuc QPI31200E2P (IC610CHS130) is a robust 8.9-inch monochromatic touch screen HMI engineered for demanding industrial environments. Utilizing high-intensity amber electroluminescent (EL) display technology, this operator terminal offers superior contrast and visibility, even in high-glare settings or under challenging ambient light conditions. Its solid-state design and ruggedized construction make it an ideal choice for telemetry and control applications in power generation, chemical processing, and mining industries, where display reliability and uptime are essential.

Features

• High-intensity amber EL display provides excellent readability and wide viewing angles.
• Integrated 2 MB Flash EPROM ensures non-volatile storage for graphics, logic, and application databases.
• NEMA 4X/12 and IP65-rated front panel for protection against oil, dust, and washdown environments.
• Designed for 120 VAC power input (85-132 VAC operational range).
• Compact, slim-profile chassis suitable for panel-mount integration.

Applications

This QuickPanel interface is designed for real-time monitoring and control in industrial automation. It is commonly deployed in environments requiring high-durability hardware, such as local machine control, process monitoring stations, and remote telemetry nodes in harsh plant floor conditions.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout dimensions are verified before mounting to maintain the NEMA 4X/12 seal integrity.
• Use the provided mounting hardware to secure the unit evenly against the enclosure surface to prevent gasket distortion.
• Ensure the power supply is within the 85-132 VAC range; verify proper grounding of the chassis to mitigate EMI.
• Avoid mounting in areas with excessive vibration or direct exposure to high-heat sources.
• Power down the unit before performing any wiring or maintenance on the communication ports.

Compliance and Certifications

The QPI31200E2P is designed to meet rigorous industrial standards, holding UL and cUL certifications for safety and reliability in hazardous or demanding operational environments.

FAQ

Q: Does this HMI support color graphics?
A: No, this model features a high-intensity monochromatic amber EL display specifically optimized for high-contrast visibility in harsh environments.

Q: Is the memory volatile?
A: No, the unit utilizes 2 MB of non-volatile Flash EPROM to ensure that all application data and graphics remain intact during power loss.
