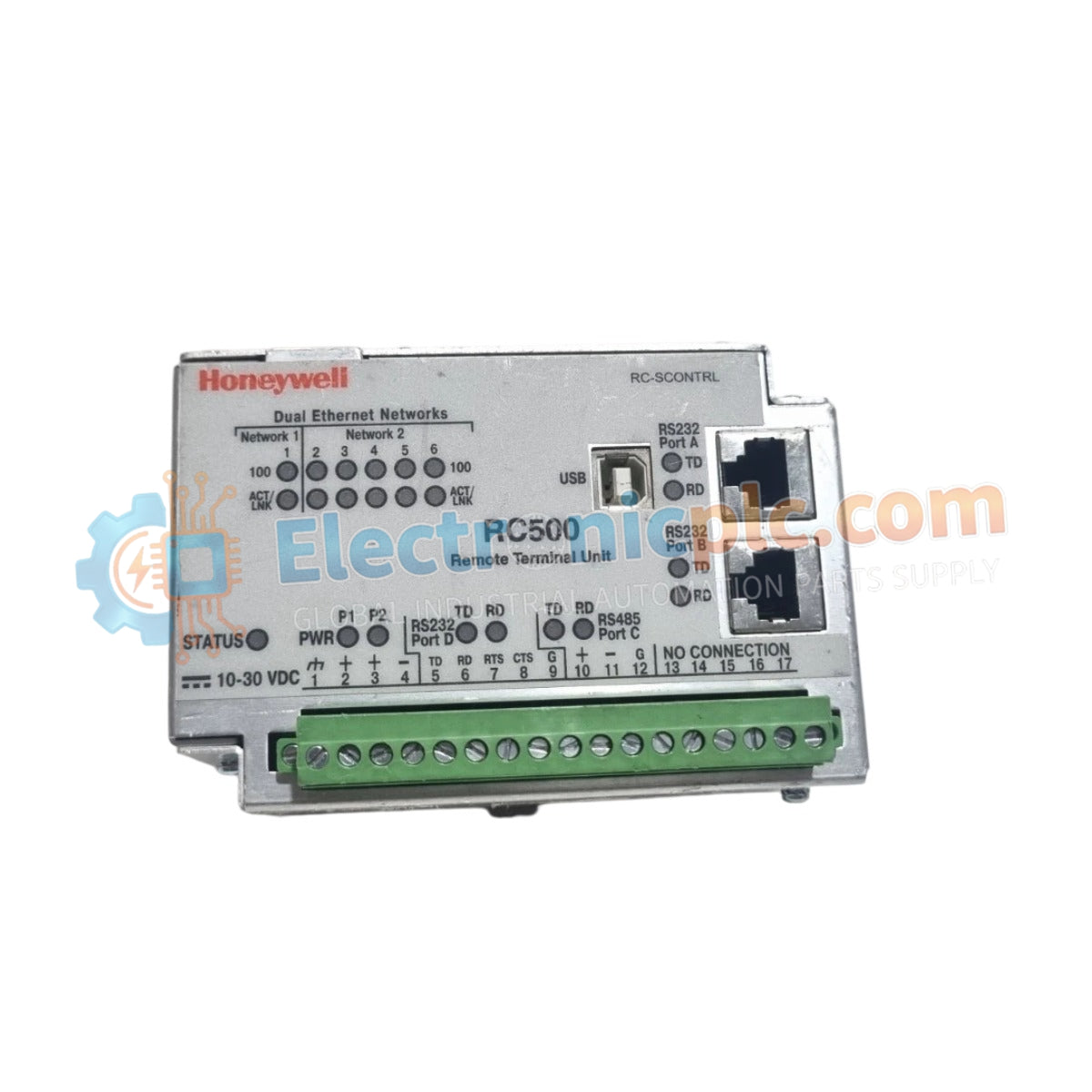

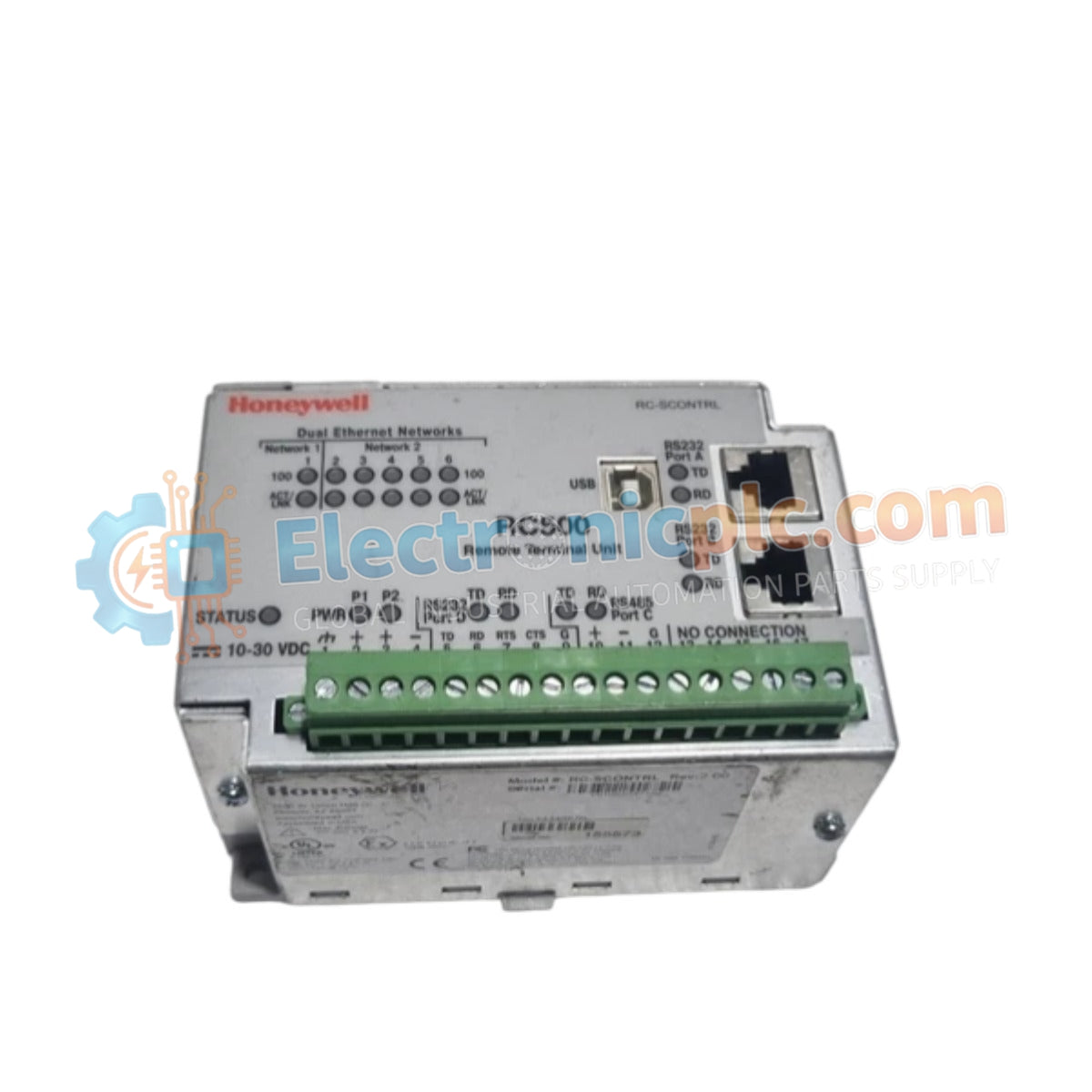

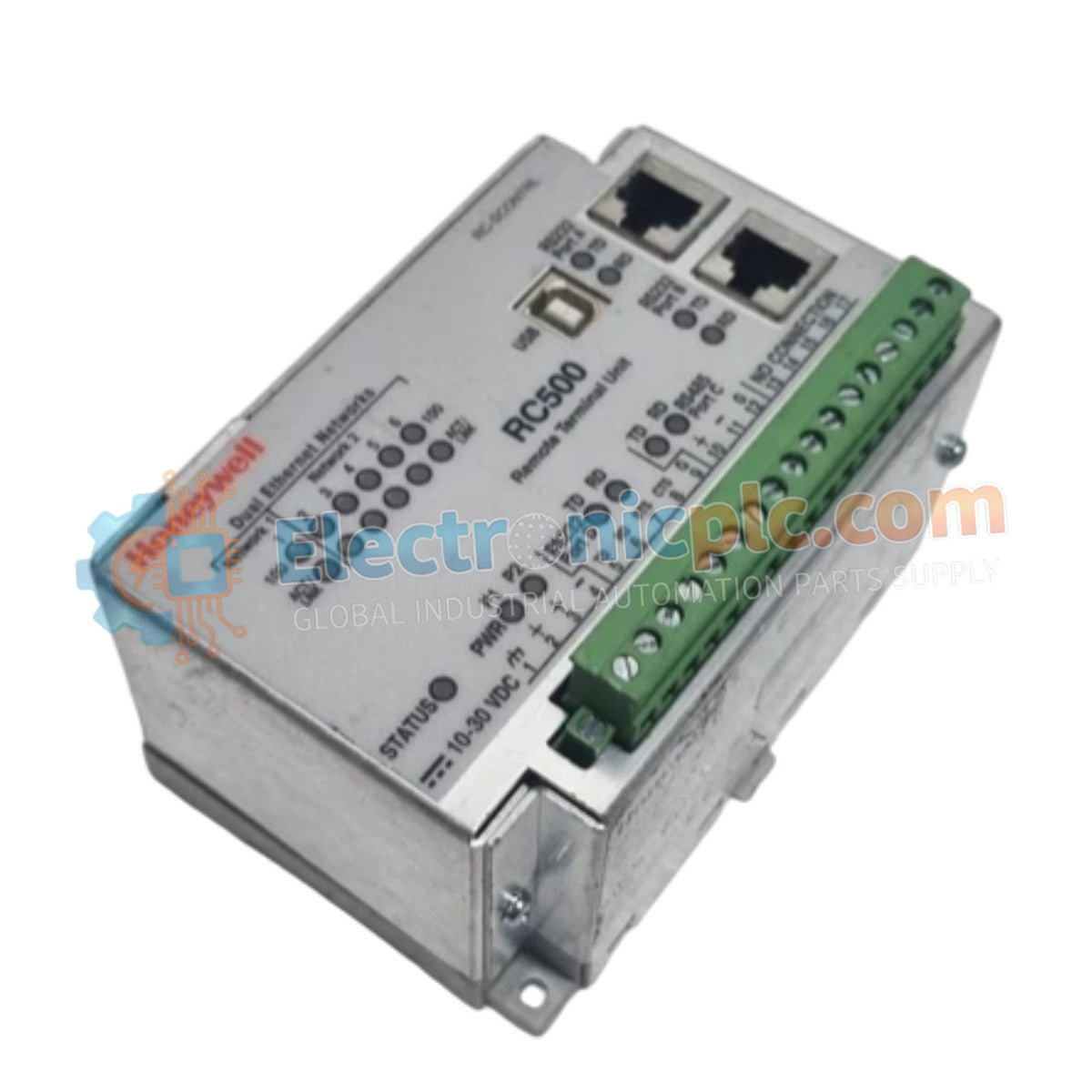

The Honeywell RC-SCONTRL is a rugged Remote Terminal Unit (RTU) controller designed for industrial telemetry and process control applications. This 100% brand new unit runs on an embedded...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The Honeywell RC-SCONTRL is a rugged Remote Terminal Unit (RTU) controller designed for industrial telemetry and process control applications. This 100% brand new unit runs on an embedded Linux platform, enabling reliable data logging, protocol conversion, and remote device management in harsh environments.
| Specification | Details |
|---|---|
| Model Number | RC-SCONTRL |
| Product Type | Remote Terminal Unit (RTU) Controller |
| Operating System | Embedded Linux |
| Memory | 128 MB Flash / 64 MB RAM |
| Communication Ports | 5× Ethernet, 2× RS-232, 1× RS-485 |
| Supported Protocols | Modbus RTU/TCP, DNP3, IEC 60870-5-104 |
| Operating Temperature | –40 °C to +70 °C |
| Dimensions | 140 × 100 × 35 mm |
| Weight | 2.5 kg |
Multi-Protocol Support
Compatible with Modbus, DNP3, and IEC 60870-5-104 for flexible system integration.
Rugged Industrial Design
IP65-rated enclosure and wide temperature range ensure reliable field operation.
High Connectivity
Multiple Ethernet and serial ports support complex distributed architectures.
Reliable Data Handling
Embedded Linux system ensures stable logging and deterministic performance.
Can the RTU be expanded with additional I/O?
Yes, it supports modular I/O expansion depending on system configuration.
Does it retain data during power loss?
Yes, battery-backed memory preserves critical data logs.
How is the device configured?
Configuration is typically done via web interface or terminal tools depending on setup.
What mounting options are available?
It supports DIN rail and panel mounting installations.
