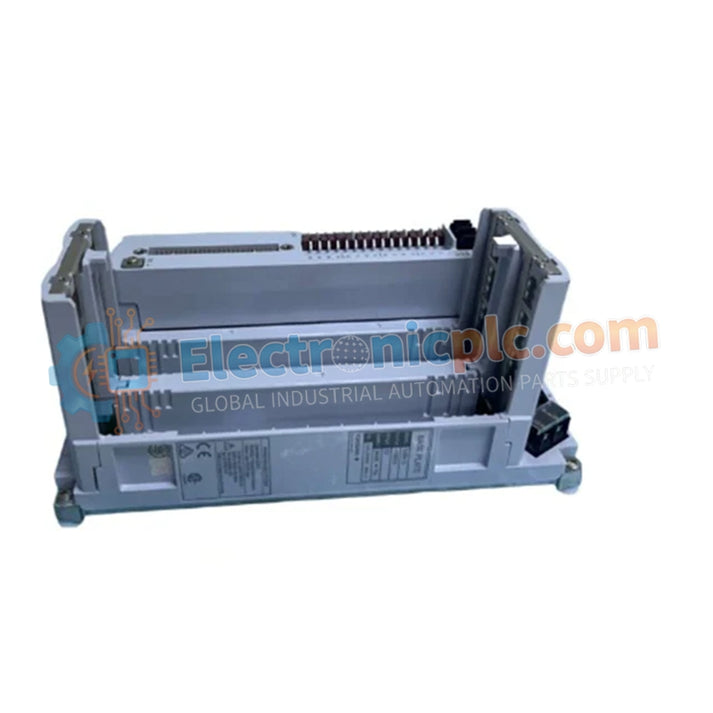

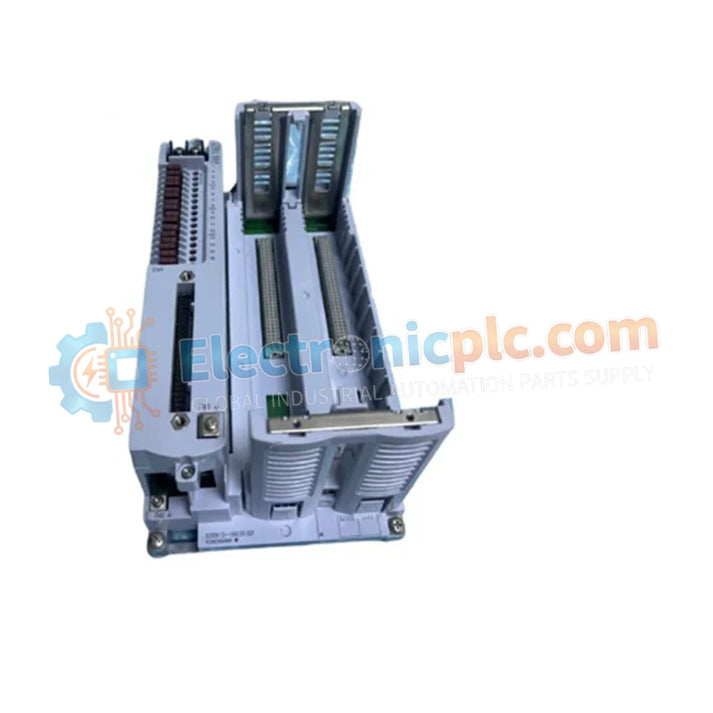

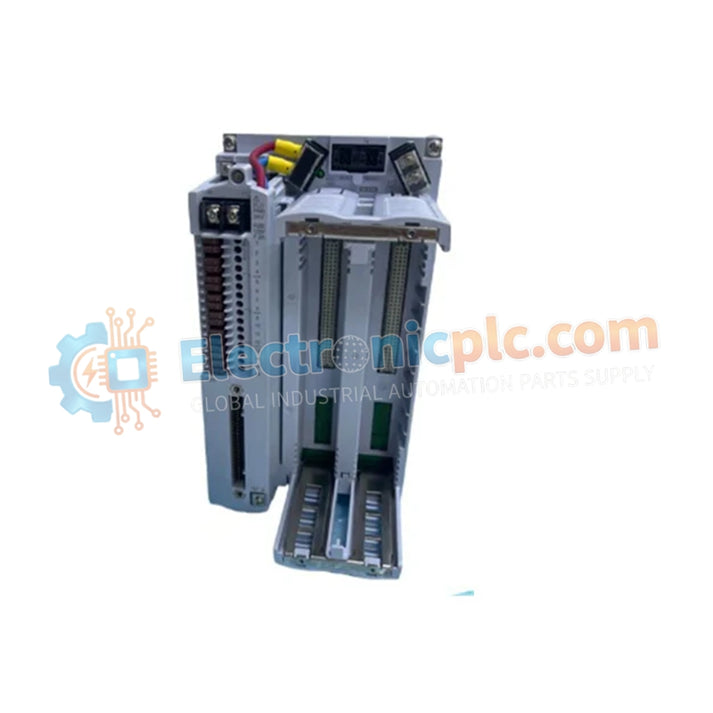

Configured for high-density I/O integration within Yokogawa process control systems, the Yokogawa S2BN1D-12030 (S2BN1D Terminal Base Plate) provides direct physical and electrical execution of field signal routing and system power distribution.

Suffix Breakdown & Model Matrix

• S2BN1D: Base series designation for field terminal base plates.
• 1: Indicates the pressure clamp terminal configuration for field signal connections.
• 2: Indicates the module configuration and bus interface architecture.
• 030: Configuration identifier for hardware-specific density and mounting specifications.

Hardware Specifications

System Connectivity and Galvanic Isolation

The S2BN1D-12030 serves as the primary backbone for field termination, facilitating the connection between external sensors and the control system. The plate maintains 1500 V AC galvanic isolation between the field-side input/output and the system bus, which is fundamental for preventing electrical faults from compromising the primary DCS backplane. The assembly supports both single and redundant module configurations, ensuring that fail-safe state execution can be maintained in critical control loops.

Frequently Asked Questions

Q: Can the S2BN1D-12030 be used for both redundant and single I/O module setups?

A: Yes. The base plate is engineered to support both single and redundant module configurations. Ensure that the module installation follows the specific redundancy hardware jumpers or settings defined in the system's installation documentation.

Q: What is the maximum torque for the M3 grounding screw?

A: The M3 grounding terminal should be torqued to approximately 0.5 Nm. Ensure a high-quality crimp lug is used to maintain a gas-tight, low-impedance connection to the plant's instrument earth.

Field Installation Guidelines

• DIN Rail Stability: When using DIN rail mounting, ensure the rail is securely fixed to the cabinet backplane to prevent mechanical vibration, which can lead to loosening of the pressure clamp terminals.
• Cable Management: Secure field cabling using the integrated cable management features on the base plate. Ensure there is sufficient slack to prevent mechanical strain on the pressure clamp terminals.
• Grounding Requirements: The M3 grounding terminal must be bonded to the main cabinet ground bar using a low-impedance conductor. Failure to establish a solid ground will result in inadequate surge protection and increased EMI susceptibility.
• Thermal Considerations: While the plate is passive, heat generated by the mounted I/O modules must be considered. Maintain at least 50 mm clearance around the assembly to ensure natural convection does not cause localized overheating.
