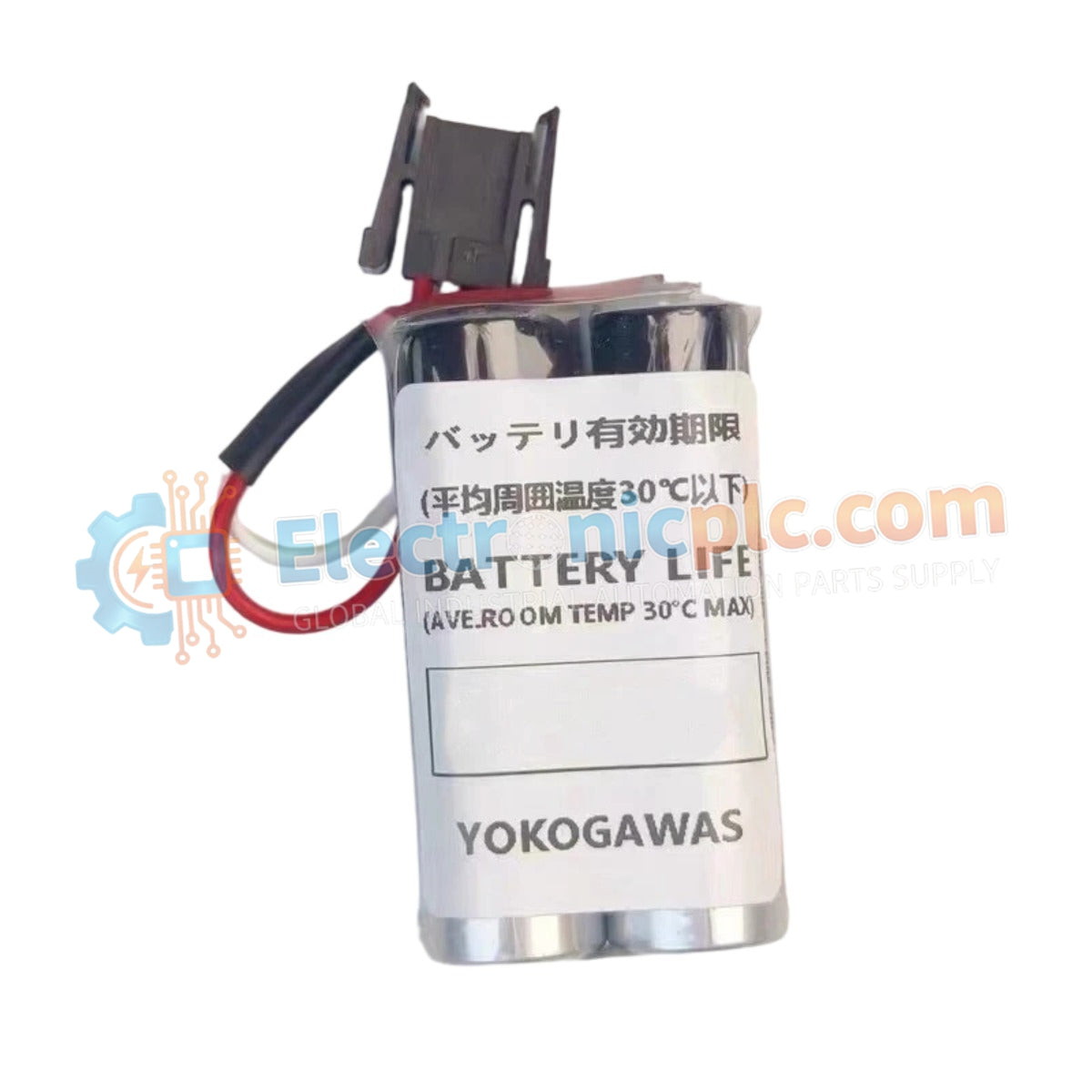

The Yokogawa S9185FA Battery Pack operates as a dedicated hardware component for power backup and energy storage within Yokogawa industrial control systems. This module provides direct electrical execution of power supply maintenance during primary utility outages, ensuring volatile memory retention and operational continuity for connected controller assemblies.

Hardware Specifications

Process Control and DCS Connectivity

The S9185FA module is engineered for integration within DCS power distribution architectures. It utilizes internal galvanic isolation to protect the control bus from power surges and ripple currents during charging or discharging cycles. The unit is designed for fail-safe state execution, ensuring that the control system can achieve a controlled shutdown or transition to a secondary power source without data loss. Its physical design focuses on thermal dissipation and reliable electrical contact, which are essential for maintaining stable voltage levels across the backplane during transient conditions.

Frequently Asked Questions

Q: Does the S9185FA support hot-swapping under normal operational conditions?

A: No, the S9185FA is not designed for hot-swapping. The host station must be powered down or placed in a defined maintenance mode to prevent electrical arcing or system voltage fluctuations during module removal or installation.

Q: How can the health of the battery pack be monitored?

A: System health is managed via the controller diagnostic software, which tracks discharge cycles and voltage thresholds. If the module reports a low-voltage status outside of operational parameters, it must be replaced to ensure system uptime.

Field Installation Guidelines

• Verify that the controller rack is de-energized prior to seating the S9185FA module into the designated slot.
• Ensure proper alignment of the power interface connectors; avoid mechanical force that may distort the pin assembly.
• Secure the module using the front-panel captive screws to establish a consistent path to the chassis ground and ensure resistance to mechanical vibration.
• Separate power cabling from sensitive low-voltage signal wiring to avoid electromagnetic interference.
• Adhere to local hazardous material handling guidelines for the disposal of spent battery units.
