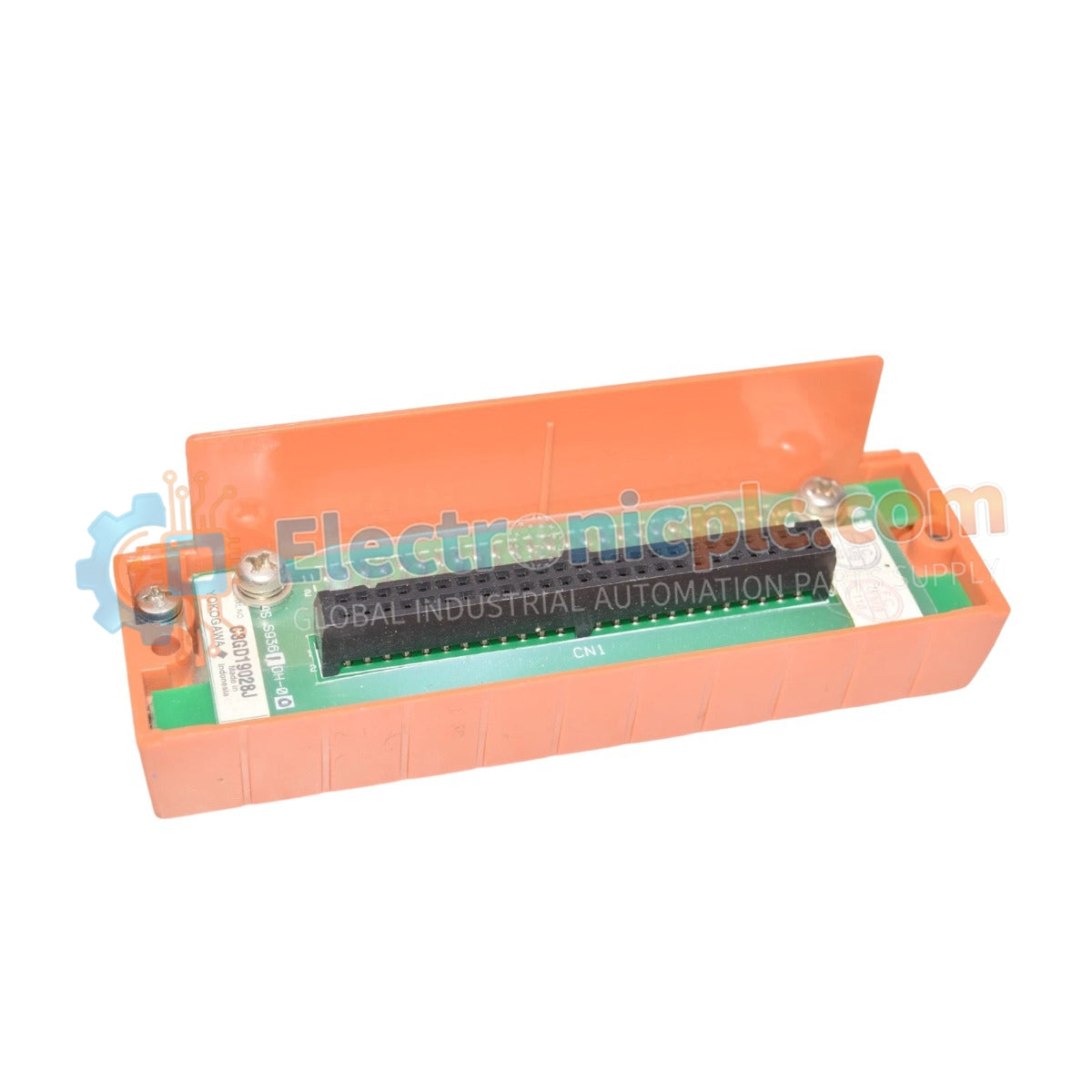

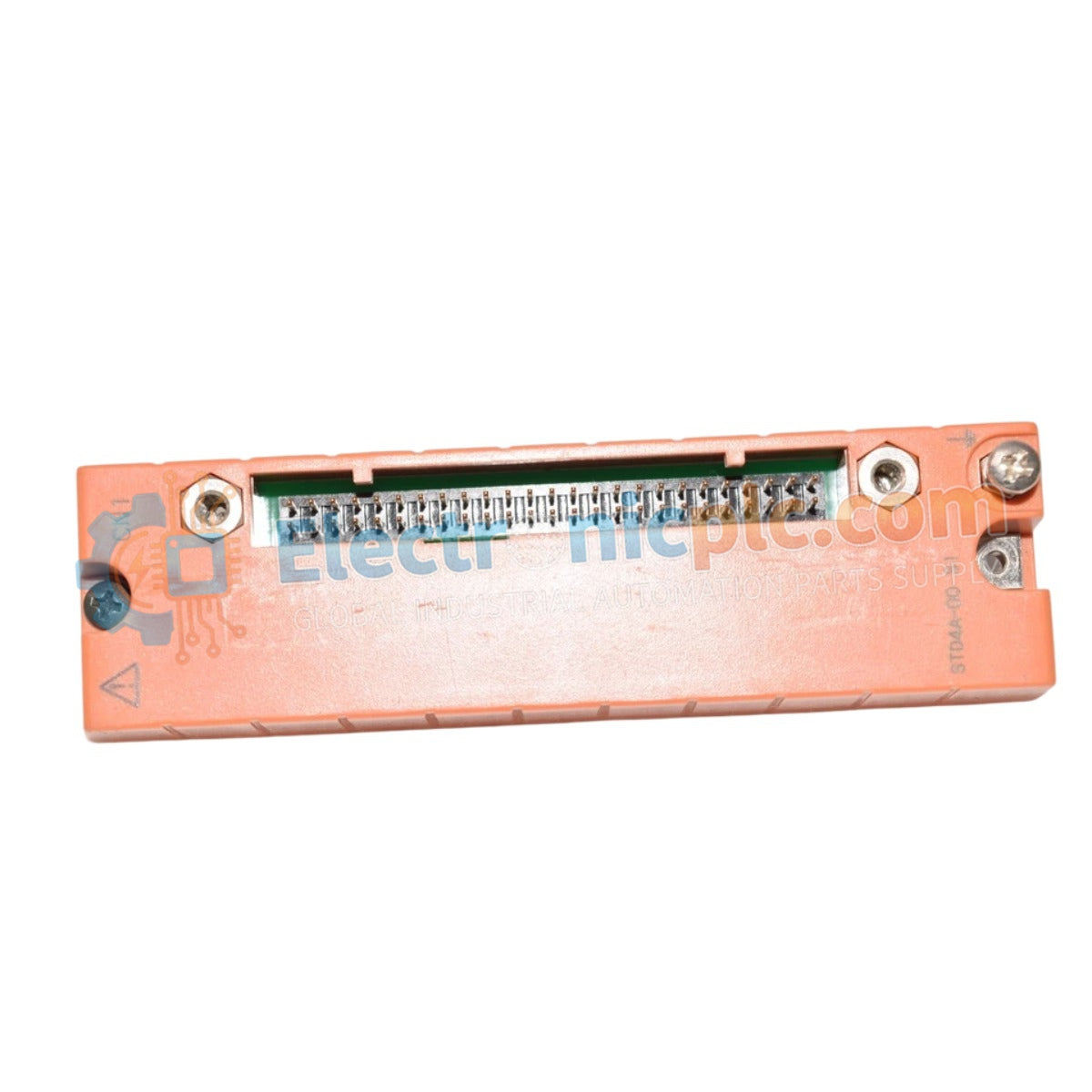

The Yokogawa S9361DH-00, also cataloged as the S9361DH Terminal Board, serves as the primary S9361DH signal distribution component utilized to execute field wiring termination and signal conditioning across Centum and ProSafe-RS instrumentation platforms.

Hardware Specifications

Process Control and Signal Connectivity

The S9361DH-00 provides the physical interface necessary for routing process signals from field instrumentation to the DCS control hardware. As a terminal board, it is optimized for high-density signal consolidation, ensuring that loop integrity is maintained through robust contact points. The board supports standard 4-20 mA HART loop protocol connectivity, allowing for seamless integration with transmitters and final control elements while facilitating accurate data acquisition throughout the distributed control network.

Frequently Asked Questions (FAQ)

Q: Does the S9361DH-00 include integrated signal isolation or surge protection?

A: No, the S9361DH-00 is a passive terminal board designed primarily for signal routing and termination. Any required galvanic isolation, intrinsic safety barriers, or surge protection must be implemented using external modules or the primary I/O card features.

Q: Is this board compatible with both single and redundant I/O configurations?

A: Yes, the S9361DH-00 is physically compatible with Yokogawa I/O racks supporting both redundant and non-redundant configurations. Ensure the cabling harness matches the required I/O module pinout during installation to ensure correct signal mapping.

Field Installation Guidelines

• Verify that the terminal board is securely fastened to the cabinet chassis to prevent movement during maintenance activities.
• Ensure that all signal wires are properly stripped and ferruled before insertion into the terminal blocks to guarantee a low-resistance connection.
• Adhere to strict wire color-coding and identification standards during installation to simplify loop-check and troubleshooting processes.
• Maintain adequate spacing between terminal boards and power-carrying busbars to mitigate potential electromagnetic interference (EMI) that could affect the accuracy of analog signal loops.
