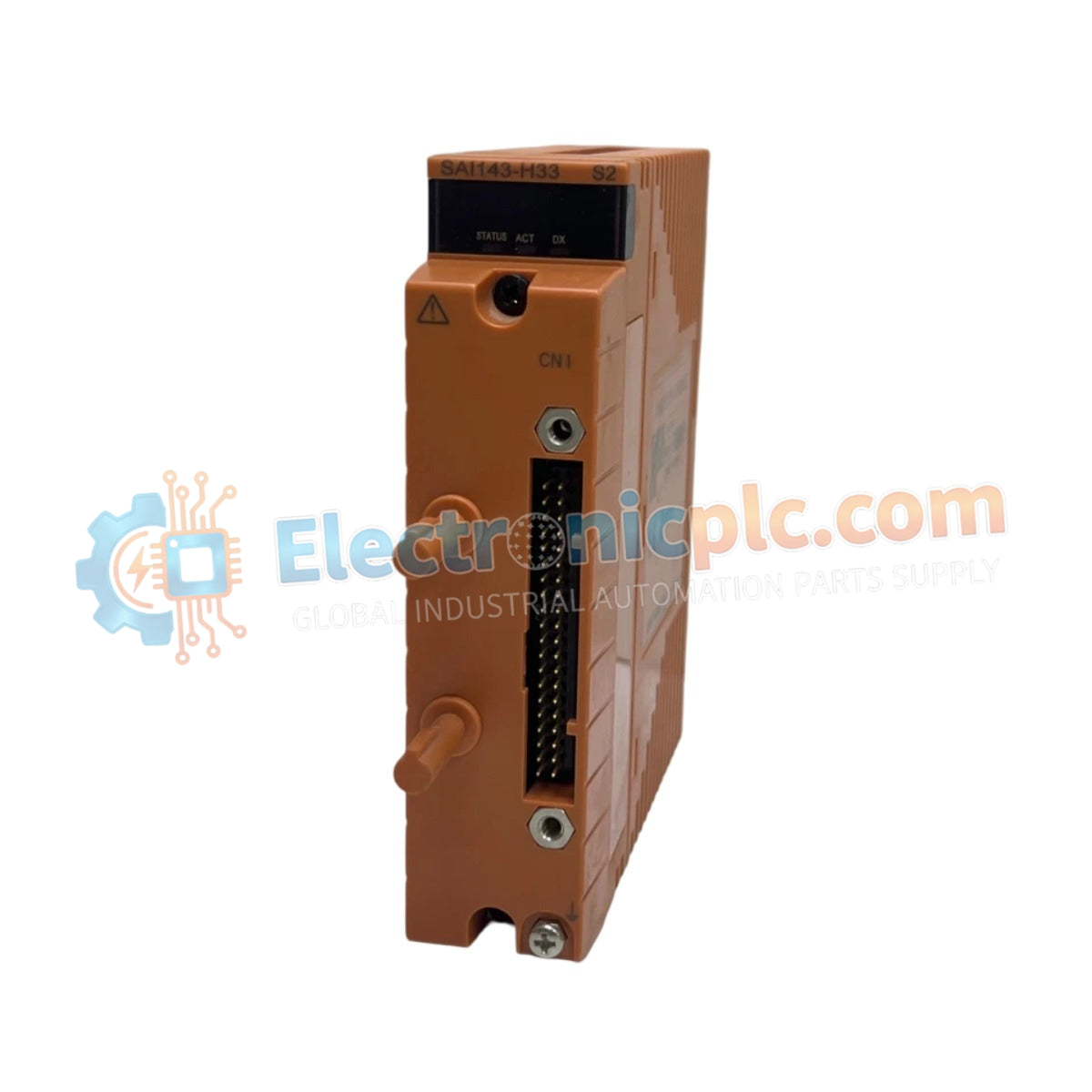

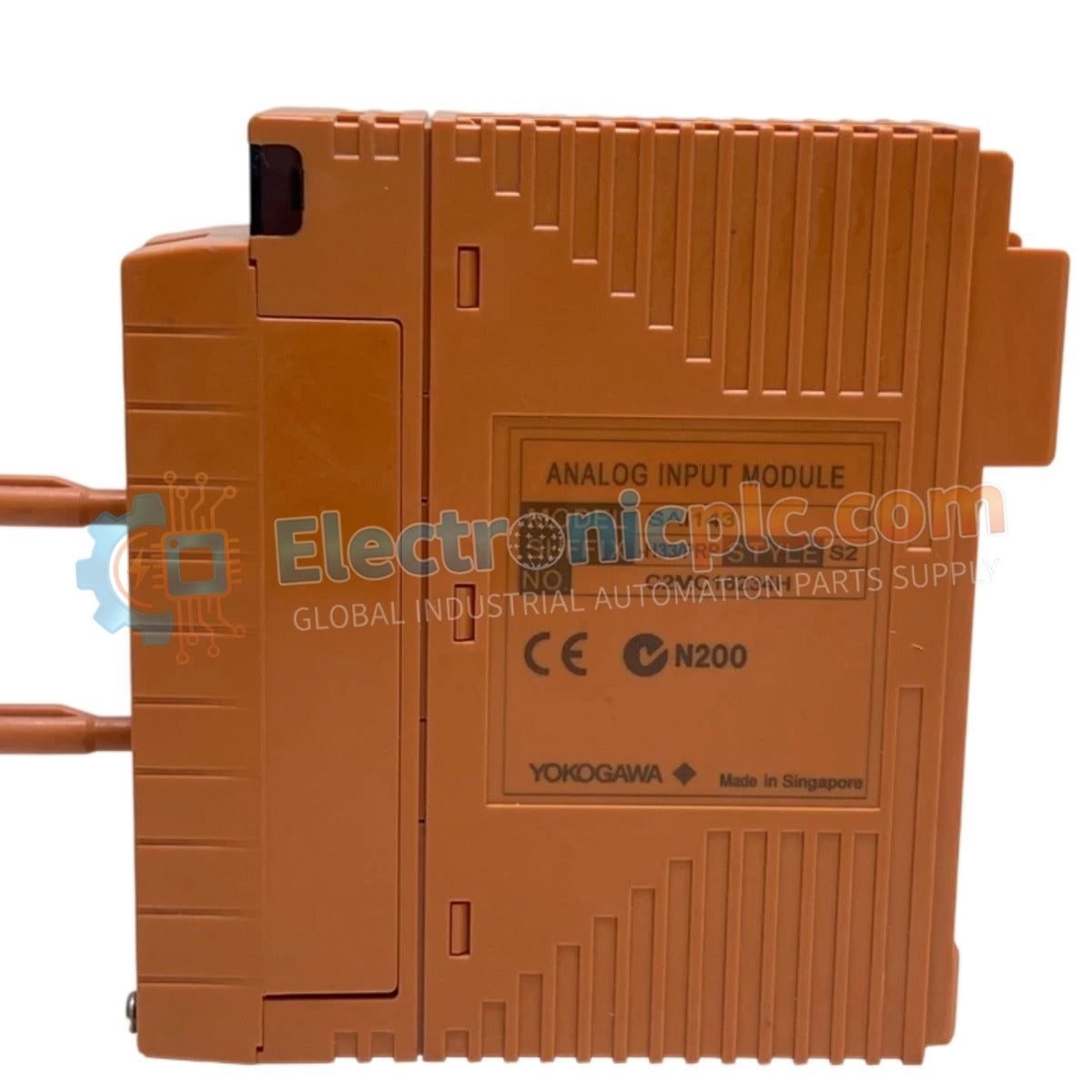

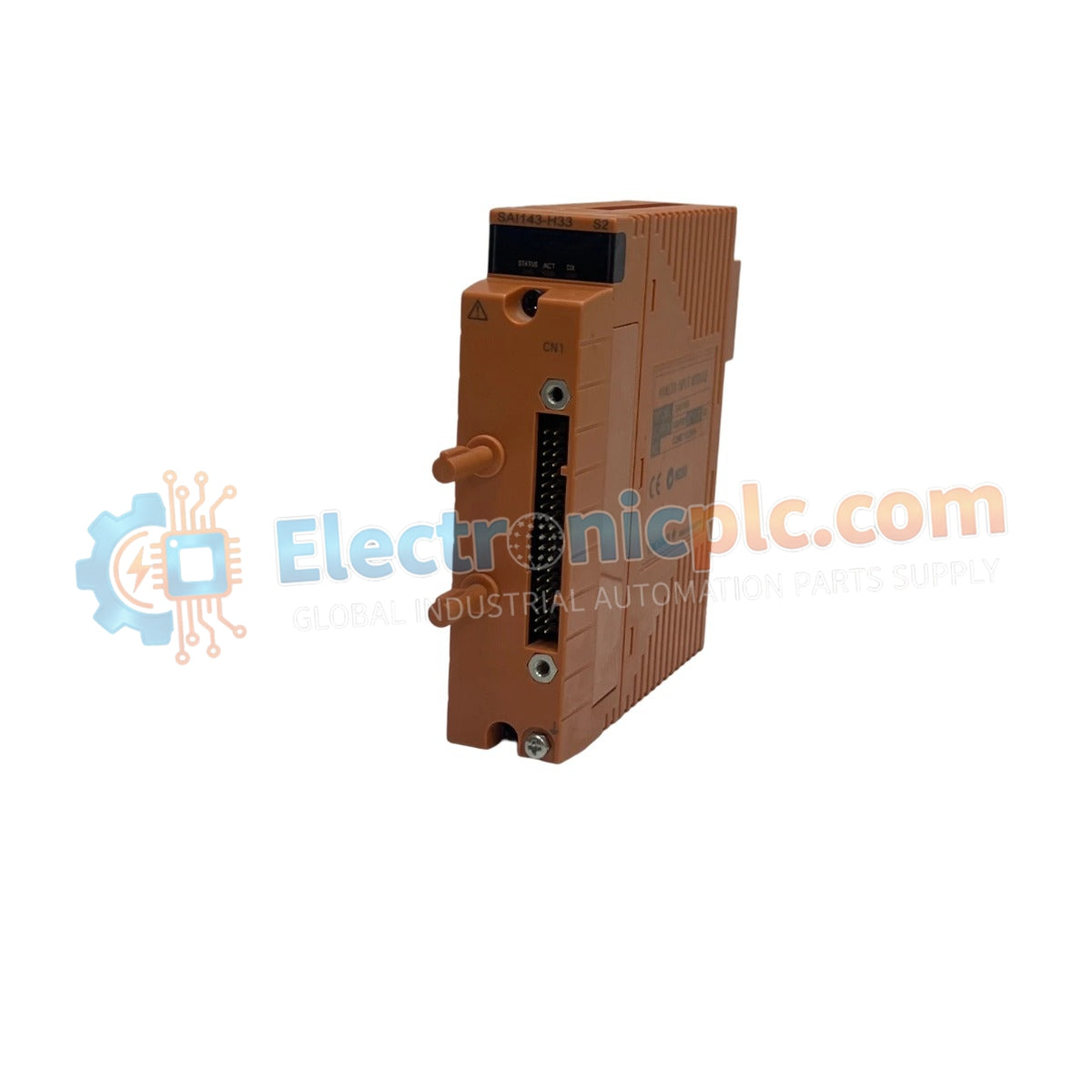

Configured for high-density signal acquisition in Yokogawa control platforms, the YOKOGAWA SAI143-H33/PRP (SAI143-H33/PRP Analog Input Module) provides direct physical and electrical interface execution for field instrumentation. This hardware component manages multi-channel analog signal processing within distributed control architectures.

Suffix Breakdown & Model Matrix

• SAI143: Base model identifier for the analog input module.
• -H: Indicates the module variant code for high-density signal integration.
• 33: Specifies the terminal board connection type and signal range configuration.
• /PRP: Designates the specific version supporting high-availability or specialized redundancy features within the signal loop.

Hardware Specifications

Process Control Instrumentation Connectivity

The SAI143-H33/PRP utilizes 4-20 mA HART loop protocol connectivity to ensure data fidelity between field transmitters and the DCS controller. The module provides per-channel channel-to-channel isolation, preventing common-mode noise and electrical interference from propagating across the signal bus. This isolation is critical for maintaining the accuracy of measurement loops in environments with significant electromagnetic noise.

Frequently Asked Questions

Q: Can the SAI143-H33/PRP be configured for redundant signal processing?

A: Yes, when deployed in pairs on a compatible base plate, the module supports redundancy configurations that ensure signal continuity if a primary channel or module failure occurs.

Q: What is the maximum load resistance supported by this input module?

A: The load resistance must remain within the specified range for the connected 4-20 mA loop to ensure the voltage drop across the transmitter and wiring does not exceed the power supply limits of the module interface.

Field Installation Guidelines

• Ensure the host cabinet power is isolated before seating the module onto the dedicated base plate.
• Verify proper shielding of field cables; the drain wire must be grounded at a single point to prevent ground loops that could introduce signal bias.
• Align the backplane connector precisely to avoid bent pins, applying uniform pressure until the locking mechanism is engaged.
• Confirm that the terminal board wiring matches the pinout requirements for the -H33 configuration to prevent input polarity reversal.
• Utilize the system engineering software to perform a channel diagnostic and loop test following physical installation to verify signal accuracy.
